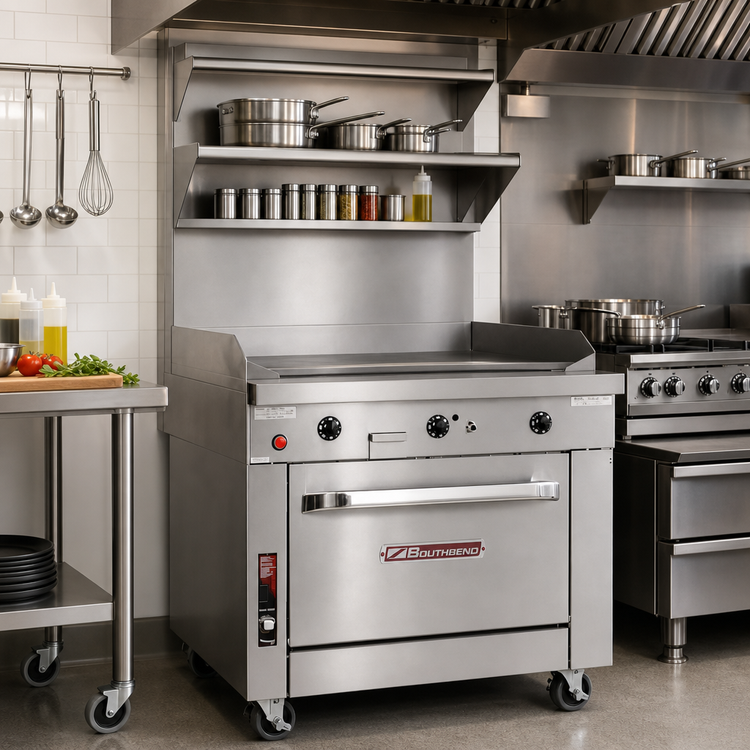

Southbend Platinum 48-Inch Modular Gas Sectional Range with Full-Width Thermostatic Griddle

1-Inch Thick Plate, Battery Spark Ignition, Stainless Steel Construction

Built for high-volume kitchens, this 48-inch modular gas range delivers a full-width thermostatic griddle, 128,000 BTU output, and rugged stainless steel construction.

  • 48-inch modular sectional range with a full-width thermostatic griddle
  • 1-inch thick griddle plate with side and rear splashers for cleaner operation
  • 128,000 BTU natural gas output with battery spark ignition
  • Stainless steel front, sides, rear, and exterior bottom for durability
  • Designed for countertop, refrigerated-base, or freezer-base mounting
  • Removable stainless steel grease drawer and 9-1/4-inch deep front rail

Overall Dimensions:

48.0"W x 37.5"D x 13.5"H

Product Weight:

500.0 lb

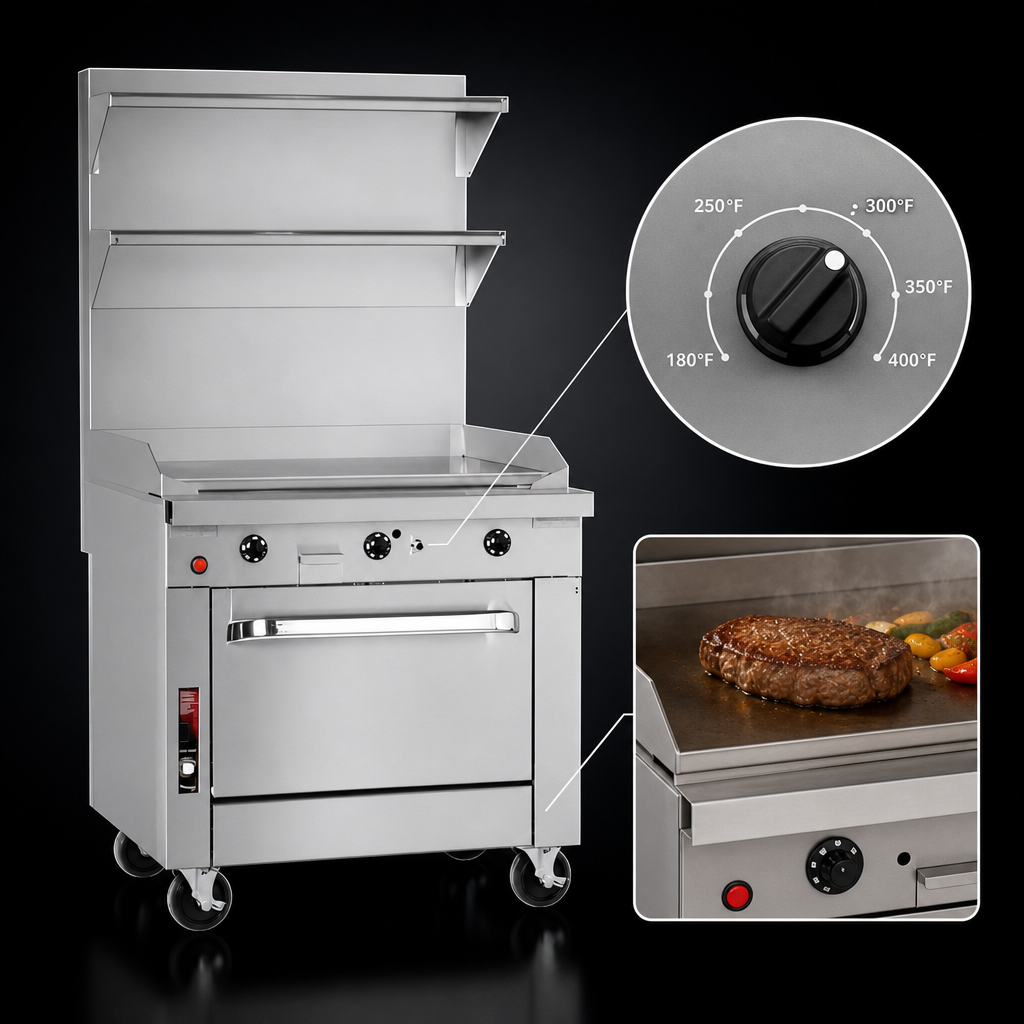

Thermostatic Griddle Control

Insta-On thermostatic control regulates the griddle surface temperature from 180°F to 400°F.

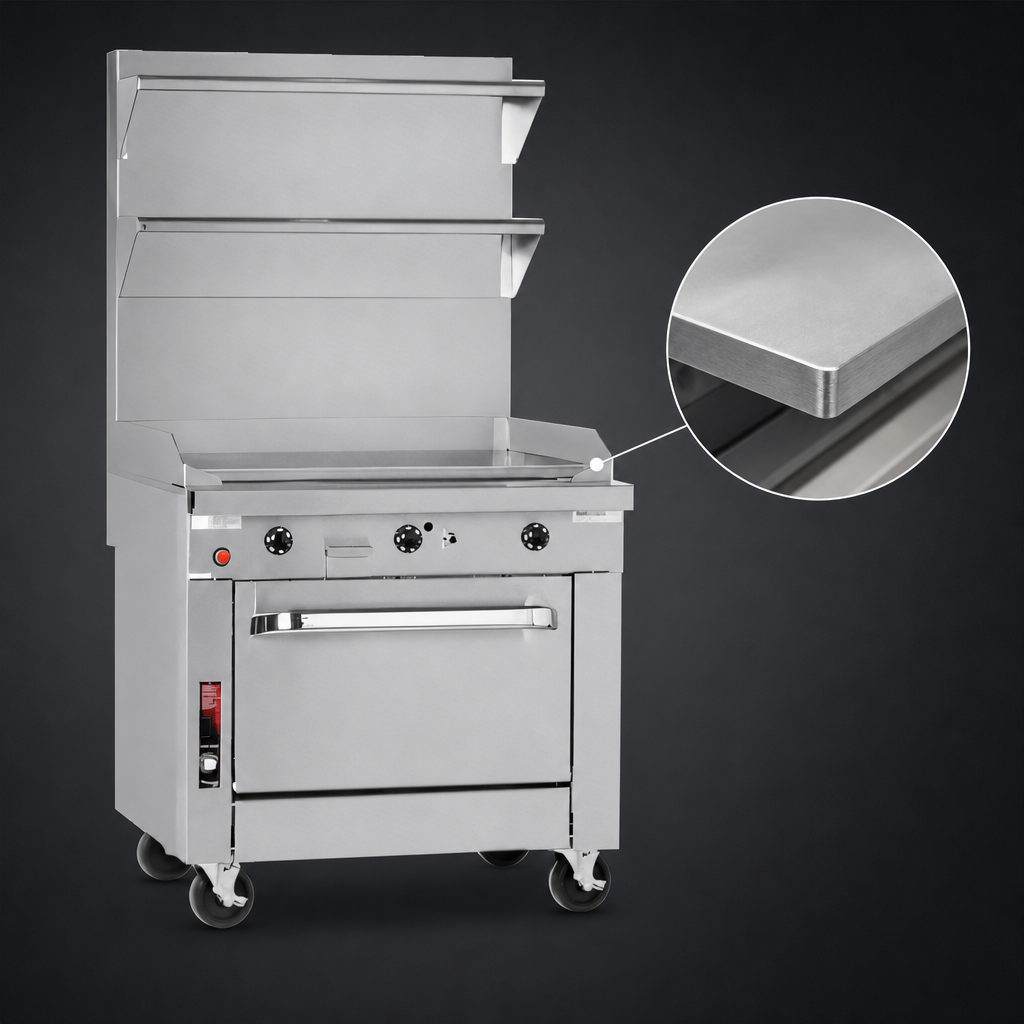

1-Inch Thick Griddle Plate

Heavy-duty stainless steel griddle surface is built for durability and heat retention.

128,000 BTU Natural Gas Output

High-output gas design delivers strong performance for demanding commercial cooking.

Modular Mount Design

Built to mount on a countertop, refrigerated base, or freezer base.

Stainless Steel Construction

Stainless steel front, sides, rear, and exterior bottom support long-term durability and easier cleanup.

Battery Spark Ignition

Battery spark ignition simplifies startup without requiring an external electric ignition system.

Grease Management

A removable stainless steel grease drawer and side/rear splashers help contain grease and debris.

Service-Friendly Gas Connections

The unit uses a 1-1/4-inch front manifold connection and a 1-inch rear gas connection.

Type Sectional Range
Style Modular
Installation Type Countertop
Controls Thermostatic
Cooking Surface Width 48 Inches
BTU 128,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inches Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Minimum
Material Stainless Steel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 500 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

P48N-TTTT is a natural gas model. The family is rated at 128,000 BTU on natural gas and 112,000 BTU on propane.
The Insta-On thermostatic control adjusts the griddle surface temperature from 180°F to 400°F.
No. P48N-TTTT is a modular mount griddle model intended for countertop, refrigerated-base, or freezer-base installation.
No. The document states that a regulated gas supply is required and the pressure regulator must be ordered separately.
It has a 1-1/4-inch front manifold connection and a 1-inch rear gas connection with a male NPT connector.
It includes side and rear splashers plus a removable stainless steel grease drawer.
