Southbend (Middleby)  |  Platinum  |  SKU: P48N-PPPP

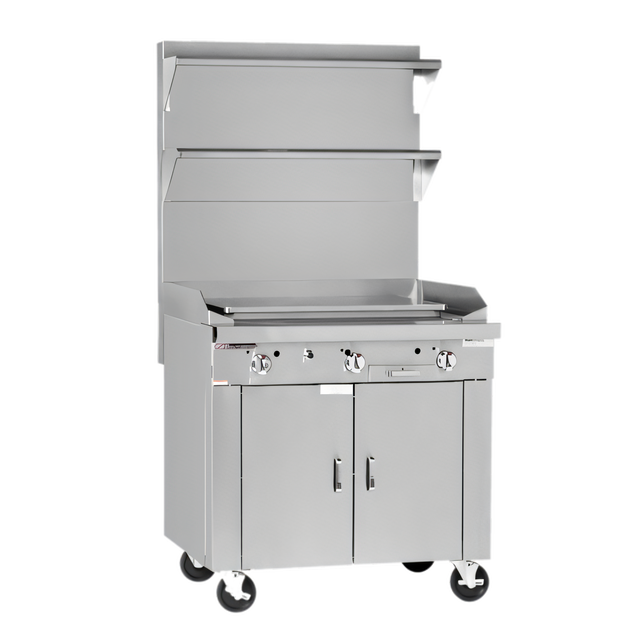

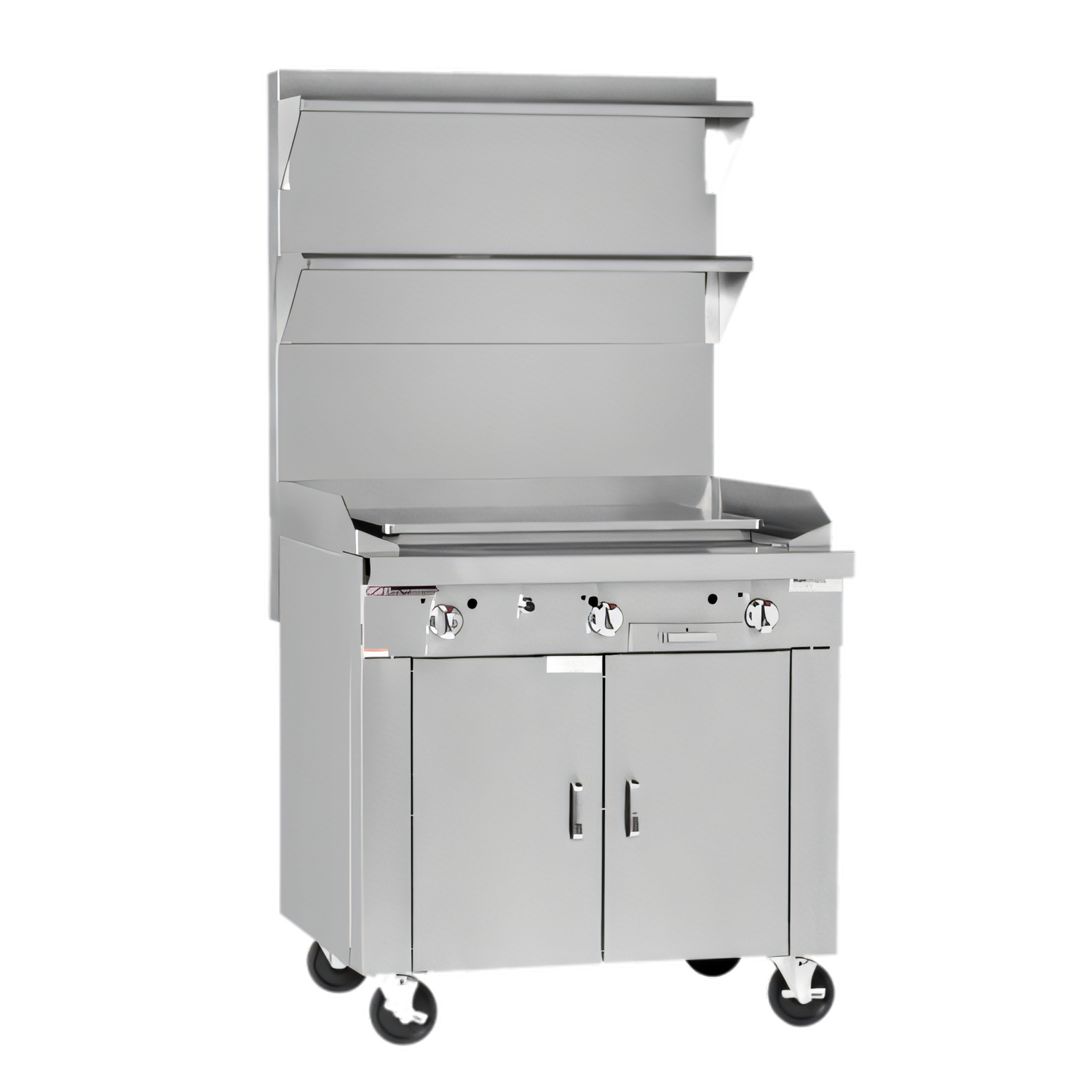

Southbend (Middleby) P48N-PPPP Platinum Gas Ranges

$11,322.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

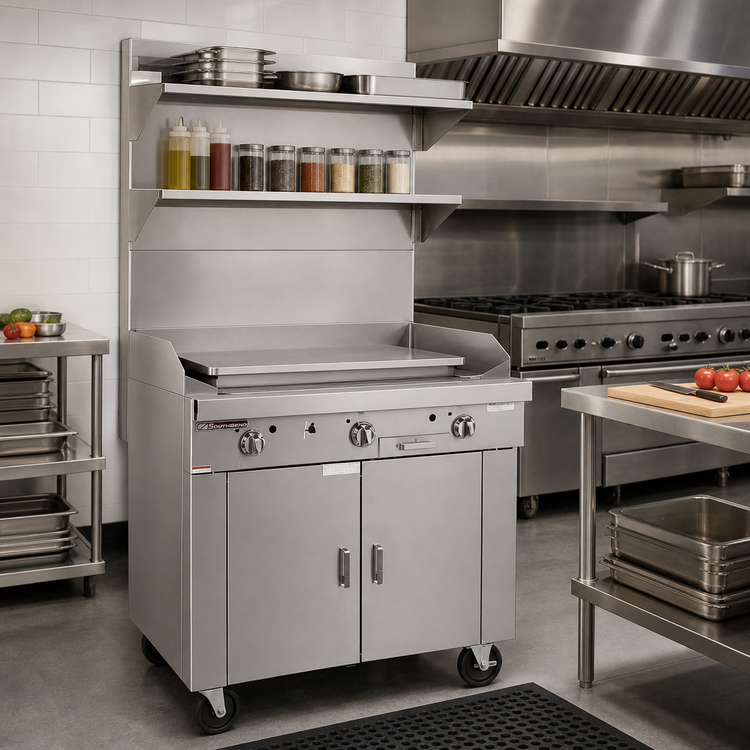

Southbend Platinum Heavy-Duty 48" Modular Plancha Range

Model P48N-PPPP | 64,000 BTU Natural Gas

Designed for the most demanding commercial kitchens, the Southbend Platinum Plancha delivers searing power up front and a finishing zone in the rear—perfect for everything from breakfast hash to late-night tapas. Its modular design lets you drop premium plancha performance into any custom cookline.

Key Performance Features

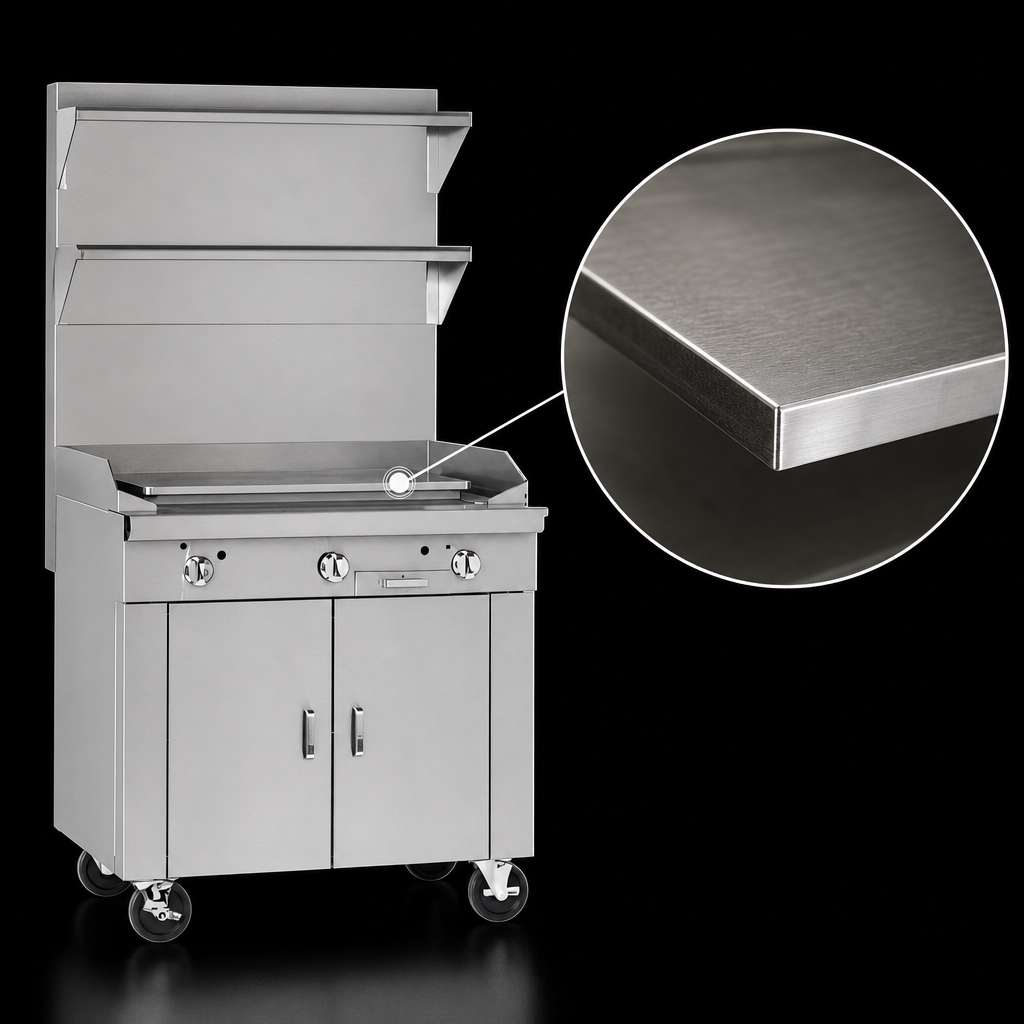

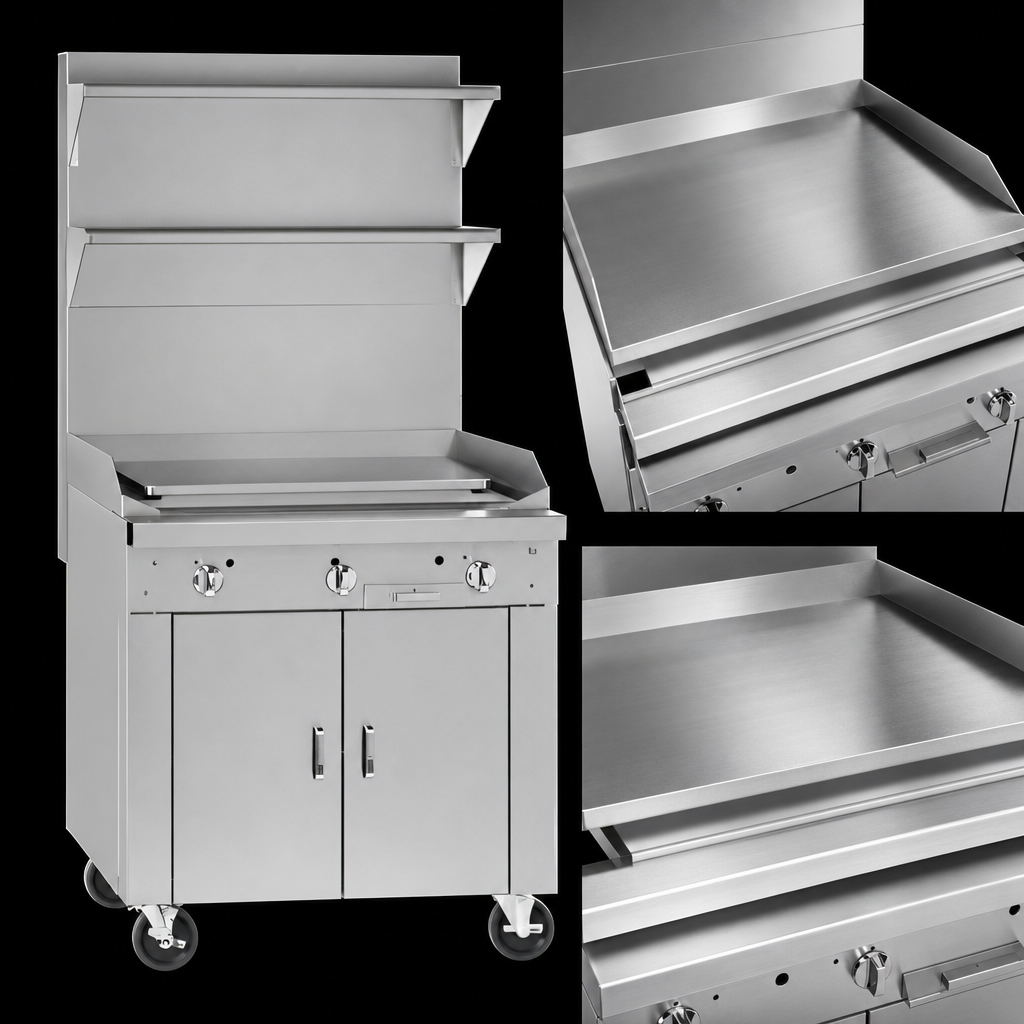

  • 41 ¾"-wide, ½"-thick reinforced steel plancha plate reaches 800 °F for lightning-fast preheat and recovery.
  • Four heavy-duty cast-iron burners (16,000 BTU each) with independent manual controls.
  • Reliable battery-spark ignition—no external power required.
  • Two-zone cooking: high-heat sear in the front ⅔, lower finish/hold zone in the rear ⅓.
  • 3" side channels and an oversized removable stainless grease drawer keep the surface clear between loads.
  • 5" deep, stay-cool front rail doubles as a plating shelf.
  • Durable stainless steel front, sides, rear and exterior bottom for easy cleanup and long service life.
  • 5" stainless flue riser directs heat efficiently into the hood.
  • Modular footprint mounts on a refrigerated, freezer or open-frame base—ideal for battery cooklines.
  • Certified to CSA & NSF standards.

Specifications

Cooking surface 41 ¾" W plancha plate
Plate thickness ½" reinforced steel
Overall width 48"
Overall depth 37 ½"
Overall height 34" (with 5" flue riser)
Total input 64,000 BTU/hr (Natural) • 62,000 BTU/hr (Propane)
Burners 4 × 16,000 BTU cast-iron tube burners
Controls 4 manual gas valves
Ignition Battery spark
Gas connections 1 ¼" front manifold • 1" rear NPT
Shipping weight Approx. 500 lb
Clearances 0" sides & rear (non-combustible) • 10" sides & 12" rear (combustible)
Warranty 1-year parts & labor

Popular Options (sold separately)

  • 24" or 36" flue riser with single or double shelves
  • Extra-deep rear-extending flue riser
  • Casters or open-frame base with casters
  • Square belly bar or 7 ¼" deep front rail
  • Cable-restraint kit for mobile installations
Important: Plancha units operate as a single heat zone and do not provide specific temperature settings. For commercial use only.

Want easy monthly payments? Ask about Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

13.5in

Width

48.0in

Depth

37.5in

Shipping Weight

500.0lbs

Top

(1) plancha griddle

Base

modular

Plate Thickness

.500" = 1/2"

Exterior Finish

stainless steel front & sides

Specifications

Platinum Heavy Duty Range, gas, 48", modular, 41-3/4" plancha, 1/2" thick plate, manual controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 64,000 BTU, CSA, NSF
