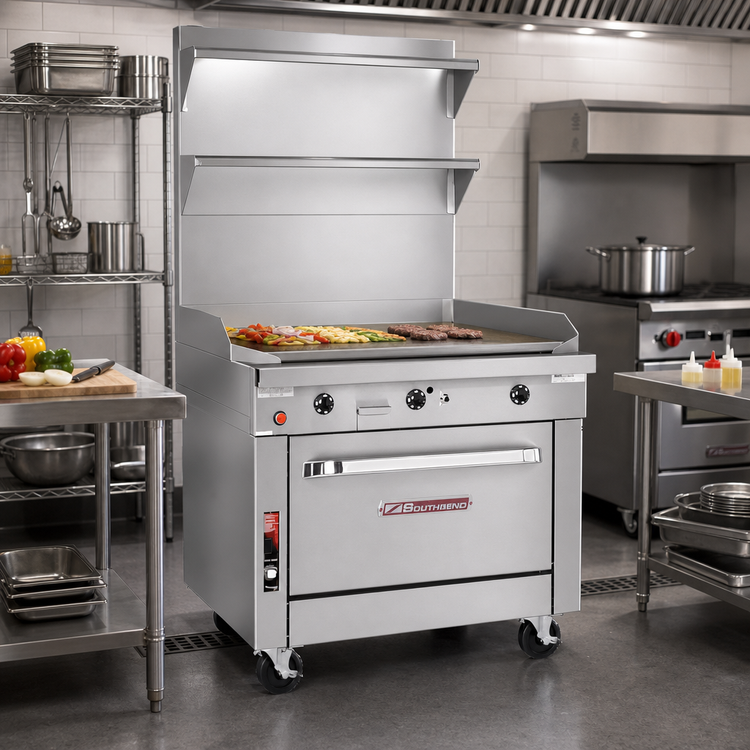

Southbend Platinum 48-Inch Modular Commercial Gas Range with Full-Width Manual Griddle

Natural Gas, 1-Inch Griddle Plate, Stainless Steel Construction

Built for high-volume kitchens, this 48-inch modular gas range delivers a full-width manual griddle with rugged stainless steel construction and battery spark ignition.

  • 48-inch modular sectional range with a full-width manual griddle.
  • 1-inch thick griddle plate with side and rear splashers for heavy-duty production.
  • 128,000 BTU natural gas output for demanding commercial cooking.
  • Battery spark ignition for reliable startup.
  • Stainless steel front, sides, rear, and exterior bottom for durability.
  • Removable stainless steel grease drawer helps simplify cleanup.
  • Designed for modular mounting on a countertop, refrigerated base, or freezer base.

Overall Dimensions:

48.0"W x 37.5"D x 13.5"H

Product Weight:

500.0 lb

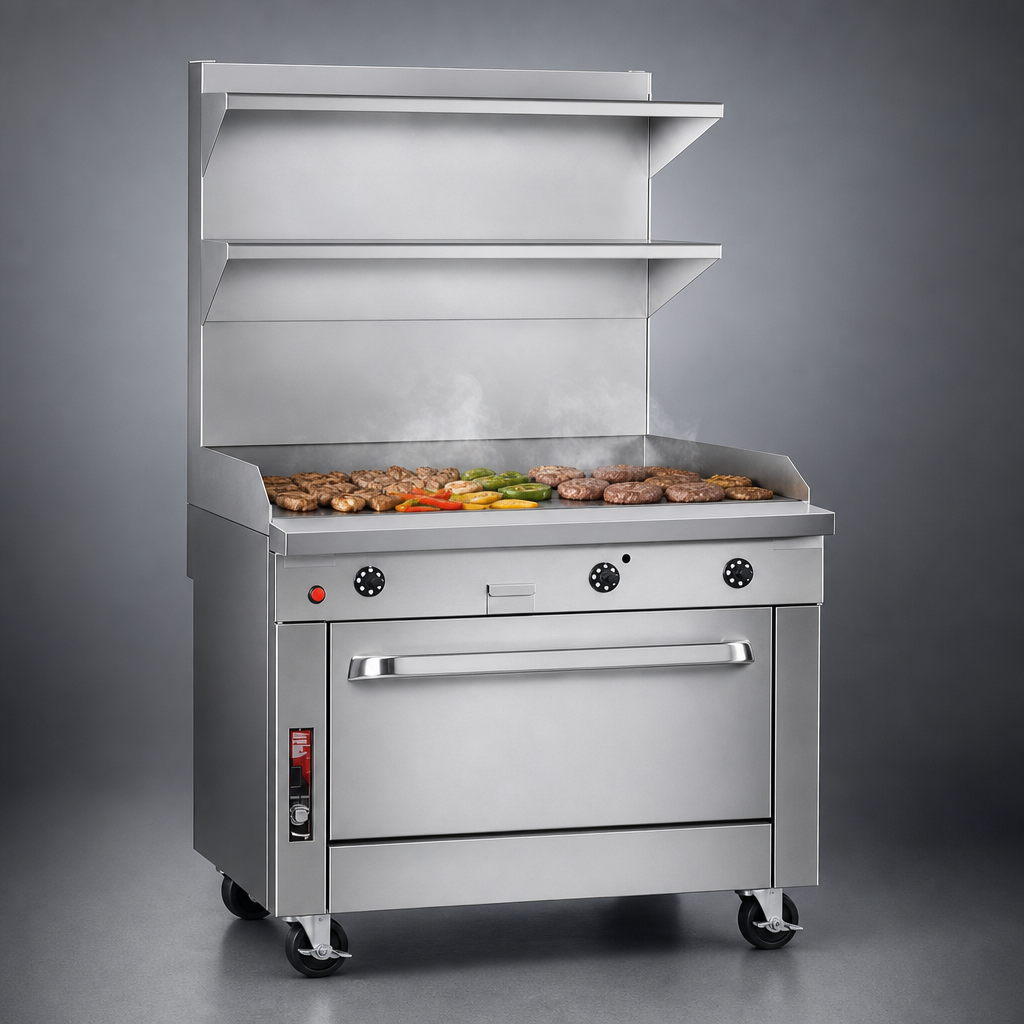

Full-Width Manual Griddle

A 48-inch griddle spans the full width of the range for large-batch cooking and service.

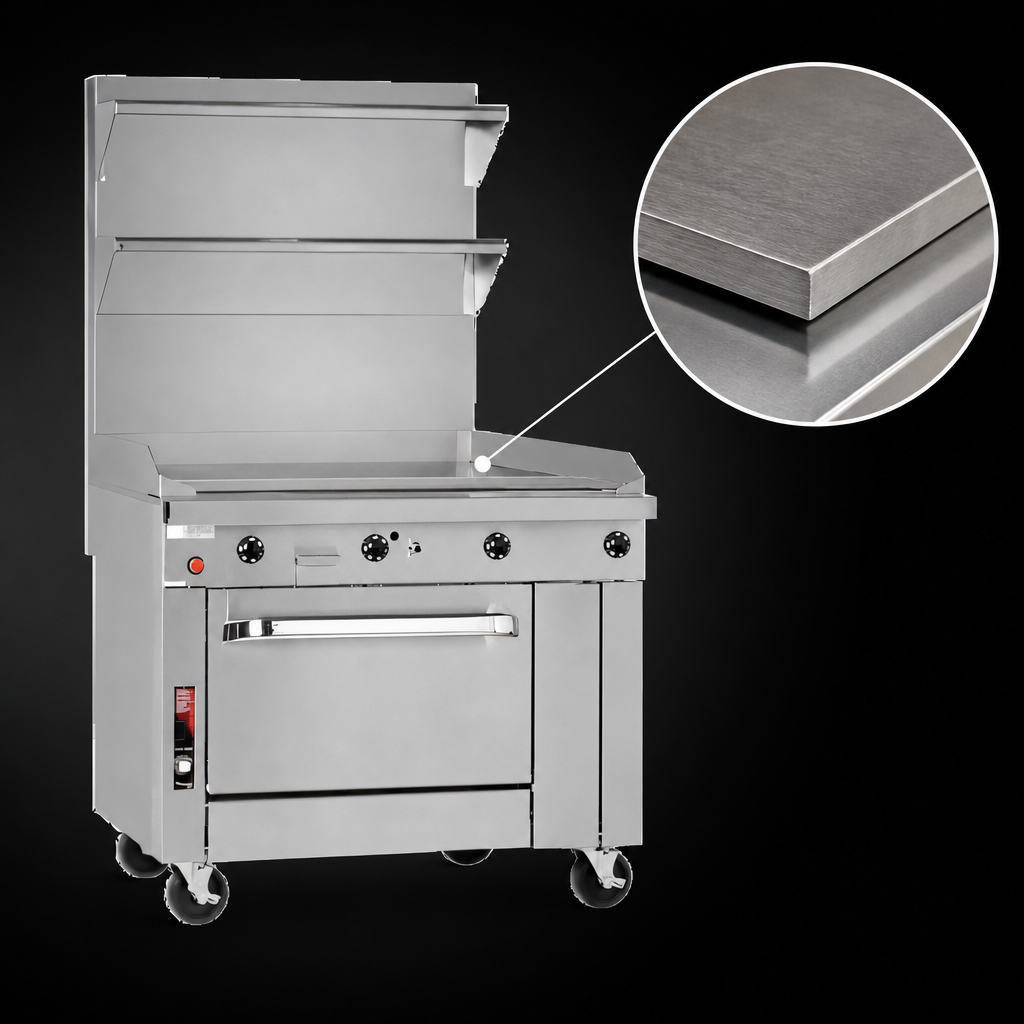

1-Inch Thick Griddle Plate

Heavy plate construction helps retain heat and withstand repeated commercial use.

Battery Spark Ignition

Provides dependable ignition without relying on a standing pilot for the griddle section.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleaning.

Removable Grease Drawer

Collects grease and simplifies daily cleanup.

Side and Rear Splashers

Helps contain grease and food runoff around the griddle surface.

Modular Mount Design

Configured as a modular unit for mounting on a countertop, refrigerated base, or freezer base.

Adjustable Stainless Steel Legs

6-inch adjustable legs are standard for leveling and installation.

Front Manifold and Rear Gas Connection

Includes a 1-1/4-inch front manifold and a 1-inch rear gas connection for battery installation.

Type Sectional Range
Style Manual Griddle
Installation Type Countertop
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 128,000 BTU
Gas Type Natural Gas
Gas Connection Size 1 Inch Rear NPT
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 55 Inches
Shipping Height 23 Inches
Shipping Weight 500 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and 1-year labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model uses manual griddle controls; manual griddles do not allow specific temperature operation.
This model is designed for natural gas and is rated at 128,000 BTU.
It is a modular mount unit designed for use on a countertop, refrigerated base, or freezer base.
The unit has a 1-1/4-inch front manifold and a 1-inch rear gas connection. Minimum gas supply pressure is 7 inches W.C. for natural gas, and a regulated gas supply is required.
Yes. Installation under a vented hood is recommended.
