Southbend (Middleby) P48N-CCCC Platinum Gas Ranges
Description
Southbend Platinum Series 48" Modular Charbroiler Range
Model P48N-CCCC | 128,000 BTU Gas | CSA & NSF ListedBuild serious fire-power into any cook-line without giving up precious floor space. The Platinum 48" Modular Charbroiler Range delivers a true steak-house sear with eight high-performance burners, cast-iron grates, and full stainless construction that stands up to the toughest commercial kitchens.
Why You’ll Love It
- Blistering heat on demand – eight 16,000 BTU burners (natural gas) provide a combined 128,000 BTU.

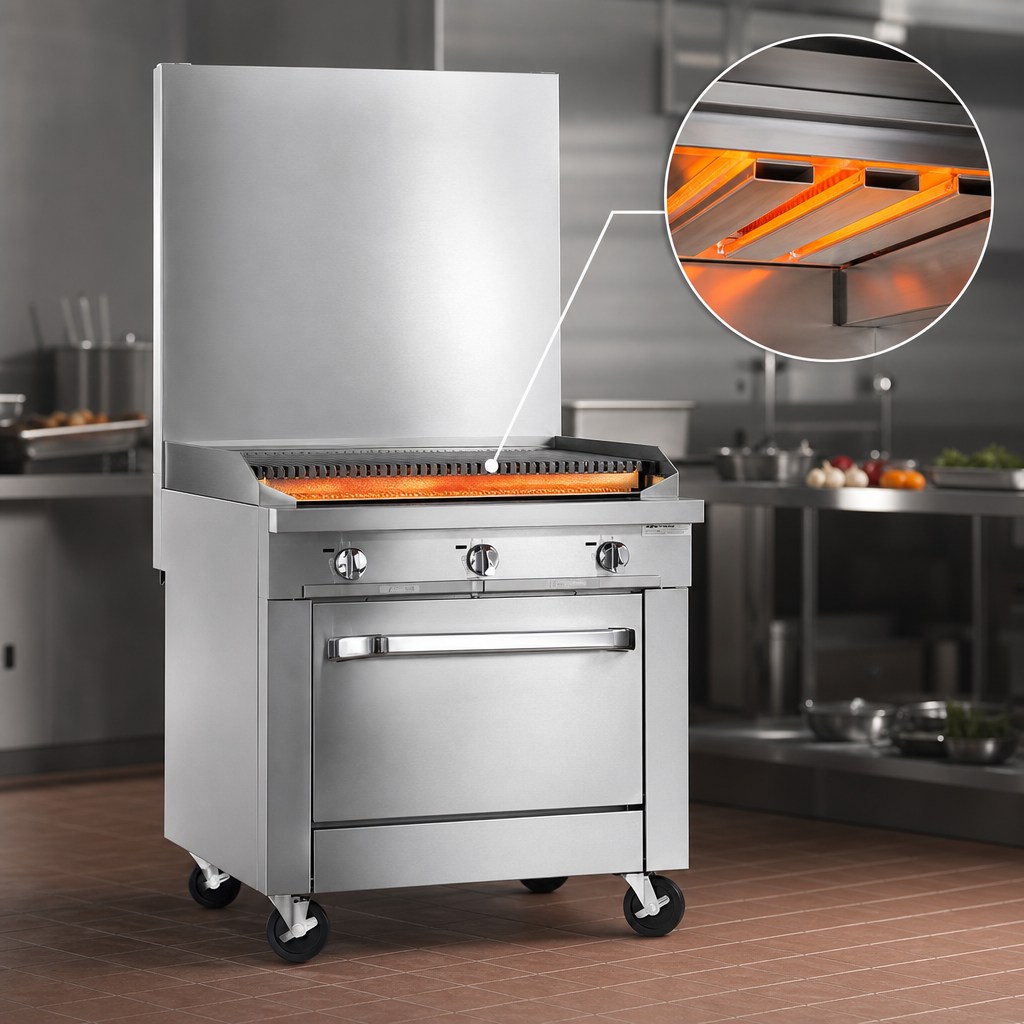

- Even, repeatable results – stainless-steel radiants spread heat uniformly for a 600 °F (315 °C) cooking surface.
- True heavy-duty grates – reversible cast iron with adjustable slope; choose 1/8" or 1/4" grid spacing for signature marks.
- Space-saving modular design – drops on a counter, chef base, or refrigerated base; no legs or oven beneath.
- Kitchen-tough build – stainless front, sides, rear, and bottom plus a fully-insulated burner box.
- Clean-ups made easy – 9-1/4" deep front rail and a full-width removable drip tray catch every spill.
- One-turn control – four front-mounted high/low manual valves give chefs instant zone control.
- Ready for a battery – 1-1/4" front gas manifold mates seamlessly with other Southbend sectional units.
- Peace of mind – backed by a 1-year limited parts & labor warranty and free battery-design assistance.
Technical Specifications
| Model | P48N-CCCC (Modular Mount) |
|---|---|
| Overall Width | 48" / 1219 mm |
| Overall Depth | 37-1/2" / 953 mm |
| Front Rail Depth | 9-1/4" / 235 mm |
| Total BTU (Natural Gas) | 128,000 BTU/hr |
| Burners | 8 × 16,000 BTU cast iron, high/low control |
| Gas Connections | 1-1/4" NPT front manifold, 1" NPT rear |
| Maximum Surface Temp. | 600 °F / 315 °C |
| Cooking Surface | Full-width charbroiler with reversible cast-iron grates |
| Construction | Stainless steel front, sides, rear & bottom; insulated lining |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
| Shipping Weight | 276 lb / 125 kg |
Popular Factory Options (Sold Separately)
- External pressure regulator
- 24" or 36" flue riser
- Front casters & cable restraint kit
- Overlapping or plated fish grids
- Open-frame base for battery installations
• Never cover charbroiler grates with a sheet pan while burners are lit – doing so can cause permanent damage and is not covered under warranty.
• Oversized cookware (12" Ø or larger) should be kept to the rear portion of the range to prevent excess heat build-up in the front rail.
Intended for commercial use only. Installation under a vented hood and a regulated gas supply are required. Refer to the Southbend installation manual for full details.
