Southbend (Middleby) P48N-BBBB Platinum Gas Ranges
Southbend (Middleby) P48N-BBBB Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P48N-BBBB Platinum Gas Ranges
Description
Platinum Heavy-Duty 48" Modular Range – 8 Open Burners
Southbend Model P48N-BBBB | 280,000 BTU | Gas | CSA & NSF CertifiedBuilt for high-volume commercial kitchens, the Southbend Platinum 48" modular range delivers relentless power, rugged longevity and true menu flexibility. Eight patented 35,000 BTU clog-free burners sit beneath heavy welded-steel grates, giving chefs instant, even heat for everything from rapid boiling to low-simmer sauces. Because it is a modular top, you can drop it onto a counter, equipment stand, refrigerated base or a custom battery without paying for an oven you don’t need.
Key benefits at a glance
- Eight open-top burners, 35,000 BTU each (280,000 BTU total).
- Patented clog-free design keeps flame ports clear – no downtime for cleaning.
- Manual, front-mounted burner controls for instant flame adjustment.
- 9-1/4" extra-deep front rail doubles as plating & resting space.
- Full-width drip tray pulls out for quick end-of-shift clean-ups.
- 5" stainless flue riser directs heat & grease vapors into the hood.
- Stainless steel front, sides, rear & exterior bottom resist corrosion in the toughest kitchens.
- Fully insulated burner box reduces heat transfer to surrounding equipment.
- Ships with 6" adjustable stainless legs (remove for countertop drop-in applications).
- Free battery-design assistance from Southbend engineers.
- One-year parts & labor warranty backed by a nationwide service network.
Technical specifications
| Gas type | Natural or Propane (field convertible) |
|---|---|
| Total input | 280,000 BTU/hr |
| Burners | 8 × open, 35,000 BTU each |

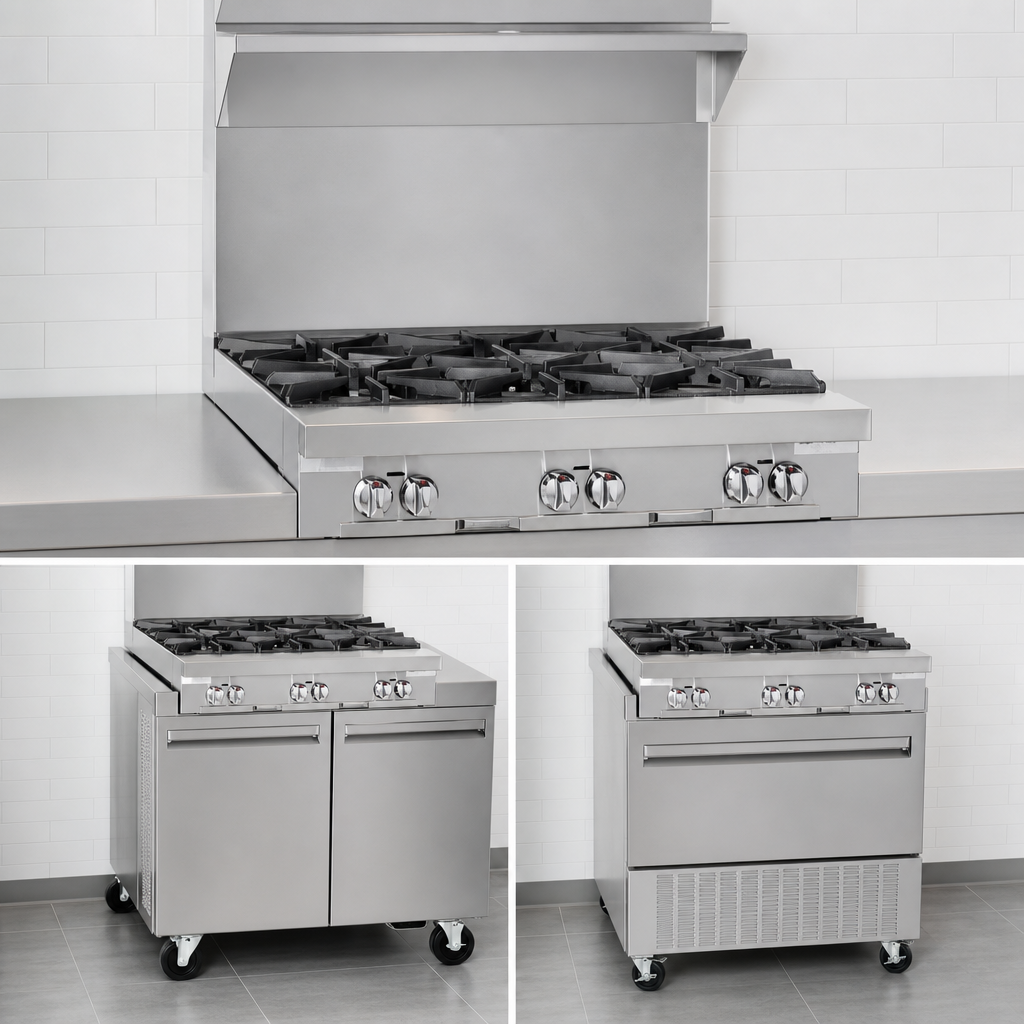

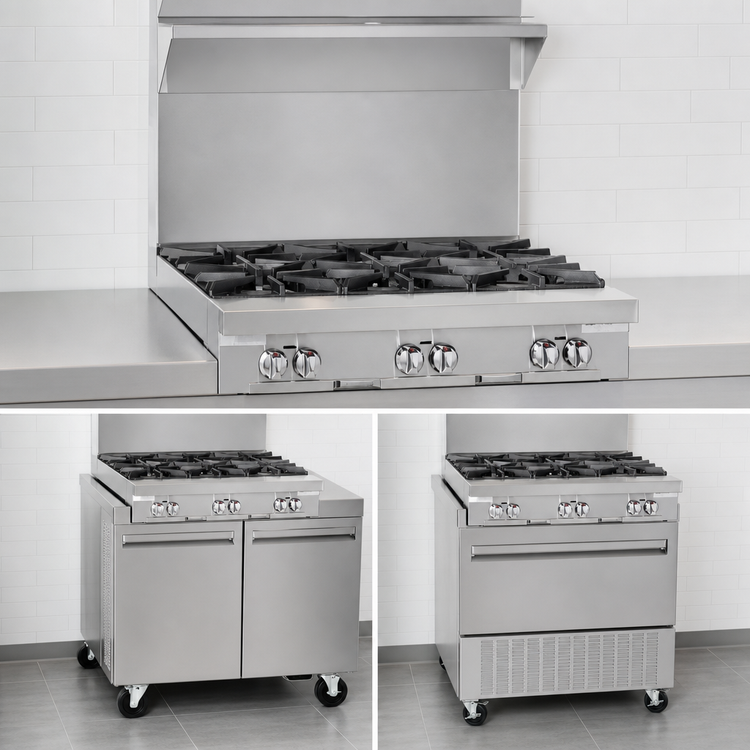

| Mount style | Modular (countertop / equipment-stand drop-in) |
| Overall width | 48" / 1219 mm |
| Overall depth | ≈41" / 1041 mm |
| Height (with 5" flue) | ≈37-1/2" / 953 mm |
| Front gas manifold | 1-1/4" NPT (couples to adjoining sections) |
| Rear gas connection | 1" male NPT |
| Min. supply pressure | 7" W.C. (NAT) | 11" W.C. (LP) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor (commercial use) |
| Shipping weight | ≈276 lb / 125 kg |
Popular factory options & accessories
- External gas pressure regulator (required for most installations).
- 7-1/4" or square belly front rail variations.
- 24" or 36" flue risers with single or double shelves.
- Battery-spark ignition for open burners (no standing pilots).
- Open-frame equipment stand with locking casters.
- Removable cast-iron grate tops.
- Salamander or cheesemelter mounted on flue riser.
Need documentation? Download full installation & operation manuals plus CAD blocks anytime at southbendnc.com.
