Southbend (Middleby) P48D-TTTT Platinum Gas Ranges
Description

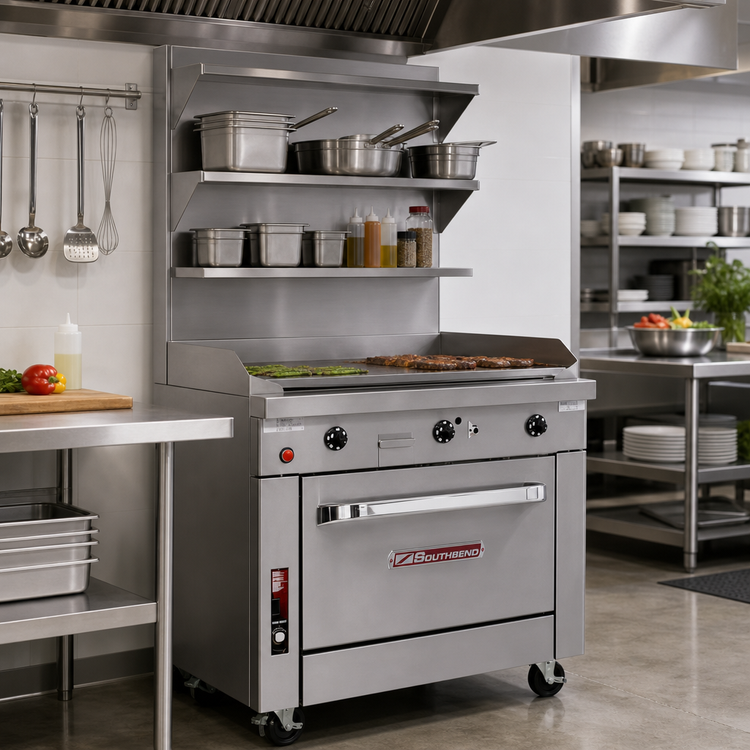

Southbend Platinum 48" Heavy-Duty Gas Range with Thermostatic Griddle & Standard Oven
Model P48D-TTTT • 173,000 BTU • cCSAus, CSA Flame, CSA Star, NSFPower, precision and rock-solid construction come together in Southbend’s Platinum Series heavy-duty sectional range. This 48" model gives you a full-width 1" thick griddle for high-output breakfast, lunch and dinner menus, plus a 45,000 BTU standard oven and a convenient 12" stainless cabinet for sheet pans, smallwares or cleaning supplies. Built to anchor the toughest cooklines, it arrives fully assembled on 6" adjustable stainless legs and ready for battery-style installation.
Why You’ll Love It

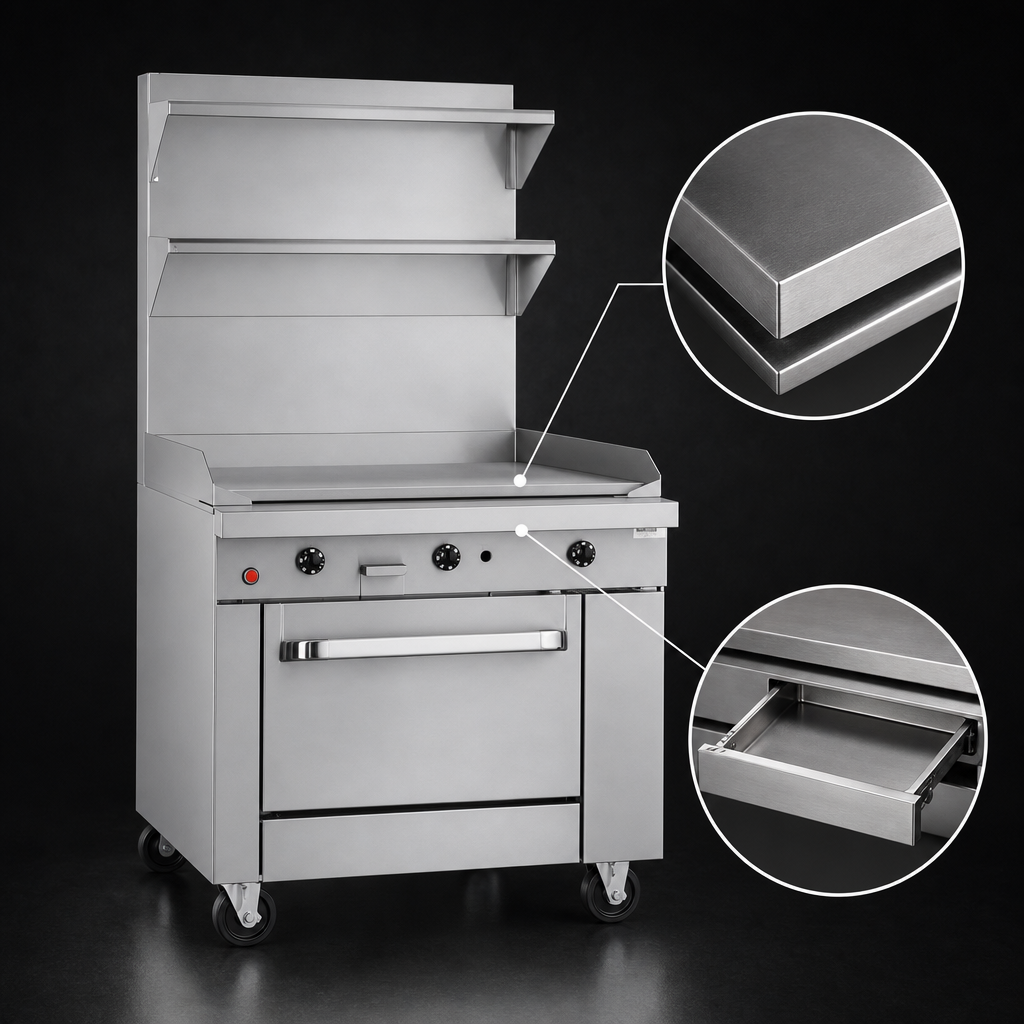

- Full-width 48" griddle with 1" thick polished surface for superior heat retention and even searing.

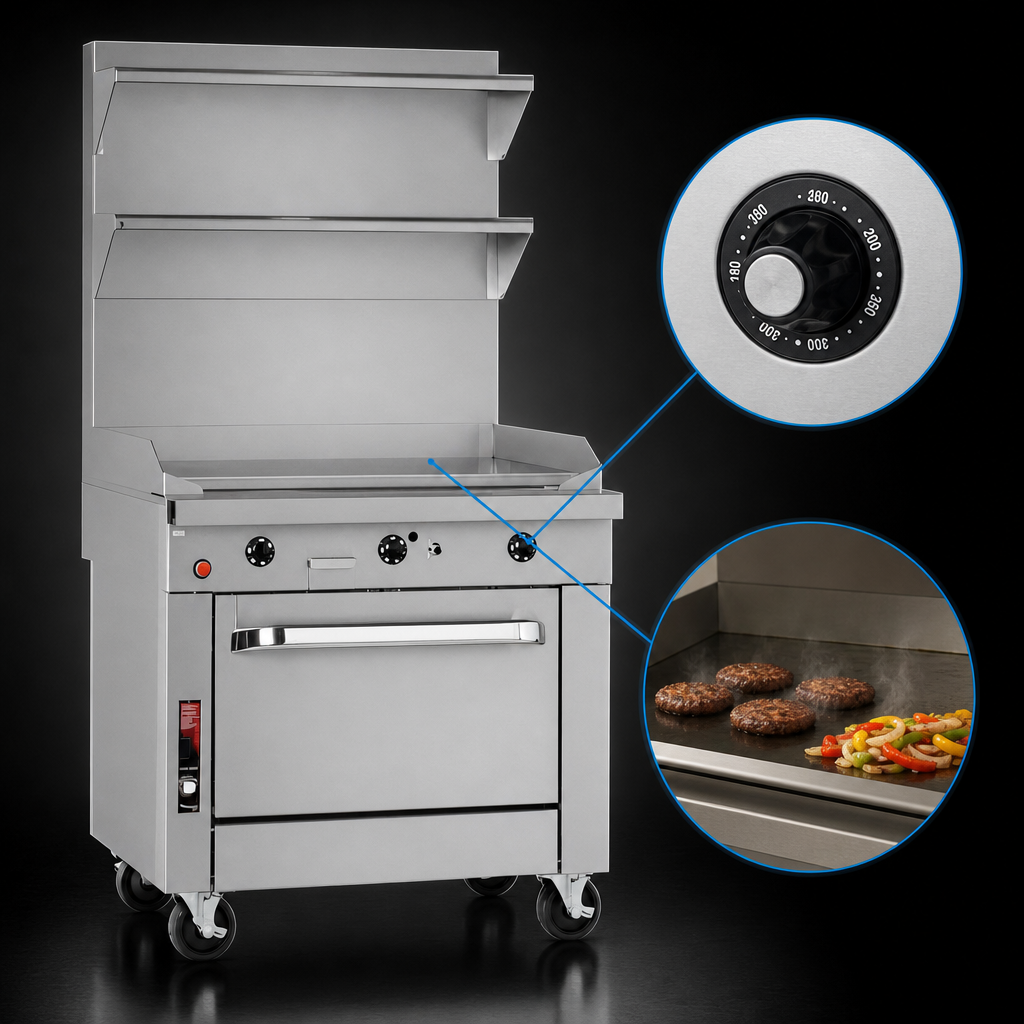

- “Insta-On” thermostatic controls hold 180 – 400 °F—perfect for pancakes, smash burgers, fajitas and more.
- Battery spark ignition for fast, reliable start-up; standing pilots for the oven keep you cooking through peak rushes.
- Standard oven (45,000 BTU) fits 18" × 26" sheet pans in either direction and ships with 2 adjustable racks.
- Right-side 12" storage cabinet keeps tools and mise en place within arm’s reach.
- All-stainless exterior (front, sides, rear & bottom) plus a 5" flue riser for easy cleanup and long service life.
- 9-1/4" deep front rail protects controls and provides a handy landing edge for plates and pans.
- Heavy-duty 6" stainless legs adjust for uneven floors or match up to refrigerated bases.
At-a-Glance Specs
| Gas Input (Natural) | 173,000 BTU/hr total 128,000 BTU griddle 45,000 BTU oven |
|---|---|
| Gas Connection | 1 ¼" front manifold (battery style) & 1" rear male NPT |
| Griddle Surface | 48" W × 24" D, 1" thick, polished steel, side & rear splashers |
| Griddle Temperature Range | 180 – 400 °F (thermostatic) |
| Oven Interior | 14" H × 26" W × 26.5" D, porcelain enamel |
| Overall Dimensions* | 48" W × 37 ½" D × 40" H (to top of 5" flue) |
| Shipping Weight* | Approx. 800 lb |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor, factory-authorized service network |
*Dimensions & weight include 6" legs; allow ±1" tolerance.
Popular Factory Options (sold separately)
- Grooved or chrome-plated griddle surface
- 24" or 36" flue riser with shelves or salamander/cheesemelter mount
- Rear-extending extra-deep flue riser for low-profile hood installations
- Open-frame caster base or full-unit casters (front locking)
- Electric oven pilot ignition (no charge)
