Southbend (Middleby) P48D-PPPP Platinum Gas Ranges
Description
Southbend Platinum Series 48" Gas Plancha Range with Standard Oven & 12" Storage Cabinet
Model P48D-PPPP | CSA & NSF CertifiedBuilt for the most demanding commercial kitchens, the Platinum Heavy-Duty Plancha Range delivers searing power, lightning-fast recovery, and rock-solid construction in a single, battery-ready footprint. A 41-3/4" raised plancha, ½" thick reinforced steel plate, and a full-size 45,000 BTU oven give chefs the versatility to sear, finish, bake, and hold—all on one 48" section.
Why You’ll Love It
- Four 16,000 BTU cast-iron burners (battery spark ignition) power a 41-3/4" raised plancha for fast pre-heat & up to 800 °F searing.

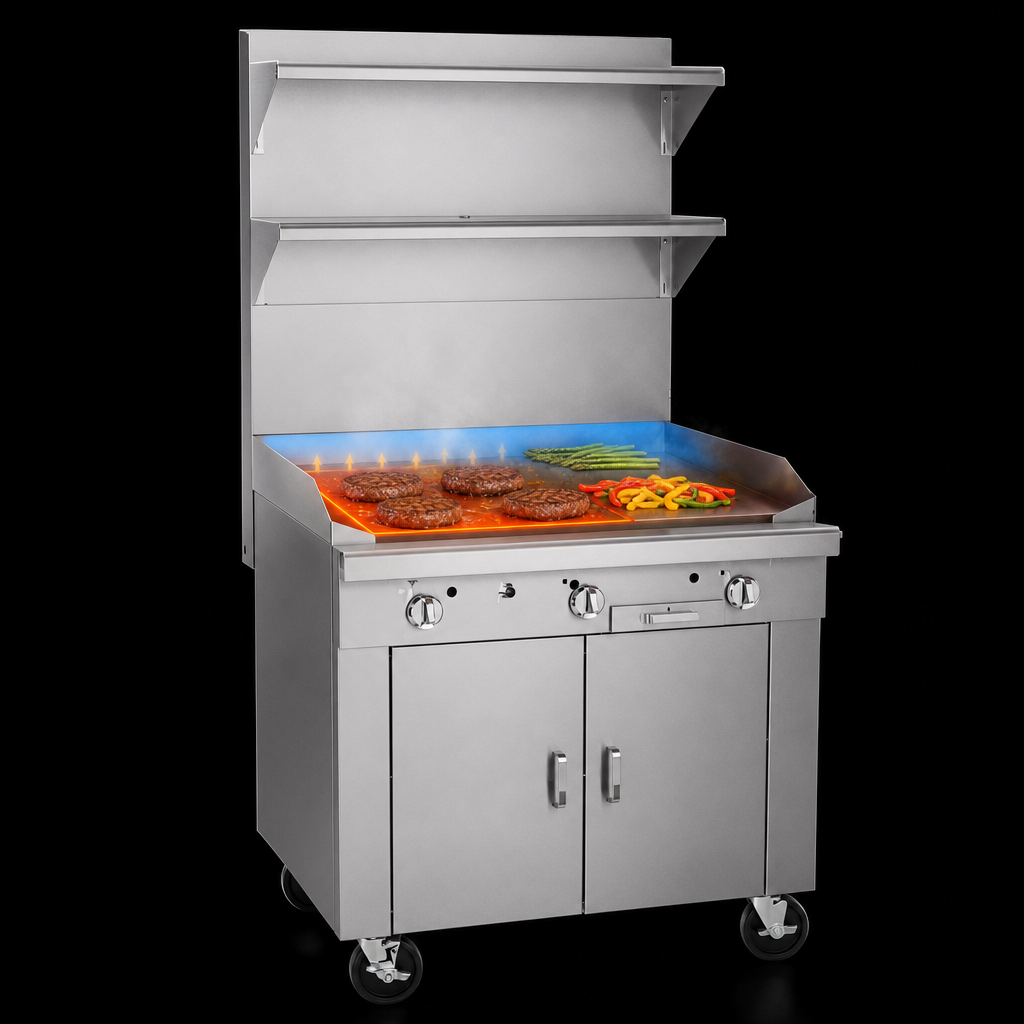

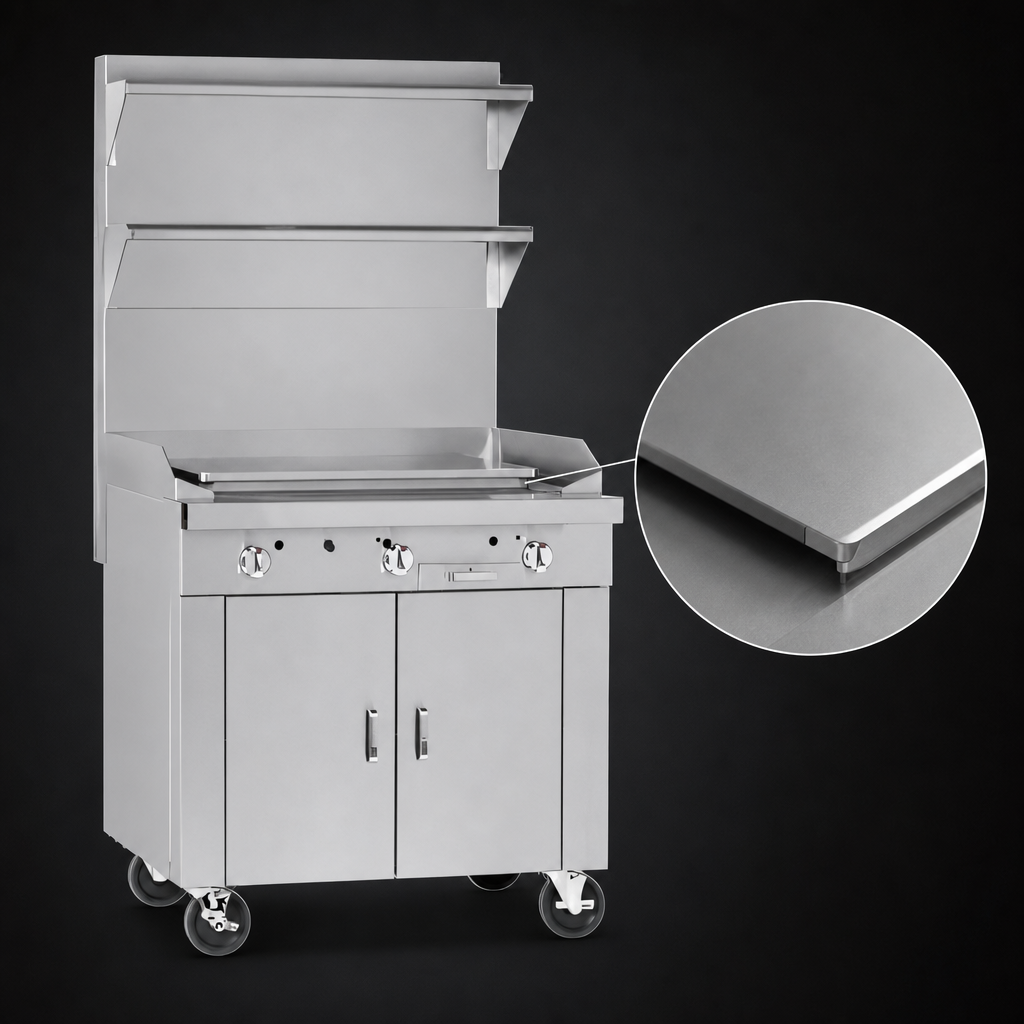

- 1/2" thick, reinforced steel plate with high-heat zone (front ⅔) and cooler finishing zone (rear ⅓).
- 3" wide waste trough and removable stainless drawer for quick plate scraping between loads.
- 45,000 BTU standard oven accepts full-size sheet pans either way; Insta-On thermostat from 175 – 550 °F.
- Includes (2) adjustable oven racks plus a 12" stainless storage cabinet with center-opening doors.
- 5" deep front rail, 5" stainless flue riser, and 6" adjustable stainless legs for perfect line-up on a cookline.
- All-stainless exterior—front, sides, rear, and bottom—for maximum durability and easy cleanup.
- No electrical hookup required; ideal for mobile or remote installations.
- Made in the USA and backed by a 1-year parts & labor warranty.
At-a-Glance Specs
| Cooktop | 41-3/4" raised plancha griddle |
|---|---|
| Plate Thickness | ½" (1.3 cm) reinforced steel |
| Total BTU | 128,000 BTU/hr (Natural or Propane) |
| Plancha Burners | (4) × 16,000 BTU cast-iron, manual valves, battery spark ignition |
| Oven | Standard, 45,000 BTU, porcelain interior, 14" H × 26" W × 26 ½" D |
| Oven Racks | (2) chrome racks, 5-position guides |
| Storage | 12" stainless cabinet, center-opening doors |
| Thermostat Range | 175 °F – 550 °F |
| Exterior Construction | 430/304 stainless steel front, sides, rear & bottom |
| Gas Connections | 1 ¼" front manifold (battery capable) & 1" rear NPT |
| Minimum Gas Pressure | 7" W.C. (Natural) • 11" W.C. (LP) |
| Dimensions (W × D × H) | 48" × 37 ½" × 36" to cook surface (41 ½" to top of flue) |
| Shipping Weight | ≈800 lb (362 kg) |
| Clearances – Combustible | 10" sides • 12" rear |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
Popular Factory Options (extra cost)
- Casters with front locks & cable restraint kit
- 24" or 36" high flue riser with integrated shelves
- Stainless oven interior or electronic pilot ignition
- Salamander or cheesemelter mount
- Extra-deep rear-extending flue riser for high-back battery lines
