Southbend (Middleby) P48D-GGGG Platinum Gas Ranges
Description

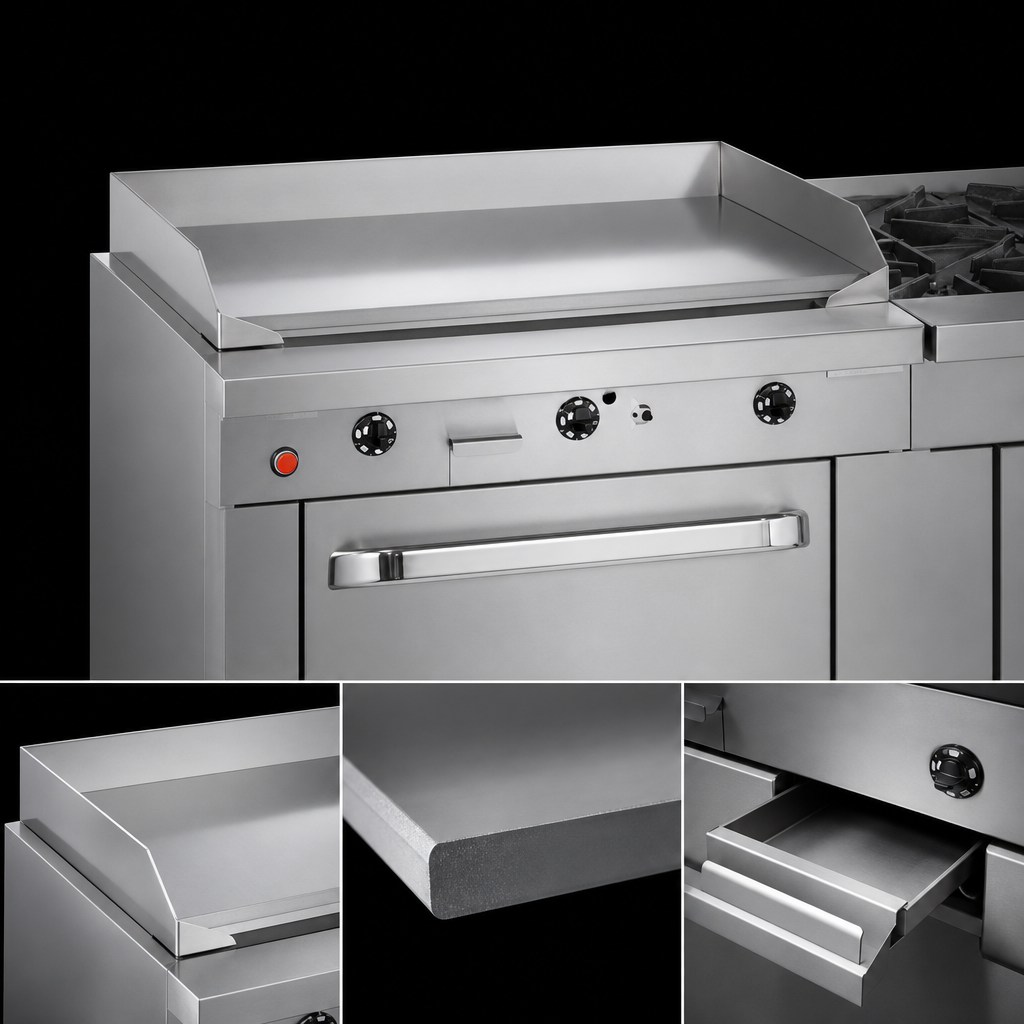

Southbend Platinum 48" Heavy Duty Range with Full-Width Manual Griddle & Standard Oven
Model P48D-GGGG | 173,000 BTU | Natural GasBuilt for the demanding pace of high-volume kitchens, the Southbend Platinum Series delivers relentless power, rock-solid durability, and the flexibility you need to keep every service moving. This 48-inch heavy-duty range combines a full-width, 1" thick manual griddle with a high-performance standard oven and a handy 12" base cabinet—giving you three essential work zones in the footprint of one appliance.
Why You’ll Love It
- 128,000 BTU stainless-steel manual griddle with eight 16,000 BTU burners for fast recovery and even heat.
- 1" thick plate plus side & rear splashers handle heavy loads of seared proteins, breakfast favorites, or sauté pans.
- Battery-spark ignition and standing pilots—no electrical hookup required for the range section.
- 45,000 BTU standard oven with porcelain-enameled interior; fits full-size sheet pans either direction.
- (2) heavy-duty chrome racks on 5-position side rails for maximum menu flexibility.
- 12" right-side stainless cabinet keeps sheet pans, smallwares, or mise en place within arm’s reach.
- Rugged all-stainless exterior (front, sides, rear & bottom) plus 9-1/4" deep front rail for plating or resting pans.
- 5" stainless flue riser directs heat into the hood and shields your line cooks.
- 6" adjustable stainless legs make leveling simple and allow easy cleaning underneath.
- Certified for cCSAus, CSA Flame, CSA Star & NSF—ready for any commercial kitchen in North America.
At-a-Glance Specs
| Overall Width | 48" (1219 mm) |
|---|---|
| Overall Depth | 37-1/2" (953 mm) |
| Cook Surface Height | 36" (914 mm) to top of griddle plate |
| Total BTU (Natural) | 173,000 BTU/hr |
| Griddle Section | 128,000 BTU; 1" plate; manual controls (no thermostat) |
| Oven Section | 45,000 BTU standard oven, standing pilot, 175 °F–550 °F thermostat |
| Oven Interior (H×W×D) | 14" × 26" × 26-1/2" – fits 18"×26" sheet pans either way |
| Gas Connection | 1" rear male NPT (1-1/4" front manifold for battery line-up) |
| Minimum Supply Pressure | 7" WC Natural | 11" WC LP |
| Cabinet Base | 12" wide stainless compartment with removable door |
| Shipping Weight | Approx. 800 lb (363 kg) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1 year parts & labor (see details below) |
Included With Your Purchase
- (2) oven racks
- Battery-spark igniters (no external power needed)
- Factory-installed 5" flue riser
- 6" stainless adjustable legs
- Comprehensive owner’s & installation manual
Optional Upgrades (Contact Sales)
- External gas pressure regulator
- Chrome or grooved griddle plate
- 24" or 36" flue riser with optional shelves
- Open-frame base with casters & restraint kit
- Salamander or cheesemelter mounting kit
Warranty & Service
Southbend backs this Platinum Range with a 1-year limited parts & labor warranty when installed in a commercial kitchen by a qualified technician. Oversized cookware and improper cleaning can void coverage—see full warranty statement or contact Southbend service for details.
