Southbend (Middleby) P48D-BBBB Platinum Gas Ranges
$16,182.00
Unit price
/
Unavailable
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Southbend (Middleby) P48D-BBBB Platinum Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) P48D-BBBB Platinum Gas Ranges
$16,182.00
Unit price
/
Unavailable
Description
Southbend Platinum 48" Heavy-Duty Gas Range – 8-Burner with Standard Oven & 12" Cabinet
Model P48D-BBBB | 325,000 BTU | Natural or Propane GasBuilt for high-volume commercial kitchens, the Southbend Platinum Series 48-inch range combines eight powerful open burners with a full-size oven and convenient storage cabinet— all in one rugged, stainless-steel unit.
Key Features
- Eight 35,000 BTU patented clog-free burners (280,000 BTU total) with removable welded-steel grates
- Manual controls with dependable standing pilots for instant, match-free lighting
-
45,000 BTU standard oven
- Porcelain-enamel interior resists corrosion and wipes clean
- “Insta-On” thermostat adjustable from 175 °F – 550 °F (79 °C – 288 °C)
- Includes 2 chrome-plated racks; 5 rack positions
- Accepts full-size 18" × 26" sheet pans front-to-back or side-to-side
- 12" right-side stainless-steel cabinet keeps pans, lids and utensils organized
- Durable stainless front, sides, rear and exterior bottom for years of service life
- 9-1/4" deep front rail and removable drip tray promote a clean cookline
- 5" stainless flue riser directs heat up into the hood system
- 6" adjustable stainless legs for fast leveling on any kitchen floor
- Fully insulated lining and burner box improve efficiency and reduce side-wall heat
- CSA-certified and NSF-listed for commercial gas cooking equipment
Specifications
| Overall width | 48" (1219 mm) |
|---|---|
| Cooking surface | (8) open burners, 12" × 12" grate sections |
| Total BTU input | 325,000 BTU/hr (NG or LP) |
| Burners | 8 × 35,000 BTU open-top |
| Oven | Standard, 45,000 BTU, 175 °F – 550 °F thermostat |
| Oven interior (H × W × D) | 14" × 26" × 26 ½" (356 × 660 × 673 mm) |
| Racks included / positions | 2 / 5 |
| Right-side storage | 12" stainless cabinet with removable door |
| Gas connection | 1¼" front manifold & 1" rear male NPT; 7" W.C. NG / 11" W.C. LP supply |
| Electrical | None required (standing pilots) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (Heavy-Duty Sectional Range) |
Optional Upgrades & Accessories
- Electronic spark ignition (oven and/or open burners)
- 24" or 36" high flue riser with optional shelving
- Casters or open-frame base for mobile battery installations
- Front-rail options: sauce-pan cut-outs, square belly bar or 7-¼" heritage rail
- Mounted salamander or cheesemelter
- Stainless oven interior & removable cast-iron top grates
- External gas pressure regulator & cable restraint kit
Important installation notes:
- Install beneath a properly sized, vented hood.
- Maintain clearances of 10" on sides and 6" at rear from combustible surfaces.
- Use oversized (≥ 12") cookware on rear burners only to avoid overheating the front rail.
- Contact the factory for approved mounting methods when installing on non-quarry tile floors.
Spread out the cost—ask us about fast, flexible equipment financing through Middleby Finance.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, CSA
Height
41.0in
Width
48.0in
Depth
37.5in
Shipping Weight
568.0lbs
Top
(8) open burners
Exterior Finish
stainless steel front & sides
Base

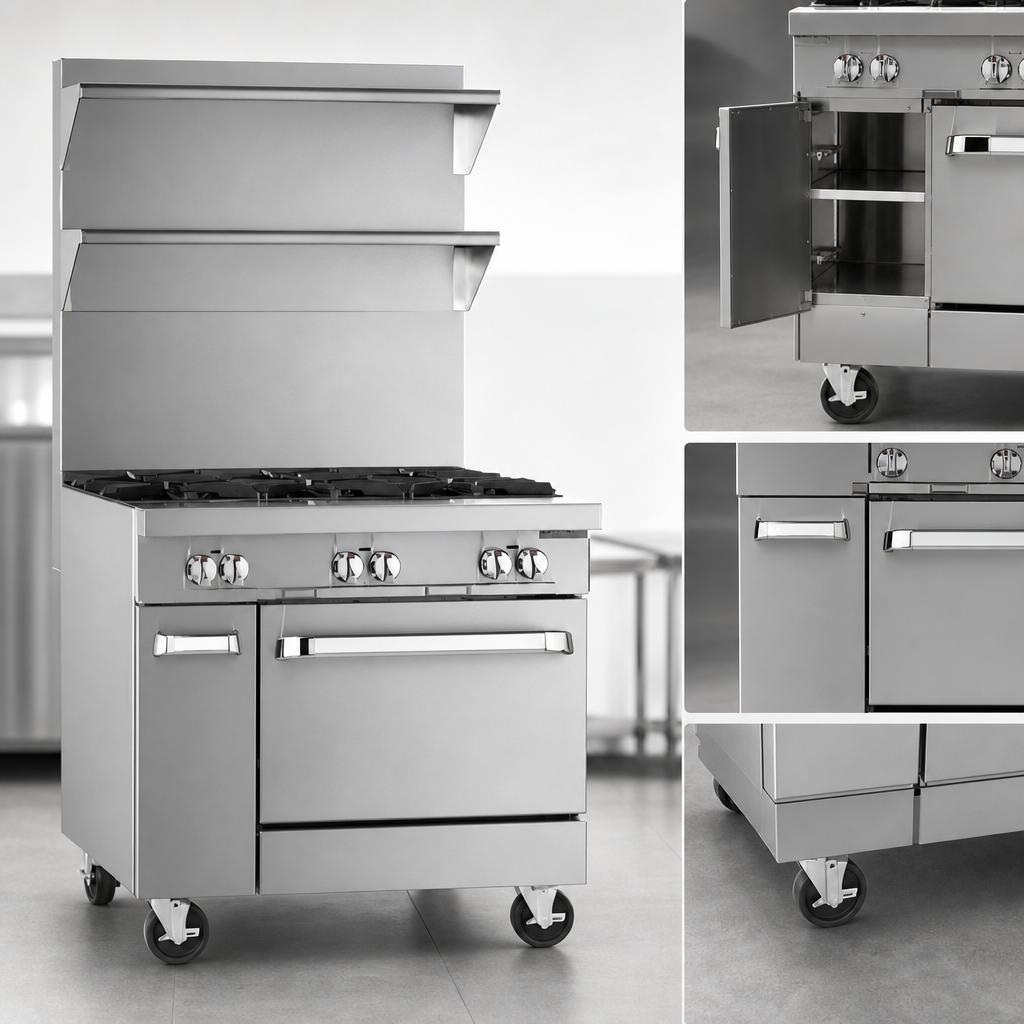

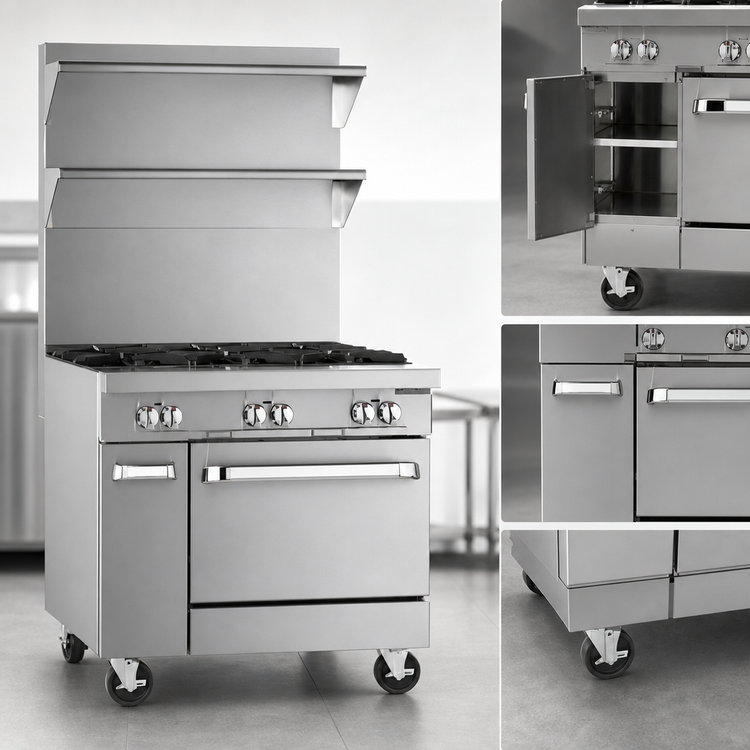

(1) standard oven, (1) cabinet
Specifications
Platinum Heavy Duty Range, gas, 48", (8) 35,000 BTU open burners, manual controls, standing pilot, (1) standard oven, (1) 12" cabinet, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 325,000 BTU, CSA, NSF
