Southbend Platinum Heavy Duty 48-Inch Gas Sectional Range with Full-Width Thermostatic Griddle and Dual Cabinet Base

SKU: P48C-TTTT
$13,703.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 48-Inch Gas Sectional Range with Full-Width Thermostatic Griddle and Dual Cabinet Base

1-Inch Griddle Plate, Battery Spark Ignition, Stainless Steel Construction

Built for high-volume kitchens, this 48-inch gas sectional range combines a thermostatic full-width griddle with rugged stainless steel construction and dual cabinet storage.

  • 48-inch full-width thermostatic griddle with precise Insta-On control from 180°F to 400°F.
  • 1-inch thick griddle plate with side and rear splashers plus a removable grease drawer.
  • 128,000 BTU output and battery spark ignition support fast, dependable operation.
  • Two 24-inch stainless steel cabinets with center-opening removable doors add convenient storage.
  • Stainless steel front, sides, rear, and exterior bottom are built for heavy-duty commercial use.
  • 6-inch adjustable stainless steel legs and a 9-1/4-inch front rail help with stable placement and ergonomic use.
  • NSF, cCSAus, CSA Star, and CSA Flame listings support commercial kitchen compliance.

Overall Dimensions:

48.0"W x 37.5"D x 41.0"H

Product Weight:

660.0 lb

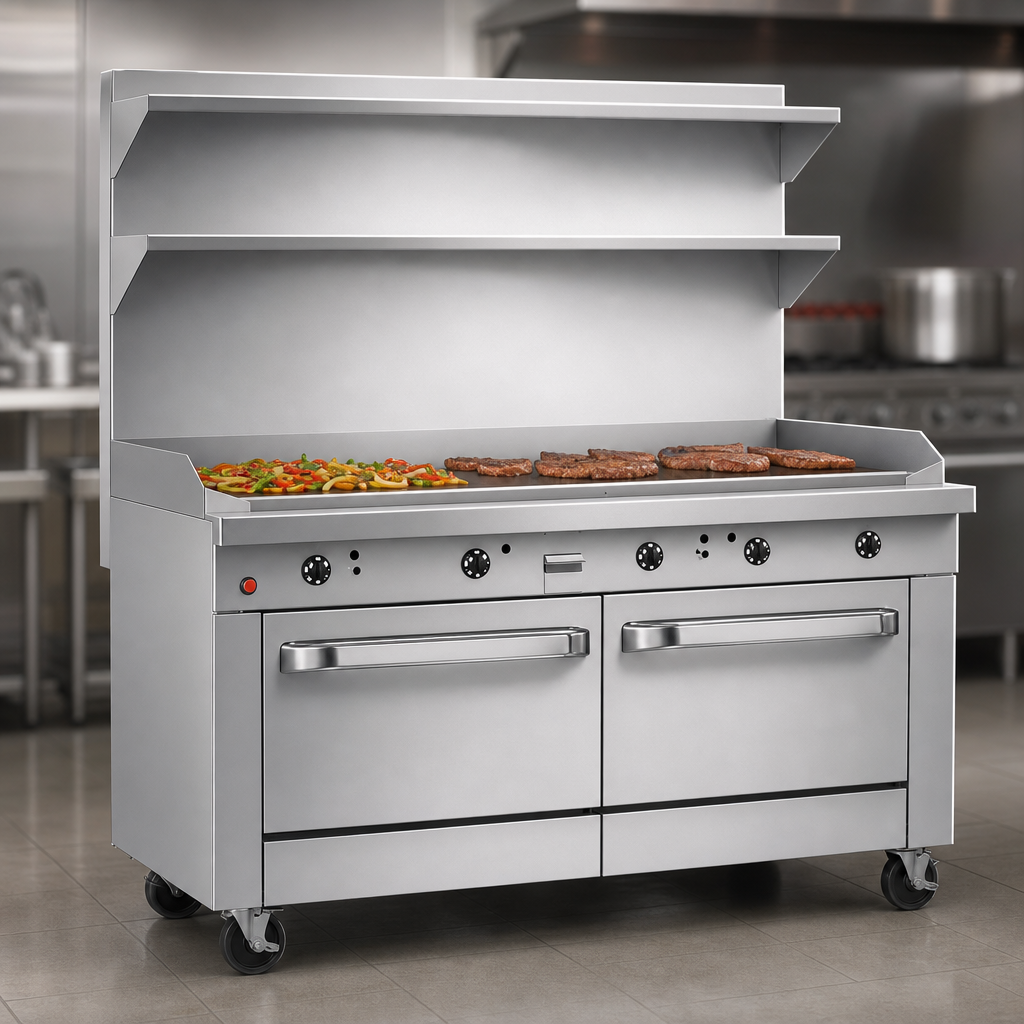

Thermostatic Full-Width Griddle

Insta-On thermostatic control keeps the griddle surface between 180°F and 400°F with 128,000 BTU output for fast recovery.

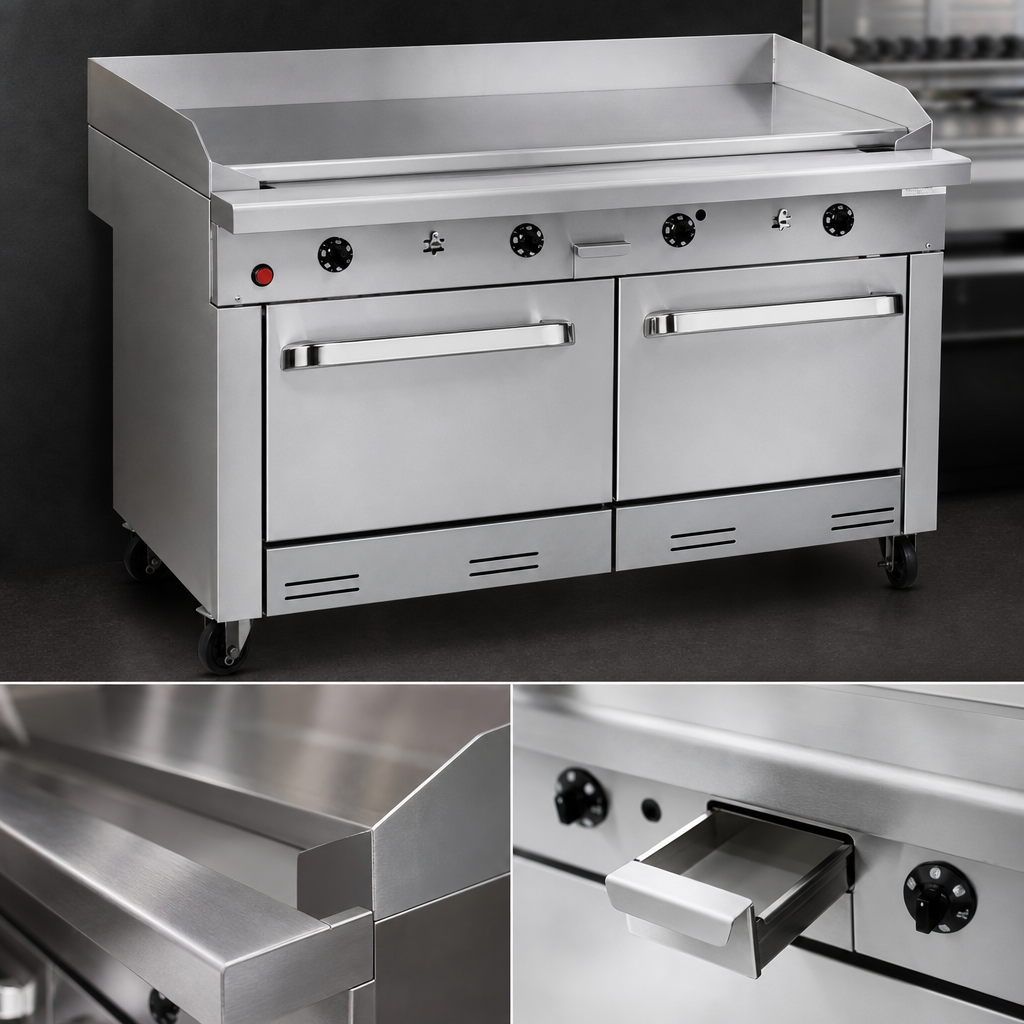

1-Inch Griddle Plate

Thick stainless steel griddle surface includes side and rear splashers plus a removable grease drawer for easier cleanup.

Dual Cabinet Base

Two 24-inch stainless steel cabinets with center-opening removable doors provide under-range storage.

Battery Spark Ignition

Battery spark ignition supports easy startup without relying on a standing pilot.

Heavy-Duty Stainless Steel Construction

Front, sides, rear, and exterior bottom are built in stainless steel for rugged commercial use.

Standard Support and Venting

Includes a 9-1/4-inch front rail, 5-inch stainless steel flue riser, and 6-inch adjustable stainless steel legs.

Type Griddle Range
Style Sectional
Installation Type Floor Model (With Legs)
Base Cabinet Base
Cabinet Count 2
Material Stainless Steel
Finish Polished Stainless Steel
Cooking Surface Width 48 Inches
Plate Thickness 1 Inch
Controls Insta-On Thermostatic
Temperature Range 180°F to 400°F
Ignition Type Battery Spark
BTU 128,000 BTU
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas / 11 Inches W.C. Propane
Front Rail Depth 9-1/4 Inches
Flue Riser Height 5 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 55 Inches
Shipping Height 45 Inches
Shipping Weight 660 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic griddle controls the surface temperature from 180°F to 400°F.
This model has a cabinet base with two 24-inch stainless steel cabinets and center-opening removable doors.
The unit uses a 1-1/4-inch front manifold and a 1-inch rear gas connection with a male NPT connector. Minimum gas supply pressure is 7" W.C. for natural gas and 11" W.C. for propane.
Yes. The documentation recommends installation under a vented hood. Minimum combustible clearances are 10 inches on the sides and 12 inches on the rear.
The warranty is one year parts and one year labor from the date of original purchase.
The shipping crate is 55 inches wide by 45 inches high by 55 inches deep, with a shipping weight of 660 pounds.
