Southbend (Middleby) P48C-PPPP Platinum Gas Ranges
Description
Southbend Platinum 48" Gas Plancha Range with Cabinet Base
Model P48C-PPPP | 64,000 BTUHarness searing power and built-in storage in one heavy-duty footprint. Southbend’s Platinum Series 48" plancha range delivers blistering heat up front for a perfect Maillard crust while the rear zone stays slightly cooler for finishing, plating, or holding.
A ½" thick, raised steel plate is fired by four 16,000 BTU cast-iron burners with reliable battery spark ignition—no electrical hook-up required. Stainless steel construction, a removable grease drawer, and twin under-counter cabinets make this unit a workhorse on the line and a breeze during cleanup.
Why you’ll love it

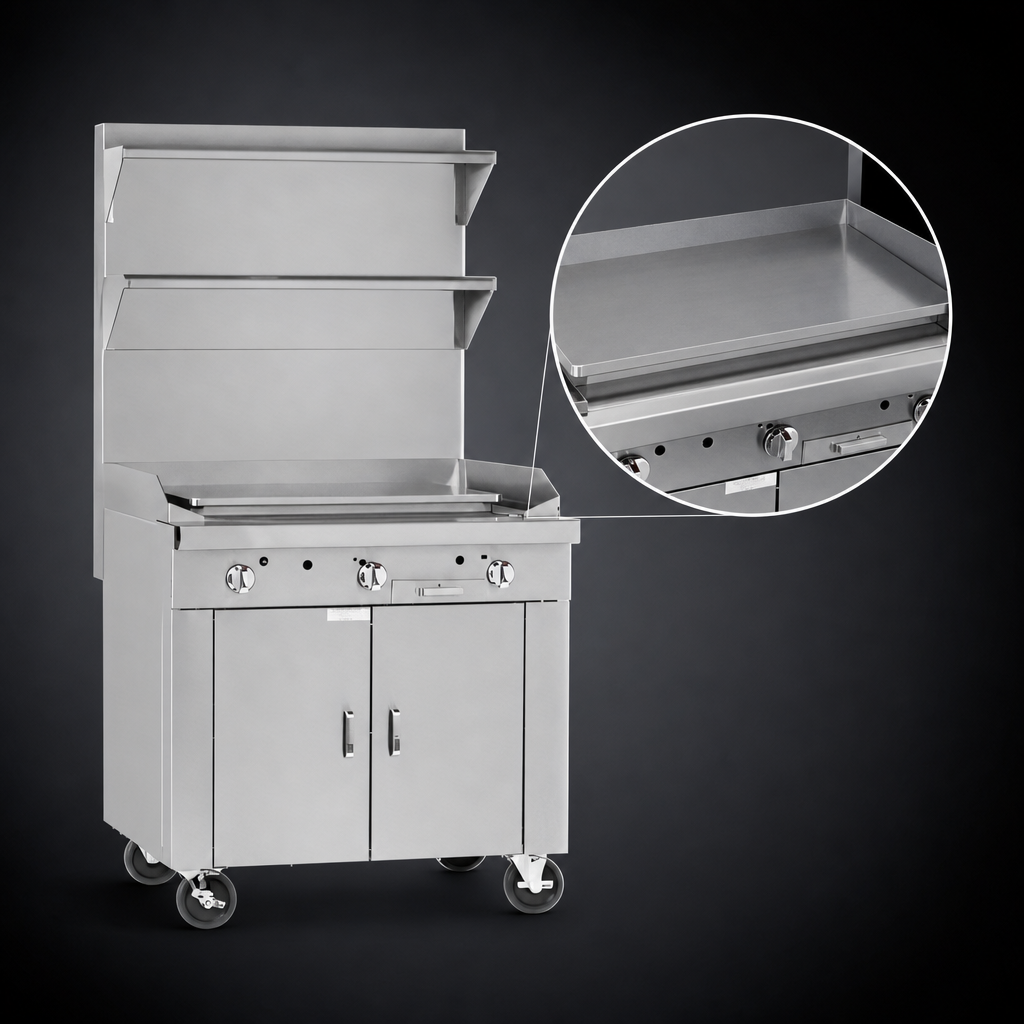

- 41-3/4" wide, ½" thick reinforced plancha plate for rapid pre-heat & recovery
- High-heat sear zone (front ⅔) up to 800 °F; cooler rear ⅓ for finishing
- 64,000 BTU total output from four cast-iron burners
- Manual gas valves with battery spark ignition—no standing pilot
- 3" wide waste troughs & large removable stainless grease drawer
- Side & rear splashers plus 5" deep front rail keep the cooking surface contained
- Two full-width stainless steel cabinets with center-opening doors
- 6" adjustable stainless legs and 5" stainless flue riser included
- Meets CSA & NSF standards; built for demanding commercial kitchens
Technical details
| Cooking surface | 41-3/4" W raised plancha (48" unit width) |
|---|---|

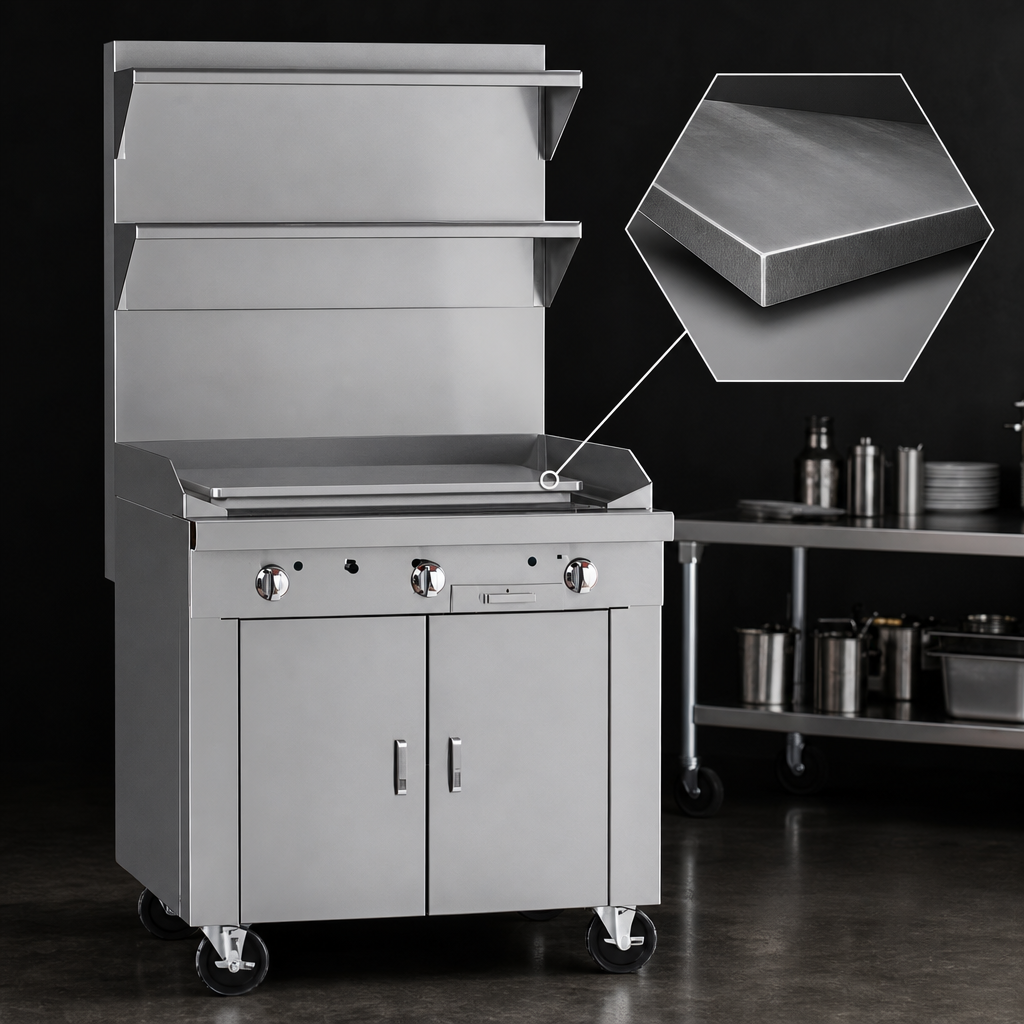

| Plate thickness | ½" (12.7 mm) reinforced steel |
| Total BTU | 64,000 BTU/hr (Nat) • 62,000 BTU/hr (LP) |
| Controls | Manual valves, battery spark ignition |
| Gas connections | 1-¼" front manifold, 1" rear male NPT |
| Base configuration | Stainless cabinet, 2 removable doors |
| Dimensions (WxDxH) | 48" x 37-½" x 43-½" (with flue) |
| Shipping weight | Approx. 660 lb / 299 kg |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor (commercial use) |
Popular factory options (sold separately)
- 24", 36" or 48" flue riser with single or double shelves
- Casters with restraint kit
- Extra-deep rear flue riser for battery line-ups
- Front rail cut-outs, square belly bar, or 7-¼" deep rail
- External gas pressure regulator
- Salamander or cheesemelter mounting brackets
Install under a properly sized vent hood. Maintain 10" side and 12" rear clearance from combustible construction.
