Southbend Platinum 48-Inch Heavy Duty Sectional Gas Range with Full-Width Manual Griddle and Double Cabinet Base

SKU: P48C-GGGG
$12,103.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 48-Inch Heavy Duty Sectional Gas Range with Full-Width Manual Griddle and Double Cabinet Base

1-Inch Griddle Plate, Battery Spark Ignition, Stainless Steel Construction

A rugged 48-inch sectional gas range built for high-volume kitchens, combining a full-width manual griddle with double cabinet storage and durable stainless steel construction.

  • 48-inch sectional gas range with a full-width manual griddle
  • 1-inch thick griddle plate with side and rear splashers
  • Double cabinet base with two 24-inch stainless steel cabinets and center-opening doors
  • Battery spark ignition and manual controls
  • 128,000 BTU output for demanding commercial cooking
  • Stainless steel front, sides, rear, and exterior bottom
  • 6-inch adjustable stainless steel legs for leveling

Overall Dimensions:

48.0"W x 37.5"D x 41.0"H

Product Weight:

660.0 lb

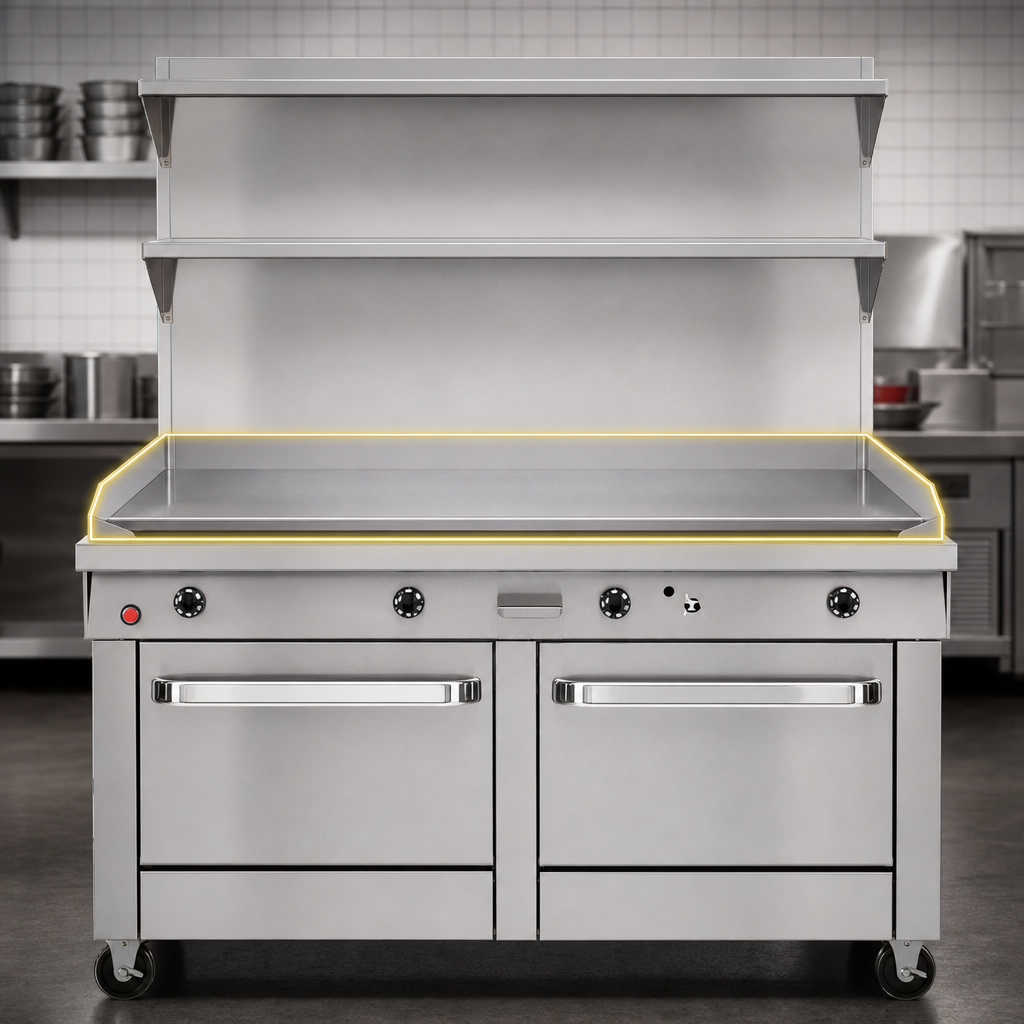

Full-Width Manual Griddle

The 48-inch griddle spans the full width of the range for large-batch production.

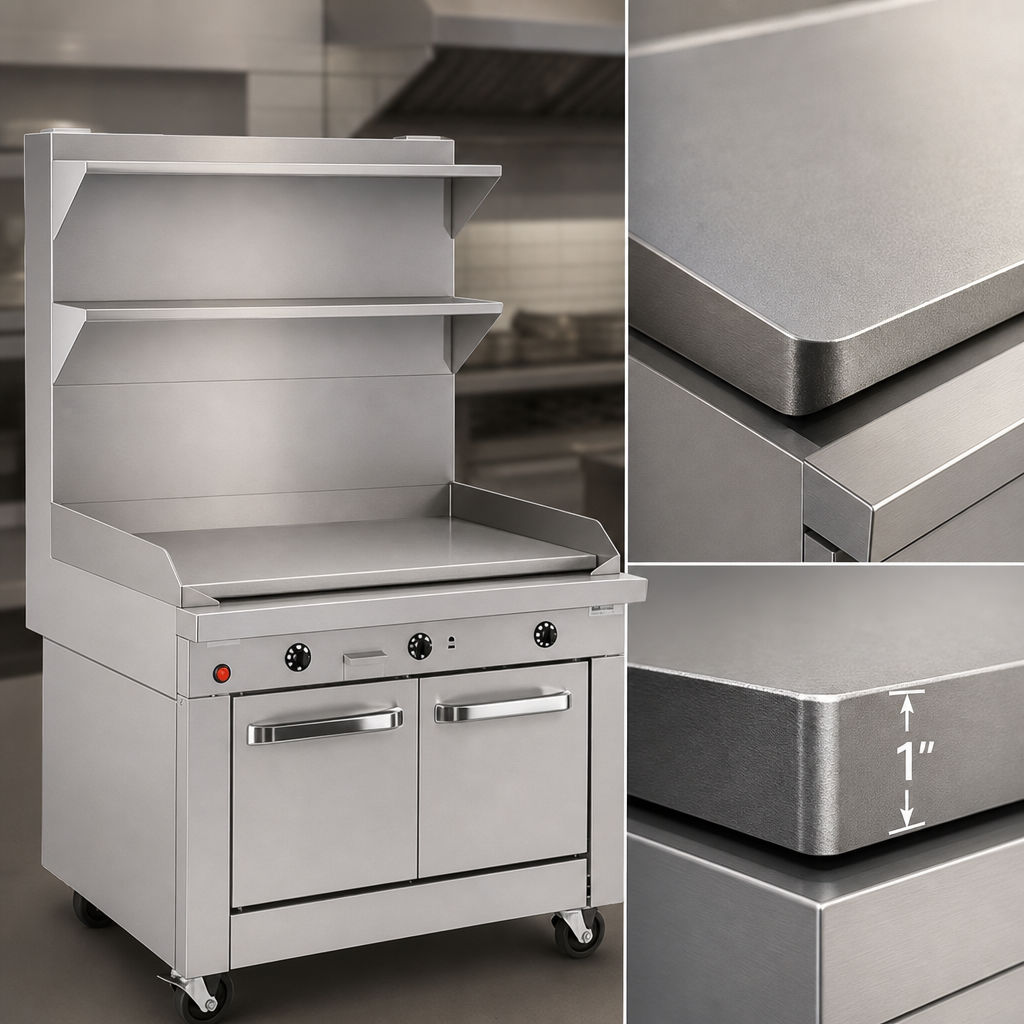

1-Inch Thick Griddle Plate

Heavy-duty griddle plate helps retain heat and deliver consistent cooking performance.

Double Cabinet Base

Two 24-inch stainless steel cabinets with removable center-opening doors provide enclosed storage.

Battery Spark Ignition

Standard battery spark ignition provides dependable startup.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are built from stainless steel for durability.

Grease Drawer and Splashers

A removable stainless steel grease drawer and side/rear splashers help manage drippings and cleanup.

Adjustable Stainless Steel Legs

6-inch adjustable legs are standard for leveling the unit on the floor.

High Heat Output

Rated at 128,000 BTU for high-volume commercial kitchen use.

Type Sectional Range
Style Manual Griddle
Installation Type Floor Model
Controls Manual
Material Stainless Steel
Finish Polished Stainless Steel
BTU 128,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold, 1 Inch Rear Gas Connection
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 55 Inches
Shipping Depth 55 Inches
Shipping Height 45 Inches
Shipping Weight 660 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. Manual griddles do not allow specific temperature operation.
It includes two 24-inch stainless steel cabinets in the base with removable doors that open from the center.
The range is rated at 128,000 BTU for natural gas and 112,000 BTU for propane.
No. The unit requires a regulated gas supply, and the pressure regulator must be ordered separately.
For the cabinet-base model, the shipping crate is 55 inches wide by 45 inches high by 55 inches deep and weighs 660 lb.
