Southbend (Middleby) P48C-CCCC Platinum Gas Ranges
Description

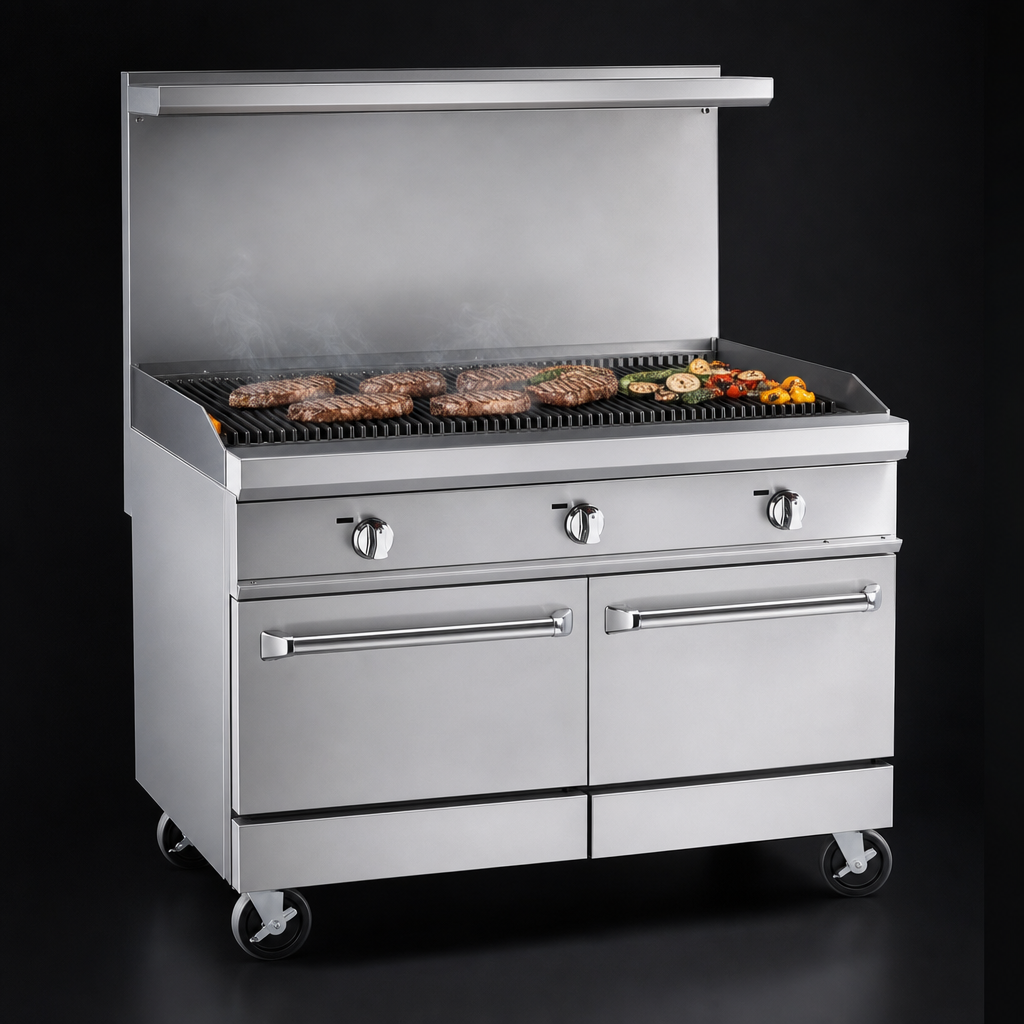

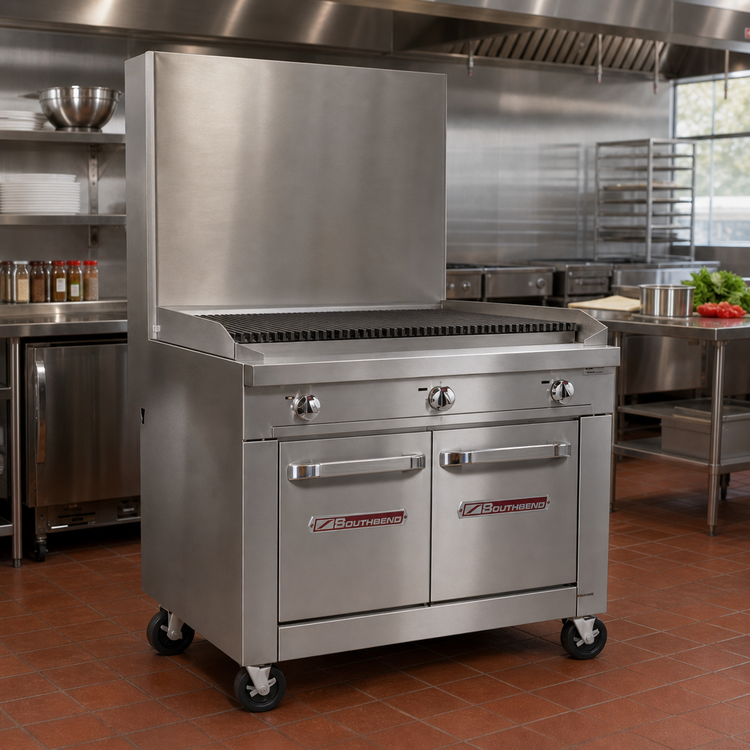

Southbend Platinum Series 48" Gas Charbroiler Range – Cabinet Base
Model P48C-CCCC | 128,000 BTU NAT • CSA & NSF CertifiedBuilt for the toughest commercial kitchens, the Southbend Platinum Series 48" Charbroiler Range delivers steak-house searing power in a rock-solid, battery-ready platform. Eight high-performance burners blanket the full 48" cooking surface, while a pair of stainless-steel cabinets keeps sheet pans, seasonings and utensils right where you need them.
Key performance features
- Full-width charbroiler with eight 16,000 BTU NAT burners (128,000 BTU total).
- Manual high/low controls—quickly dial in anything from gentle holding heat to 600 °F searing.
- Reversible cast-iron grates flip for 1/8" or 1/4" grid and adjust front-to-back for perfect marking or delicate seafood.
- Durable stainless-steel radiants distribute heat evenly and cut flare-ups.
- 9-1/4" deep front rail doubles as a handy plating shelf.
- Two 24" wide stainless cabinets with center-opening removable doors – no hot-zone reach-ins.
- 5" stainless flue riser and fully insulated burner box keep surrounding surfaces cooler.
- 6" adjustable stainless legs level easily on any kitchen floor.

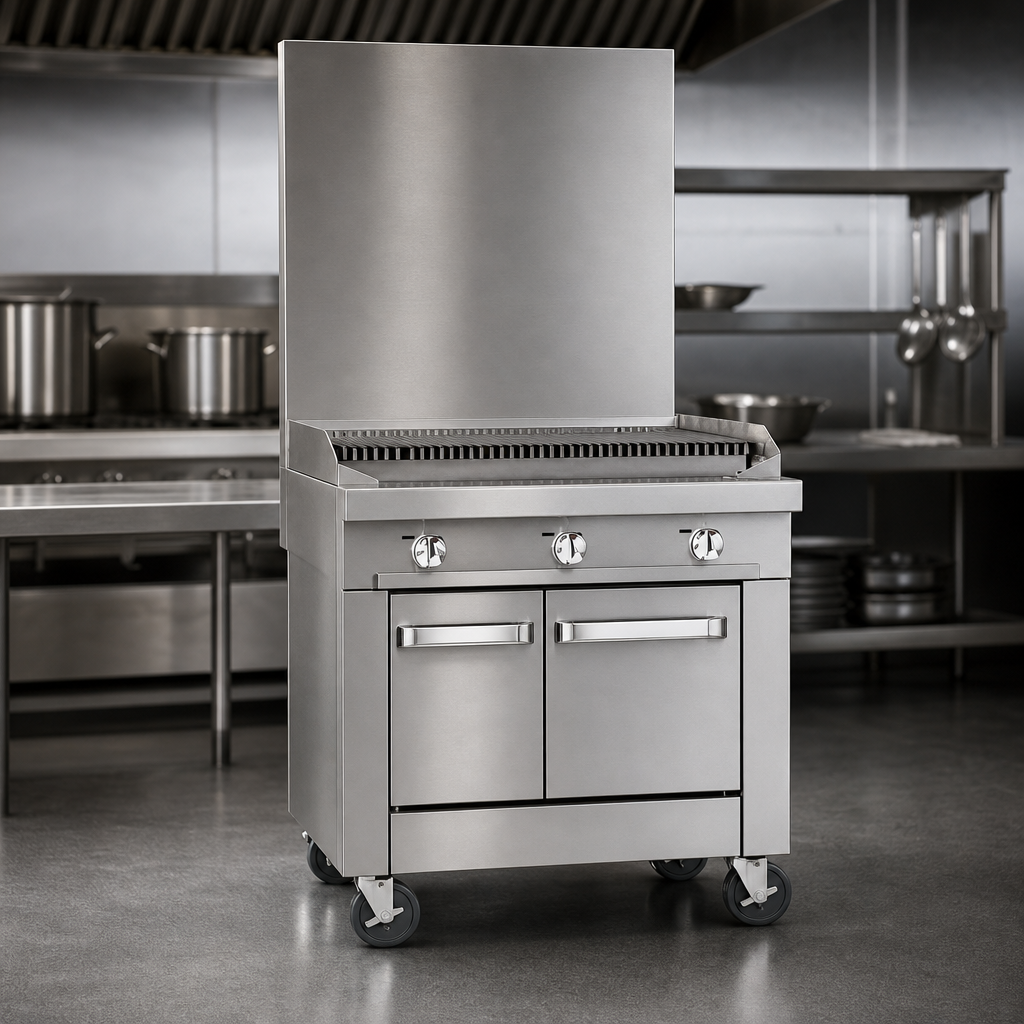

Engineered for heavy-duty service
- #3-polished 430 & 304 stainless steel front, sides, rear and exterior bottom.
- Removable drip tray for fast end-of-shift clean-up.
- 1-1/4" front gas manifold allows seamless battery mounting with other Platinum units.
- 1" rear NPT gas connection for quick single-unit installs.
- No electrical hook-up required – ideal for food-truck or remote prep locations.
Technical specifications
| Cook surface | 48" W full-width charbroiler, reversible cast-iron grates |
|---|---|
| Total BTU (Natural / LP) | 128,000 BTU / 112,000 BTU |
| Burners | 8 × 16,000 BTU NAT (14,000 BTU LP) with manual high/low valves |
| Gas connection | 1" rear NPT (male) • 1-1/4" front battery manifold |
| Overall dimensions (W × D × H) | 48" × 37-1/2" × 41" (to work top) Plus 5" flue riser |
| Base storage | (2) 24" stainless cabinets with removable doors |
| Legs | 6" stainless, adjustable |
| Certifications | CSA Gas, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular factory options (sold separately)
- Casters (front locking) with rear cable restraint kit
- 24" or 36" high flue riser, or extra-deep rear-extending flue riser
- Plated fish grids & overlapping charbroiler grates
- Removable shelf for cabinet interior
Need a mixed battery? The Platinum Series front manifold mates perfectly with other Southbend sectional units—ask our team for a custom line-up design at no charge.
