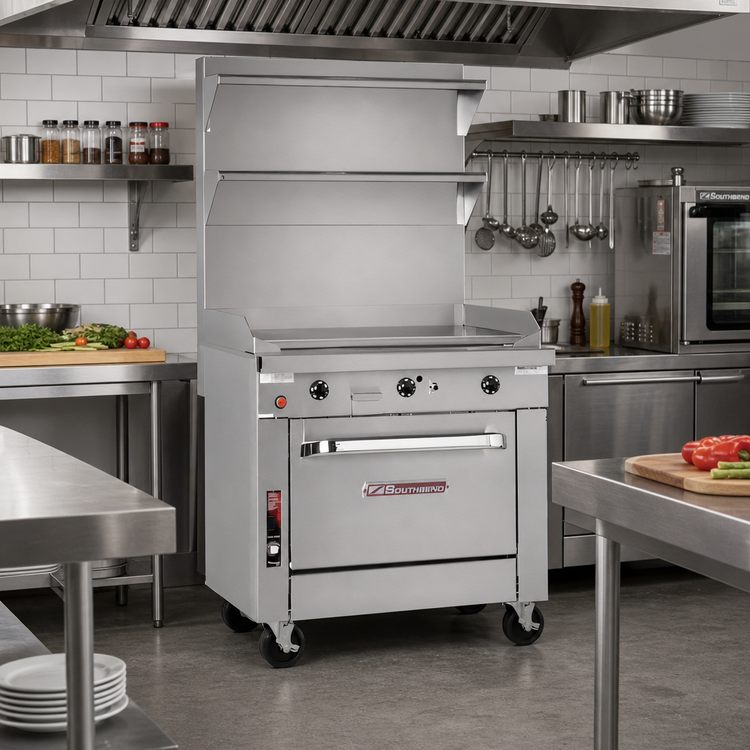

Southbend Platinum 48-Inch Heavy-Duty Sectional Gas Range with Thermostatic Full-Width Griddle, Convection Oven, and Cabinet Base

SKU: P48A-TTTT
$21,885.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 48-Inch Heavy-Duty Sectional Gas Range with Thermostatic Full-Width Griddle, Convection Oven, and Cabinet Base

1-Inch Griddle Plate, Battery Spark Ignition, Stainless Steel Exterior

Built for high-volume kitchens, this 48-inch sectional range combines a thermostatic full-width griddle, a convection oven, and cabinet storage in one durable stainless steel platform.

  • 48-inch heavy-duty sectional gas range with a full-width thermostatic griddle.
  • Convection-oven base includes 3 racks and a two-speed 1/2 hp blower motor.
  • 1-inch thick griddle plate includes side and rear splashers plus a grease drawer.
  • Stainless steel front, sides, rear, and exterior bottom for commercial durability.
  • Battery spark ignition and 6-inch adjustable stainless steel legs come standard.
  • Includes a 12-inch cabinet base for added under-range storage.

Overall Dimensions:

48.0"W x 40.25"D x 41.0"H

Product Weight:

840.0 lb

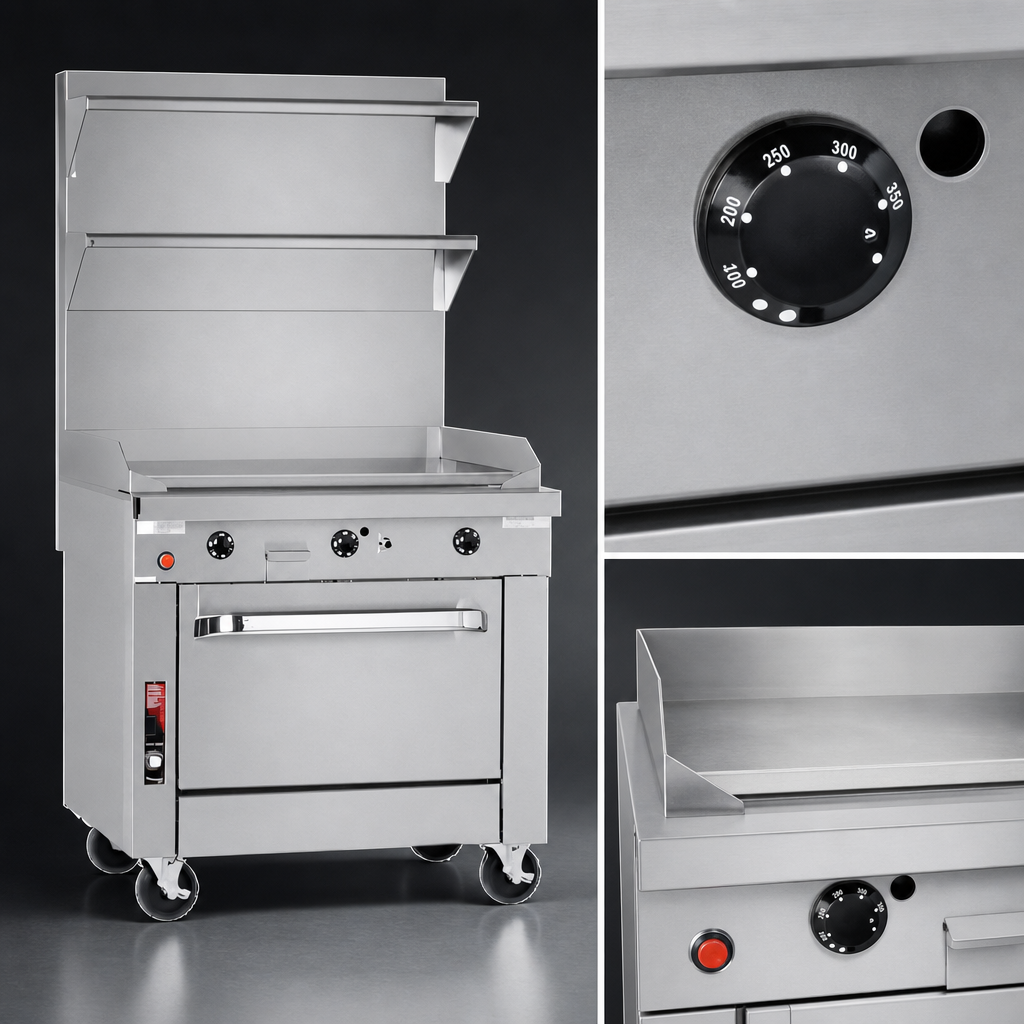

Thermostatic Griddle Control

Insta-On thermostatic control maintains the griddle surface temperature from 180°F to 400°F.

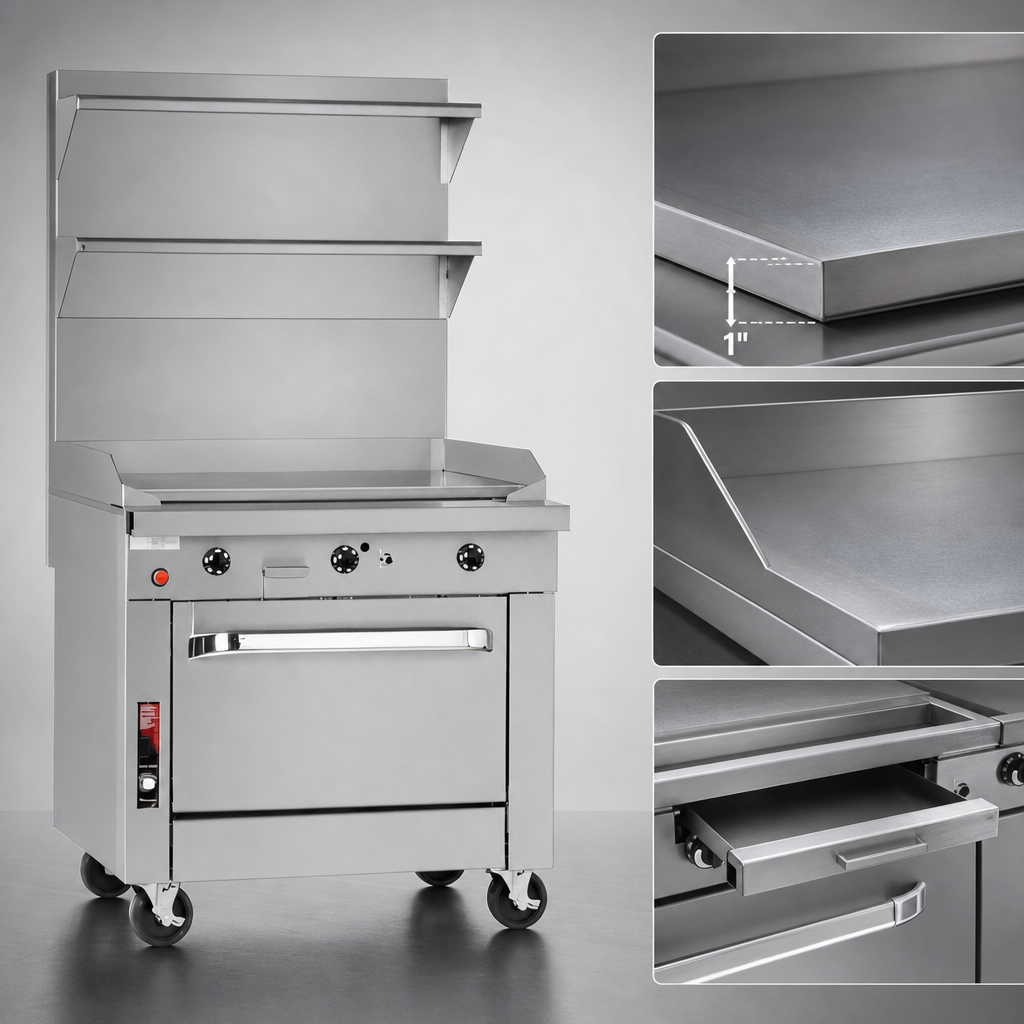

1-Inch Thick Full-Width Griddle Plate

Heavy-duty griddle plate includes side and rear splashers and a removable stainless steel grease drawer.

Convection Oven Base

45,000 BTU convection oven includes a standing pilot, thermostat range of 175°F to 550°F, three racks, and a two-speed 1/2 hp blower motor.

Cabinet Storage Base

Includes a 12-inch cabinet base for convenient storage beneath the range.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are constructed of stainless steel for durability and easier cleaning.

Battery Spark Ignition

Battery spark ignition provides quick, reliable top ignition.

Heavy-Duty Range Design

Features a 9-1/4-inch deep front rail, fully insulated lining and burner box, and 6-inch stainless steel adjustable legs.

Utility Connections

Unit uses a 1-1/4-inch front manifold and 1-inch rear gas connection; a regulated gas supply is required and the pressure regulator must be ordered separately.

Type Sectional Range
Style Heavy Duty
Installation Type Floor Model
Controls Thermostatic
Material Stainless Steel
Interior Finish Porcelain Enamel
BTU 173,000 BTU Natural Gas / 157,000 BTU Propane
Gas Connection Size 1-1/4 Inches Front Manifold, 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas, 11 Inches W.C. Propane
Temperature Range 180°F to 400°F Griddle; 175°F to 550°F Oven
Country Of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 48 Inches
Shipping Depth 41 Inches
Shipping Height 41 Inches
Shipping Weight 840 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic griddle ranges from 180°F to 400°F.
The convection oven includes 3 racks, a standing pilot, a thermostat range of 175°F to 550°F, and a two-speed 1/2 hp blower motor.
No. The unit requires a regulated gas supply, and the pressure regulator must be ordered separately.
It has a 1-1/4-inch front manifold and a 1-inch rear gas connection.
Yes. The base includes a 12-inch cabinet.
Yes. Installation under a vented hood is recommended.
