Description

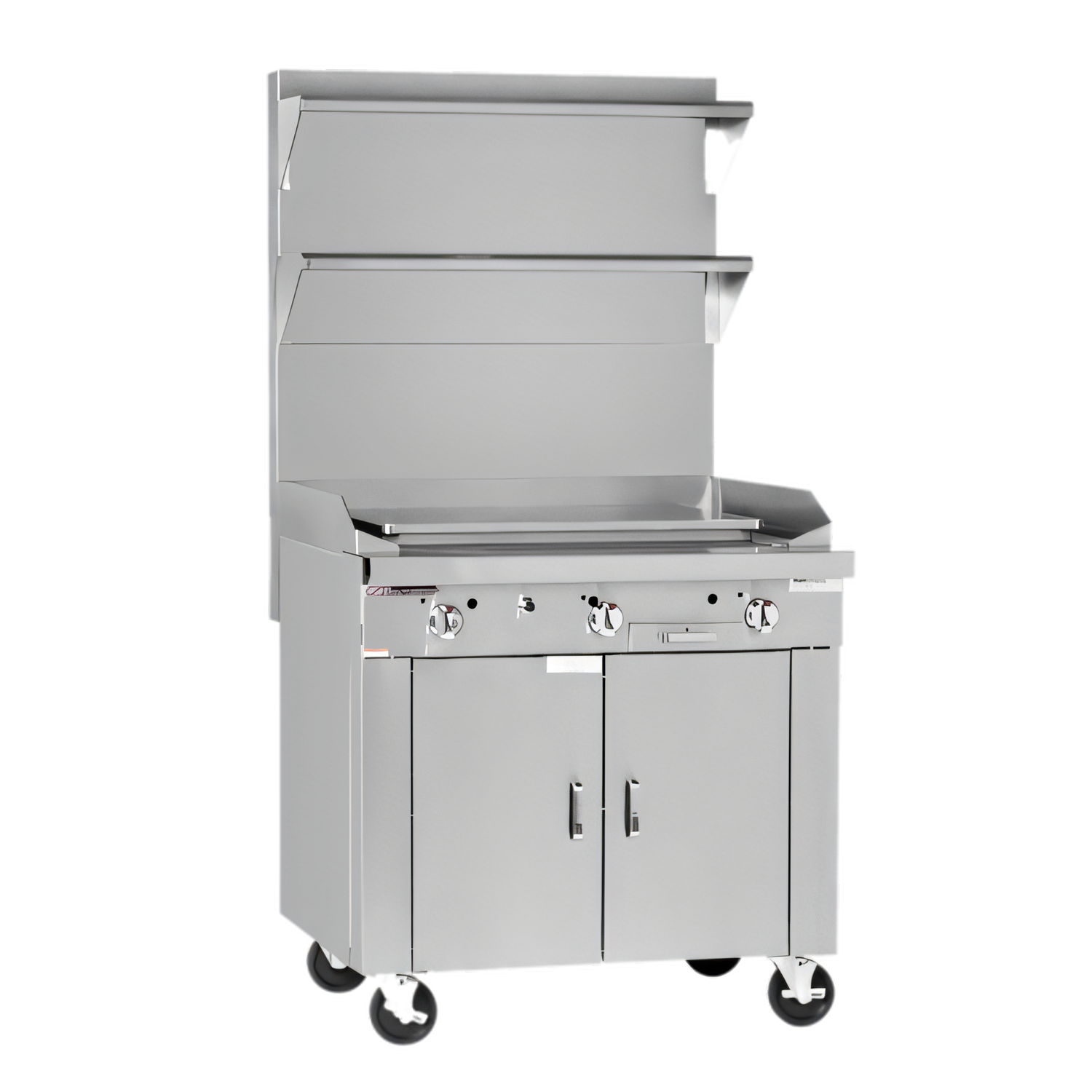

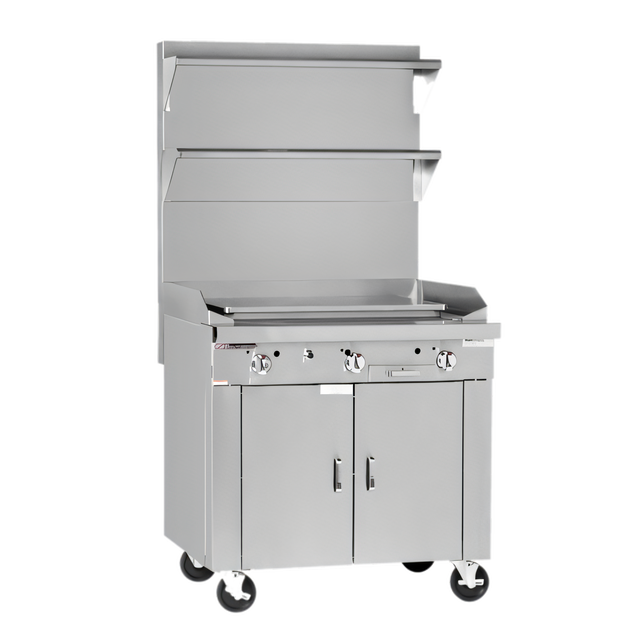

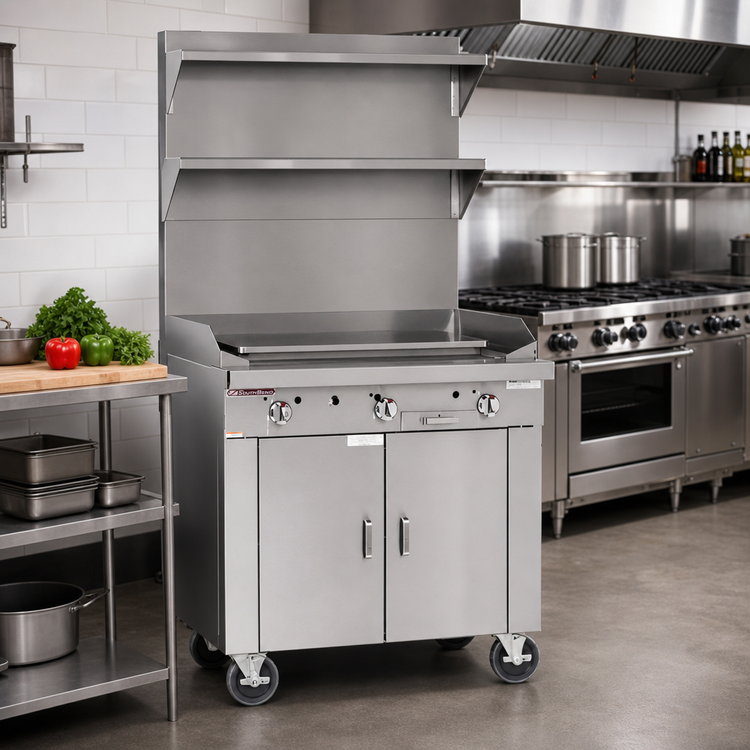

Southbend Platinum 48" Gas Plancha Range w/ Convection Oven & 12" Cabinet

Model P48A-PPPP | 128,000 BTU | CSA & NSF Listed

Give your kitchen a true workhorse. Southbend’s Platinum Series 48" Plancha Range unites a blazing-hot raised griddle, a high-performance convection oven, and a convenient storage cabinet in one heavy-duty, all-stainless package.

Why you’ll love it

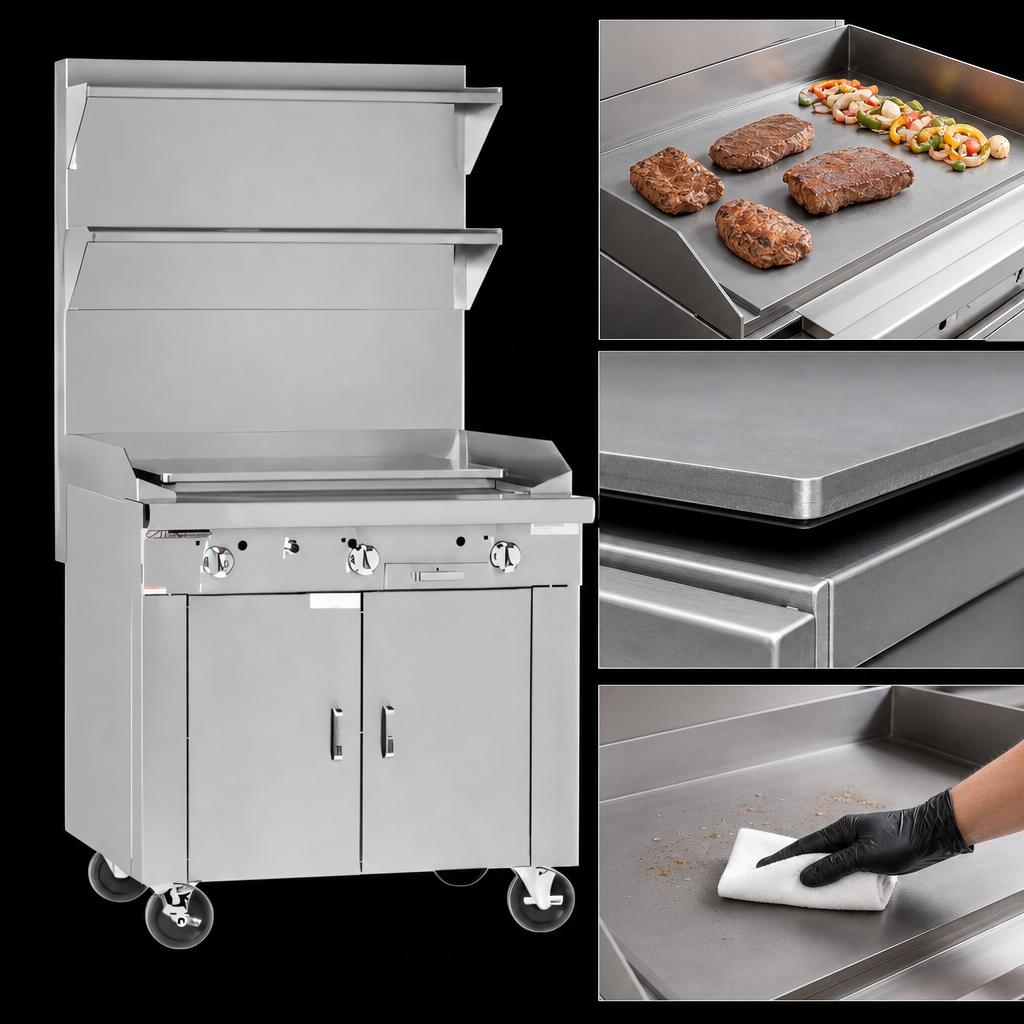

  • 41-3/4" raised plancha griddle with a ½" reinforced steel plate for rapid preheat & recovery.
  • Four 16,000 BTU cast-iron burners with manual knobs and battery spark ignition—no electrical hook-up needed for the top.

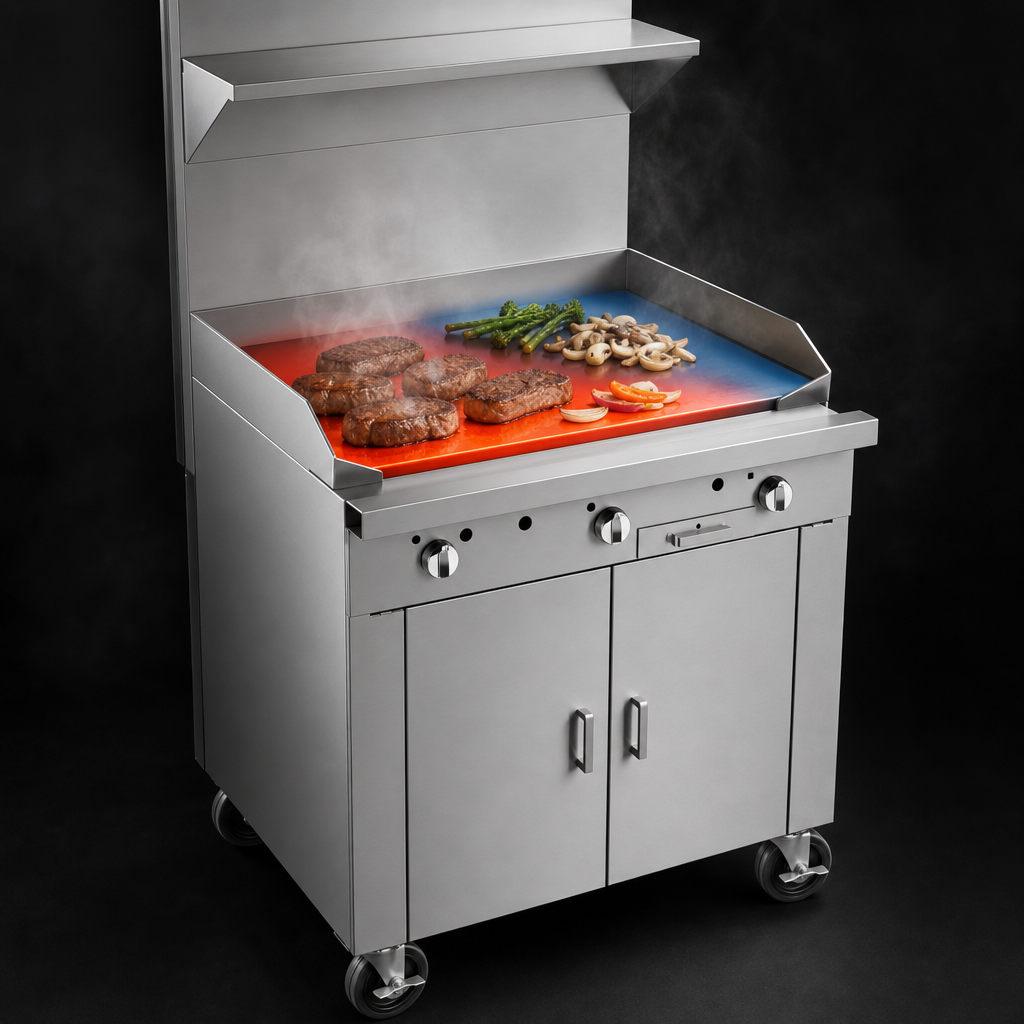

  • Two-zone cooking surface: up to 800 °F on the front ⅔ for hard sears, cooler finishing temps on the rear ⅓.
  • 5" deep front rail, side & rear splashes, and an oversized stainless grease drawer keep the workspace clean.
  • 45,000 BTU convection oven with standing pilot, ½ hp two-speed blower, and Insta-On thermostat (175–550 °F).
  • Porcelain enamel oven cavity (14"H × 26"W × 24"D) accepts full-size sheet pans either direction; includes 3 racks with 5 possible positions.
  • Built-in 12" stainless steel storage cabinet for pans, spices, or smallwares.
  • All-stainless exterior (front, sides, rear, bottom) plus 6" adjustable legs for easy leveling and floor cleaning.
  • 5" stainless flue riser, fully-insulated burner box, and 1¼" front / 1" rear gas connections—ideal for battery line-ups.
  • Backed by Southbend’s 1-year parts & labor warranty.

Utilities & certifications

Total BTU 128,000 BTU/hr (Natural)  |  107,000 BTU/hr (Propane)
Gas inlet 1¼" front manifold & 1" rear male NPT  •  Min. 7" WC NAT / 11" WC LP
Electrical No electricity required for standard battery-spark & standing-pilot configuration. (120 V or 208/240 V single-phase only if optional electronic ignition is specified.)
Listings CSA Gas & Sanitation • NSF

Dimensions & weight

Width 48" (1219 mm)
Depth 37 ½" (953 mm)
Height to cook surface 37 ½" (953 mm) + 5" flue riser
Shipping weight ≈ 840 lb (381 kg)
Plancha operating note: The raised plancha is designed for zone cooking and does not provide individual thermostatic temperature control.

Looking to build a full battery or add options such as casters, salamander, or extra shelving? Talk to our kitchen experts for a customized quote.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

48.0in

Depth

40.25in

Shipping Weight

840.0lbs

Exterior Finish

stainless steel front & sides

Top

(1) plancha griddle

Base

(1) convection oven, (1) cabinet

Plate Thickness

.500" = 1/2"

Specifications

Platinum Heavy Duty Range, gas, 48", 41-3/4" plancha, 1/2" thick plate, manual controls, battery spark ignition, (1) convection oven, includes (3) racks, (1) 12" storage cabinet, stainless steel front, sides, rear & exterior bottom, 6" adjustable legs, 128,000 BTU, CSA, NSF
