Southbend (Middleby) P48A-GGGG Platinum Gas Ranges
Description
Southbend Platinum 48" Heavy-Duty Gas Range

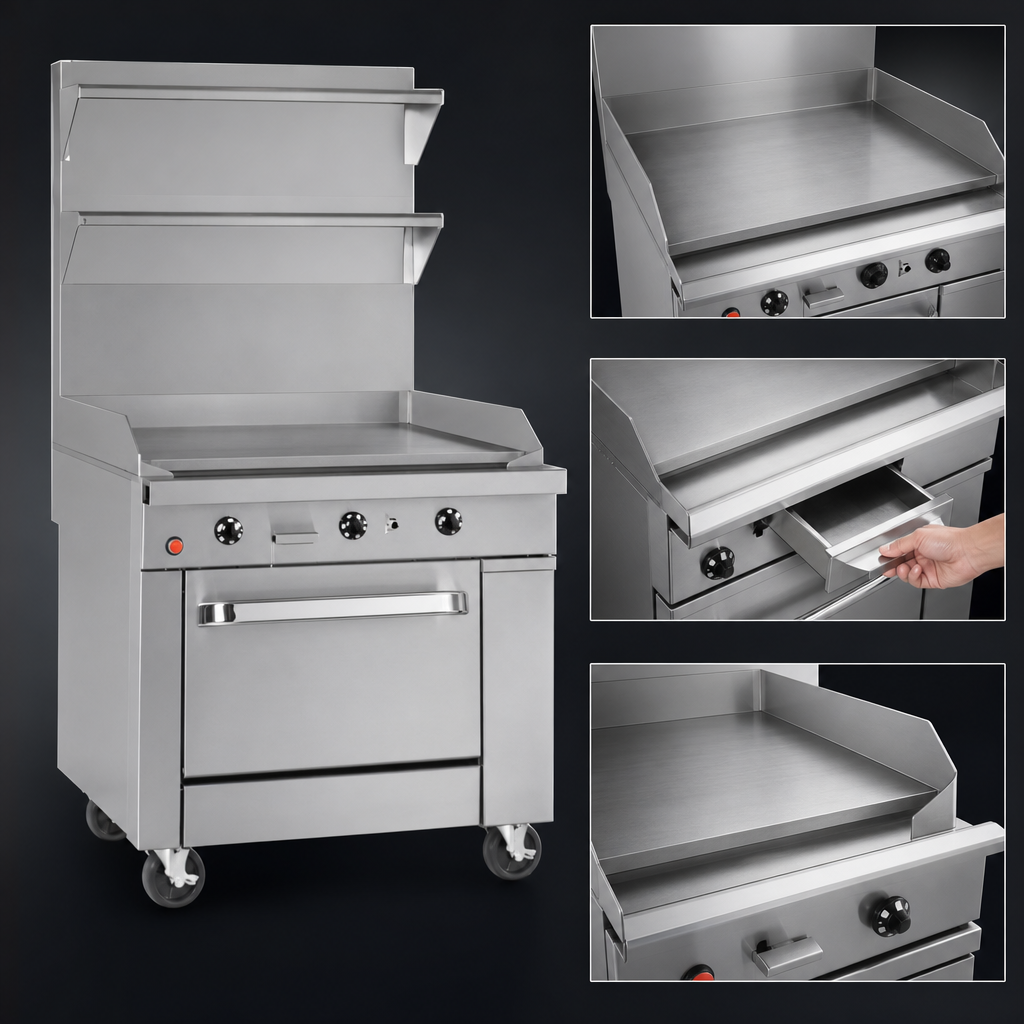

Full-Width Manual Griddle & Convection Oven
Tackle high-volume breakfast, lunch, and dinner rushes with the rugged power of Southbend’s Platinum Series. This 48" sectional range pairs a 1" thick manual griddle with a high-performance convection oven and a convenient 12" storage cabinet—all in one stainless-steel workhorse rated at 173,000 BTU.
Key Features
- 48" wide, heavy-duty Platinum Series sectional range
- Full-width, 1" thick stainless-steel griddle plate with side & rear splashers
- Manual burner controls with reliable battery spark ignition
- 8 burners under griddle deliver 128,000 BTU (NAT) for rapid heat recovery
- 9-1/4" deep front rail keeps busy cooklines organized
- 5" stainless flue riser directs heat away from the chef
- Stainless-steel construction on front, sides, rear & bottom; fully insulated burner box
- 6" adjustable stainless legs for easy leveling and cleaning access

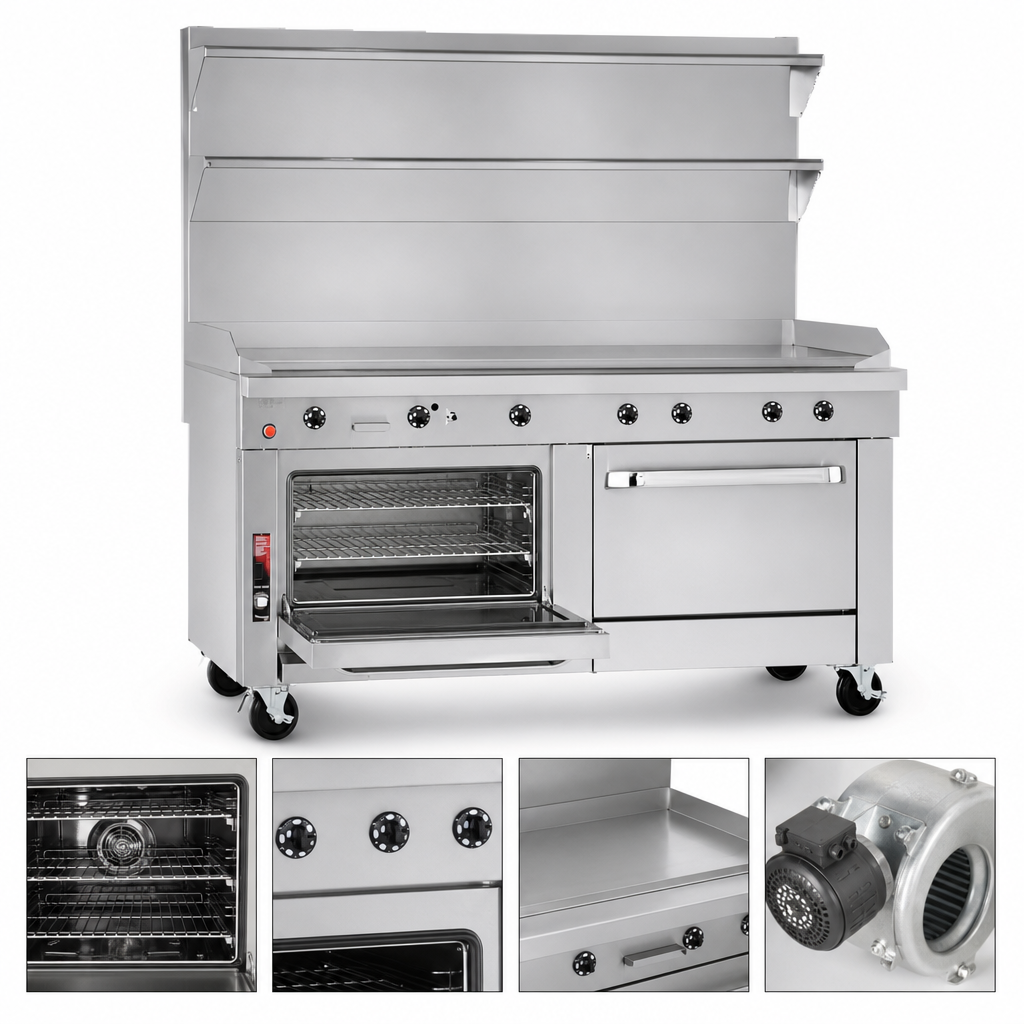

High-Performance Convection Oven
- 45,000 BTU NAT burner with standing pilot
- Insta-On thermostat 175 °F – 550 °F (79 °C – 288 °C)
- ½ hp, two-speed blower for even heat distribution
- Porcelain-enamel interior (14"H × 26"W × 24"D)
- (3) nickel-plated racks, 5 position guides
Built for the Long Haul
- 1-1/4" front gas manifold couples seamlessly in battery lines
- 1" rear NPT connection simplifies utility hookups
- 12" right-hand stainless cabinet keeps sheet pans and utensils within reach
- NSF listed and cCSAus, CSA Flame & Star certified for gas safety
- Backed by Southbend’s 1-year parts & labor warranty
Specifications
| Manufacturer / Series | Southbend – Platinum Heavy Duty |
|---|---|
| Model | P48A-GGGG |
| Overall Width | 48" / 1219 mm |
| Depth | 37-1/2" / 953 mm |
| Height (to cook surface / top of flue) | 36" / 40" (914 mm / 1016 mm) |
| Total BTU Input | 173,000 BTU (Natural) | 157,000 BTU (LP) |
| Griddle BTU | 128,000 BTU (8 × 16,000) |
| Oven BTU | 45,000 BTU |
| Electrical (convection blower) | 120 V, 1-ph, 5.9 A | 208/240 V, 1-ph, 2.7 A |
| Gas Connection | 1 ¼" front manifold, 1" rear NPT |
| Griddle Plate | 1" thick stainless, full width |
| Oven Racks Included | 3 |
| Base Storage | 12" right-hand stainless cabinet |
| Shipping Weight | ≈ 840 lb / 381 kg |
| Certifications | NSF, cCSAus, CSA Flame, CSA Star |
| Warranty | 1-year parts & labor (heavy-duty sectional) |
Popular Options & Accessories (sold separately)
- External gas pressure regulator
- Casters with rear restraining kit
- 24" or 36" flue riser with pan shelves
- Grooved or chrome-plated griddle surface
- Stainless oven interior upgrade
- Overlapping or extra-deep flue riser for battery installations
For best performance, install under a properly sized vent hood and supply regulated gas pressure (7" W.C. NAT, 11" W.C. LP). This appliance is intended for commercial kitchens only.
