Southbend (Middleby) P48A-CCCC Platinum Gas Ranges
Description
Southbend Platinum Series 48" Gas Heavy-Duty Range with Full-Width Charbroiler & Convection Oven
Model P48A-CCCC | 173,000 BTU | CSA & NSF ListedBring steakhouse-level searing and bakery-grade baking to the same footprint. The Southbend Platinum Series 48" heavy-duty range marries an 8-burner full-width charbroiler with a high-performance convection oven and a convenient 12" stainless-steel storage cabinet—perfect for high-volume restaurants, resorts, and institutional kitchens that refuse to compromise on versatility or durability.
Why Operators Love It

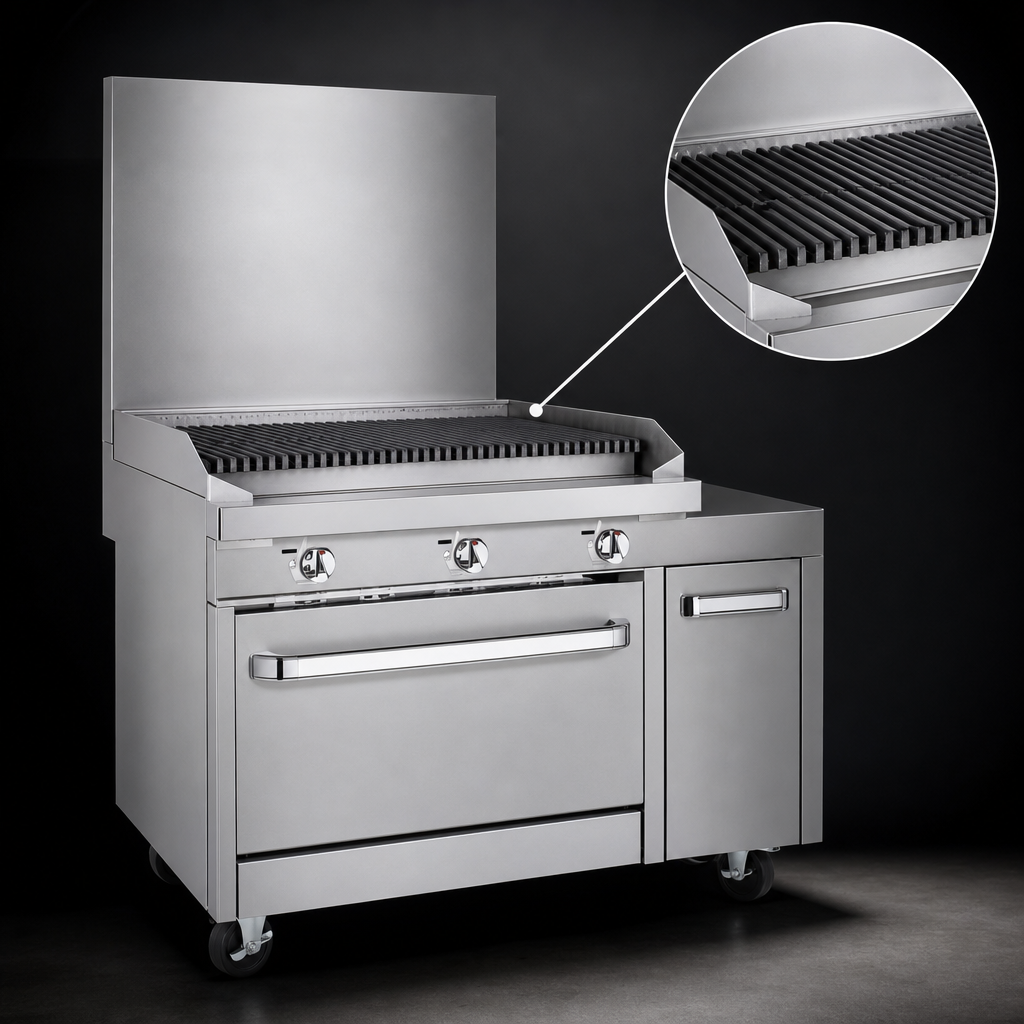

- Eight 16,000 BTU burners (128,000 BTU total) deliver an even 600 °F surface temperature for picture-perfect grill marks.
- Heavy, reversible cast-iron grates—choose 1/8" or 1/4" grid and adjust the slope for seafood, veggies, or thick steaks.
- 45,000 BTU convection oven with three racks and 5-position guides; accepts full-size sheet pans either way.
- Two-speed ½ HP blower ensures fast, even baking and roasting from corner to corner.
- Right-hand 12" cabinet keeps sheet pans, spices, or utensils organized and off the worktop.
- 9-1/4" deep front rail, removable drip tray, and stainless-steel radiants streamline cleanup.
- All-stainless exterior, fully-insulated burner box, and 6" adjustable legs built for years of punishing commercial use.
- Supported nationwide with Southbend’s 1-year parts & labor warranty.
Specification Highlights
| Overall Width | 48 in (1219 mm) |
|---|---|
| Overall Depth | 37.5 in (953 mm) |
| Cooking Height | 36 in to top of grate; 41 in with 5" flue riser |
| Total BTU Input | 173,000 BTU/hr (Natural or Propane) |
| Gas Connections | 1¼" front manifold (battery ready); 1" rear NPT |
| Electrical (oven blower) | 120 V, 1-phase, 5.9 A | 208/240 V option, 2.7 A |
| Oven Cavity | 14" H × 26" W × 24" D porcelain enamel |
| Included Racks | Three heavy-duty chrome racks |
| Certifications | CSA Flame | CSA Sanitation | NSF |
| Warranty | 1-year parts & labor (commercial use) |
What’s in the Box
- Southbend Platinum 48" Range (as described)
- (3) Oven racks with 5-position side rails
- 5" stainless-steel flue riser
- Removable charbroiler drip tray
- 6" adjustable stainless legs
- Installation & operation manual
- Do not cover charbroiler grates with sheet pans while burners are on—heat reflection can cause damage and void the warranty.
- Limit cookware over 12" Ø to the rear grates to protect front-mounted controls.
- Commercial, vent-hood installation required; zero clearance to non-combustible surfaces (2" behind blower motor on convection models).
See the owner’s manual for complete installation, cleaning, and maintenance guidelines.
