Southbend (Middleby)  |  Platinum  |  SKU: P48A-BBBB-SU

Southbend (Middleby) P48A-BBBB-SU Platinum Gas Ranges

$21,875.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum 48" Heavy-Duty Gas Range

Model P48A-BBBB-SU  |  Step-Up Rear Burners  |  Convection Oven Base

Bring uncompromising cooking power to the line with Southbend’s Platinum Series 48" range. Eight clog-free open burners, a high-performance convection oven, and a built-in 12" storage cabinet combine to create an all-in-one workhorse that thrives in high-volume kitchens.

Top Reasons Chefs Choose Platinum

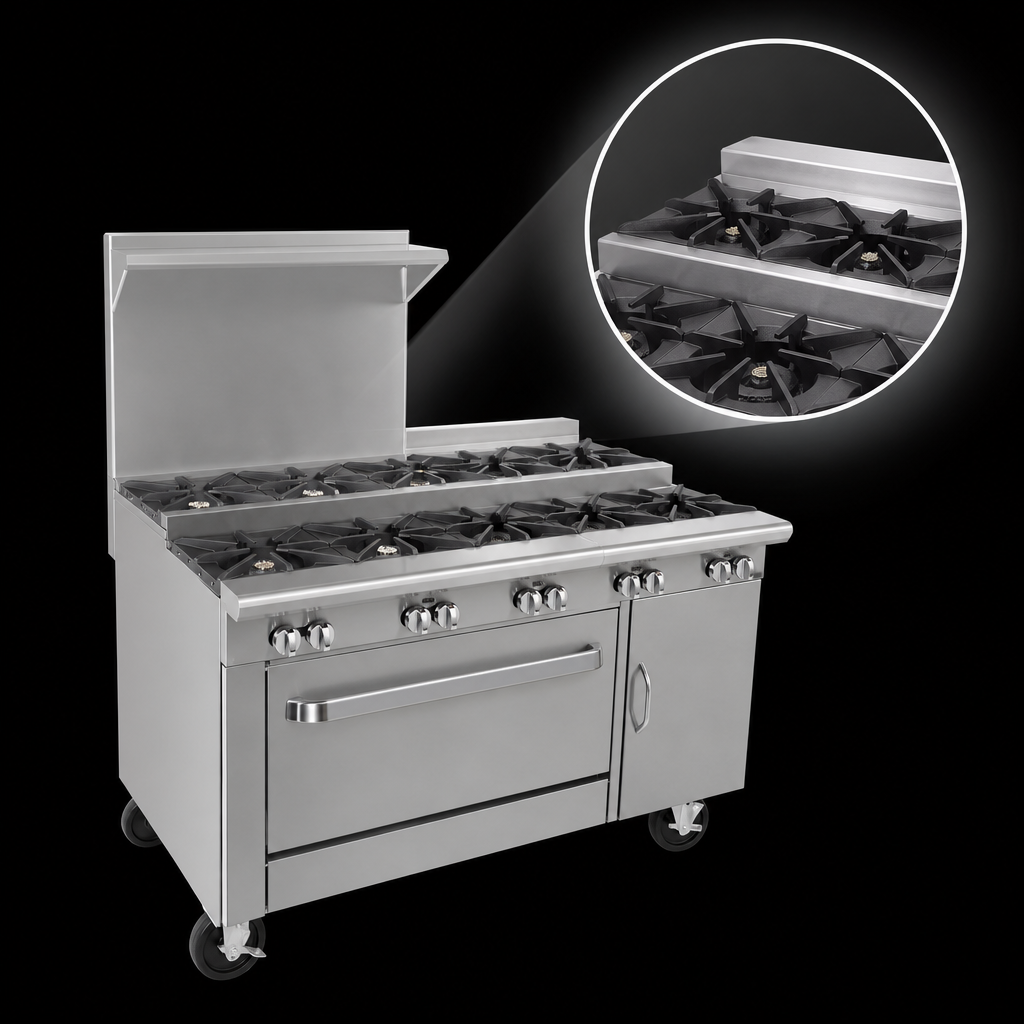

  • Eight 35,000 BTU burners – four standard height plus four step-up burners for stock pots and large vessels.
  • Patented clog-free design delivers consistent flames and reduces downtime.
  • 45,000 BTU convection oven with ½ HP, two-speed blower heats from 175 °F–550 °F and ships with 3 racks.
  • 12" right-side cabinet keeps sheet pans, smallwares, or spices within arm’s reach.
  • 9 ¼" deep front rail and removable drip tray for a cleaner, safer line.
  • Built to last – stainless steel front, sides, rear & bottom, plus fully insulated burner box.
  • 5" stainless flue riser and 6" adjustable legs included; optional casters available.
  • CSA & NSF listed for regulated commercial kitchens.
  • Backed by a 1-year parts & labor warranty from Southbend.
Technical Specifications
Cooktop 8 open burners (4 step-up rear)
Burner Output 35,000 BTU each  |  280,000 BTU total
Oven Type / Output Convection, 45,000 BTU
Total BTU 325,000 BTU (natural or propane)
Oven Interior (H × W × D) 14" × 26" × 24" (porcelain enamel)
Overall Dimensions (W × D × H*) 48" × 41" × 43 ½" (*to top of flue)
Gas Connections 1 ¼" front manifold, 1" rear NPT
Electrical (blower) 120 V, 1-phase, 5.9 A (208/240 V 2.7 A terminal block)
Shipping Weight ≈ 621 lb (282 kg)
Certifications CSA Design Certified, NSF Listed

*Dimensions, utilities & weight include a ±1" tolerance. Installation under a vented hood is recommended.

Oversized cookware policy: Vessels 12" Ø or larger should be used on the rear (step-up) burners only. Allowing pots to overhang the front rail may trap heat and shorten component life—avoid overlapping the rail to keep your range performing for years.
Popular Factory Options
  • Electronic spark ignition (no additional power required).
  • 24" or 36" high flue riser with shelving.
  • Removable cast-iron grate tops.
  • Casters with front locks & restraining cable.
  • Salamander or cheesemelter mounted to flue riser.

Ask about quick & easy equipment financing through Middleby partners—keep cash on hand while you upgrade your line.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

48.0in

Depth

37.5in

Shipping Weight

621.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) convection oven, (1) cabinet

Top

(4) open burners, (4) step-up open burners

Specifications

Platinum Heavy Duty Range, gas, 48", (4) 35,000 BTU open burners, (4) 35,000 BTU step-up open burners, manual controls, (1) convection oven, (1) 12" cabinet right, includes (3) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 325,000 BTU, CSA, NSF
