Southbend (Middleby) P48-NFR Platinum Salamander Broilers
Description

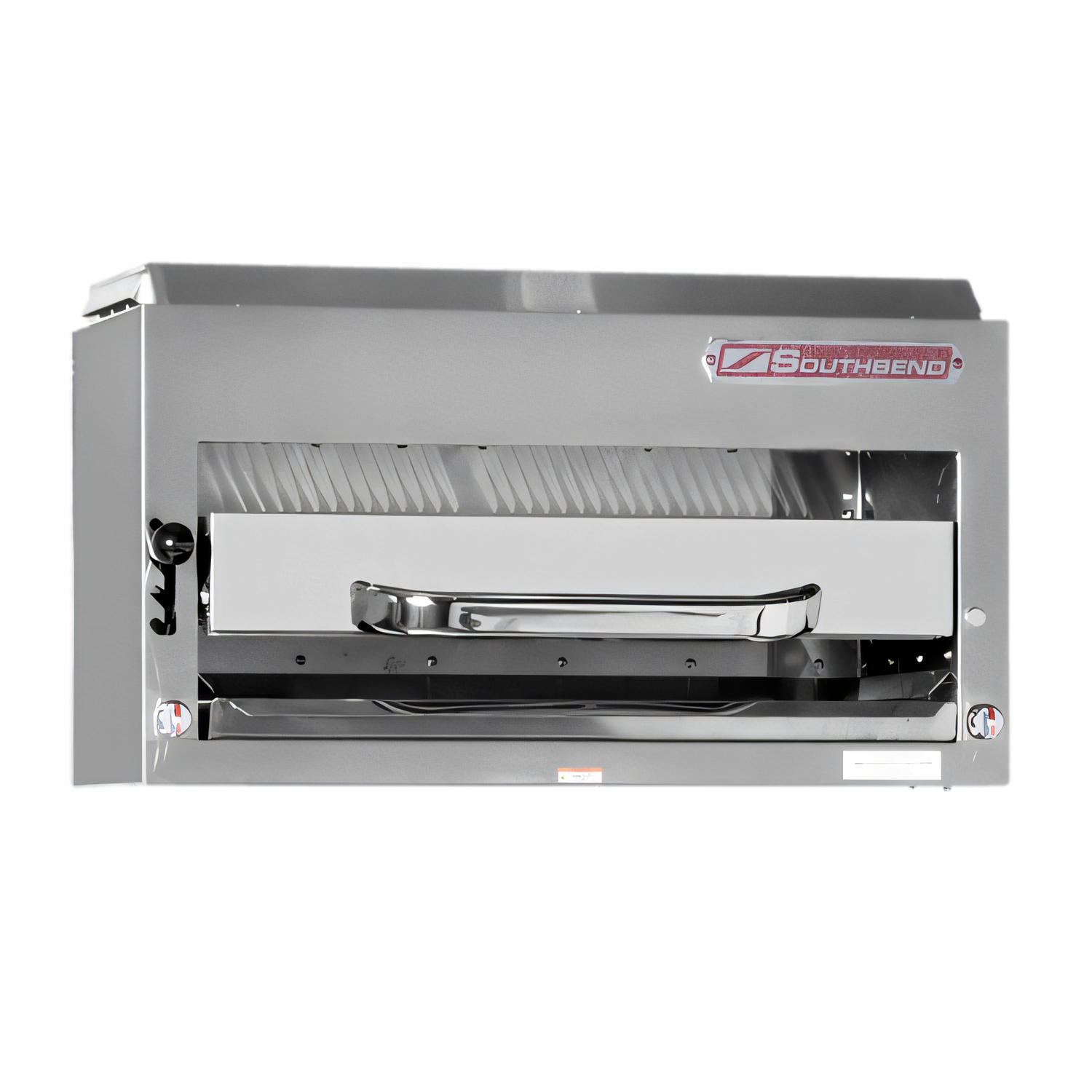

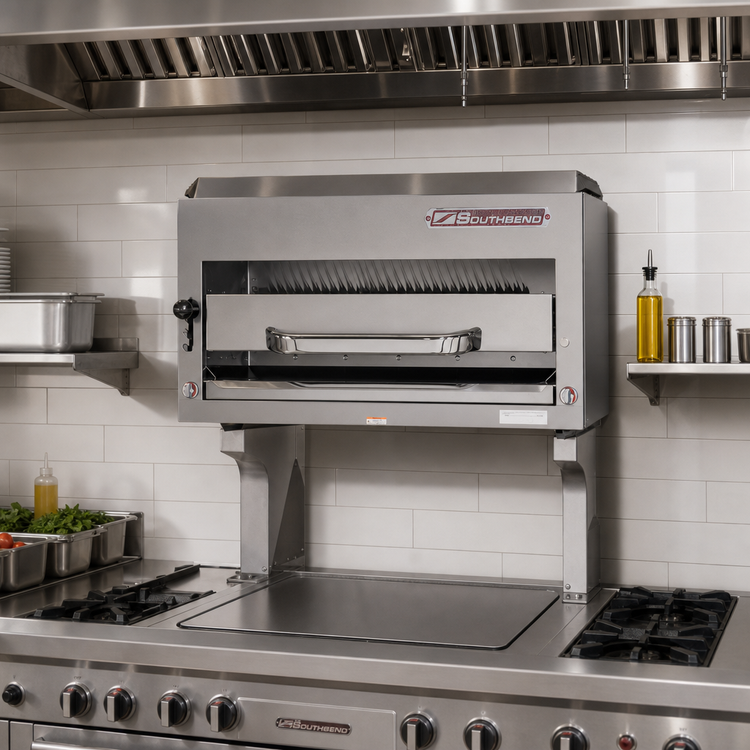

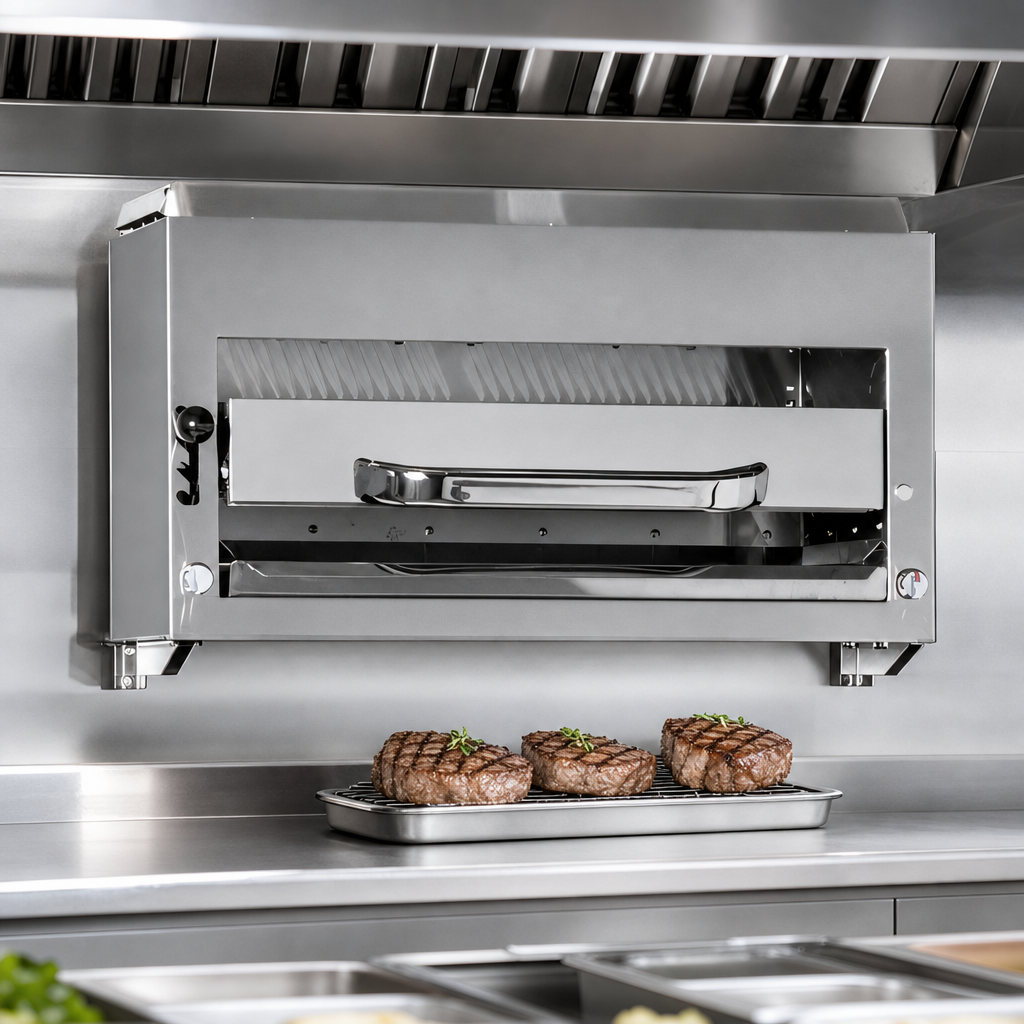

Southbend Platinum Compact Infrared Broiler – 48" Range-Mount (P48-NFR)
Gas | 60,000 BTU | 6 Infrared Burners | CSA & NSF CertifiedUnlock steakhouse-level searing in a fraction of the time. The Platinum P48-NFR mounts directly to your Southbend flue riser, preheats in just 90 seconds, and delivers a blistering 60,000 BTU of even, infrared heat across an extra-wide 48 inch cavity—perfect for high-volume finishing, glazing and rapid a-la-minute broiling.
Key Features & Advantages

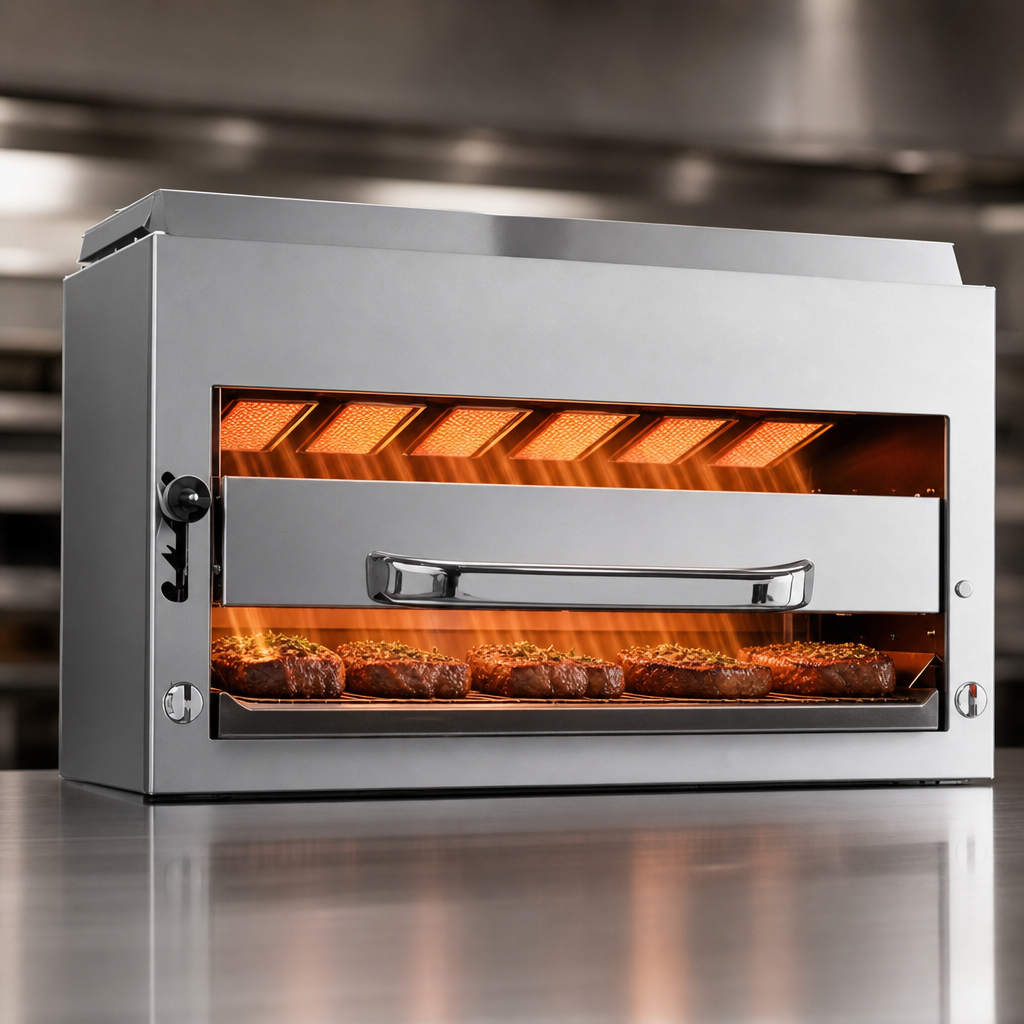

- Six 10,000 BTU infrared burners with independent left / right dual-valve control.
- 42" × 14" chrome-plated rack (588 sq in) on an Easy-Track counter-balanced carriage—glides out smoothly for safe loading.
- Five rack positions for precision caramelization from rare to “Pittsburgh.”
- Ultra-fast 90-second preheat with no recovery time between loads.
- Heavy-duty 430 stainless steel construction, bright-anneal face plate & cool-touch handle.
- Full-width, removable grease drawer and drip shields accelerate clean-up.
- Zero clearance to non-combustible walls; 1" side clearance to combustibles.
- Built in the USA and backed by a 1-year parts & labor warranty.
Technical Specifications
| Model | P48-NFR |
|---|---|
| Fuel | Natural or Propane Gas (regulator included) |
| Total BTU Input | 60,000 BTU/hr |
| Burners | 6 infrared, 10,000 BTU each |
| Heat Zones | Left & Right (High / Low / Off) |
| Cooking Surface | 42" W × 14" D – 588 sq in |
| Rack Positions | 5 |
| Overall Dimensions | 48" W × 15.5" D × 21.5" H |
| Shipping Weight | 210 lb (95 kg) |
| Gas Connection | 3/8" NPT (rear); 4" W.C. NG, 10" W.C. LP |
| Mounting | Flue riser (range-mount) standard |
| Clearances | 1" sides (combustible) • 0" rear |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Optional Accessories (sold separately)
- Wall-mount bracket kit
- 4" stainless steel countertop legs
- Sloped enclosure
- Gas inter-piping for sectional range bases
