Southbend (Middleby)  |  Platinum  |  SKU: P48-CM

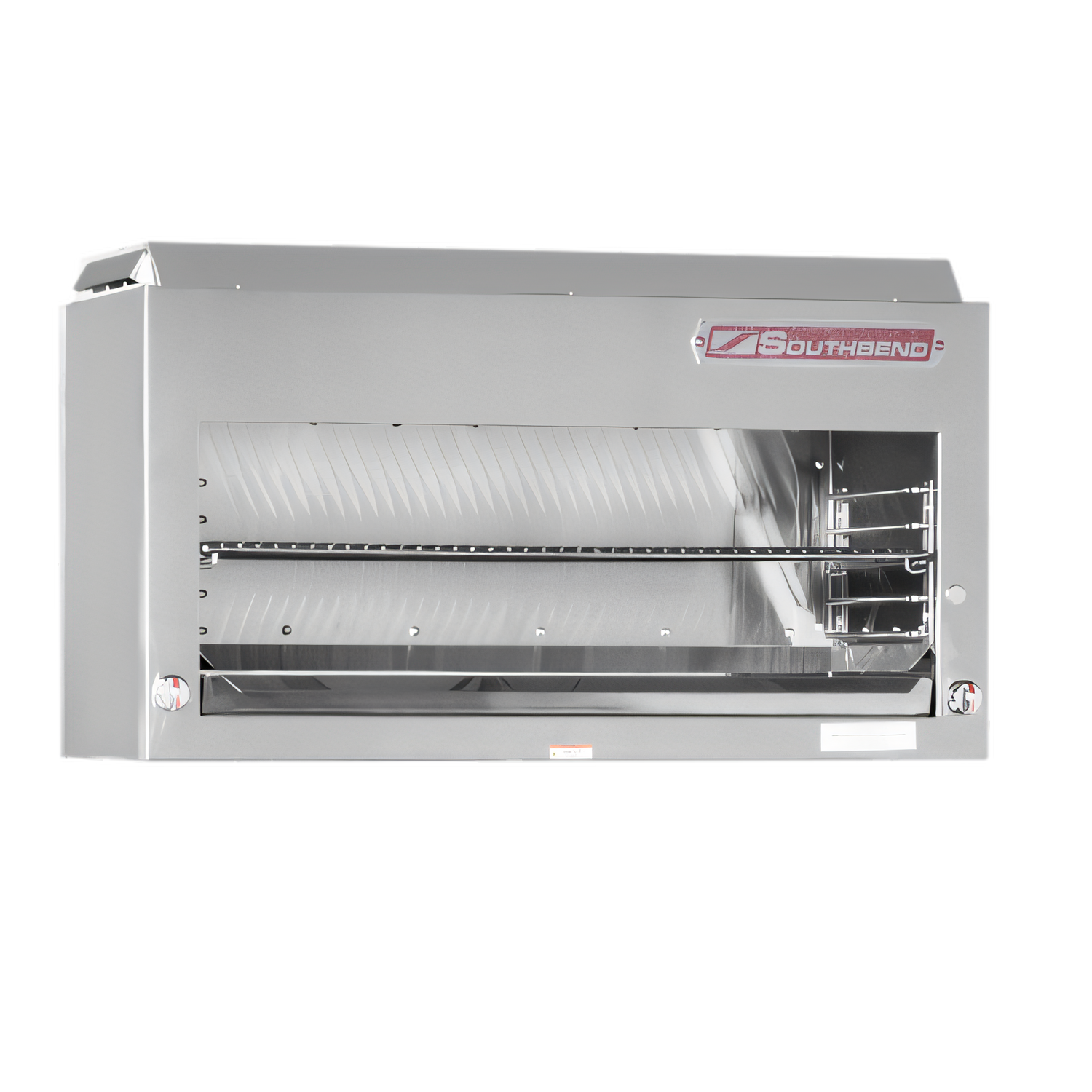

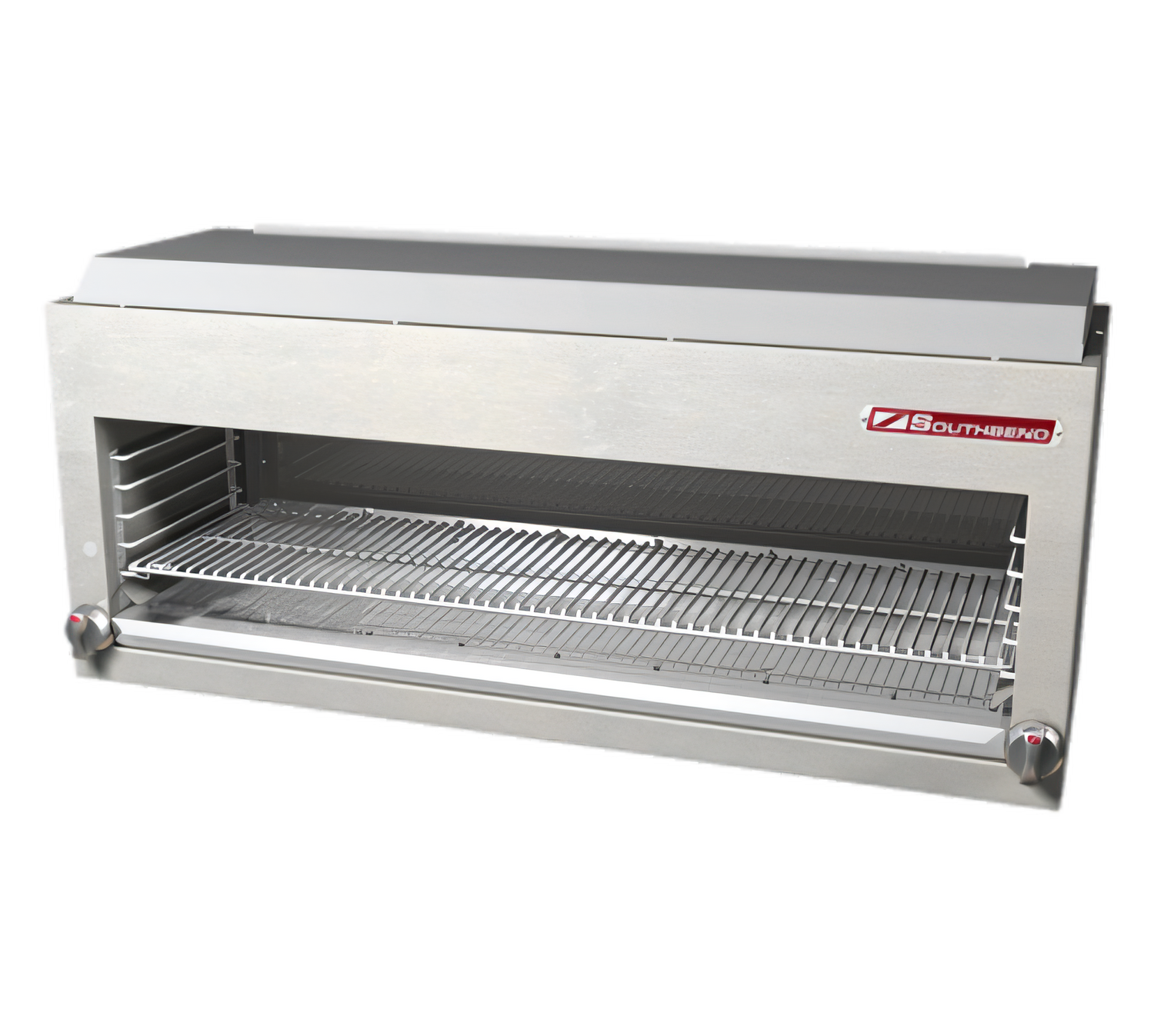

Southbend (Middleby) P48-CM Platinum Cheese Melters

$4,697.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Broilers Charbroilers & Grills Cheese Melters Cheesemelters Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum Series 48" Gas Cheesemelter (P48-CM)

60,000 BTU • 6 Infrared Burners • Riser-Mount

Designed for high-volume finishing, browning and cheesemelting, the Platinum P48-CM delivers intense, even infrared heat in just 90 seconds. Stainless steel construction, dual independent burner controls and a generous 43" x 13" cooking cavity make this heavy-duty cheesemelter the perfect companion for Southbend Platinum and sectional ranges—or as a stand-alone wall/counter unit with optional hardware.

Top Features

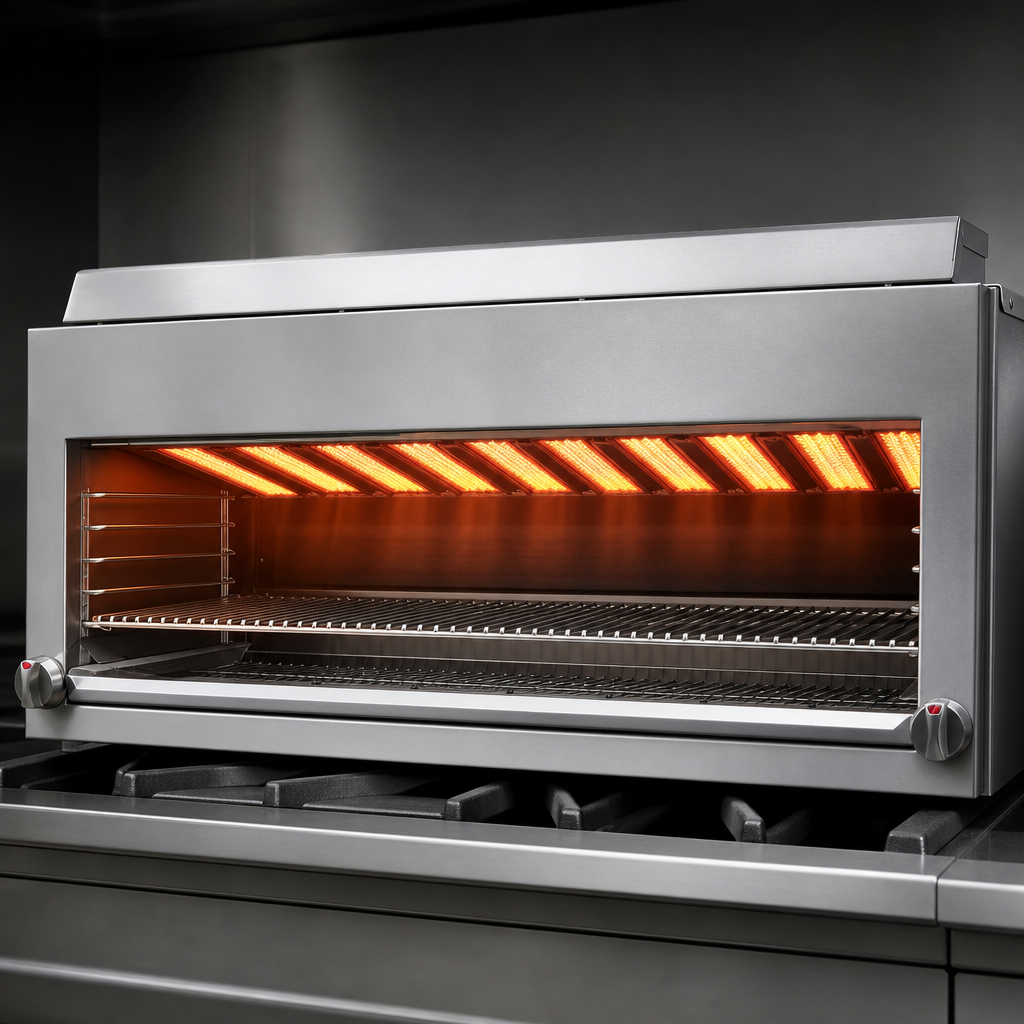

  • Six 10,000 BTU infrared burners (60,000 BTU total) with dual valve control for left/right operation
  • Ultra-fast 90-second preheat—no waiting between loads

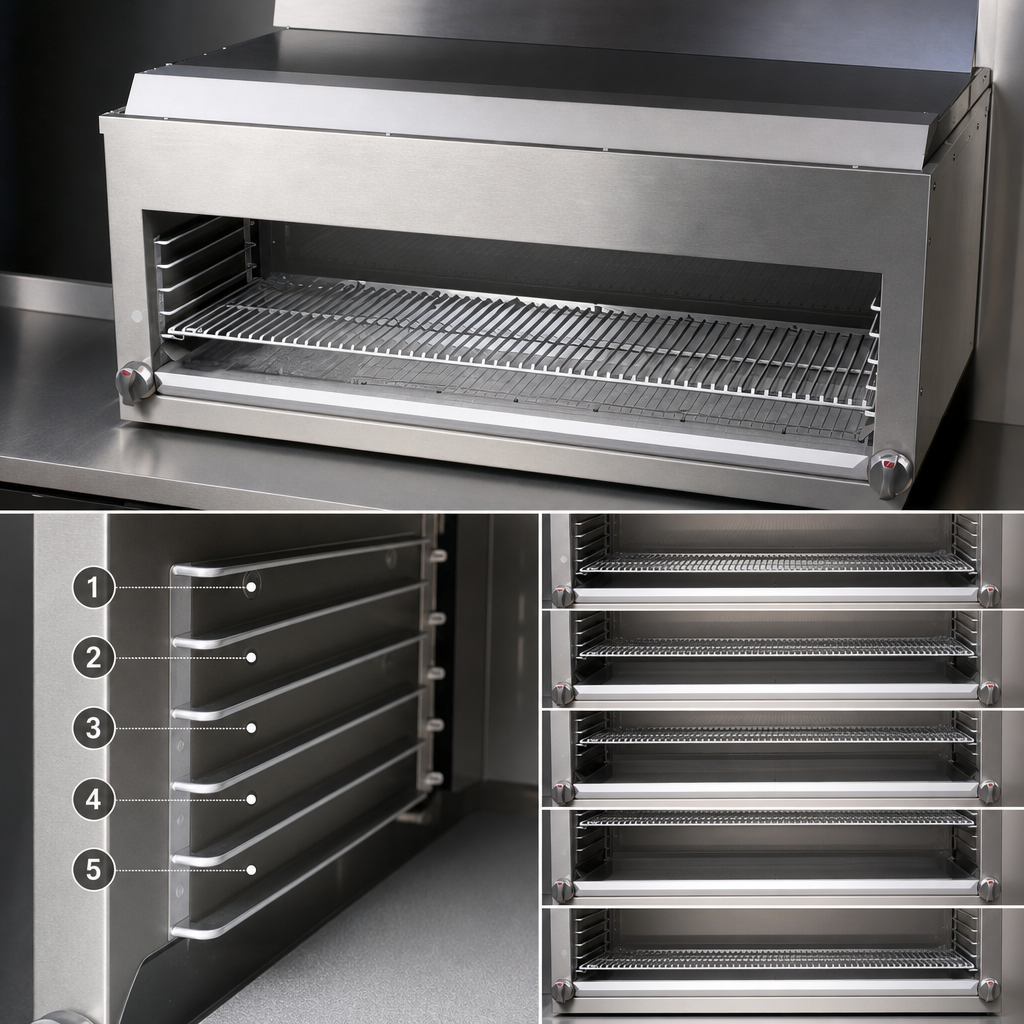

  • Five rack positions plus one chrome-plated cooking rack included
  • Bright-annealed, removable crumb tray for quick cleanup
  • Stainless steel interior & exterior for maximum durability and easy sanitation
  • Standard flue-riser mount; optional wall bracket or 4" legs for countertop use
  • Zero clearance to non-combustibles; 1" side clearance to combustibles
  • Certified CSA & NSF for commercial kitchens

Specifications

Model P48-CM
Cooking Surface 43" W × 13" D (559 in²)
Heat Source 6 infrared burners, natural or LP gas
Total BTU 60,000 BTU/hr
Preheat Time ≈ 90 seconds
Gas Inlet 3/8" NPT (includes 3/4" NPT regulator)
Operating Pressure Natural 4" W.C.  |  LP 10" W.C.
Dimensions (W × D × H) 48" × 15.5" × 21.5" (1219 × 394 × 546 mm)
Shipping Weight 175 lb / 79 kg
Rack Guides 5 positions
Standard Mount Flue riser (range mount)
Optional Mounts Wall bracket • 4" stainless legs (countertop)
Warranty 1-year parts & labor (commercial use)

Popular Accessories (sold separately)

  • Additional chrome-plated cooking rack
  • 4" stainless steel legs for countertop installation
  • Heavy-duty wall-mount bracket
  • Sloped enclosure for flush, built-in look

Need to spread out payments? Ask about Middleby Equipment Financing for fast credit decisions and fixed monthly terms.

Commercial use only: Warranty is void in residential settings or if unit is installed/operated outside the specified gas pressures and clearances. Refer to Southbend limited-warranty terms for complete details.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

21.5in

Width

48.0in

Depth

15.5in

Shipping Weight

175.0lbs

Heat type

infrared

Rack Positions

5

Exterior Finish

all stainless steel exterior

Width (side - side)

37" - 48"

Mounting

range mount

Specifications

Platinum Heavy Duty Cheesemelter, gas, 48", riser mount, (6) infrared burners, (5) position rack guides, (1) chrome plated rack, dual valve control, 90 second preheat time, removable crumb tray, stainless steel construction, 60,000 BTU, CSA, NSF
