Southbend (Middleby) P36N-XX Platinum Gas Ranges
Description
Southbend Platinum Series 36" Modular Heavy-Duty Range
Model P36N-XX | 4 × 45,000 BTU Pyromax™ Open BurnersBuilt for high-volume commercial kitchens that demand uncompromising power and durability, the Platinum Series 36" modular range delivers a blistering 180,000 BTU of cooking performance in a compact, battery-ready footprint. Mount it on a refrigerated base, equipment stand, or countertop and unleash four patented clog-free burners that excel at everything from rapid boils to low-simmer precision.
Why You’ll Love It

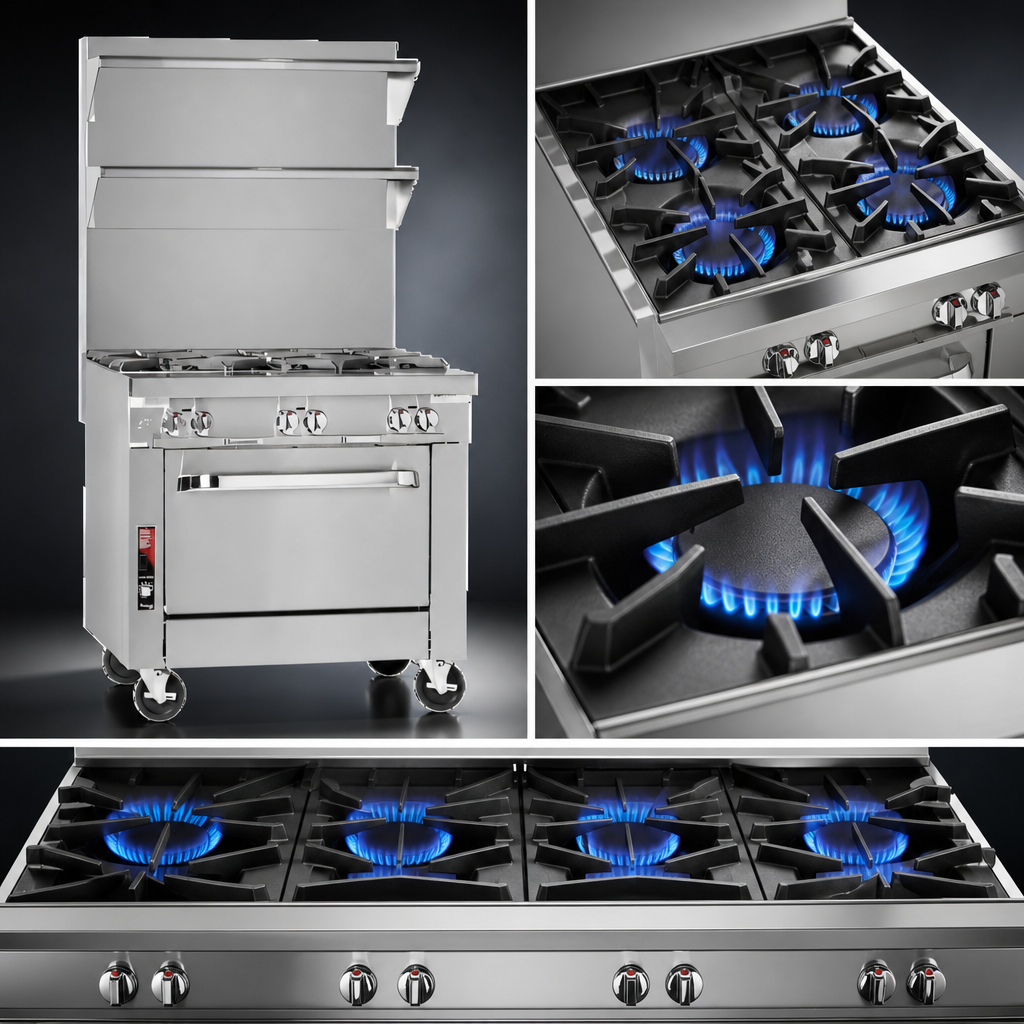

- Four 45,000 BTU Pyromax™ open burners—patented, clog-free, and field-proven for even flame distribution.

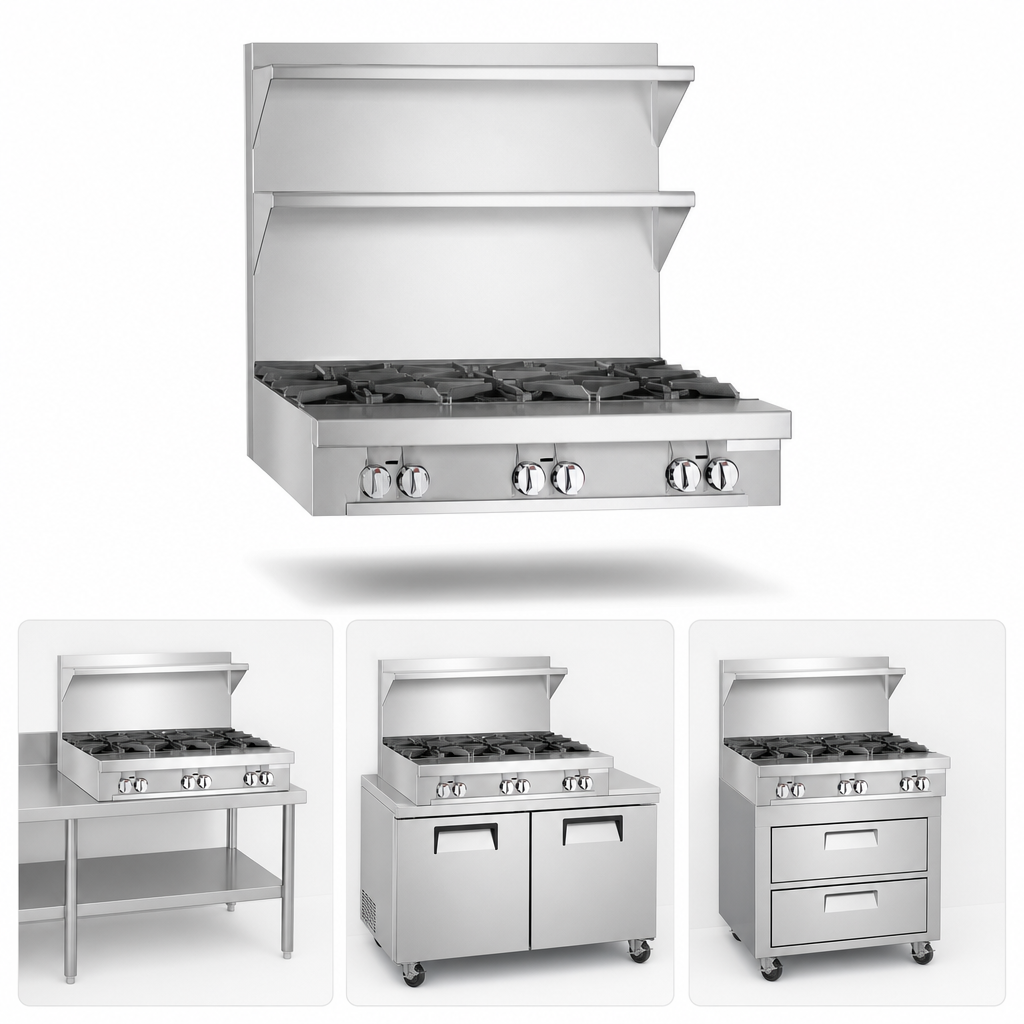

- Modular design drops seamlessly onto counters, chef bases, or refrigerated / freezer bases.
- Rugged welded-steel top grates lift off for fast, thorough cleaning.
- 9-¼" deep front rail doubles as a handy plating surface.
- Removable full-width drip tray keeps the cook line spotless.
- All-stainless exterior (front, sides, rear, bottom) resists corrosion and wipes down in seconds.
- 5" stainless flue riser channels heat and combustion by-products toward the hood.
- Fully-insulated burner box maintains consistent temperatures and reduces energy loss.
- 1-¼" front gas manifold with 1" rear NPT connection—ideal for battery installations.
- Certified for CSA & NSF—ready for code-compliant installation across North America.
At-a-Glance Specs
| Cooking Surface | 36" W × 27" D (914 × 686 mm) |
|---|---|
| Number of Burners | 4 open-top Pyromax™ |
| Per-Burner Output | 45,000 BTU (natural or LP) |
| Total Input | 180,000 BTU/hr |
| Gas Connection | Front 1-¼" manifold (battery ready) / Rear 1" NPT male |
| Required Supply Pressure | 7" W.C. Natural | 11" W.C. Propane |
| Exterior Construction | #3 polished 430 & 304 stainless steel |
| Overall Dimensions* | 36" W × 37-½" D × 34" H (914 × 953 × 864 mm) |
| Shipping Weight | Approx. 315 lb (143 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see details below) |
*Height shown with standard 5" flue riser. Dimensions subject to ±1" manufacturing tolerance.
Popular Options (Factory Installed)
- External gas pressure regulator
- 7-¼" deep or square-belly front rail
- 24" or 36" flue riser with single or double shelves
- Open-frame base with heavy-duty casters
- Extra-deep rear-extending flue riser
- Cable restraint kit (required when unit is on casters)
- Removable cast-iron grate tops
All options are sold separately and must be specified at time of order.
Southbend Peace-of-Mind Warranty
Every Platinum Series sectional range ships with a one-year limited parts & labor warranty, backed by Southbend’s nationwide network of authorized service agencies. Extended protection plans are available; ask your sales representative for details.
