Southbend (Middleby)

Southbend Platinum 36-Inch Modular Gas Sectional Range with Full-Width Thermostatic Griddle

SKU: P36N-TTT
$9,800.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum 36-Inch Modular Gas Sectional Range with Full-Width Thermostatic Griddle

1-Inch Plate, 96,000 BTU, Battery Spark Ignition

Built for heavy-duty griddle production, this 36-inch modular range pairs a 1-inch plate with thermostatic control for reliable, even cooking.

  • 36-inch modular sectional range with a full-width griddle top
  • Thermostatic "Insta-On" control maintains griddle temperatures from 180°F to 400°F
  • 1-inch thick stainless steel griddle plate with side and rear splashers
  • 96,000 BTU natural gas output with battery spark ignition
  • Stainless steel front, sides, rear, and exterior bottom for long-lasting durability
  • Removable stainless steel grease drawer and fully insulated burner box
  • Designed for modular mounting in a sectional battery setup

Overall Dimensions:

36.0"W x 37.5"D x 13.5"H

Product Weight:

400.0 lb

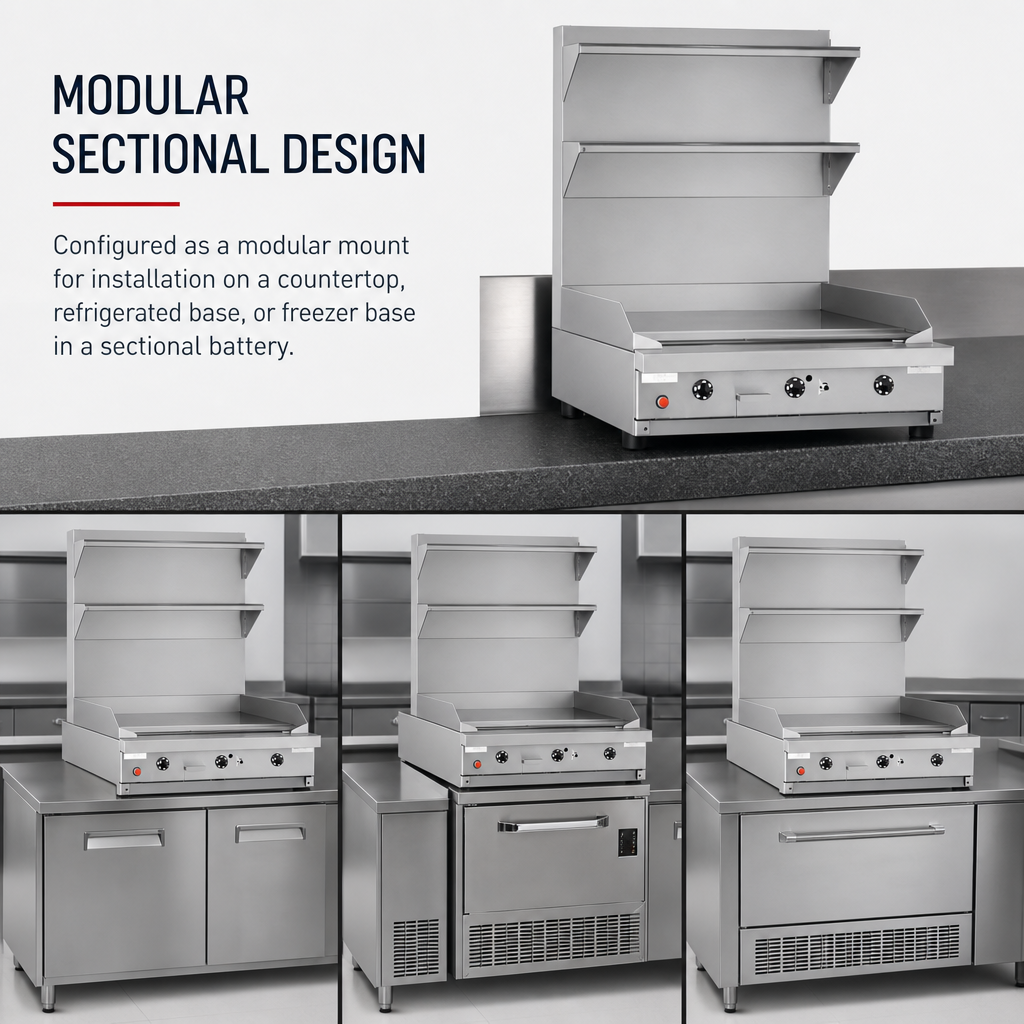

Modular Sectional Design

Configured as a modular mount for installation on a countertop, refrigerated base, or freezer base in a sectional battery.

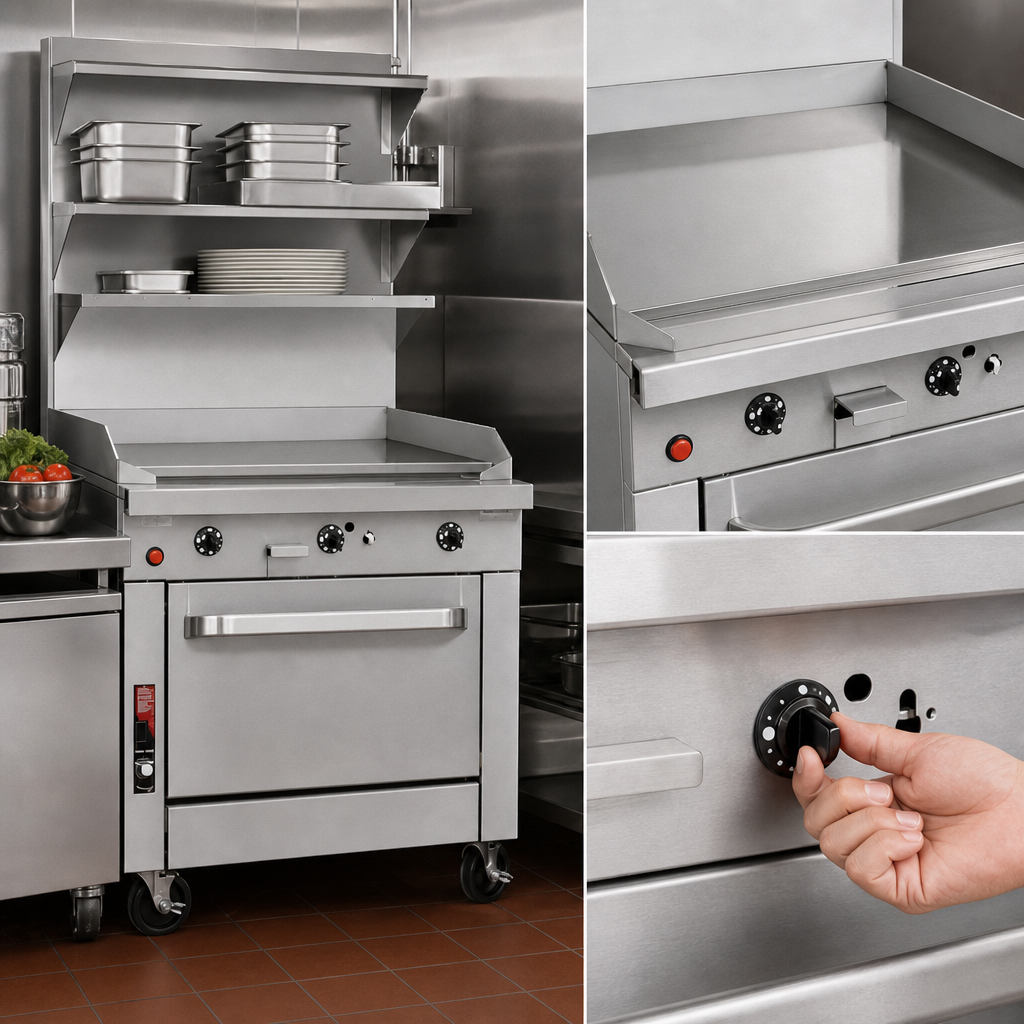

Thermostatic Full-Width Griddle

"Insta-On" thermostatic control keeps the griddle surface within a 180°F to 400°F temperature range.

1-Inch Thick Griddle Plate

Heavy-duty stainless steel plate helps retain heat and stand up to demanding commercial use.

Battery Spark Ignition

Battery spark ignition provides reliable startup without requiring a hardwired electrical connection.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easier cleaning.

Removable Grease Drawer

A removable stainless steel grease drawer makes cleanup faster and more convenient.

Battery Gas Connections

The unit includes a 1-1/4-inch front manifold and a 1-inch rear gas connection for sectional installation.

Insulated Burner Box

Fully insulated lining and burner box help retain heat and improve efficiency.

Type Sectional Range
Style Modular
Installation Type Countertop
Controls Thermostatic
Material Stainless Steel
Finish Polished Stainless Steel
Temperature Range 180°F to 400°F
BTU 96,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inches Front Manifold / 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C.
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 400 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Product configurator PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

The thermostatic griddle control maintains a surface temperature range of 180°F to 400°F.
The minimum gas supply pressure is 7 inches W.C. for natural gas. The documentation also notes 11 inches W.C. for propane models, and a regulated gas supply is required.
No hardwired electrical connection is specified for this model. It uses battery spark ignition.
No. The documentation states that a pressure regulator must be ordered separately.
The warranty documentation states one year parts and labor for Heavy Duty Sectional equipment, with service performed by a Southbend Authorized Service Agency.
