Southbend (Middleby)  |  Platinum  |  SKU: P36N-TTC

Southbend (Middleby) P36N-TTC Platinum Gas Ranges

$11,949.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Product configurator Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Platinum 36" Modular Gas Range – 24" Thermostatic Griddle / 12" Charbroiler

Model P36-TTC | 96,000 BTU Natural Gas

Built for demanding commercial kitchens, the Southbend Platinum Series 36" modular range combines a precision-controlled 24" griddle with a powerful 12" charbroiler in one heavy-duty unit. 100 % stainless steel construction, battery spark ignition and USA craftsmanship deliver the durability, performance and flexibility you expect from Southbend.

Highlights

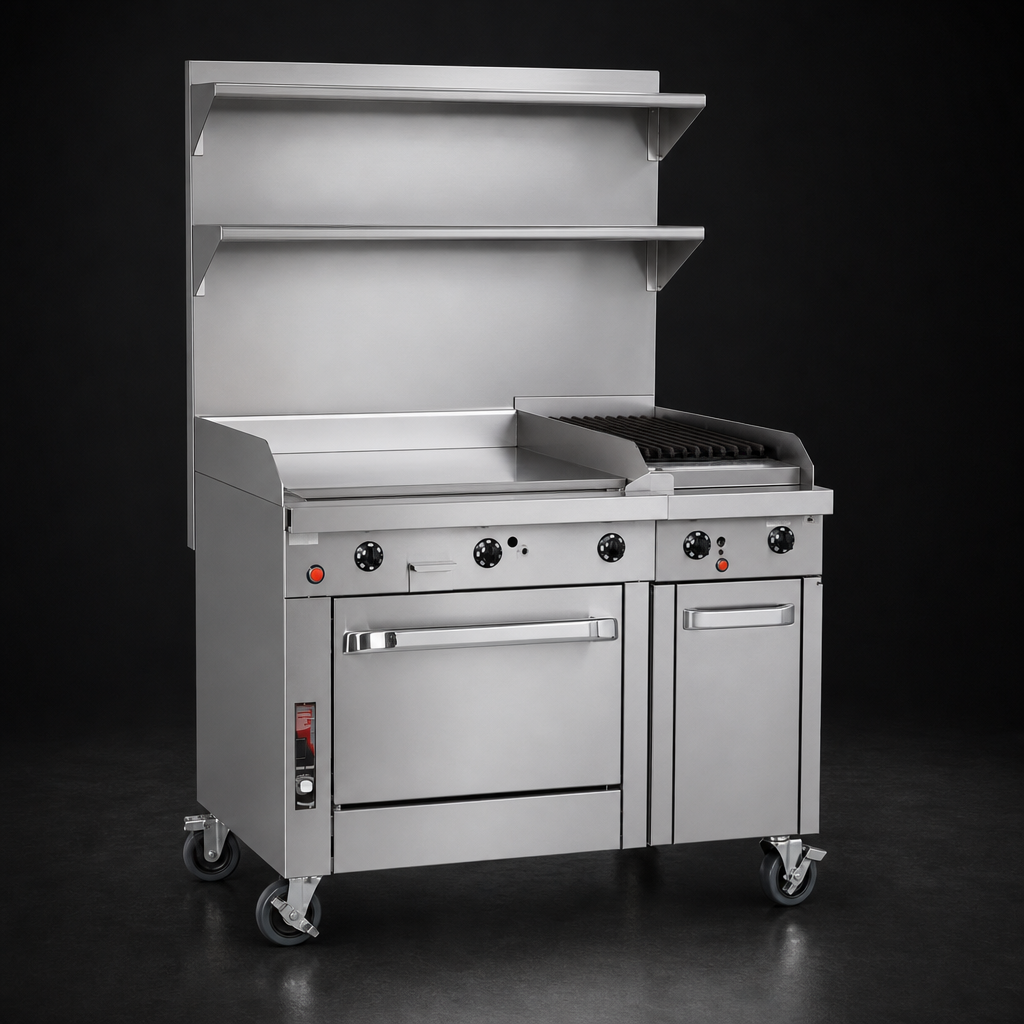

  • 24" Insta-On thermostatic griddle (180 – 400 °F) with 1" thick plate & removable grease drawer

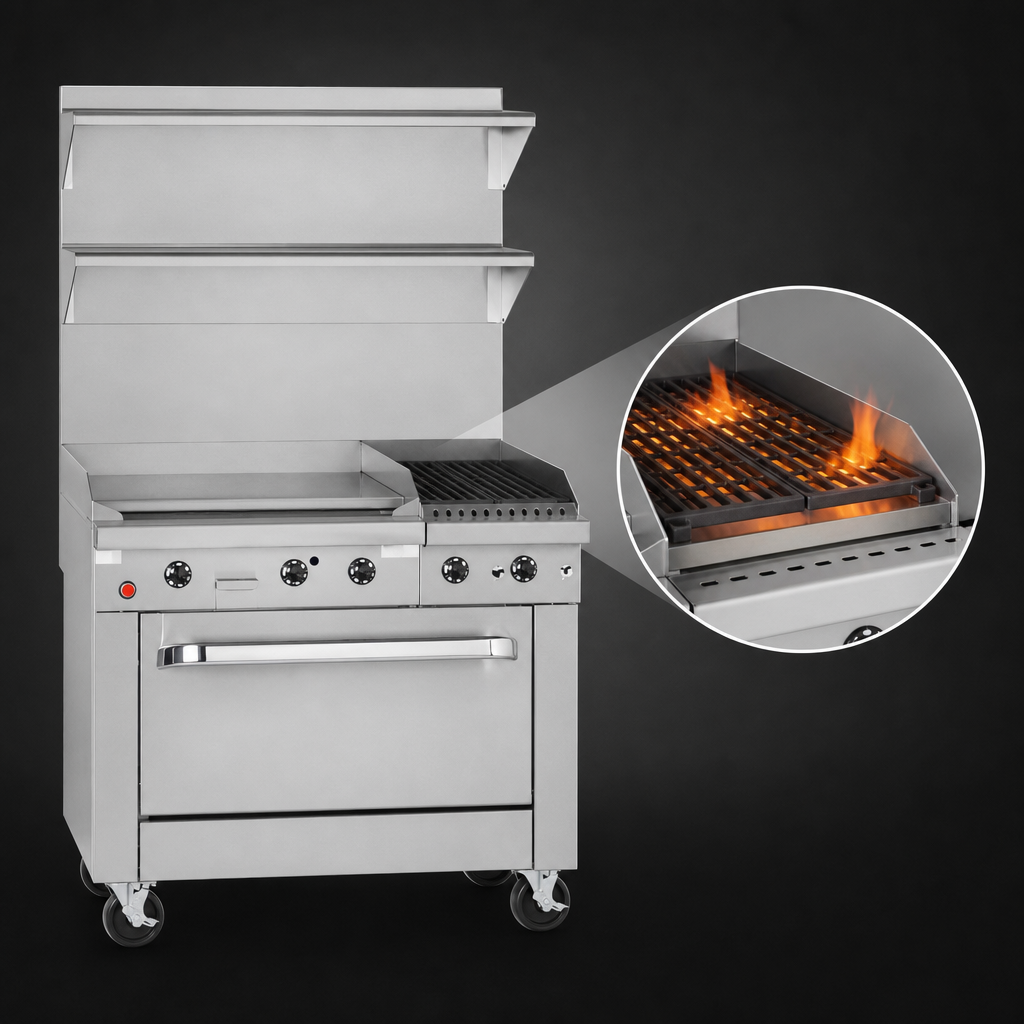

  • 12" heavy-duty charbroiler with two 16,000 BTU burners, flip-over cast-iron grates & 600 °F top heat
  • Total output 96,000 BTU (Nat) / 84,000 BTU (LP)
  • Reliable battery spark ignition – no standing pilots
  • 5" stainless steel flue riser keeps heat & vapors headed to the hood
  • 9-1/4" deep front rail for safe plating & pan handling
  • Modular design mounts on a counter, refrigerated base or in a sectional battery
  • cCSAus, CSA Flame, CSA Star & NSF listed • Made in Fuquay-Varina, NC USA
Performance Details
  • Griddle burners: 2 × 16,000 BTU with dedicated thermostatic control for even zone heating
  • Charbroiler burners: 2 × 16,000 BTU with hi/low valve for quick searing or gentle finishing
  • Adjustable charbroiler grate slope & reversible 1/8"/1/4" grid width for menu versatility
  • Fully insulated burner box maximizes efficiency and keeps the line cooler
Built to Last
  • #3 polished 430/304 stainless steel front, sides, rear & exterior bottom
  • Removable drip trays for fast, tool-free cleaning
  • Free factory battery-design assistance when installing with other Platinum sections
  • 1-year parts & labor warranty backed by the Southbend nationwide service network
Specifications
Cooktop configuration 24" thermostatic griddle & 12" charbroiler (field-specify left or right)
Total BTU 96,000 BTU Natural Gas • 84,000 BTU Propane
Burners 4 × 16,000 BTU cast-iron (2 griddle / 2 charbroiler)
Gas connection 1-1/4" front manifold (sectional) & 1" rear male NPT; min. 7" W.C. Nat / 11" W.C. LP
External regulator required (order separately)
Ignition Battery spark (no electrical connection needed for this modular model)
Dimensions 36" W × 40" D × 15-3/4" H to cooking surface + 5" flue riser
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor, commercial use

Want a chrome or grooved griddle plate, flue-mounted shelving or a matching oven base? Contact us for factory-installed options and configurations.

Important: This equipment is intended for commercial kitchens under a properly sized ventilation hood. Never block charbroiler grates with a sheet pan while burners are on—doing so can cause permanent damage and void the warranty.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame, Made in USA

Height

13.5in

Width

36.0in

Depth

37.75in

Shipping Weight

390.0lbs

Base

modular

Top

(1) 12" charbroiler, (1) 24" griddle with thermostat

Exterior Finish

stainless steel front & sides

Plate Thickness

1.000" = 1"

Specifications

Platinum Heavy Duty Range, gas, 36", modular, (1) 24" griddle, (1) 12" charbroiler, thermostatic controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 96,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
