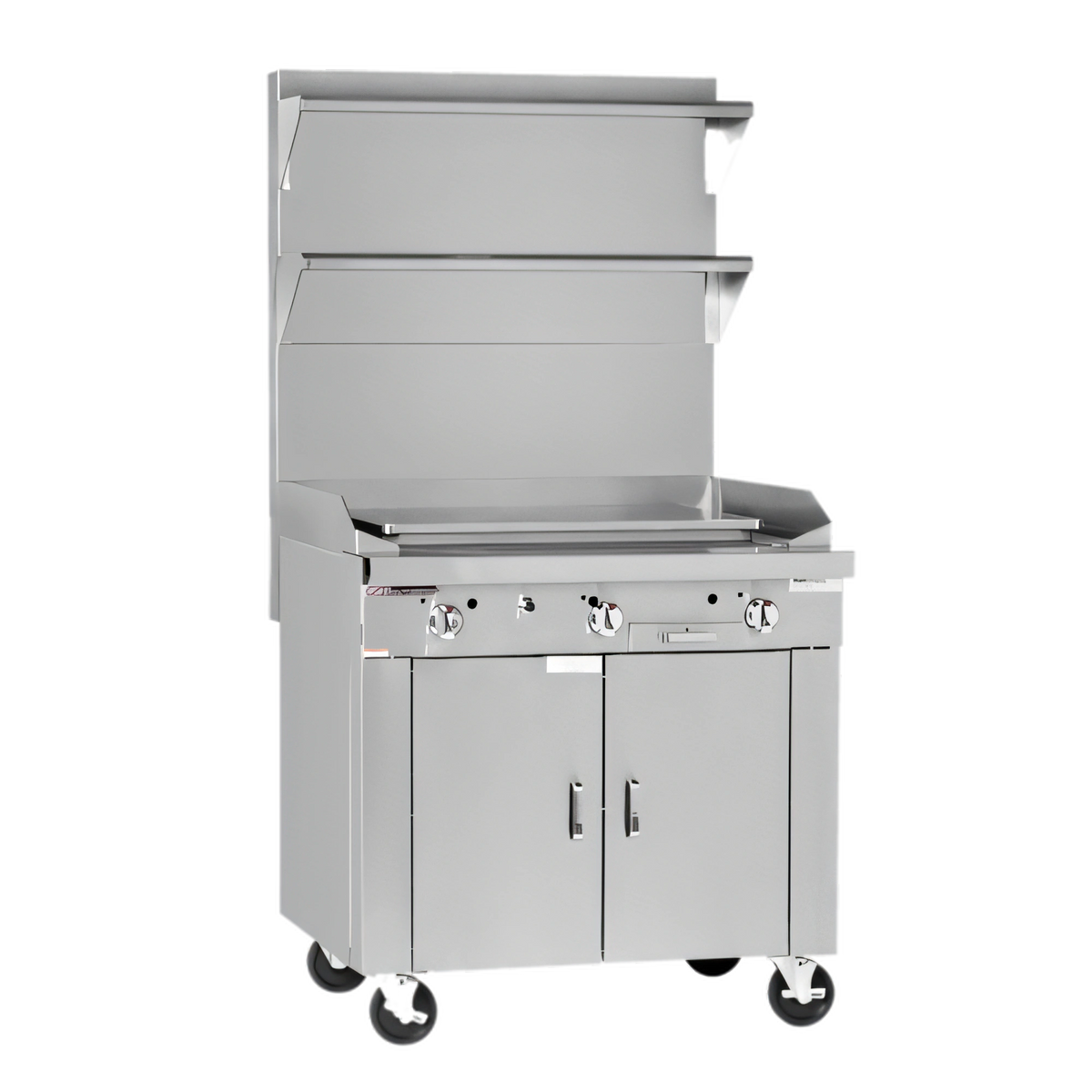

Southbend Platinum P36N-PPP 36-Inch Modular Natural Gas Plancha Griddle Range, 1/2-Inch Plate, Manual Controls
- Range type
- 36-inch sectional range with plancha griddle
- Base
- Modular
- Fuel type
- Natural gas
- Plancha width
- 29-3/4 in
- Plate thickness
- 1/2 in reinforced steel
- Burner configuration
- 3 cast iron burners, 16,000 BTU each
Specifications
Description
Southbend Platinum P36N-PPP is a 36-inch modular natural gas range with a 29-3/4-inch plancha griddle and a 1/2-inch reinforced steel plate. Three 16,000 BTU cast iron burners, three manual control knobs, and battery spark ignition are specified for the unit.
Its stainless steel front, sides, rear, and exterior bottom are paired with side and rear splashers, a 5-inch front rail, and a removable stainless steel grease drawer. The unit is intended for commercial use only; plancha units do not allow specific temperature operation.
- Modular design for mounting on a countertop, refrigerated base, or freezer base
- 48,000 BTU natural gas input
- Raised plancha plate design for cleaning between loads
Overall Dimensions:
36.0"W x 37.5"D x 13.5"HProduct Weight:
375.0 lbModular configuration
Specified for mounting on a countertop, refrigerated base, or freezer base.

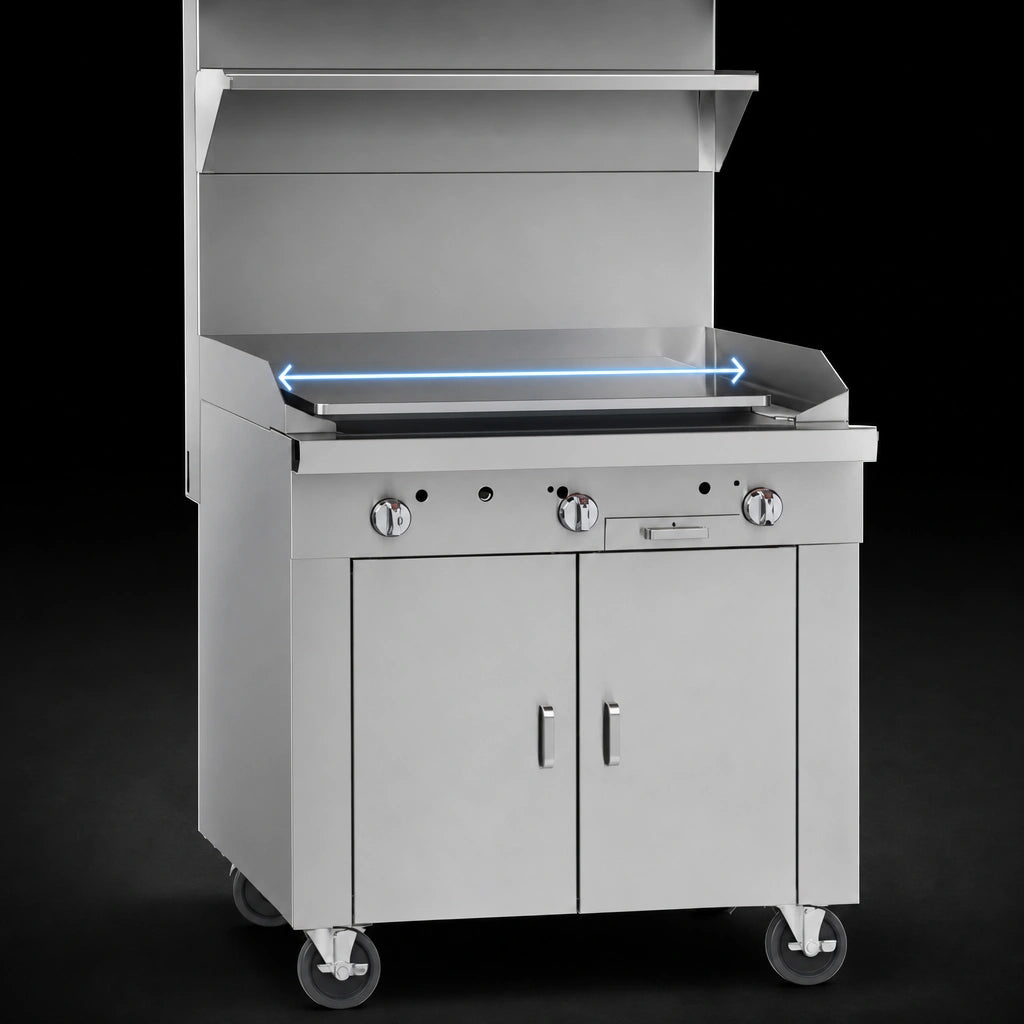

Plancha cooking surface

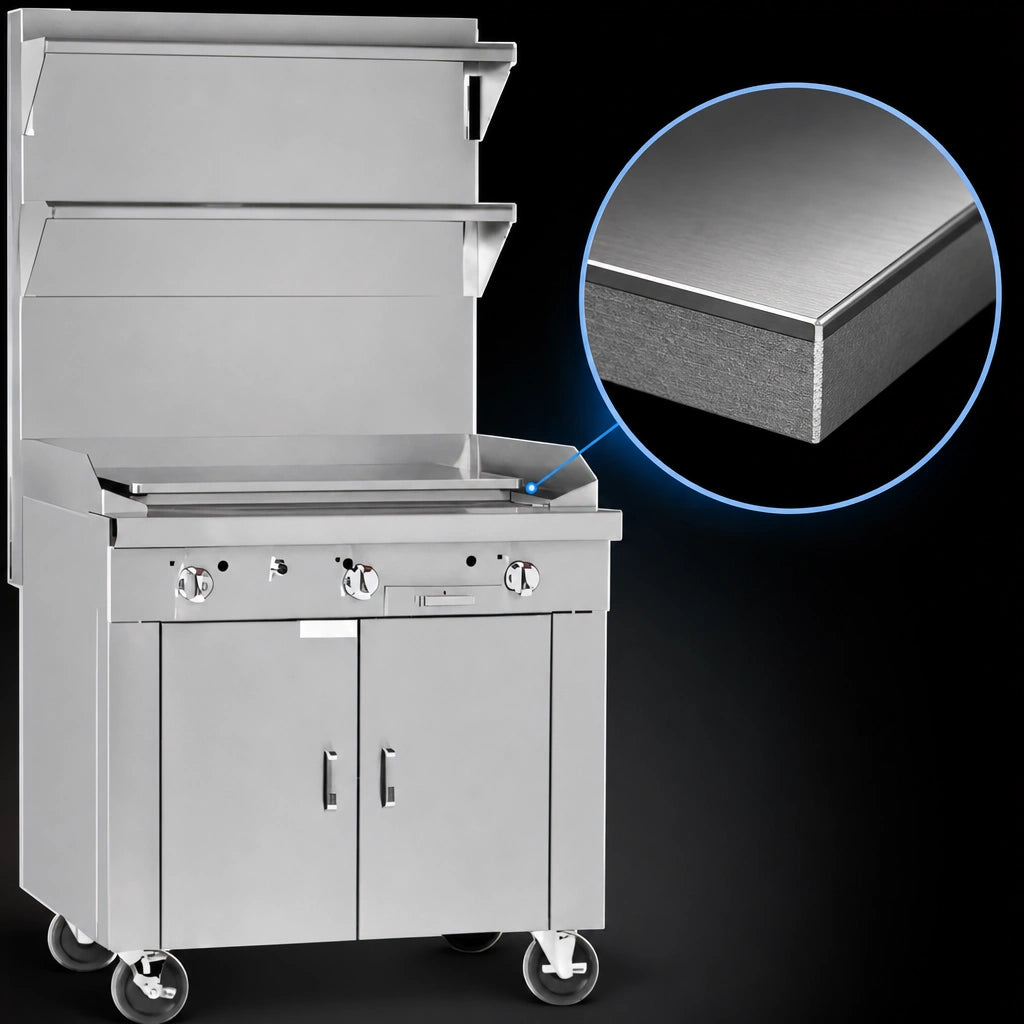

The 29-3/4-inch plancha uses a 1/2-inch-thick reinforced steel plate with a raised design for cleaning between loads.
Natural gas burner system
Three 16,000 BTU cast iron burners provide the listed 48,000 BTU natural gas input.
Manual controls
Three manual control knobs operate the plancha burners.
Battery spark ignition
Battery spark ignition is included as a standard feature.
Stainless steel exterior
The front, sides, rear, and exterior bottom are stainless steel.
Grease management
The unit includes a removable stainless steel grease drawer, side and rear splashers, and a 5-inch front rail.
Plancha heat zones
The front two-thirds is identified as a high-heat zone with maximum temperatures of 800°F, while the rear third is designated for lower-temperature finishing.
Temperature operation
The cutsheet states that plancha units do not allow specific temperature operation.
