Southbend (Middleby)

Southbend Platinum Heavy Duty 36-Inch Modular Gas Sectional Range with 3 Uniform Hot Tops

SKU: P36N-HHH
$7,587.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Platinum Heavy Duty 36-Inch Modular Gas Sectional Range with 3 Uniform Hot Tops

Manual Controls, Battery Spark Ignition, Stainless Steel Construction

Built for high-volume line cooking, this 36-inch modular gas sectional range delivers even heat across three uniform hot top sections in a rugged stainless steel design.

  • 36-inch modular sectional range with a full-width uniform hot top.
  • Three 12-inch hot top sections provide broad, even cooking coverage.
  • Manual controls and battery spark ignition support dependable daily operation.
  • Stainless steel front, sides, rear, and exterior bottom improve durability.
  • 96,000 BTU natural gas input for demanding commercial kitchens.
  • Modular mount design can be used on a countertop, refrigerated base, or other base.

Overall Dimensions:

36.0"W x 37.5"D x 13.5"H

Product Weight:

315.0 lb

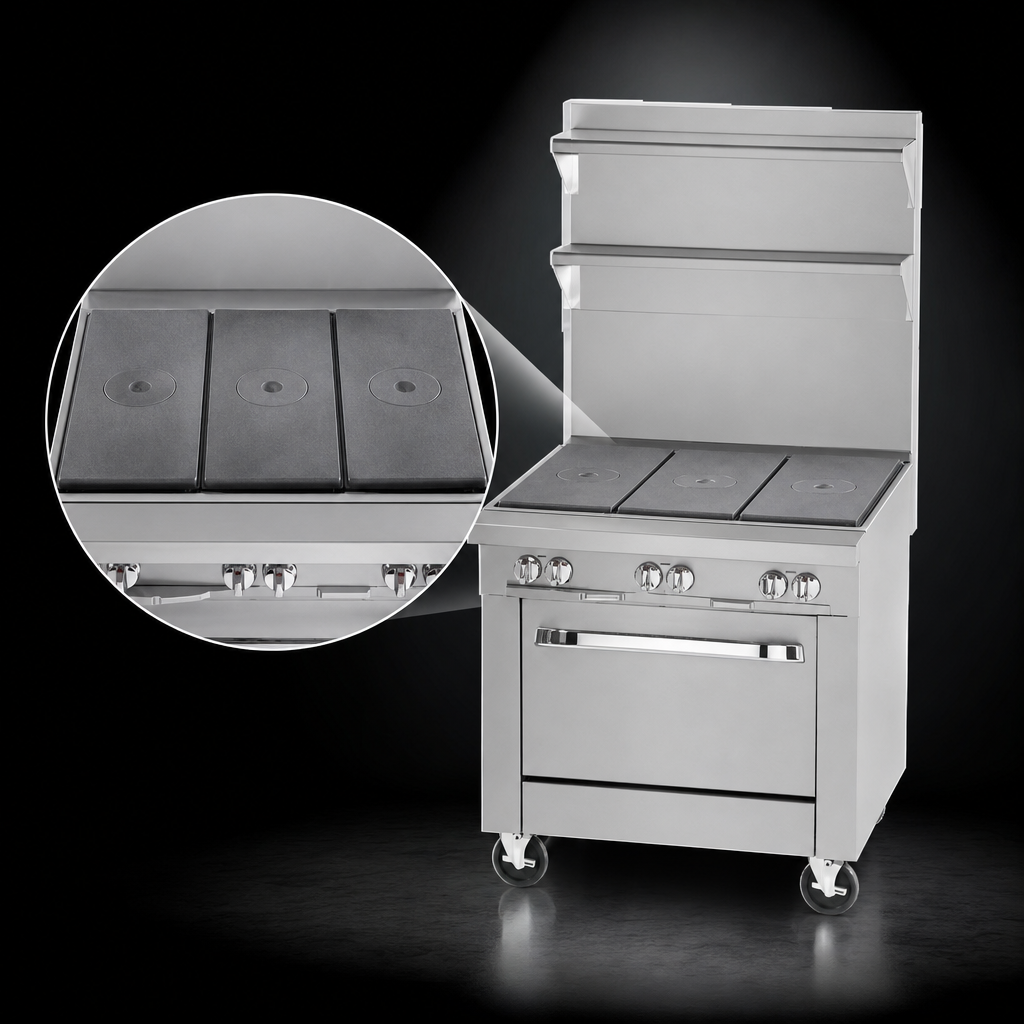

Three Uniform Hot Tops

Three 12-inch hot top sections create a 36-inch cooking surface for even heat distribution.

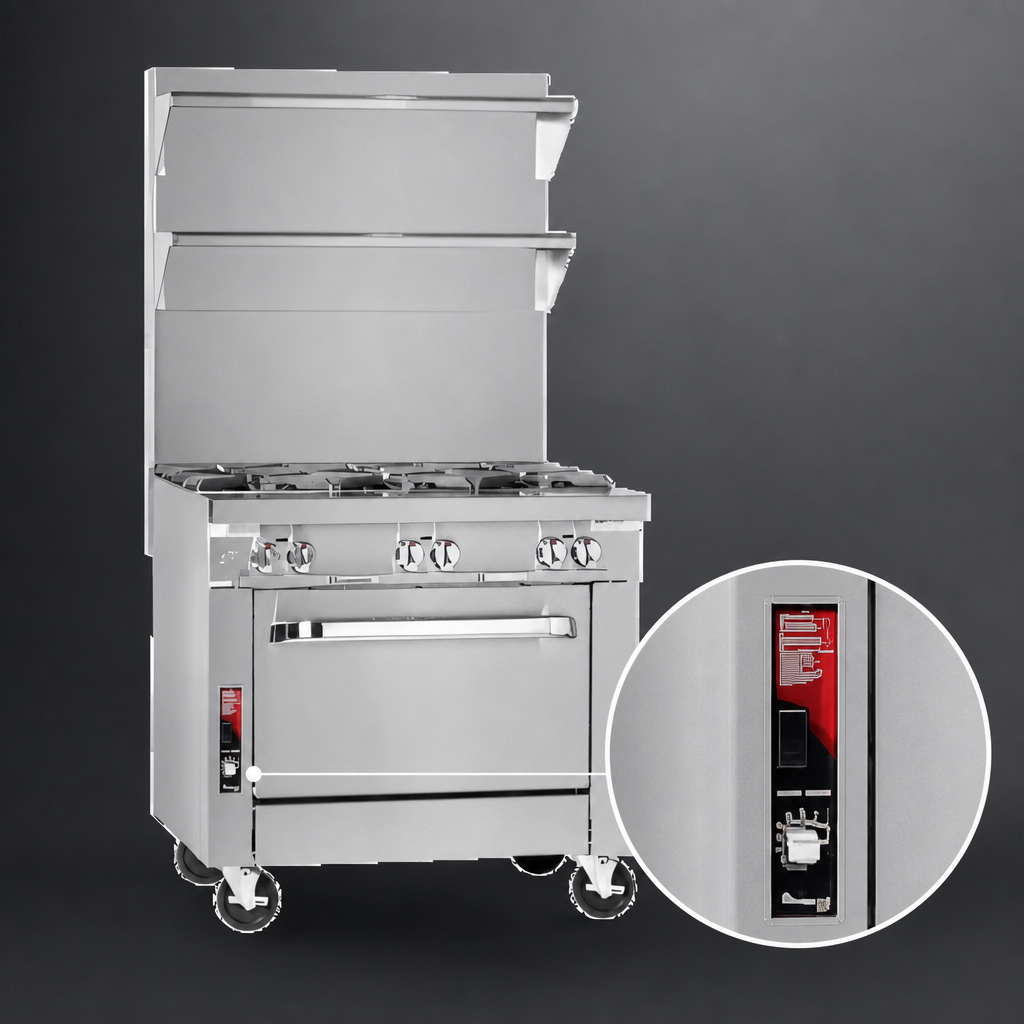

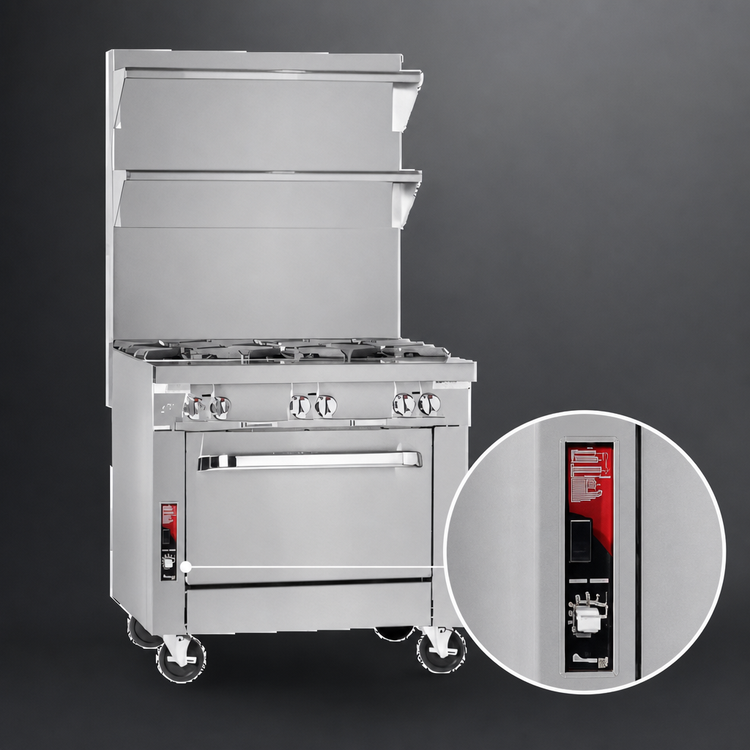

Battery Spark Ignition

Battery ignition provides reliable startup without hardwired electrical power.

Manual High/Low Controls

Simple manual controls let operators adjust heat quickly and consistently.

Removable Steel Plates

Steel top plates are removable and the surface can reach up to 700°F on high.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are built from stainless steel for durability.

Fully Insulated Body

Insulated lining and burner box help retain heat and support efficient operation.

Heavy-Duty Front Rail

A 9-1/4-inch-deep front rail helps protect the control area during use.

Modular Mount Design

Designed for mounting on a countertop, refrigerated base, or other compatible base.

Type Sectional Range
Style Hot Top
Installation Type Countertop
Material Stainless Steel
Finish Polished Stainless Steel
BTU 96,000 BTU
Gas Type Natural Gas
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C.
Controls Manual
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 14 Inches
Shipping Weight 315 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and labor

Documents

PDF Cutsheet PDF Download PDF Product configurator PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

This model is a natural gas unit.
The range is rated at 96,000 BTU.
It has a 1-1/4 inch front manifold and a 1 inch rear gas connection with male NPT connector.
Yes. All sectional units require a regulated gas supply, and a pressure regulator must be ordered separately.
Yes. The modular unit is designed for mounting on a countertop, refrigerated base, or other base.
The cutsheet lists a one-year limited parts and labor warranty.
