Southbend (Middleby) P36N-GRAD Platinum Gas Ranges
Description
Platinum Series 36" Modular Graduated Hot Top Range
Southbend Model P36N-GRAD | 62,000 BTU Natural Gas (42,000 BTU LP)Designed for high–volume, high-heat production, the Southbend Platinum 36" Graduated Hot Top delivers precise, even cook-surface temperatures from simmer to 900 °F—perfect for reducing sauces, holding stocks, or finishing delicate menu items. The modular design drops easily onto a counter, refrigerated or freezer base, or into a sectional battery, giving you heavyweight performance without sacrificing valuable floor space.
Key Features

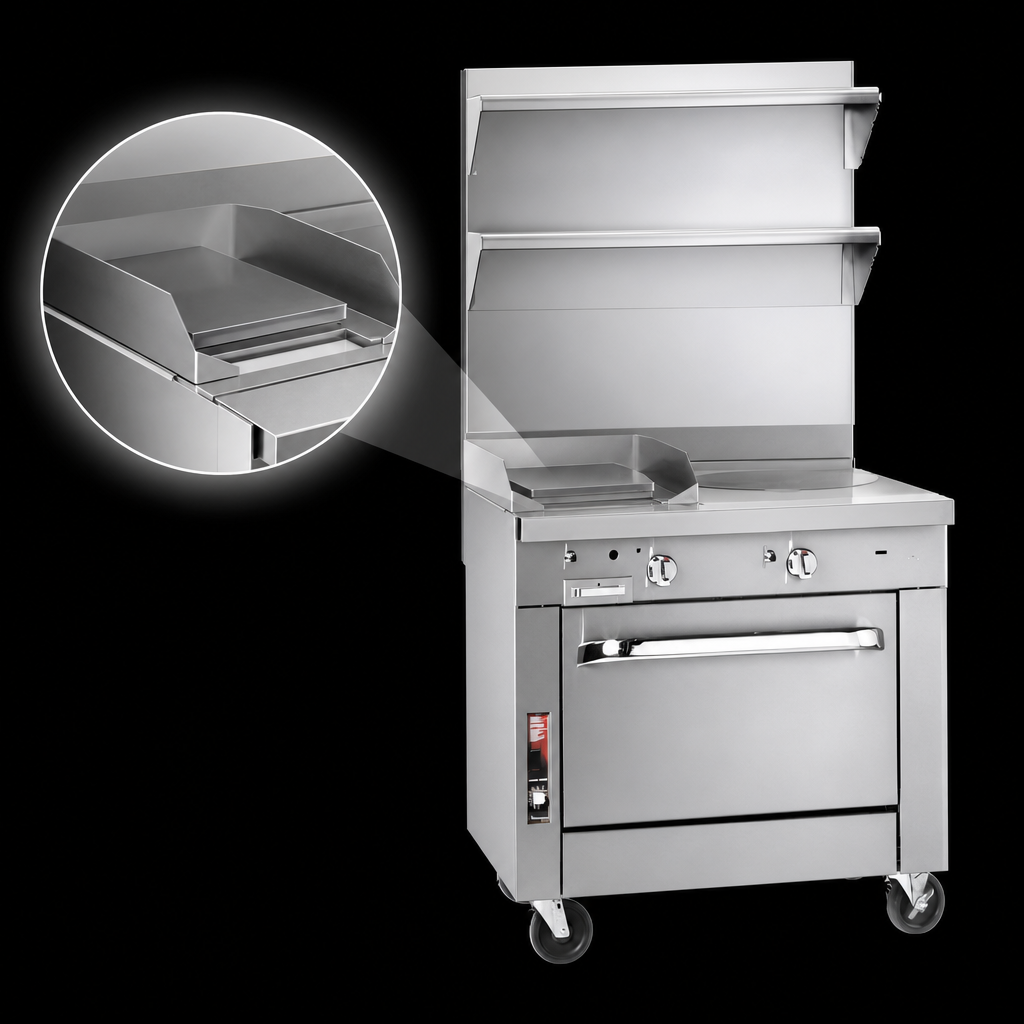

- Full-width graduated hot top with a single 62,000 BTU burner for uniform heat
- Center surface temperature up to 900 °F; low-temp perimeter for gentle holding

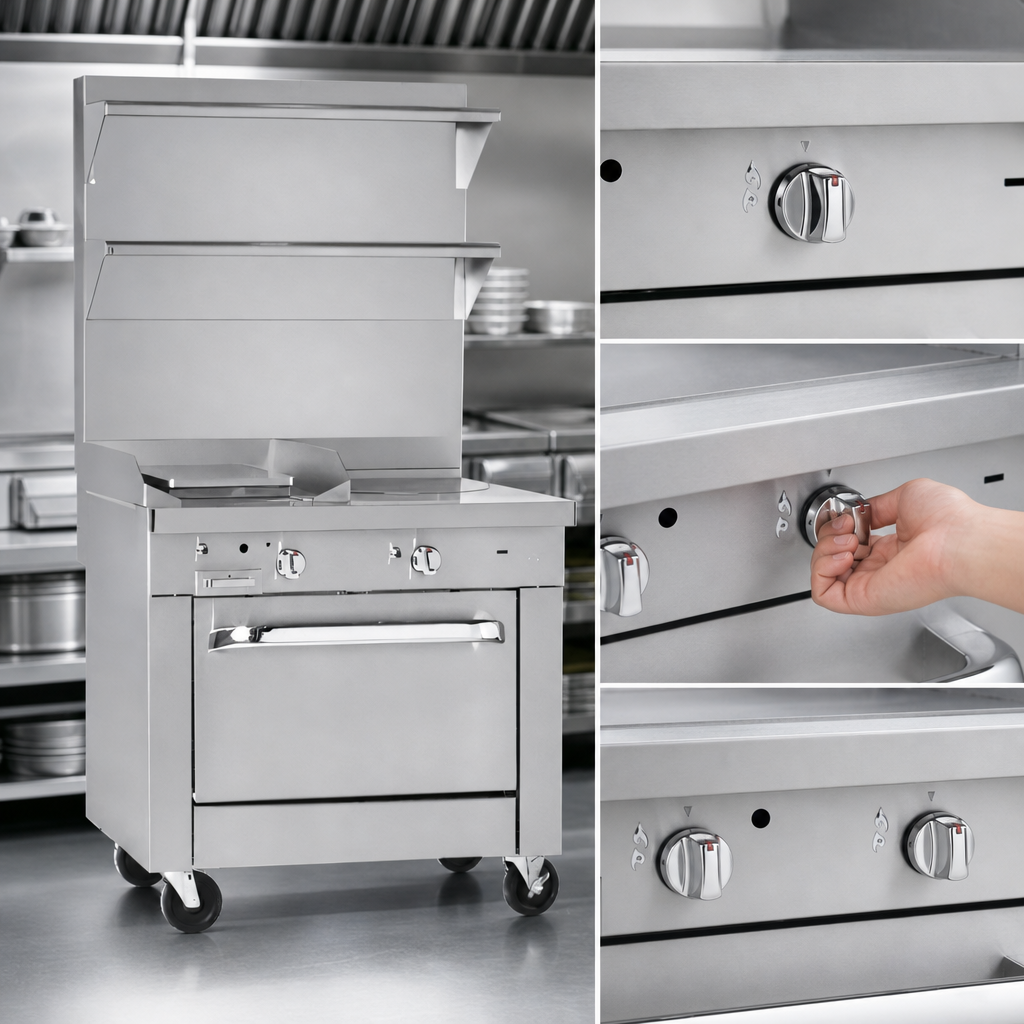

- Manual High/Low control and battery spark ignition—no standing pilot
- Removable steel plates for fast clean-up and easy access to the burner box
- 9-1/4" deep front rail provides a safe, comfortable work edge
- 5" stainless steel flue riser directs heat away from the line
- Stainless steel front, sides, rear & exterior bottom built to endure daily abuse
- 1-1/4" front gas manifold couples to adjoining Platinum sections; 1" rear gas inlet
- Fully insulated lining and burner box for improved efficiency and cooler surfaces
- CSA & NSF listed; (1)-year parts & labor warranty
Technical Specifications
| Overall Width | 36" (914 mm) |
|---|---|
| Overall Depth * | 37 ½" (953 mm) |
| Overall Height | 13 ⁄ 16" hot-top thickness † + 5" flue riser |
| Burner Rating | 62,000 BTU/hr NAT | 42,000 BTU/hr LP |
| Cooking Surface Temp | Up to 900 °F at center |
| Gas Connection | 1 ¼" front manifold (sectional) / 1" rear NPT |
| Ignition | Battery spark (no electricity required) |
| Ship Weight | Approx. 346 lb (157 kg) |
| Certifications | CSA, NSF |
* Depth includes 9-1/4" front rail.
† Modular units mount on a compatible base or countertop; overall cook-surface height is determined by that base.
Popular Options & Accessories
- 24" or 36" flue riser with single or double shelves
- Open-frame or stainless cabinet base with or without casters
- Extra-deep rear-extending flue riser for battery installations
- Cable restraint kit for mobile applications
- Pressure regulator (required if not already supplied on the line)
Covered by Southbend’s 1-year limited parts & labor warranty. Full policy details are available on the Southbend service page.
