Southbend (Middleby) P36N-GGG Platinum Gas Ranges

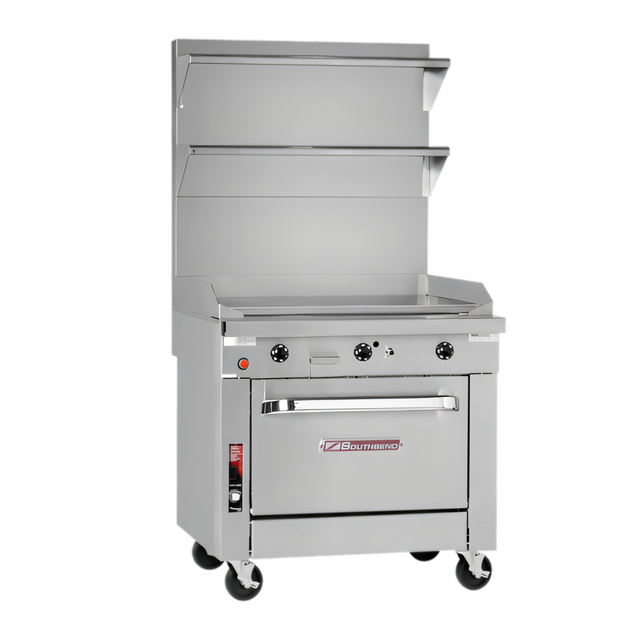

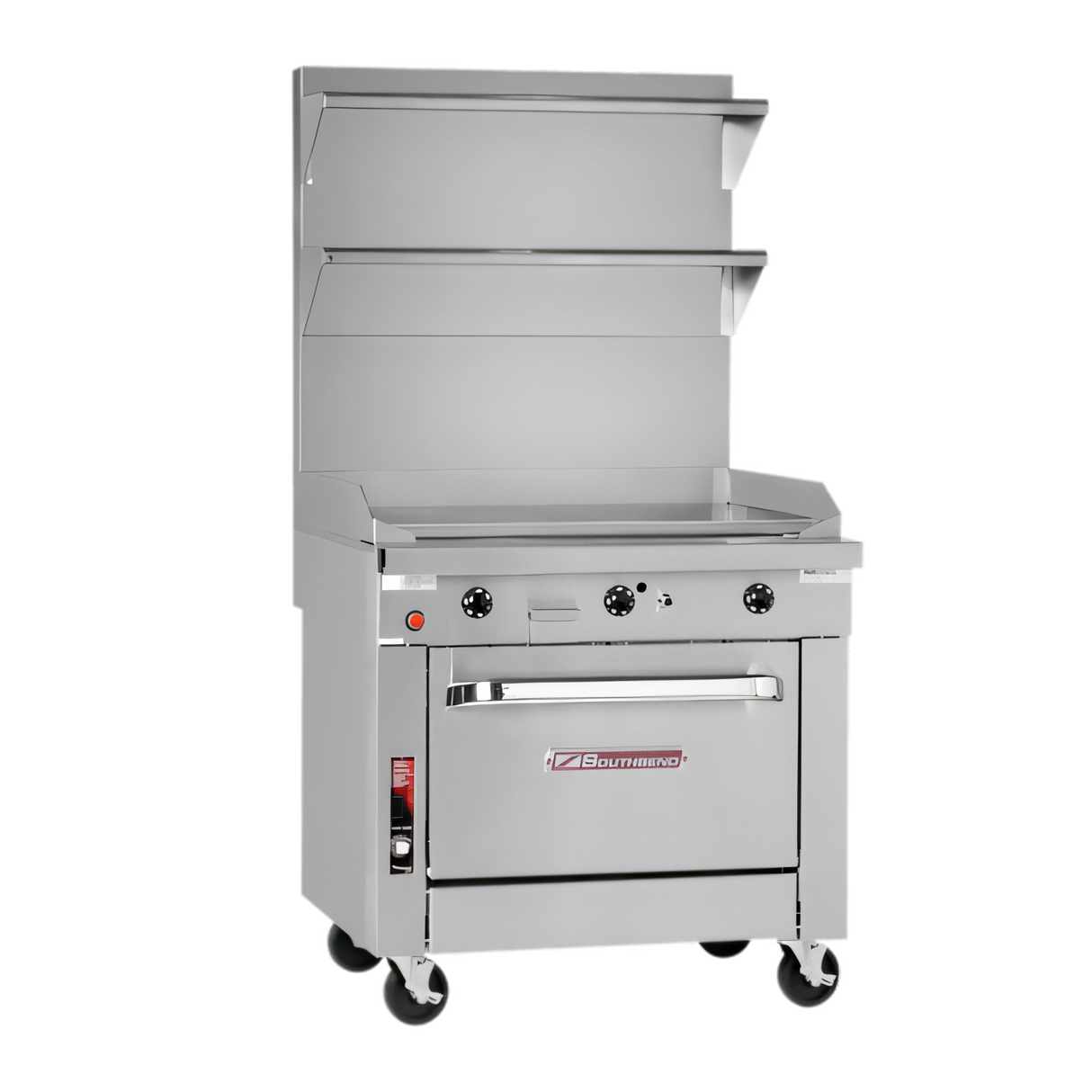

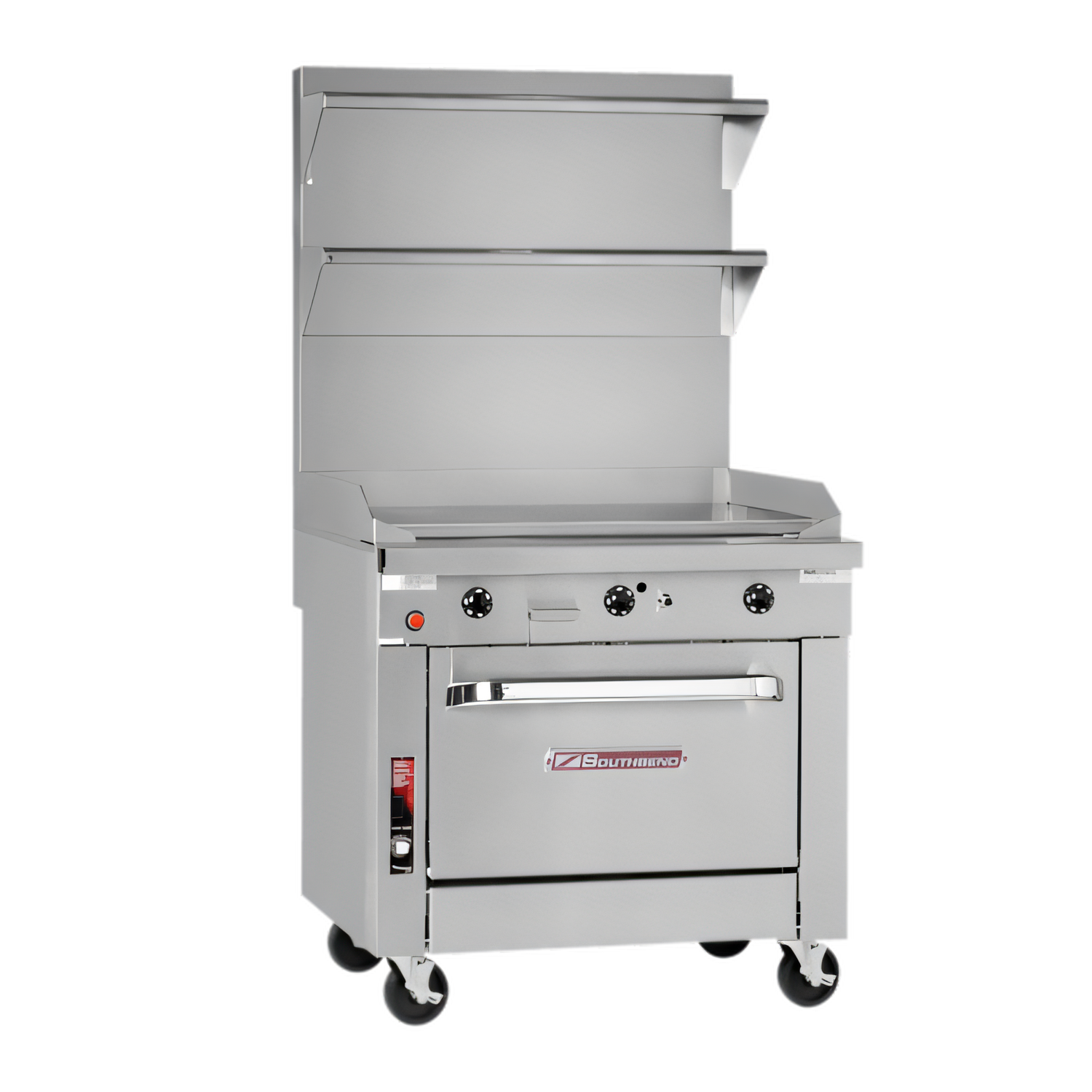

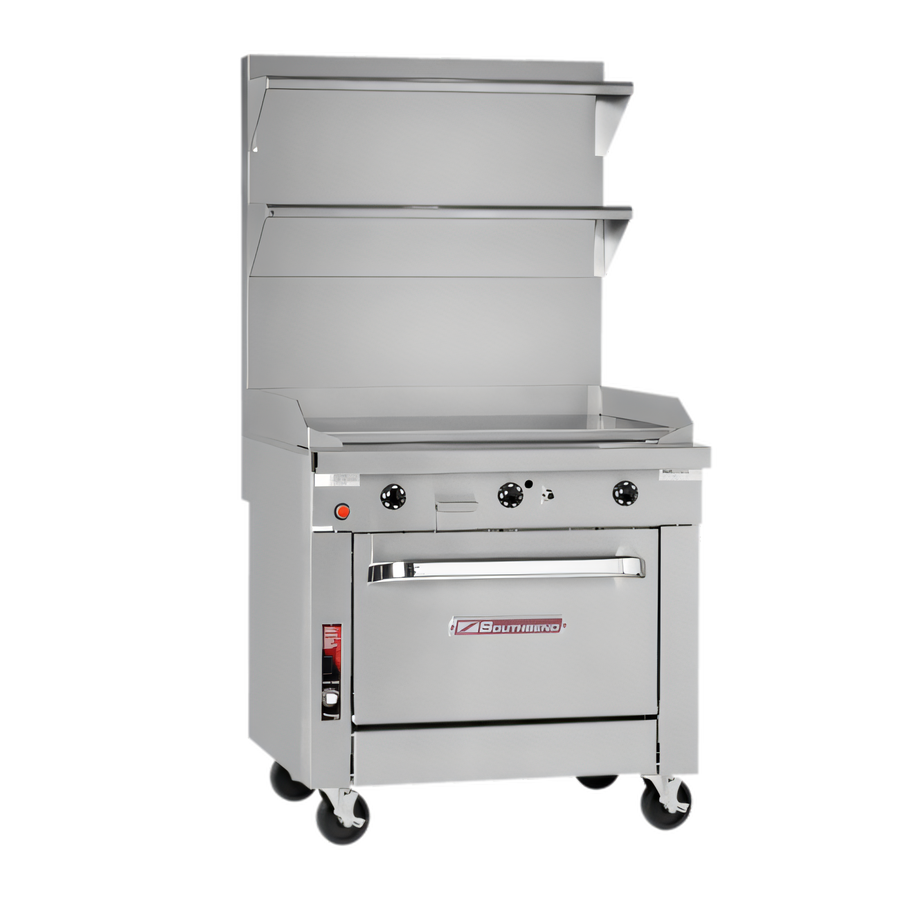

Southbend Platinum 36″ Modular Heavy-Duty Gas Griddle

Engineered for high-volume kitchens, the Platinum Series 36″ modular griddle pairs a massive 96,000 BTU output with a full-width 1″ thick plate to deliver fast recovery, even heat distribution, and unstoppable durability in the toughest commercial environments.

Highlights

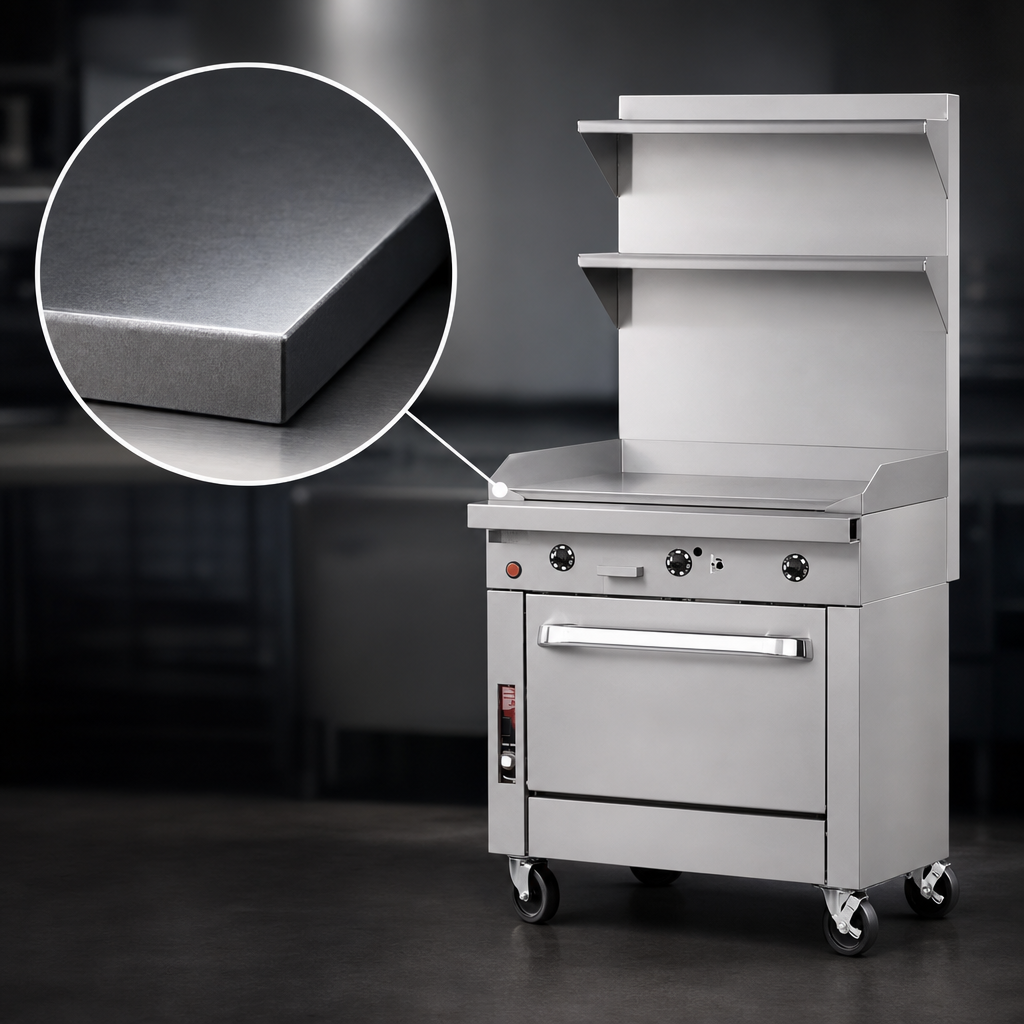

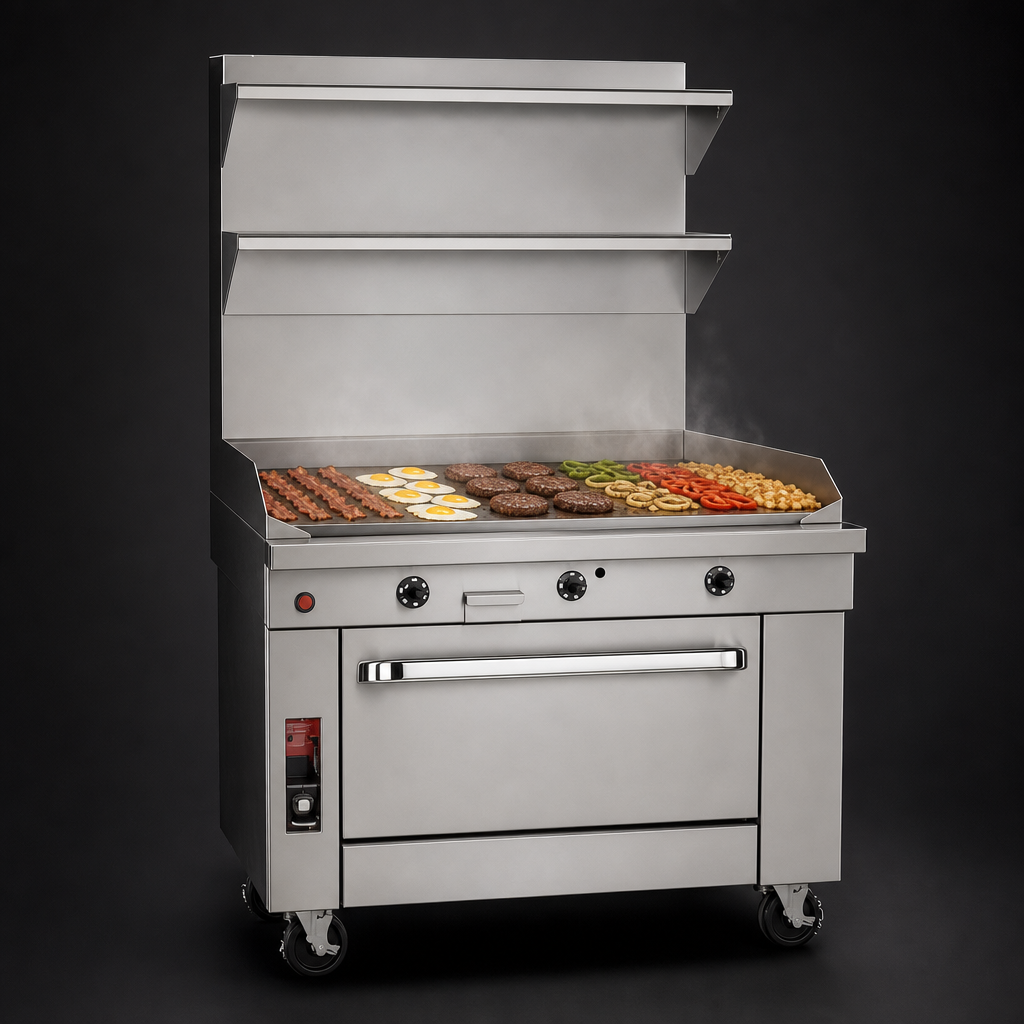

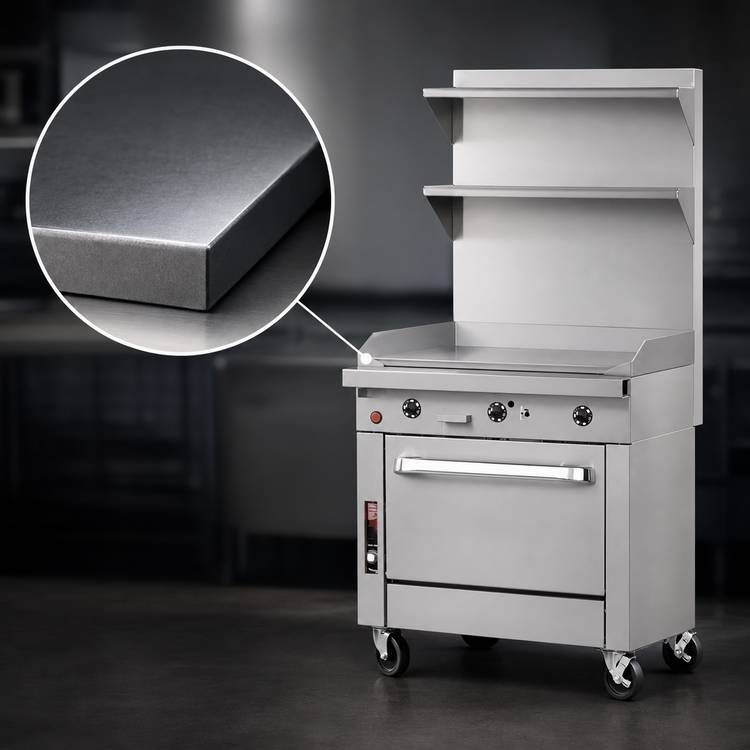

• Full-width 36″ griddle with 1″ thick polished steel plate for superior heat retention.
• Manual three-zone valves—simple, bullet-proof control without thermostats.
• Battery spark ignition lights burners instantly—no electrical hook-up required.
• Six robust burners deliver 96,000 BTU/hr (NAT) / 84,000 BTU/hr (LP).
• 9-1/4″ deep stainless front rail provides extra plating and staging space.
• Large removable stainless grease drawer speeds end-of-shift clean-up.
• All-stainless exterior (front, sides, rear & bottom) resists corrosion and wipes clean fast.
• Low-profile modular base drops onto counters, refrigerated bases, or into Platinum batteries.
• 5″ stainless flue riser directs heat & vapors toward the ventilation hood.
• cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation peace-of-mind.

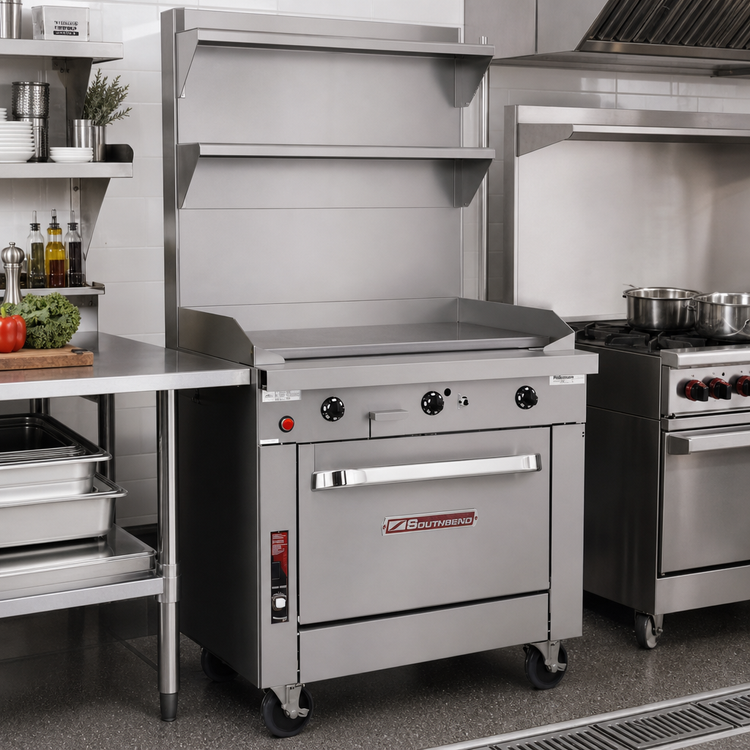

Designed for Demanding Cooklines

From hotels and institutions to multi-unit restaurants, Platinum Heavy Duty ranges are built to run all day, every day. A fully insulated burner box maximizes efficiency while keeping your kitchen cooler, and Southbend’s complimentary battery-layout assistance ensures a perfect fit alongside other sectional equipment.

Specifications

*Refer to spec sheet for detailed clearance and installation requirements.

Factory Options & Accessories

• Grooved or chrome-plated griddle surface
• 24″ or 36″ flue riser with single or double shelves
• Casters & cable-restraint kit
• 7-1/4″ deep or cut-out front rail configurations
• External gas pressure regulator
