Southbend (Middleby) P36N-FF Platinum Gas Ranges
Description

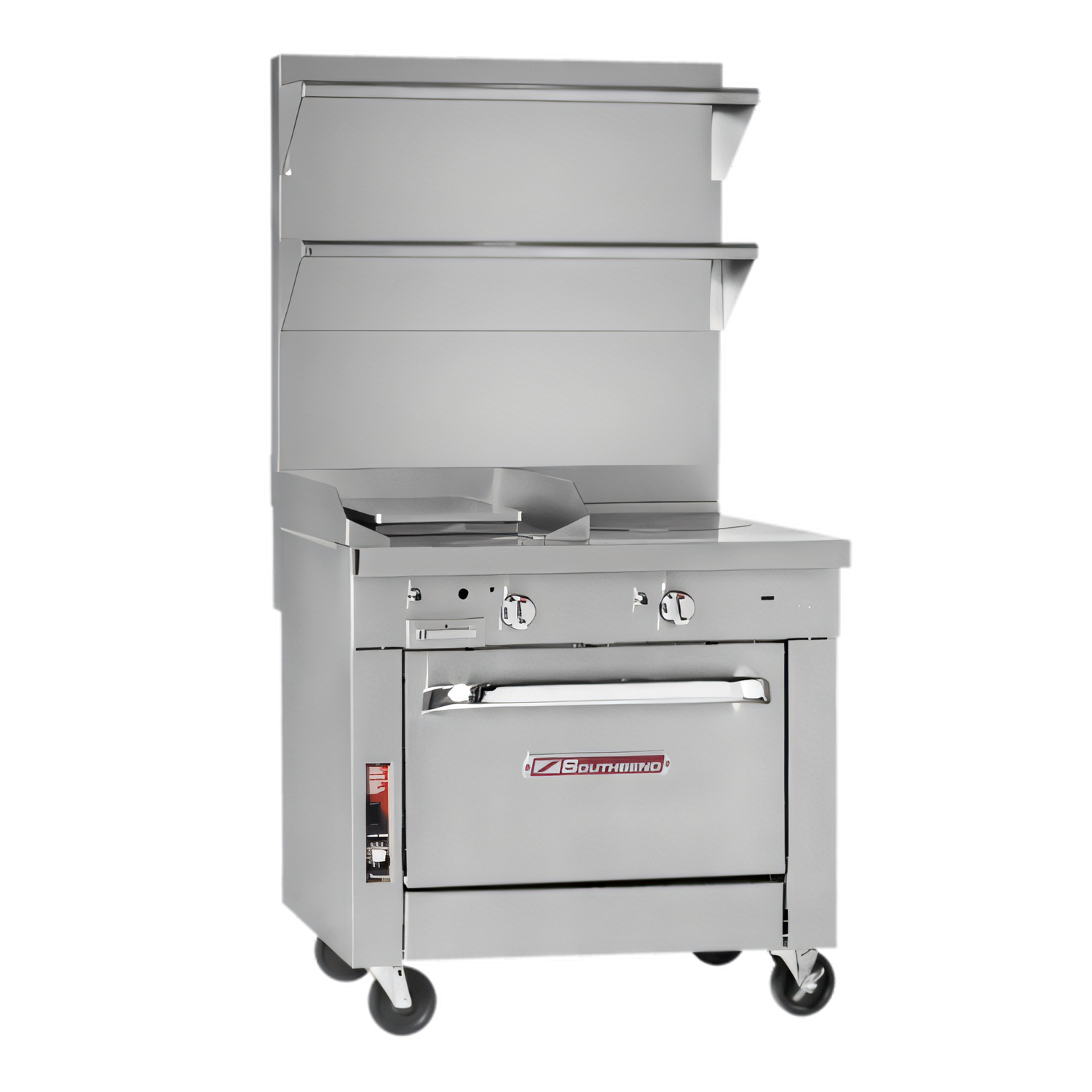

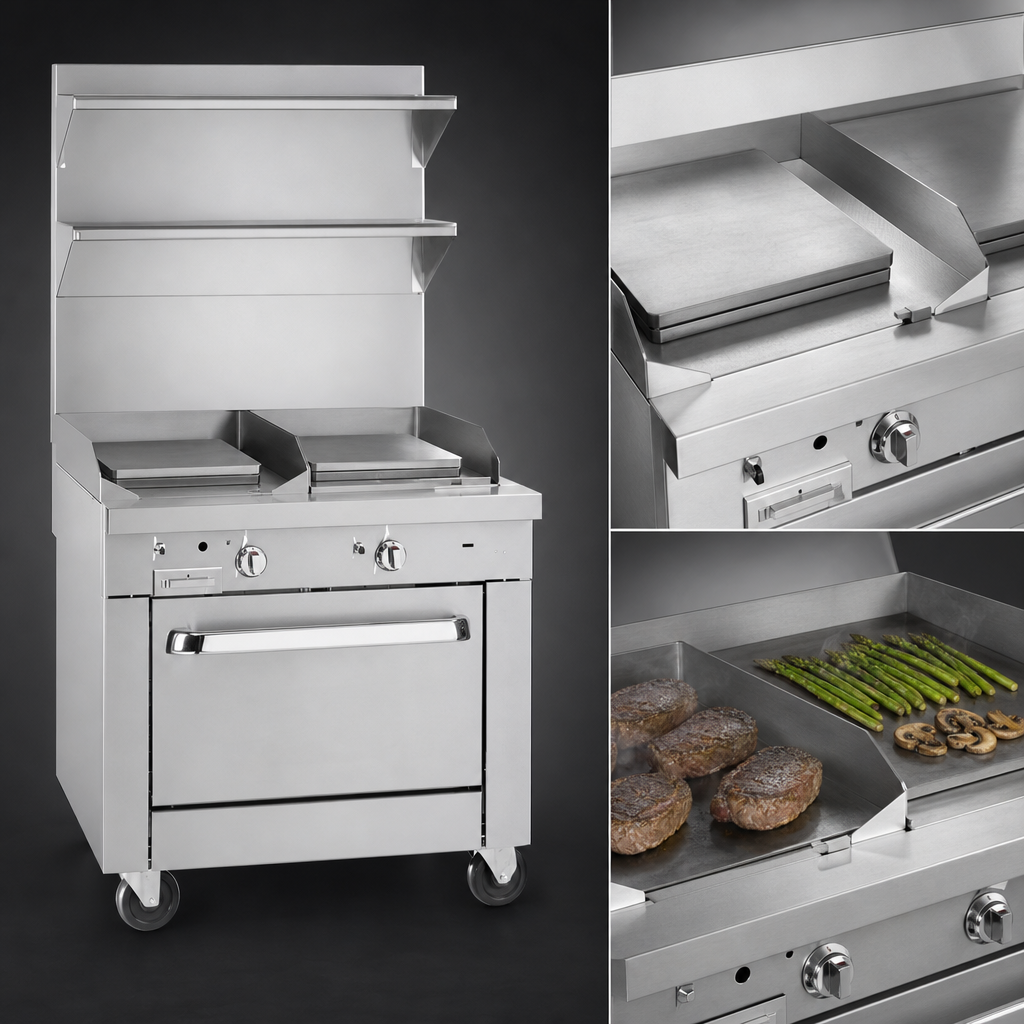

Platinum Heavy-Duty 36" Modular French Hot Top Range
Model P36N-FF | 70,000 BTU | Natural or Propane GasBuilt for the busiest commercial kitchens, the Southbend Platinum P36N-FF delivers two independent 18" French hot tops in a compact 36" section that drops seamlessly into a battery line or onto a refrigerated / freezer base. With 70,000 BTU of even, high-mass heat, this modular workhorse lets you sauté, sear and hold with pinpoint control while standing up to years of punishing service.
Why You’ll Love It
- Two 35,000 BTU NAT/LP burners with battery spark ignition.
- Removable steel plates reach up to 900 °F at the center for lightning-fast heat recovery.
- Graduated surface lets you slide pans from intense sear zones to gentle holding temps without changing burners.

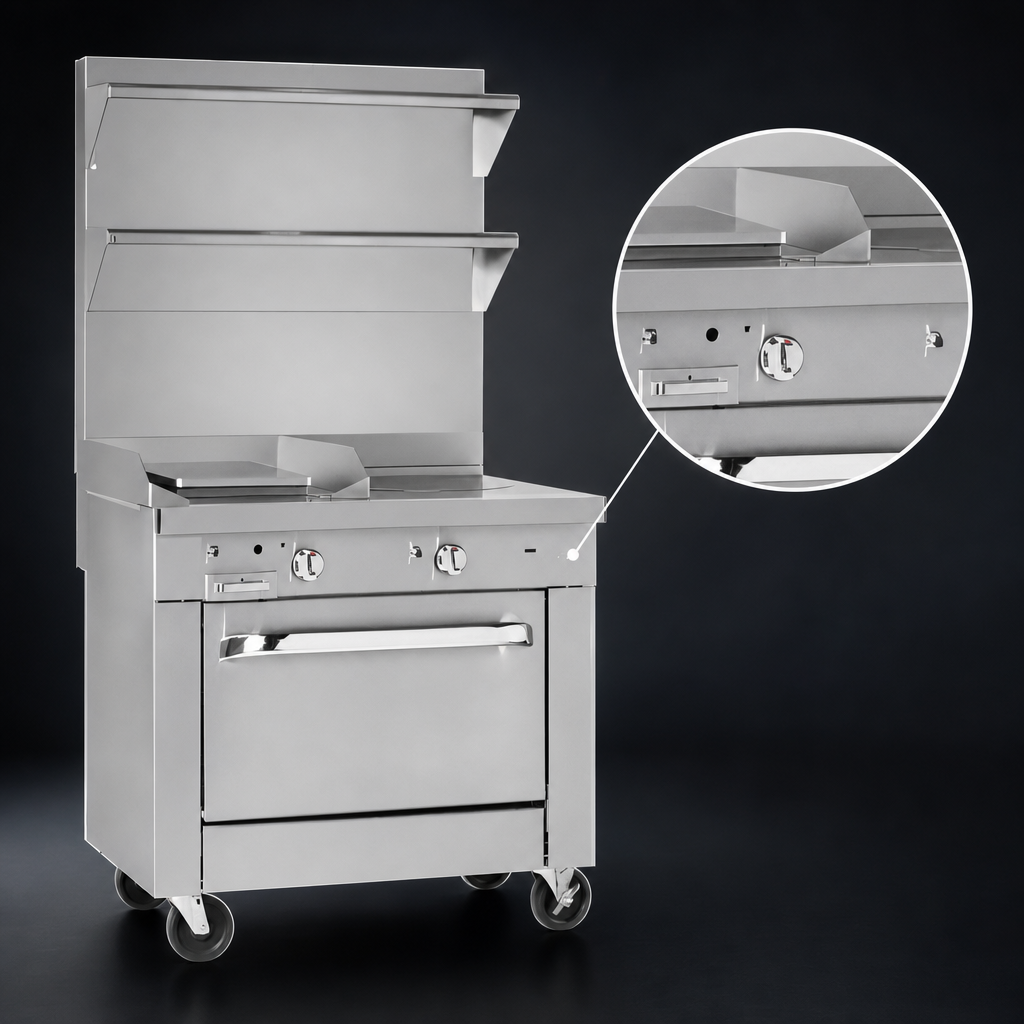

- Simple High / Low manual controls—no electronics to fail.
- 9 ¼" extra-deep front rail protects the operator and doubles as a staging shelf.
- Rugged #3-polish stainless steel front, sides, rear & exterior bottom for easy wipe-downs.
- Fully insulated burner box keeps perimeter surfaces cooler and reduces kitchen heat load.
- 5" stainless flue riser directs combustion by-products safely into the hood.
- Part of the Platinum Sectional Series—mix & match with broilers, griddles, stock pots and ovens to build your perfect battery.
- Certified CSA Design & CSA Sanitation / NSF for gas safety and food-service sanitation.
At-a-Glance Specs
| Cooking Surface | (2) 18" French hot tops – removable steel plates |
|---|---|
| Total Input | 70,000 BTU/hr (Natural or Propane) |
| Control Type | Manual High/Low valves with battery spark ignition |
| Overall Width | 36 in (914 mm) |
| Overall Depth | 37 1⁄2 in (953 mm) (including flue riser) |
| Flue Riser Height | 5 in (127 mm) |
| Gas Connection | 1 ¼" front manifold, 1" rear NPT (male) |
| Shipping Weight | Approx. 346 lb (157 kg) |
| Warranty | 1-year limited parts & labor |
| Certifications | CSA, CSA-Sanitation, NSF |
Popular Options & Accessories
- External pressure regulator
- 24" or 36" high flue riser with single or double shelves
- Open-frame base or refrigerated base with heavy-duty casters
- Front rail cut-outs or square belly bar for sauté pans
- Cable restraint kit for mobile installations
Full warranty details and authorized service partners can be found at southbendnc.com/service.html. Warranty void if installed in non-commercial settings.
