Southbend (Middleby) P36N-BTT Platinum Gas Ranges
Description
Southbend Platinum Series 36" Modular Heavy-Duty Gas Range
2 Open Burners + 24" Thermostatic Griddle • Model P36N-BTTBuilt in the USA for kitchens that demand uncompromising performance, the Southbend Platinum Series 36" sectional range merges lightning-fast open-top power with a precise, battery-spark ignited griddle—all in one, easy-to-drop-in module.
Key Benefits

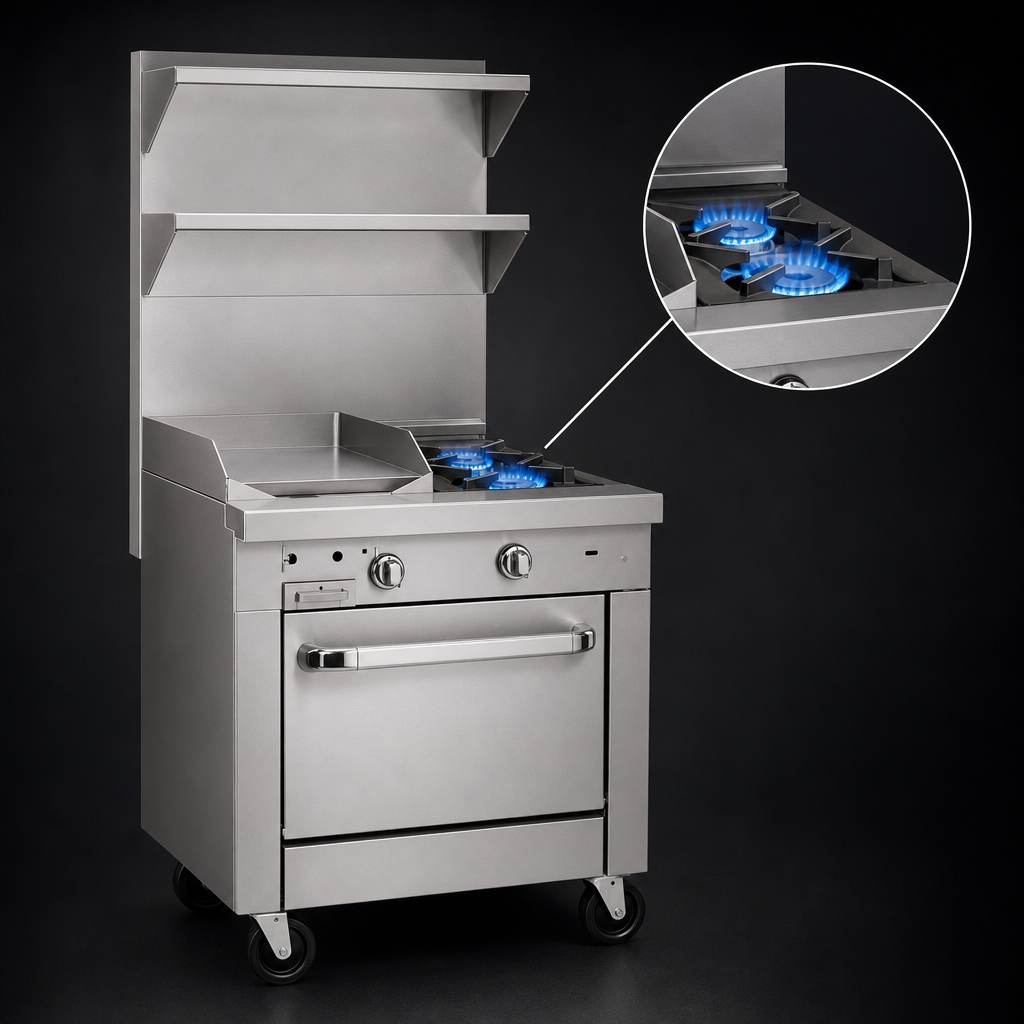

- Two patented clog-free open burners, 35,000 BTU each (70,000 BTU total).

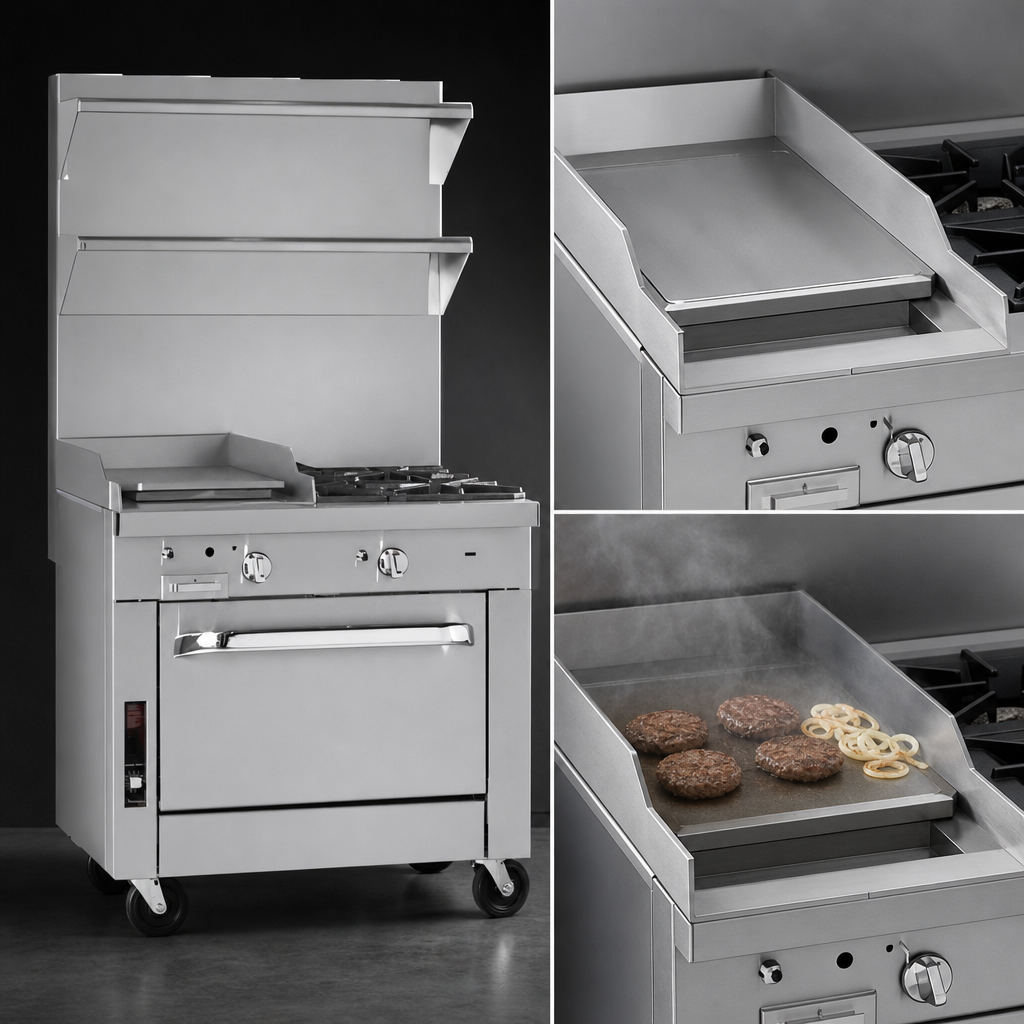

- 24" thermostatic griddle driven by two 32,000 BTU burners (64,000 BTU total) with Insta-On control from 180 °F to 400 °F.
- 1" thick polished steel plate, full side & rear splashes, and a removable stainless grease drawer.
- Battery spark ignition—eliminates standing pilots and cuts energy costs.
- Rugged all-stainless exterior (front, sides, rear, bottom) for maximum corrosion resistance.
- 9-1/4" deep front rail and 5" stainless steel flue riser for seamless line-up installation.
- Fully insulated burner box keeps heat where it belongs and lowers cook-line temps.
- 1-1/4" front gas manifold & 1" rear NPT connection simplify battery hookups.
- cCSAus, CSA Flame, CSA Star & NSF certified—ready for code approvals nationwide.
Performance Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Open burners (2) | 70,000 BTU/hr total (Natural Gas) |
| 24" griddle | 64,000 BTU/hr total (Natural Gas) |
| Total input | 134,000 BTU/hr (Natural Gas) • 126,000 BTU/hr (LP) |
| Griddle temp range | 180 °F – 400 °F (thermostatic) |
| Gas connections | 1-1/4" front manifold & 1" rear male NPT |
| Ignition | Battery spark (open burners & griddle) |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Warranty | 1-year parts & labor (commercial use) |
Why Choose a Modular Sectional?
- Drop onto a counter, refrigerated base, or custom stand—no oven required.
- Easily battery with other Platinum units for limitless cook-line flexibility.
- Ideal for remodels, food trucks, exhibition kitchens, and tight spaces.
Included With Every Platinum Range
- Free battery-layout assistance from Southbend engineers.
- Adjustable 6" stainless legs (or mounting hardware for counter installation).
- Comprehensive operator & service manuals.
Looking for shelves, casters, chrome or grooved griddle plates, salamander mounts, or other custom options? Contact us—Southbend offers a full range of accessories to build the perfect cook line.
