Southbend (Middleby)  |  Platinum  |  SKU: P36N-BHH

Southbend (Middleby) P36N-BHH Platinum Gas Ranges

$9,537.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

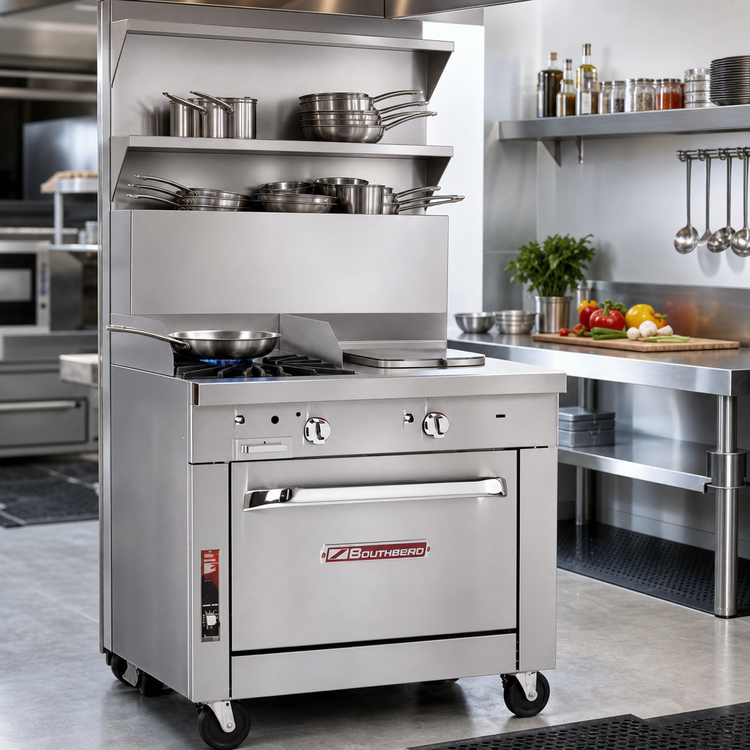

Southbend Platinum 36" Modular Heavy-Duty Range

Model P36-BHH  |  2 Open Burners  +  24" Hot Top  |  134,000 BTU

Built for high-volume kitchens that demand uncompromising performance, the Southbend Platinum 36" Modular Range pairs two powerful open burners with a full-width hot top—all in a rugged, all-stainless chassis that drops into any Platinum battery lineup.

Key Features

  • 36" wide modular section—mount on a countertop, equipment stand, or battery with other Platinum pieces.
  • (2) 35,000 BTU patented clog-free open burners with removable welded-steel grates.
  • 24" hot top driven by (2) 16,000 BTU burners; removable steel plates reach 700 °F for holding & finishing.
  • Manual, individual burner controls with reliable battery spark ignition (no standing pilot).
  • 5" stainless-steel flue riser directs heat up and away from the cooking line.
  • 9 ¼" deep front rail and fully insulated burner box for a cooler, safer workspace.
  • 1 ¼" front gas manifold couples seamlessly to adjacent units; 1" rear NPT connection.
  • All-stainless front, sides, rear & exterior bottom resist corrosion and wipe clean fast.
  • cCSAus, CSA Flame, CSA Star & NSF listed; Made in the USA.

Why It Belongs on Your Line

  • Two cooking methods in one compact footprint—maximize menu versatility without sacrificing space.
  • Clog-free burner design cuts downtime and maintenance costs.
  • Removable drip trays and hot-top plates speed nightly cleanup.
  • Modular design grows with your operation—free battery-layout assistance from Southbend.
  • Backed by a 1-year parts & labor warranty and nationwide service network.

Specifications

Width 36" (914 mm)
Depth (incl. rail) 40" (1,016 mm)
Height to cooking surface 37 ½" (953 mm)
Open burners 2 × 35,000 BTU (Natural or LP)
Hot-top burners 2 × 16,000 BTU (Natural or LP)
Total input 134,000 BTU/hr
Gas connection 1 ¼" front manifold & 1" rear NPT (regulated supply required)
Ignition Battery spark (no electrical hookup)
Construction 430/304 stainless steel front, sides, rear & exterior bottom
Certifications cCSAus, CSA Flame, CSA Star, NSF
Origin Fuquay-Varina, North Carolina, USA
Warranty 1-year limited parts & labor
For commercial use only. Minimum supply pressure: 7" W.C. (Natural) or 11" W.C. (LP). Install under an appropriate vent hood. If using casters with a flexible gas hose, an approved restraining device is required.

Looking for custom front-rail options, shelving, or a complete battery layout? Contact us for expert assistance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, cCSAus, CSA Star, CSA Flame, Made in USA

Height

13.5in

Width

36.0in

Depth

37.5in

Shipping Weight

300.0lbs

Top

(2) open burners, (2) hot tops

Exterior Finish

stainless steel front & sides

Base

modular

Specifications

Platinum Heavy Duty Range, gas, 36", modular, (2) 35,000 BTU open burners, (2) 12" hot tops, manual controls, battery spark ignition, stainless steel front, sides, rear & exterior bottom, 134,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
