Southbend (Middleby) P36N-BCC Platinum Gas Ranges
Description

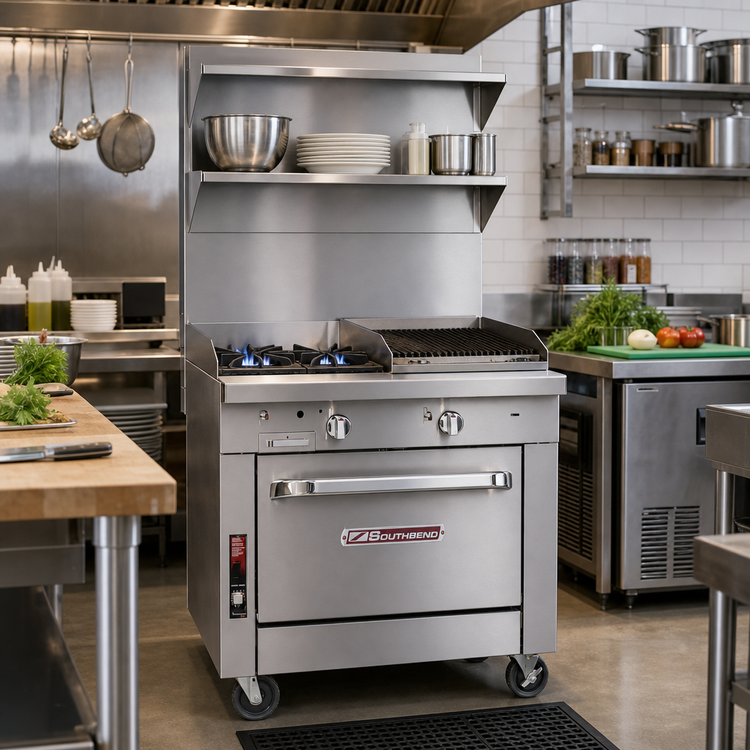

Platinum Series 36" Modular Heavy-Duty Range – 2 Open Burners + 24" Charbroiler
Southbend Model P36N-BCC | Natural or LP Gas | 134,000 BTUBuilt for the busiest commercial kitchens, Southbend’s Platinum Series modular range lets you mix blazing-hot open burners with a full-size charbroiler in a single 36-inch footprint. All-stainless construction, powerful 134K BTU output and battery-ready manifolds make this unit the centerpiece of any high-performance cookline.
Key Features

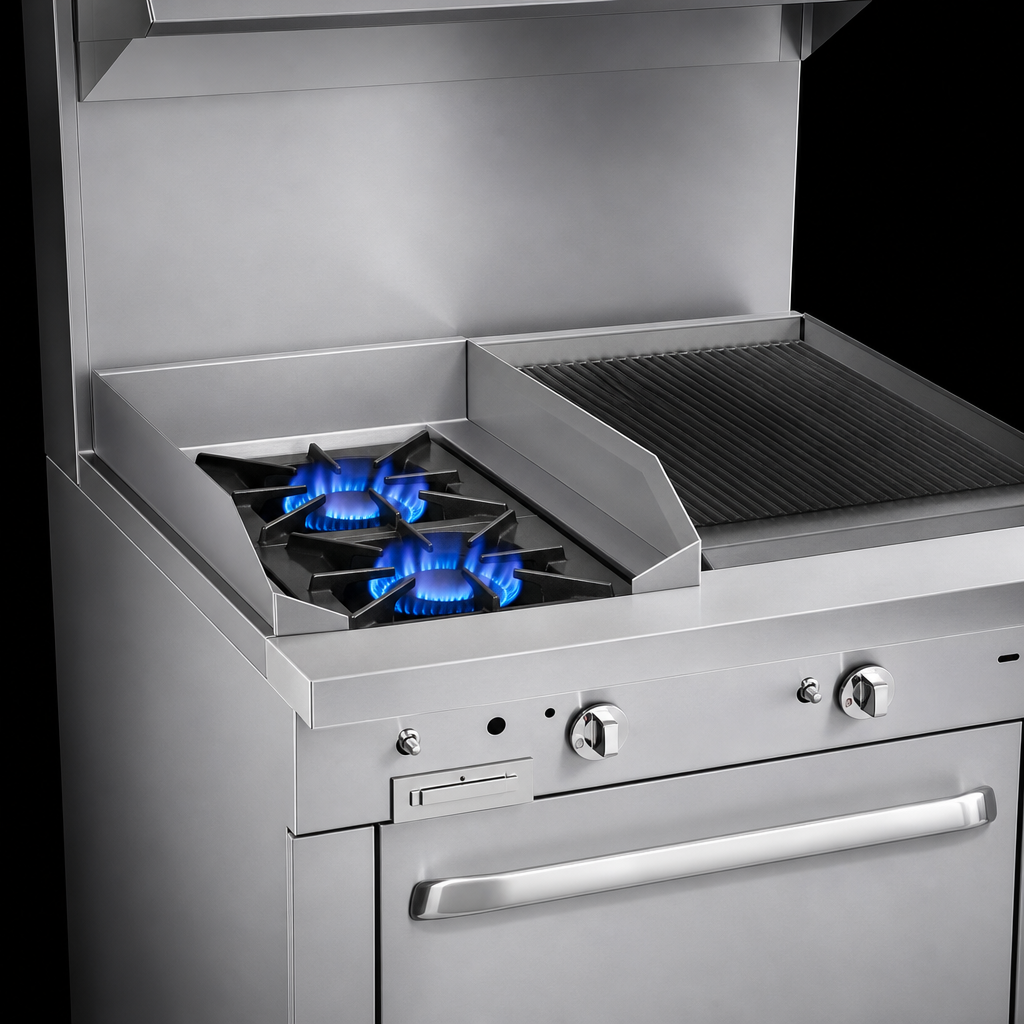

- Two 35,000 BTU patented clog-free open burners (70,000 BTU total) with removable cast-iron grates and drip tray.

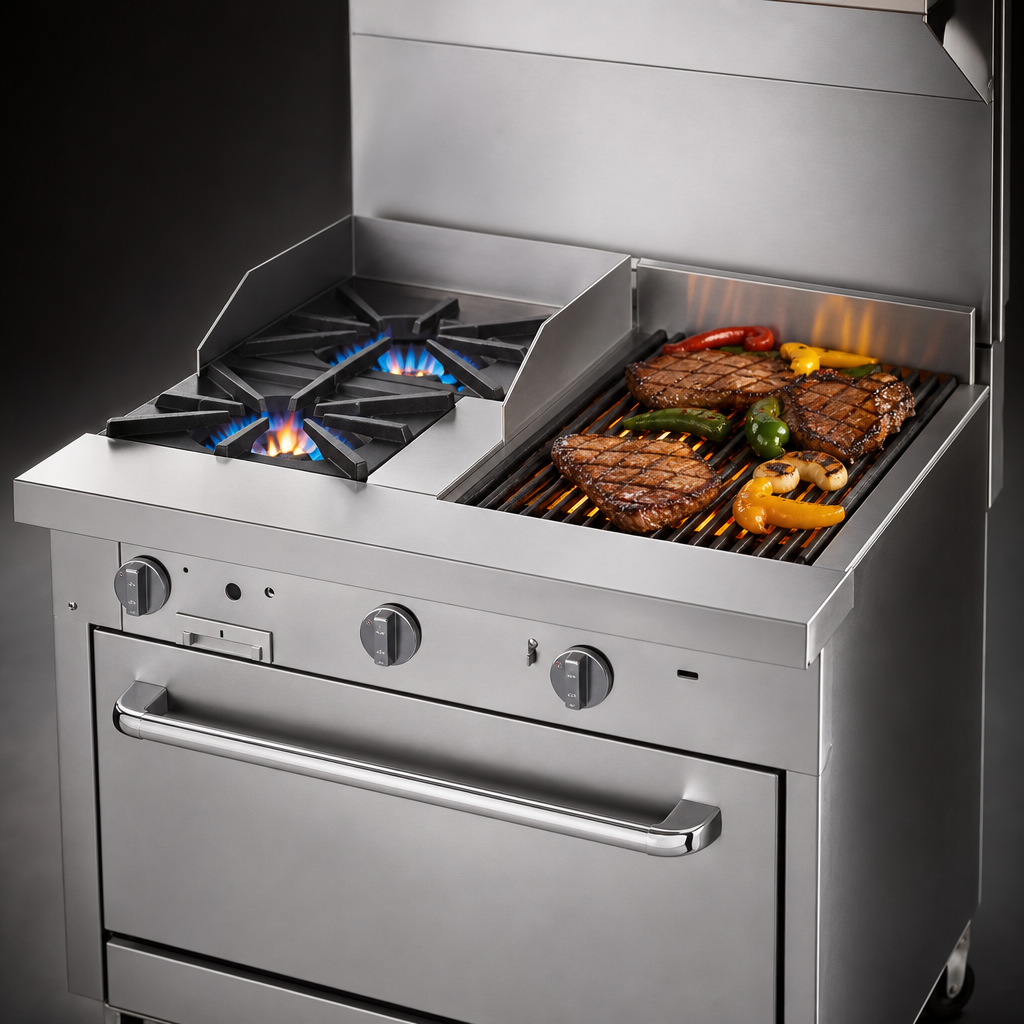

- 24" manual charbroiler:
- Two 16,000 BTU stainless burners (64,000 BTU total)
- 600 °F even surface temperature on high
- Reversible cast-iron grates – ⅛" or ¼" grid widths
- Adjustable front-to-back slope for precise fat drainage
- Modular “top-only” design – drop onto a refrigerated base, equipment stand or join to other Platinum sections.
- 9-¼" deep front rail for plating and pan staging.
- 5" stainless flue riser (24" & 36" risers with optional shelving available).
- Fully insulated liner & burner box to keep surrounding equipment cooler.
- All-stainless front, sides, rear & exterior bottom for maximum durability and easy cleaning.
- Front 1-¼" battery manifold couples to adjacent units; 1" rear male NPT gas inlet.
- cCSAus, CSA Flame, CSA Star & NSF certified; proudly Made in the USA.
Specifications
| Width | 36" / 914 mm |
|---|---|
| Depth | 37 ½" / 953 mm |
| Height | Top section 15 ¾" to cook surface + 5" flue riser (optional 24" or 36" risers) |
| Total BTU Input | 134,000 BTU/hr (Natural or LP) |
| Open Burners | 2 × 35,000 BTU clog-free burners |
| Charbroiler | 24" wide, 2 × 16,000 BTU stainless burners, manual high/low control |
| Gas Connection | Front 1-¼" manifold (battery connection) & rear 1" male NPT; min 7" WC NG / 11" WC LP |
| Construction | 430 & 304 stainless steel exterior, removable cast-iron grates, stainless radiants |
| Shipping Weight | Approx. 300 lb / 136 kg |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Options & Accessories
- 24" or 36" flue risers with one or two overshelf options
- External gas pressure regulator
- Casters & restraining kit for mobile stands
- Plated fish grids or grooved grates for charbroiler
- Open-frame or cabinet bases to create a freestanding range
For best performance, install under a vented hood and provide a regulated gas supply. Unit is intended for commercial use only.
