Southbend (Middleby) P36N-BBH Platinum Gas Ranges
Description

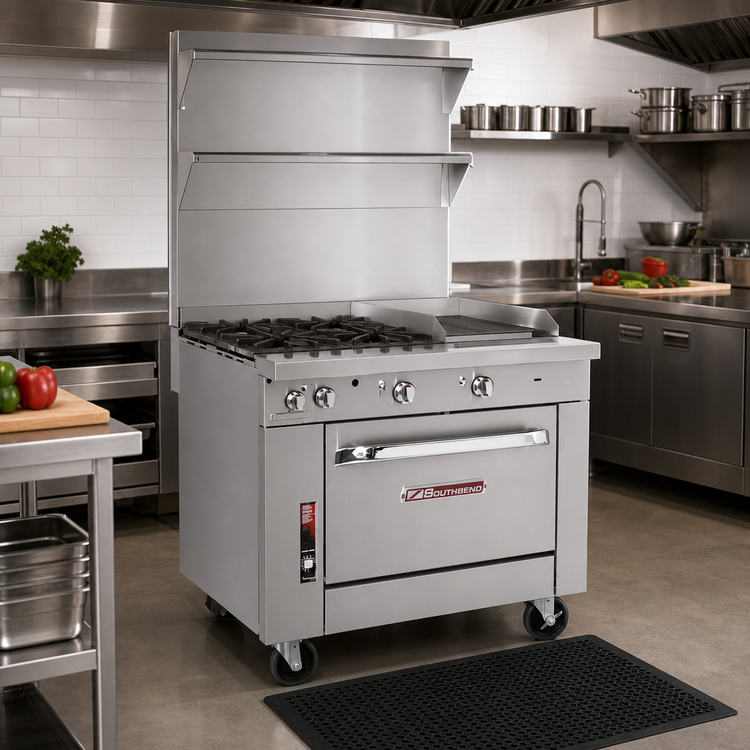

Southbend Platinum Series 36" Modular Heavy-Duty Range
Model P36-BBH | 4 Open Burners & 12" Hot Top | 172,000 BTUEngineered for the busiest commercial kitchens, this 36-inch Platinum Series sectional range combines four high-performance open burners with a full-surface 12" hot top. Its modular footprint drops directly onto a refrigerated base, chef station or counter—giving you Southbend’s legendary power, durability and flexibility without the bulk of an oven base.
Highlights at a Glance

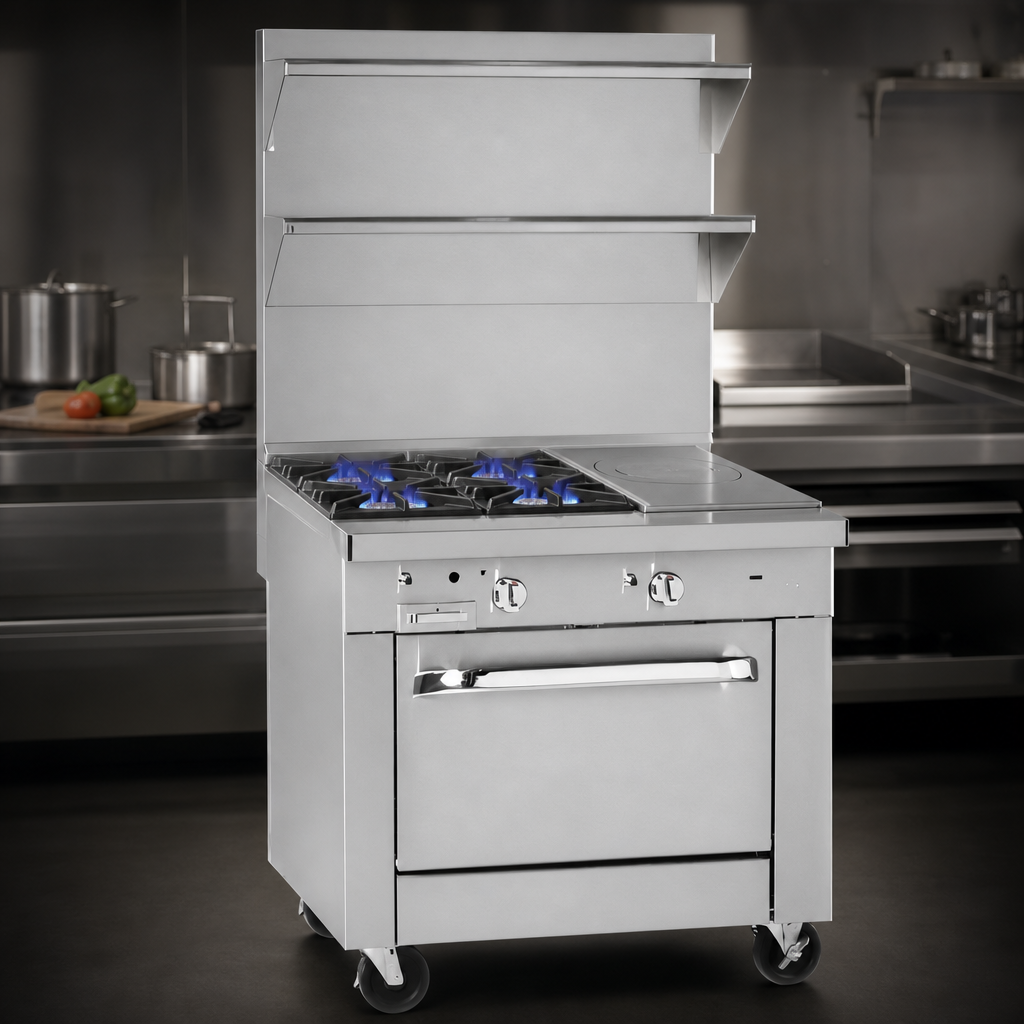

- (4) patented clog-free open burners, 35,000 BTU each, for instant searing heat

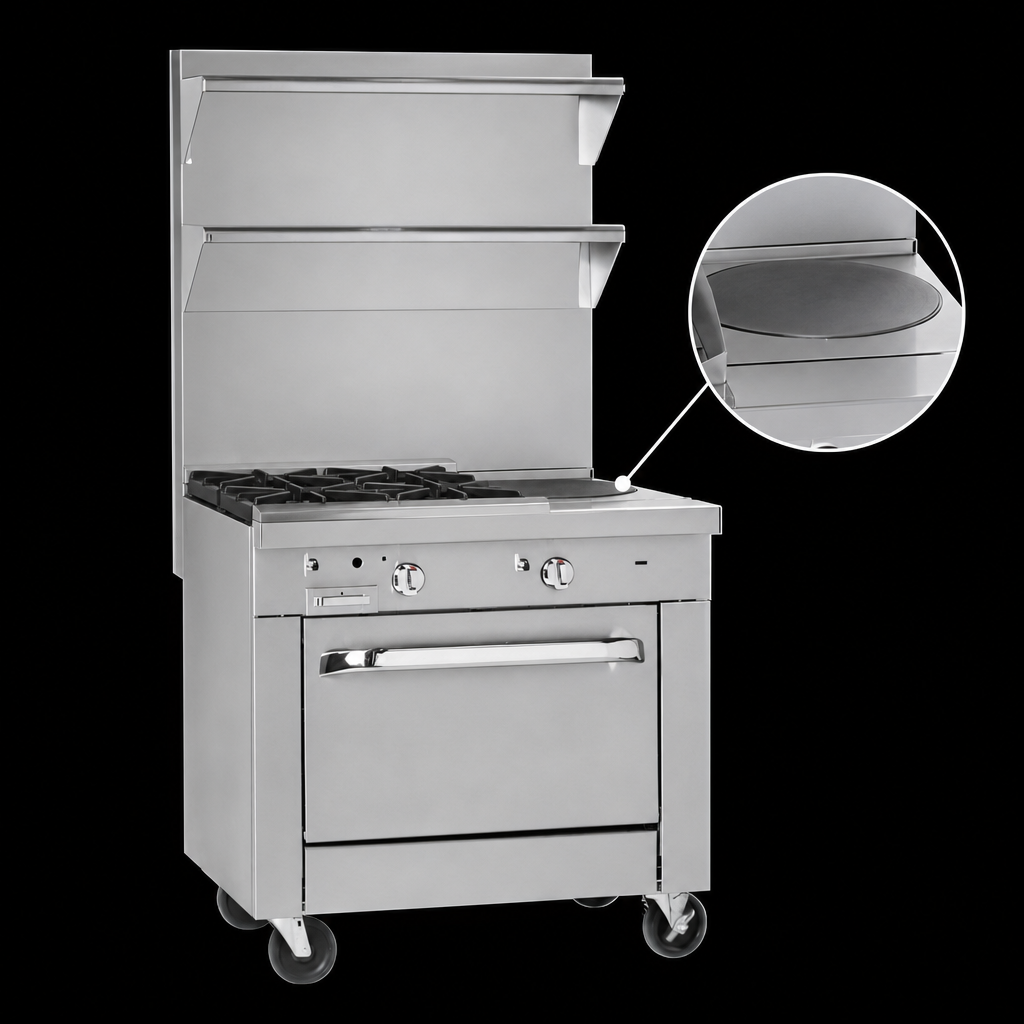

- 12" hot top with (2) 16,000 BTU burners and single high/low control—700 °F surface on “high”
- Battery spark ignition on all tops (no standing pilots = lower gas costs)
- Manual, front-mounted burner valves for intuitive, pinch-free operation
- 9-1/4" deep front rail with removable drip tray keeps the line clean
- 1-1/4" front gas manifold couples easily to adjacent Platinum sectional units; 1" rear gas connection
- Fully insulated liner & burner box improve efficiency and protect surrounding equipment
- Rugged #3-polish stainless steel front, sides, rear & exterior bottom
- 5" stainless flue riser directs exhaust into the ventilation hood
- Made in the USA and backed by a 1-year parts & labor warranty
Technical Specs
| Configuration | 4 open burners + 12" hot top (modular, no oven base) |
|---|---|
| Total Input | 172,000 BTU/hr |
| Burner Ratings | (4) × 35,000 BTU open burners | (2) × 16,000 BTU hot-top burners |
| Gas Type | Natural or Propane (specify when ordering) |
| Gas Connections | 1-1/4" front manifold coupler | 1" rear NPT inlet | 7" W.C. NAT / 11" W.C. LP minimum supply pressure |
| Dimensions (W × D × H) | 36" × 40" × 15-3/4" to cooking surface + 5" flue riser |
| Shipping Weight | Approx. 300 lb (136 kg) |
| Construction | Stainless steel front, sides, rear & exterior bottom; welded steel top grates; removable steel hot-top plates |
| Controls & Ignition | Manual gas valves | Battery spark ignition |
| Certifications | cCSAus | CSA Flame | CSA Star | NSF |
| Warranty | 1 year parts & labor, performed by Southbend Authorized Service Agencies |
| Country of Origin | USA |
Popular Add-Ons (Sold Separately)
- 7-1/4" or 10" deep front rail with utensil cut-outs
- Square belly bar for pan storage
- 24" or 36" stainless flue riser with single or double shelves
- Open-frame base with locking casters
- External gas pressure regulator
Need a different top configuration or base? The Platinum Series is fully sectional—contact us for a custom battery layout.
