Southbend (Middleby) P36N-BBB-SU Platinum Gas Ranges
Description

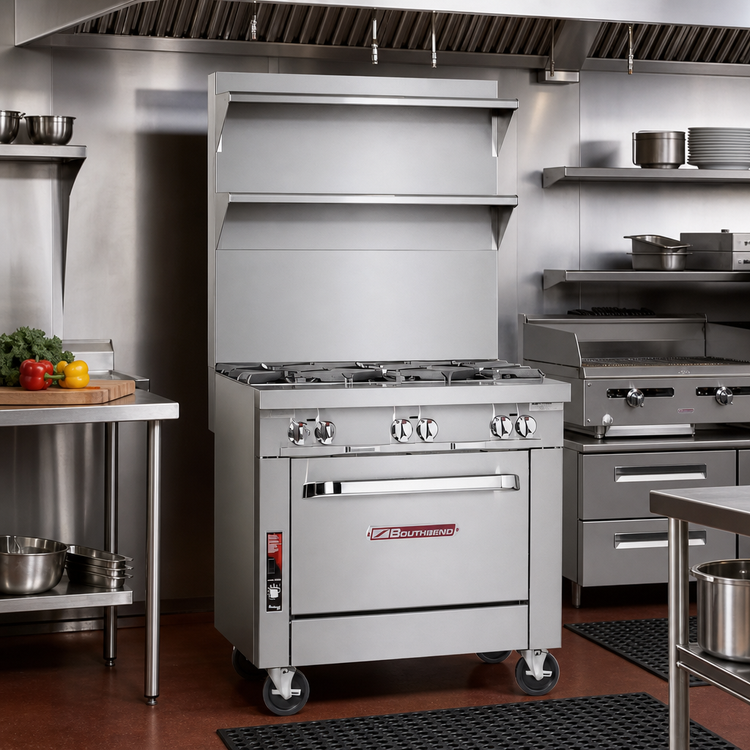

Southbend Platinum Heavy-Duty 36" Modular Range – 6 Open Burners with Step-Up Rear
Model P36N-BBB-SU | Natural or Propane Gas | 210,000 BTUEngineered for relentless commercial workloads, the Southbend Platinum P36N-BBB-SU delivers six high-performance open burners in a space-saving 36 inch footprint. A 4" step-up at the rear boosts productivity by staggering pots and pans for easier access and superior ventilation—all while maintaining the rugged build quality that has made Southbend the preferred choice in demanding kitchens worldwide.
Why You’ll Love It

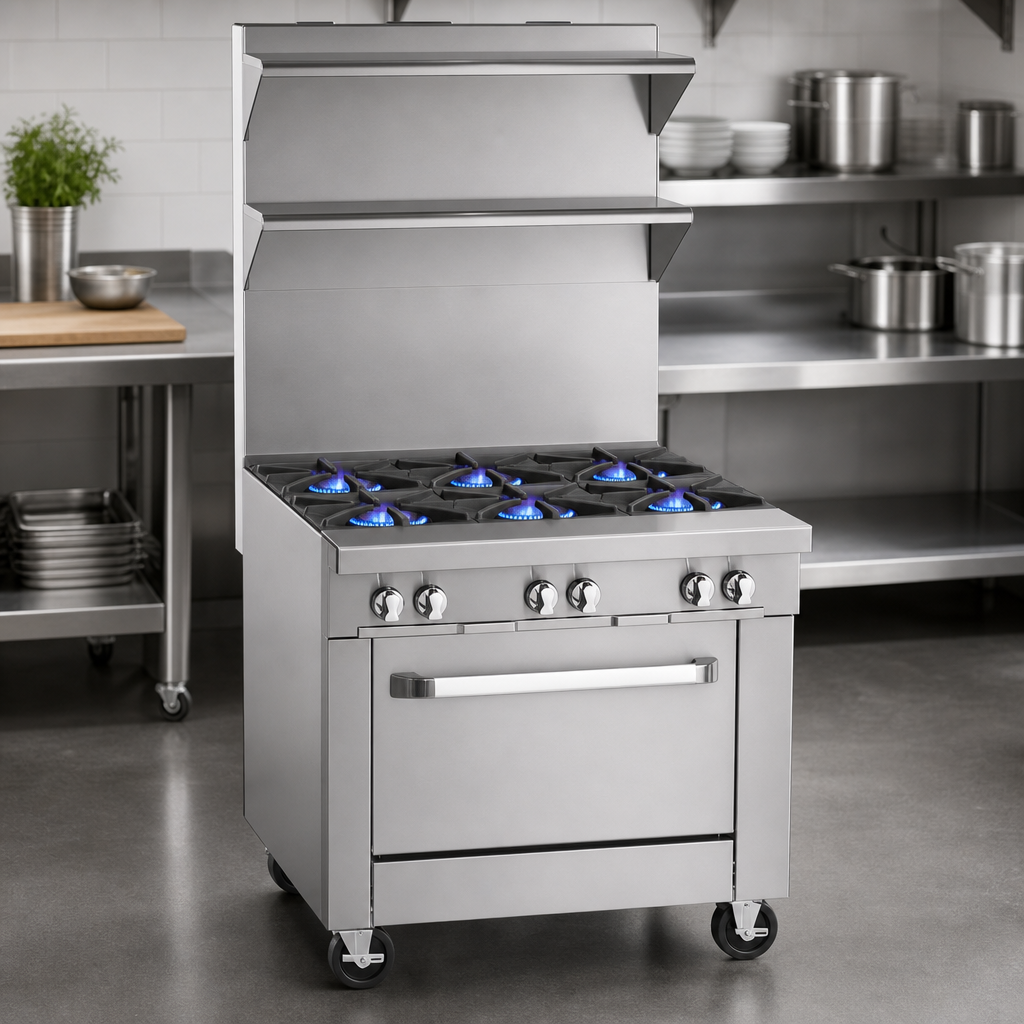

- Serious fire-power: six patented clog-free cast-iron burners, each rated at 35,000 BTU (210,000 BTU total).

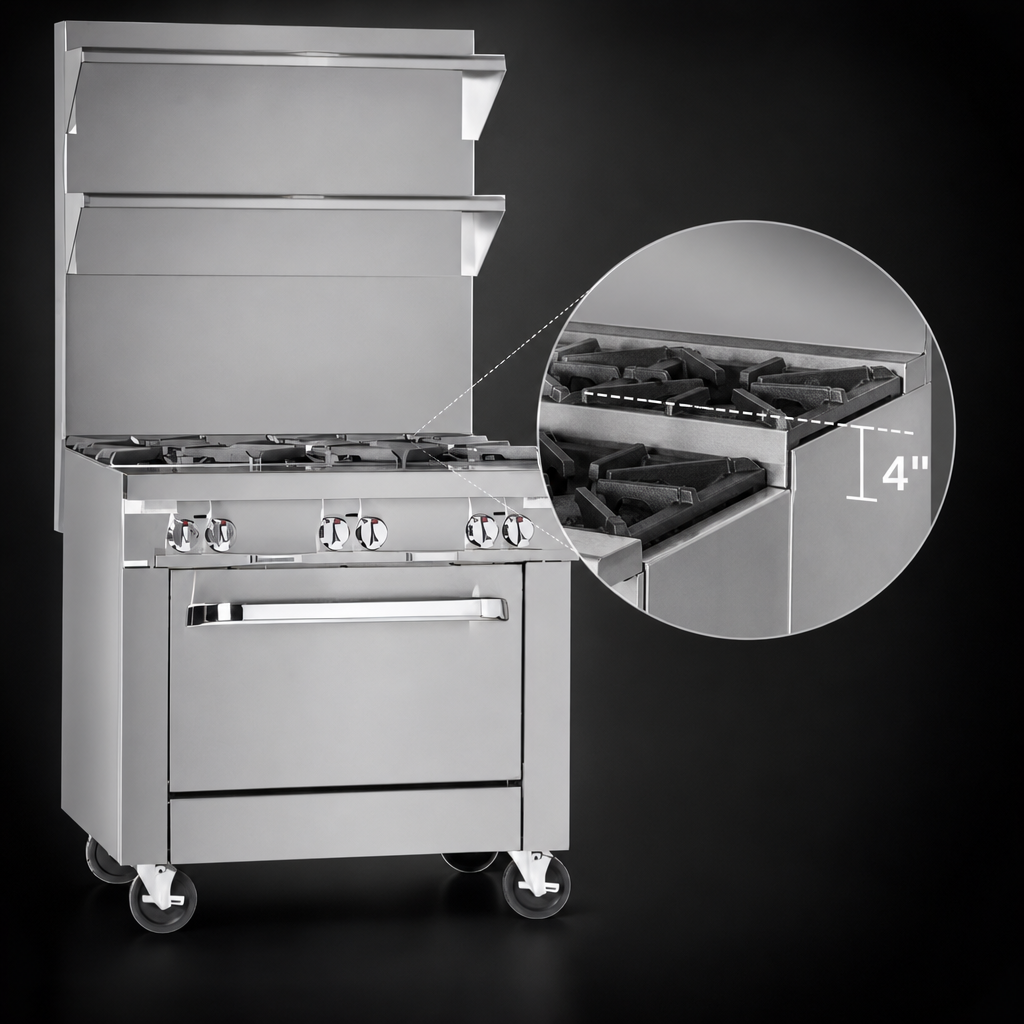

- Step-Up rear burners: the back three burners sit 4" higher, giving you a clear view of rear pots and freeing space on the front rail.
- Modular flexibility: low-profile body mounts directly to a counter, refrigerated base, or equipment stand for a custom cookline.
- Built to last: stainless-steel front, sides, rear and exterior bottom resist corrosion and clean up fast.
- Quick-change grates: heavy welded-steel tops lift off easily for deep cleaning.
- Cool, comfortable operation: a 9-1/4" deep front rail and removable drip tray keep spills and heat away from the chef.
- Ready for batteries: 1-1/4" front gas manifold couples seamlessly with other Platinum series sections.
- Certified & protected: CSA & NSF listed and backed by a 1-year parts & labor warranty.
Technical Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth* | 34" (864 mm) |
| Cook surface height* | 20" (508 mm) to countertop |
| Burners | (3) front open burners + (3) 4" step-up rear open burners |
| BTU rating | 35,000 BTU each | 210,000 BTU total |
| Gas connection | 1-1/4" front manifold for battery hook-up; 1" rear male NPT |
| Manifold pressure | 7" W.C. Natural / 11" W.C. LP |
| Flue riser | 5" stainless steel (standard) |
| Construction | Stainless steel front, sides, rear & exterior bottom; fully-insulated burner box |
| Controls | Manual infinite valve per burner | standing pilots (spark ignition optional) |
| Shipping weight | Approx. 390 lb (177 kg) |
| Certifications | CSA, NSF |
*Dimensions shown are factory-provided; allow ±1" (25 mm) for field tolerances.
Popular Factory Options
- 24" or 36" flue riser with single or double shelves
- Electronic or battery spark ignition for pilots
- External gas pressure regulator & flexible hose restraint kit
- Tray, tubular, or solid pan shelving
- Open-frame base with casters
Warranty
Southbend covers the Platinum P36N-BBB-SU with a 1-year, parts & labor warranty when installed in a commercial kitchen by a qualified professional. See full warranty statement for terms and exclusions.
