Southbend (Middleby) P36N-BBB Platinum Gas Ranges

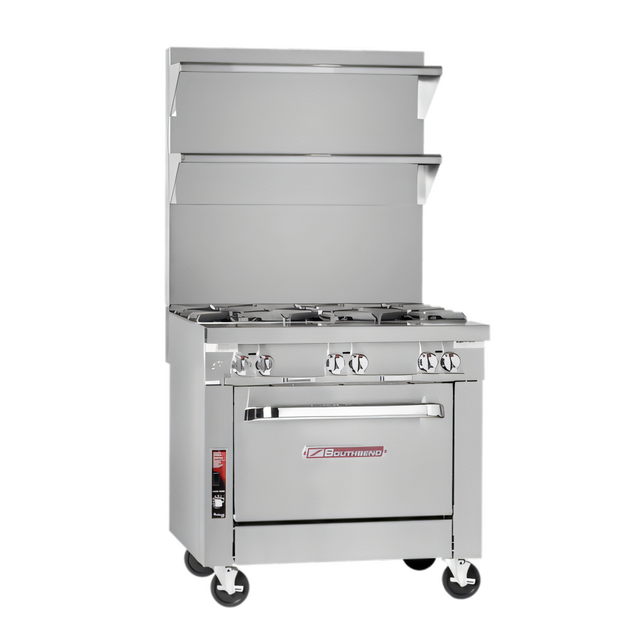

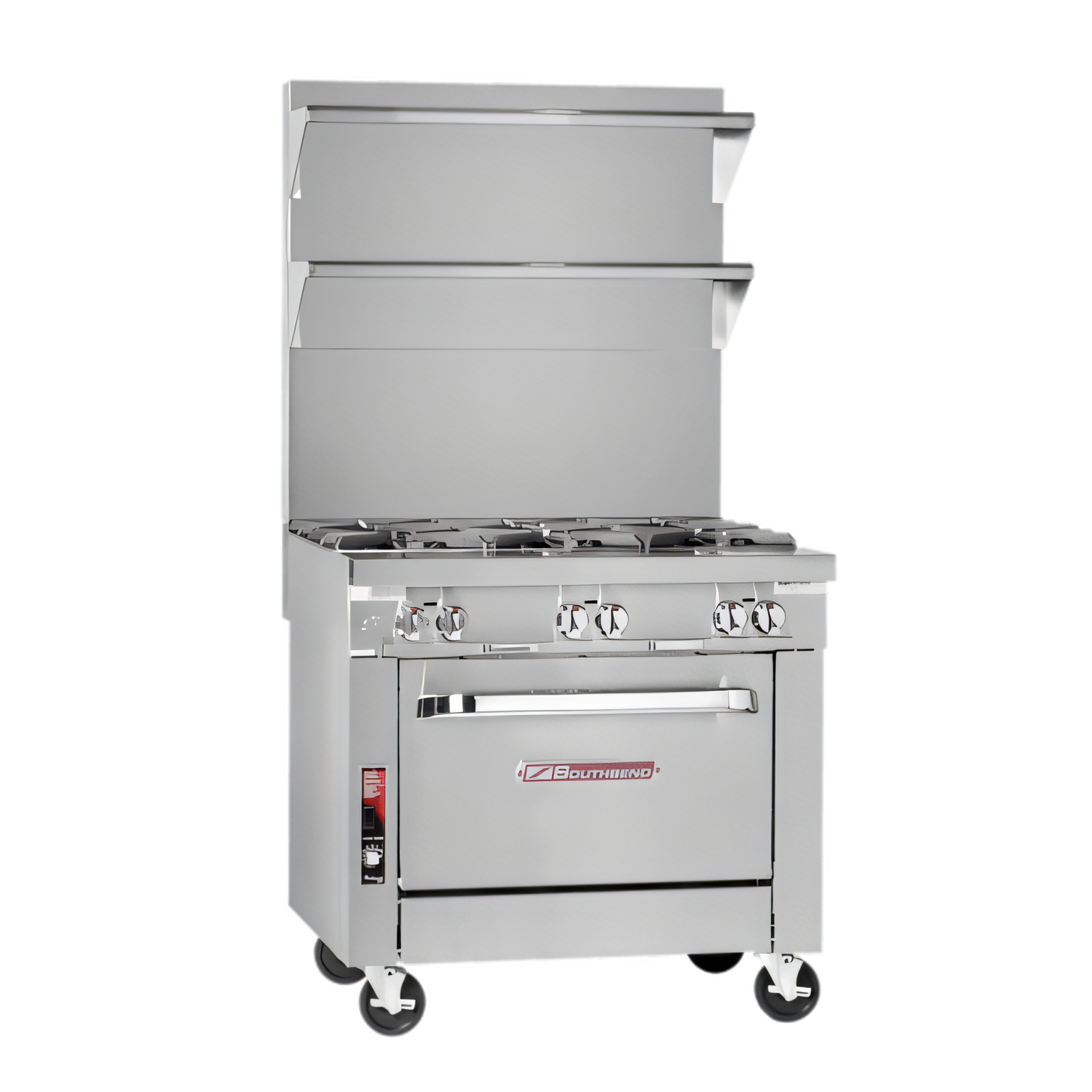

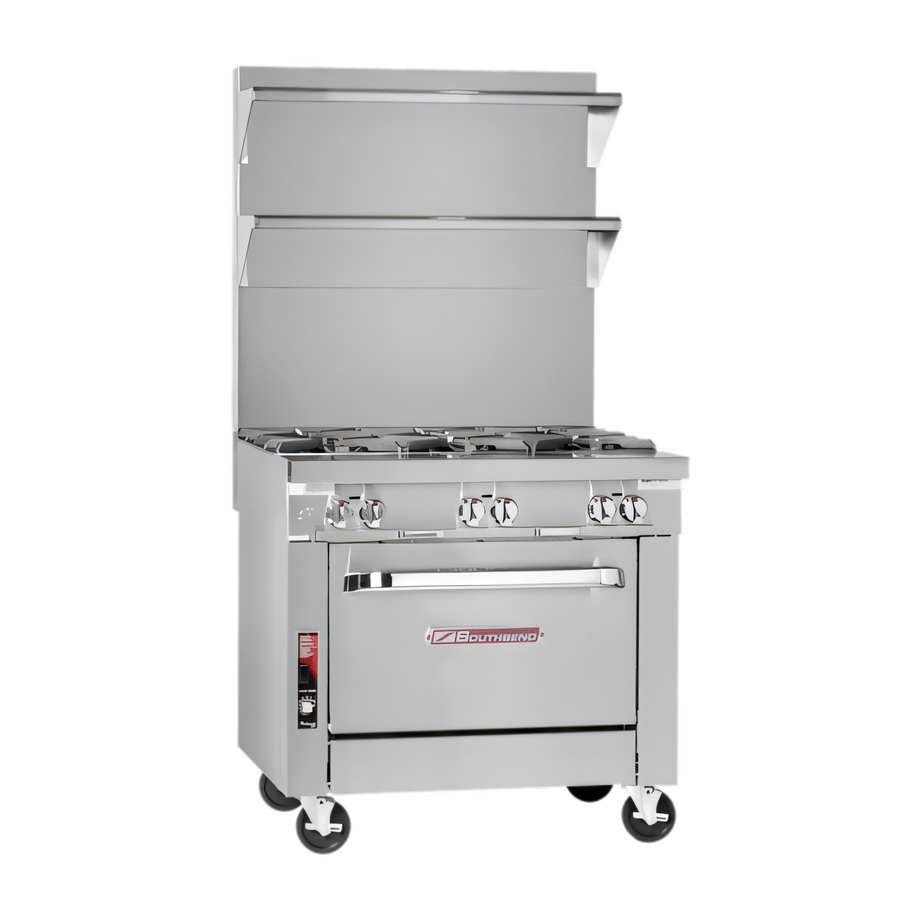

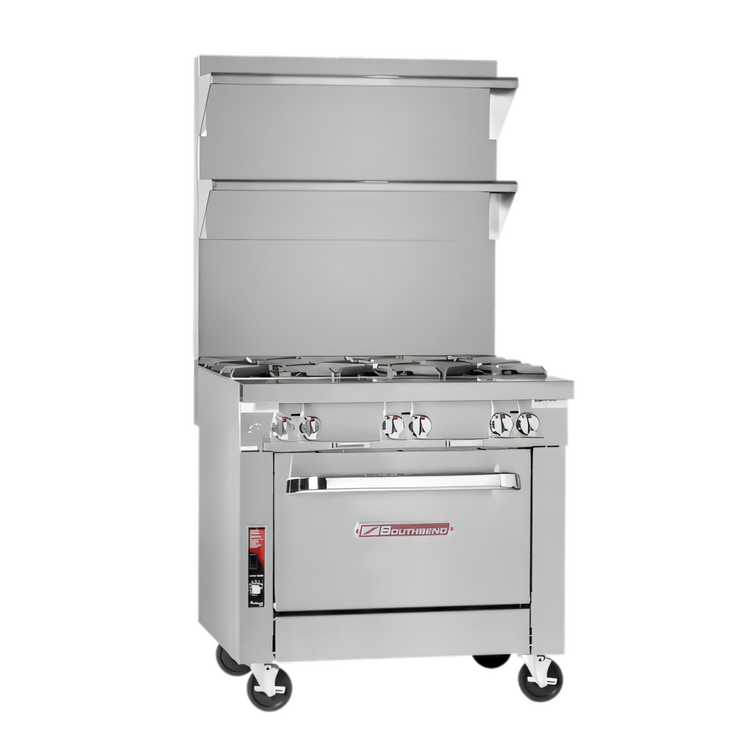

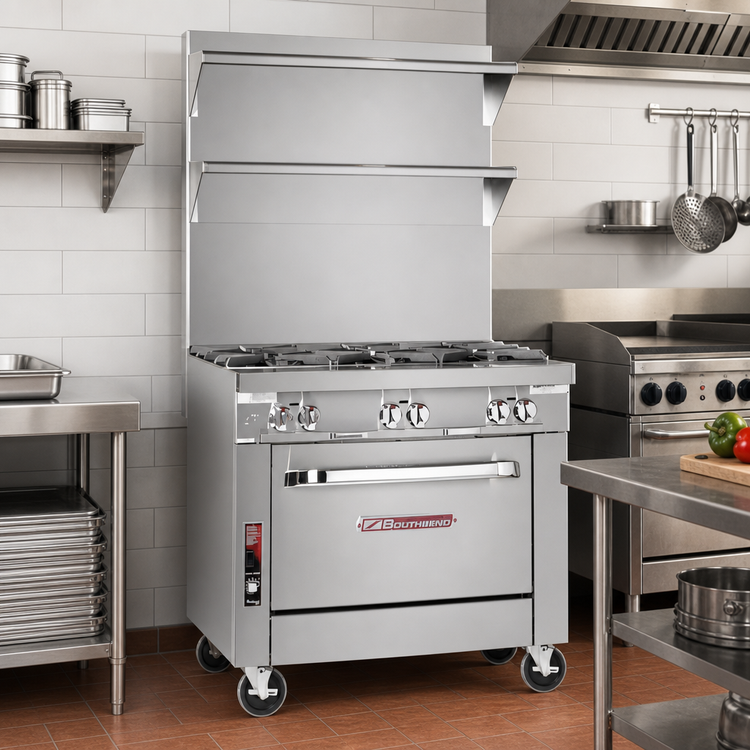

Southbend Platinum Series P36N-BBB 36" Modular Gas Range

Engineered for high-volume kitchens, the Platinum P36N-BBB delivers uncompromising power, rock-solid construction and “mix-and-match” modular flexibility—all in a space-saving 36-inch footprint.

Performance & Construction

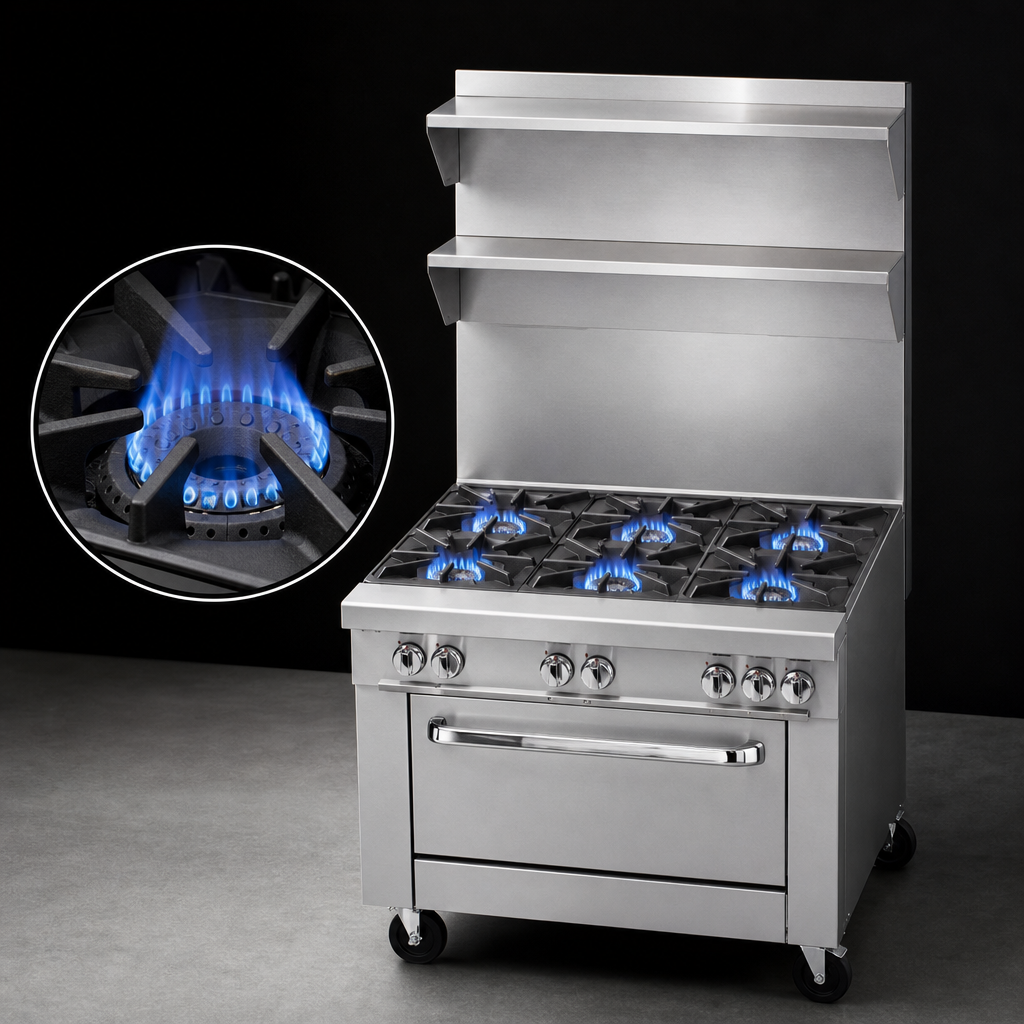

• Six patented clog-free open burners – 35,000 BTU each (210,000 BTU total).
• Precise manual gas valves let chefs dial in the perfect flame.
• Heavy welded-steel top grates handle oversized stock pots without flexing.
• 9 ¼" deep stainless front rail doubles as a staging / plating surface.
• Full-width removable drip tray keeps the cook top clean.
• Stainless steel front, sides, rear and exterior bottom for maximum corrosion resistance.
• 5" stainless flue riser directs exhaust into the ventilation hood.
• Fully insulated burner box keeps surrounding surfaces cooler and improves efficiency.
• 1 ¼" front sectional manifold couples to adjacent Platinum units for seamless battery lines.
• 1" rear male NPT gas connection for easy single-point hook-up.
• CSA & NSF certified; built for rigorous commercial use.

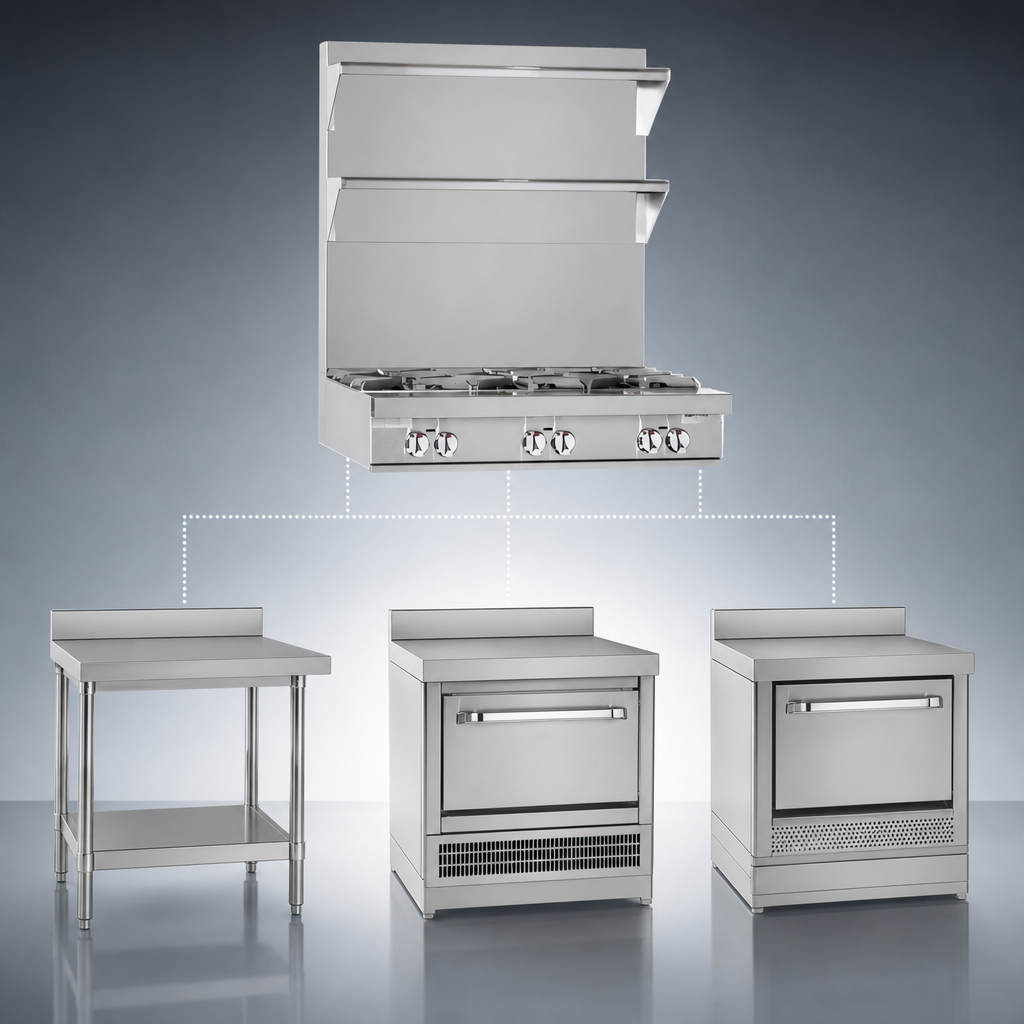

Modular Advantage

Supplied without a base, the P36N-BBB mounts directly on a countertop, refrigerated/ freezer base or open-frame stand, letting you create the exact cookline your menu demands. Pair it with other Southbend sectional equipment for a unified, high-output battery.

Popular Factory Options (Extra cost)

• 4" step-up rear burners for added pan clearance & visibility.
• 24" or 36" flue risers with single or double shelves.
• Casters or open-frame base for mobile installations.
• Electronic or battery spark ignition for open tops.
• Front-rail cut-outs, belly bars or narrow 7 ¼" rails.
• External pressure regulator & cable-restraint kit.

Specifications

Need a custom battery design or factory-installed options? Talk to our equipment specialists—We’ll configure the perfect Platinum cookline for your kitchen.
