Southbend (Middleby) P36D-XX Platinum Gas Ranges
Description
Southbend Platinum Series P36D 36" Heavy-Duty Gas Range
(4) 45,000 BTU Open Burners | Standard Oven Base | 225,000 BTU Total OutputBuilt for high-volume production lines, the Southbend Platinum P36D pairs four powerful Pyromax open burners with a full-size oven—all in just 36 inches of cookline space. Fully clad in stainless steel and loaded with heavy-duty components, this range brings Platinum performance and reliability to your kitchen’s most demanding shifts.
Performance Highlights

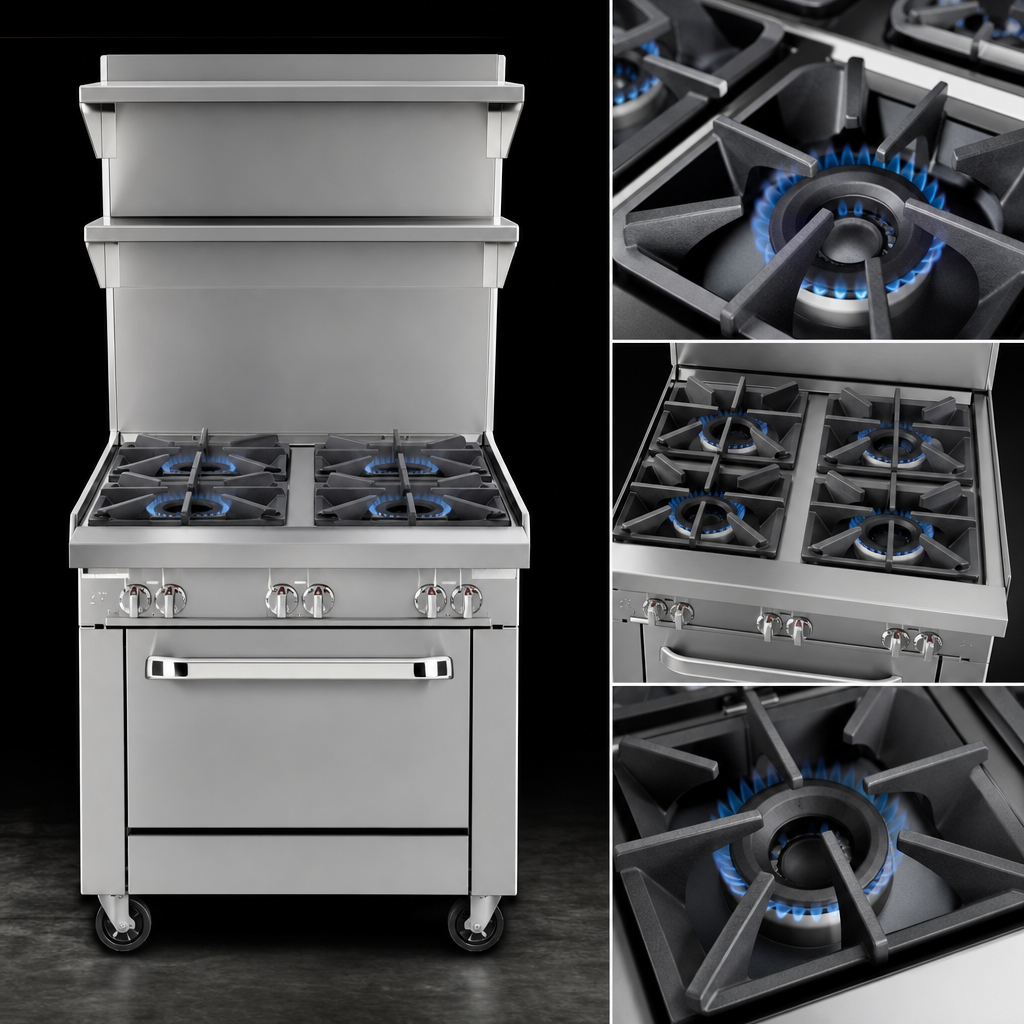

- Four patented 45,000 BTU Pyromax burners—clog-free design for constant, even flames.
- Manual burner valves offer precise low-to-high flame control for every cooking style.
- Removable, welded-steel top grates support heavy stock pots and lift out for quick cleaning.

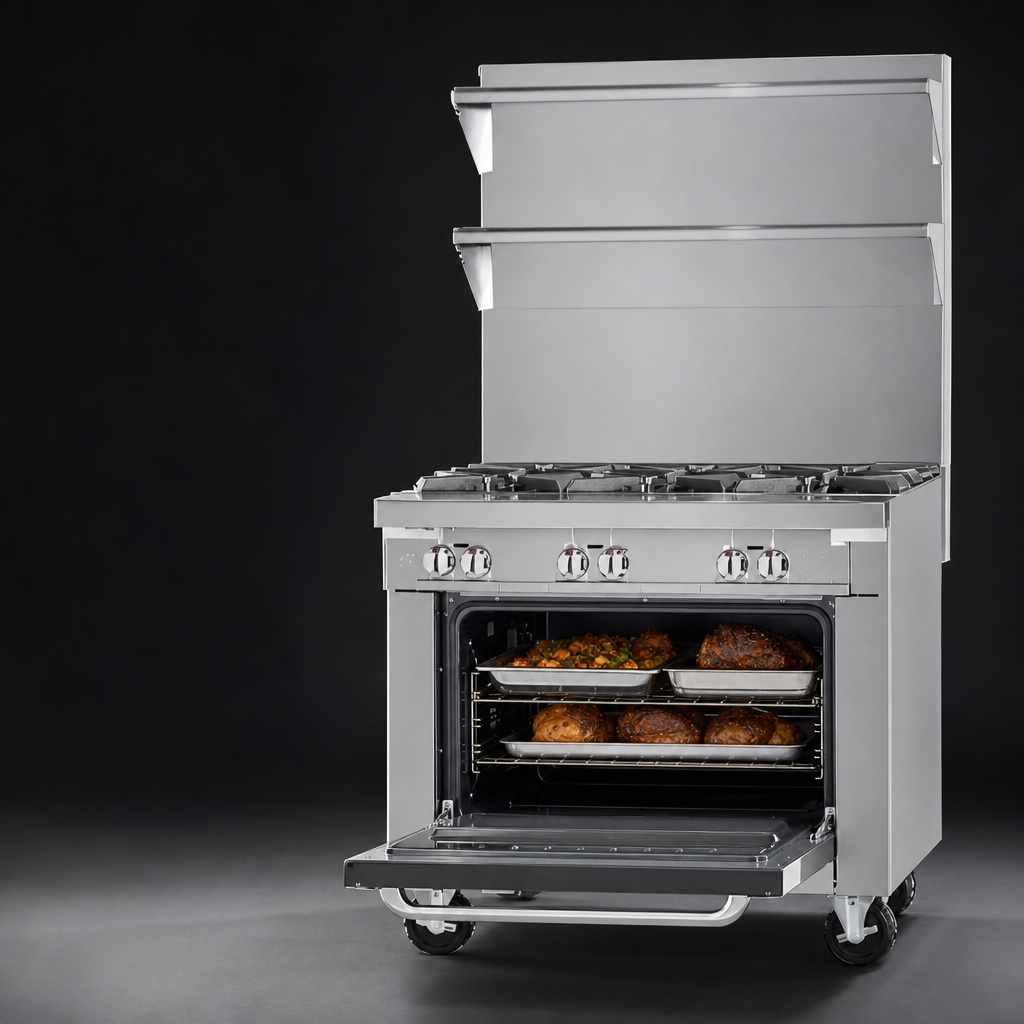

- 45,000 BTU standard oven with standing pilot & “Insta-On” thermostat (175 °F – 550 °F).
- Porcelain-enamel oven cavity (26" × 26½") fits full-size sheet pans either way; two adjustable racks included.
- 9¼" deep front rail doubles as a plating shelf without sacrificing burner space.
- 5" stainless flue riser channels heat up and away from the line.
- Stainless steel front, sides, rear & exterior bottom resist corrosion in punishing kitchen environments.
- 6" adjustable stainless legs allow fast leveling and effortless floor cleaning.
- NSF & CSA certified for gas safety and sanitation.
Technical Specifications
| Model | P36D-XX (Standard Oven Base) |
|---|---|
| Overall width | 36" (914 mm) |
| Depth (to rail) | 37½" (953 mm) |
| Work height | 36" (914 mm) on 6" legs |
| Total BTU | 225,000 BTU/hr (Natural or LP) |
| Open burners | (4) × 45,000 BTU Pyromax |
| Oven | Standard, 45,000 BTU, standing pilot, 175 °F–550 °F |
| Oven interior | 14" H × 26" W × 26.5" D; porcelain enamel |
| Racks supplied | 2 (five-position) |
| Gas connection | 1¼" front manifold; 1" rear NPT male |
| Required pressure | 7" W.C. Natural | 11" W.C. LP |
| Electrical | None (standing pilot). 120 / 208–240 V single-phase only if optional electronic ignition is ordered. |
| Shipping weight | ≈ 630 lb (286 kg) |
| Certifications | CSA | NSF |
Factory Options & Accessories (sold separately)
- Locking caster set for enhanced mobility
- 24" or 36" flue riser with single or double shelves, salamander, or cheesemelter mount
- Removable cast-iron grate tops
- Stainless steel oven interior upgrade
- Open-frame base with casters for battery line-ups
Need help configuring a battery line? Southbend offers complimentary design assistance—ask your product specialist for details.
• Install under a properly sized vent hood.
• Minimum clearances from combustible construction: 13" sides, 6" rear.
• Oversized cookware (12" Ø or larger) should be placed on rear burners only to prevent front-rail overheating.
• Intended for commercial use; not for residential applications.
Backed by Southbend’s 1-year parts & labor warranty. See official warranty statement for complete terms and exclusions.
