Southbend (Middleby) P36D-TTT Platinum Gas Ranges
Description

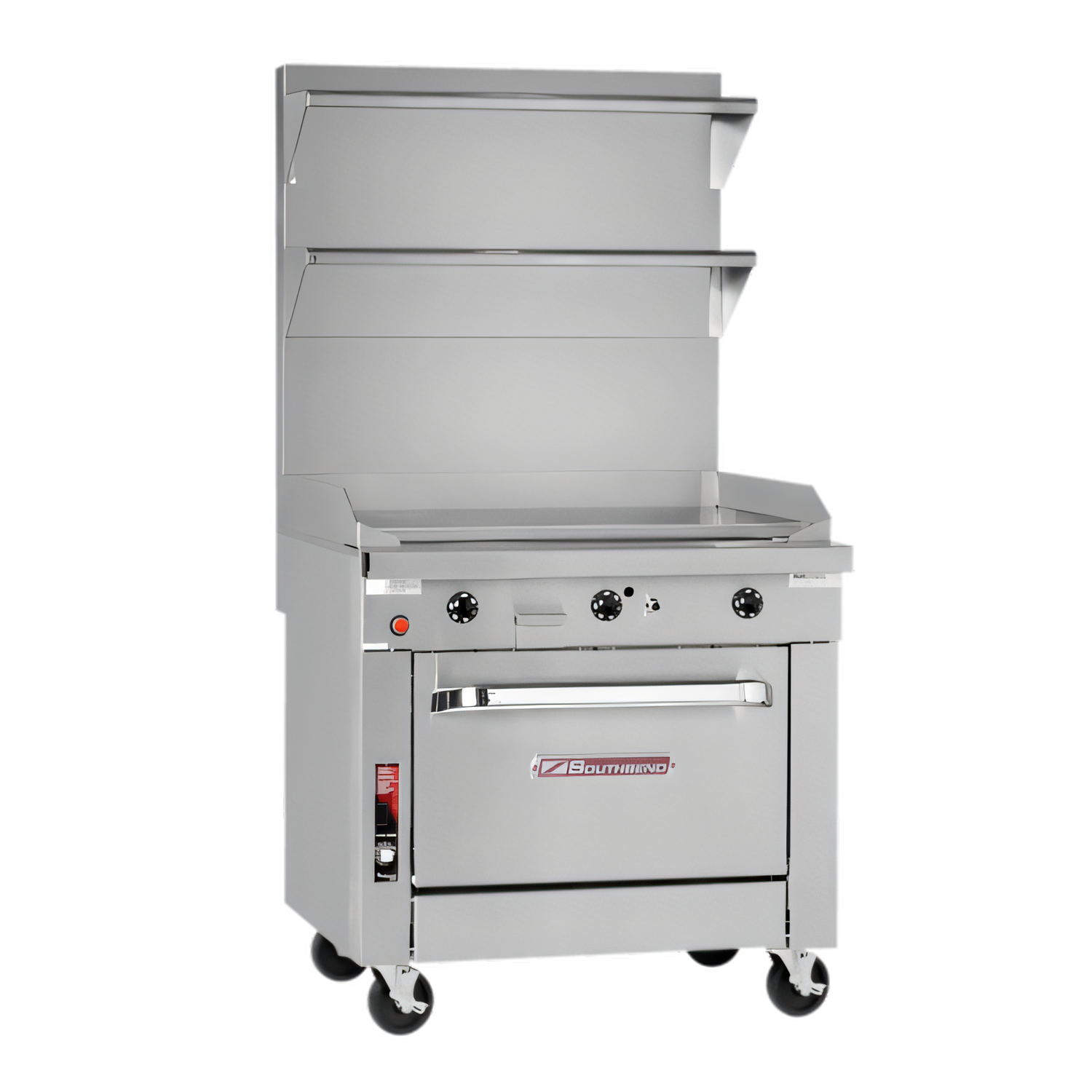

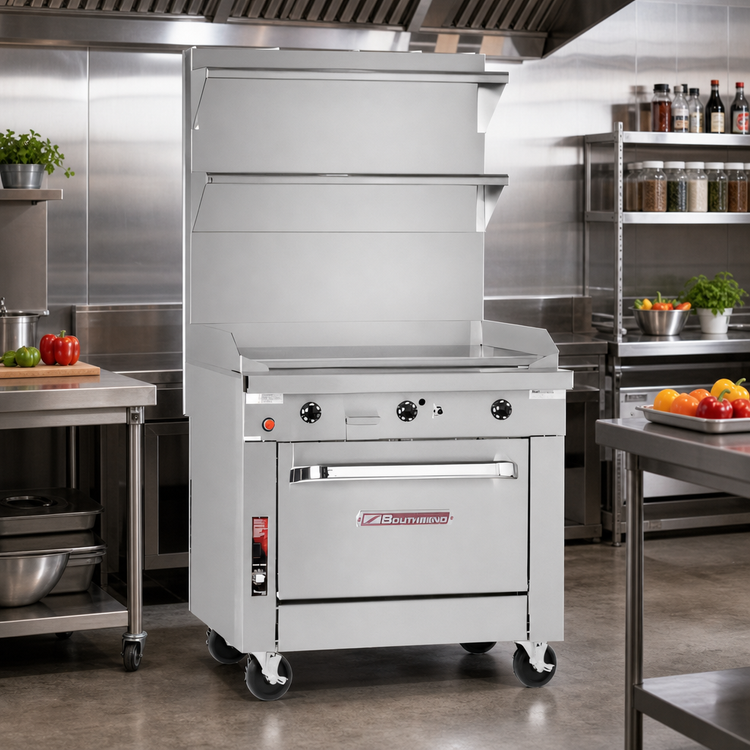

Platinum Series 36" Thermostatic Griddle Range with Standard Oven
Southbend Model P36D-TTT | 141,000 BTU Gas Heavy-Duty Sectional RangeBuilt for the most demanding commercial kitchens, Southbend’s Platinum 36" range merges a full-width griddle and a spacious standard oven into one rugged, stainless-steel workhorse. Precise thermostatic controls, battery spark ignition and a 1" thick plate give chefs the speed, consistency and durability they need during the busiest services.
- Thermostatic 1" Griddle Plate – Insta-On controls hold 180–400 °F across the entire 36" surface.
- Serious Heat – Six burners deliver 96,000 BTU to the griddle plus a 45,000 BTU oven (total 141,000 BTU).
- Battery Spark Ignition – Fast, reliable lighting without an electrical connection.
- Standard Oven Base – 14"H x 26"W x 26.5"D porcelain cavity fits full sheet pans both directions.
- Rugged Construction – 430 & 304 stainless front, sides, rear and bottom with 6" adjustable legs.
- Easy Cleanup – Side/rear splashers and a removable stainless grease drawer keep the line tidy.
- Certified & Warranty-Backed – cCSAus, CSA Flame, CSA Star, NSF; 1-year parts & labor warranty.

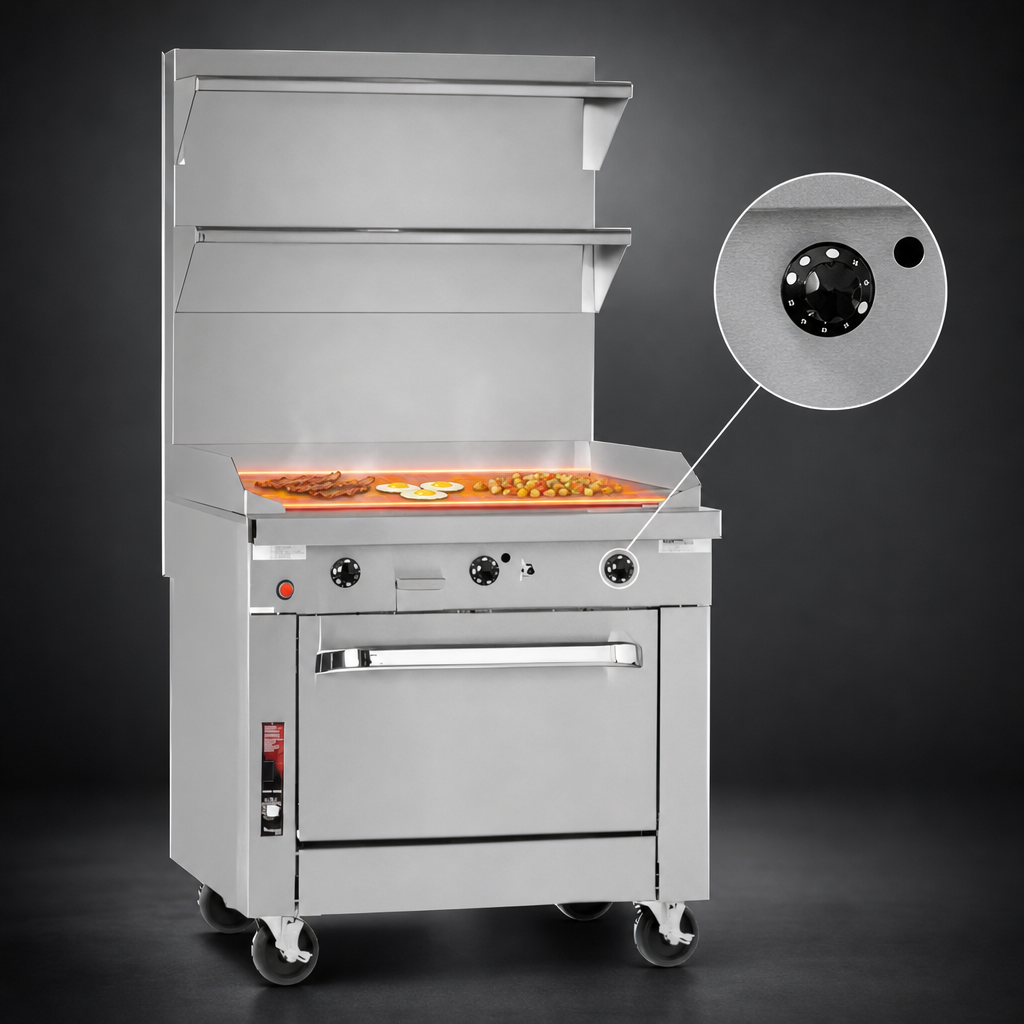

Full-Width Thermostatic Griddle

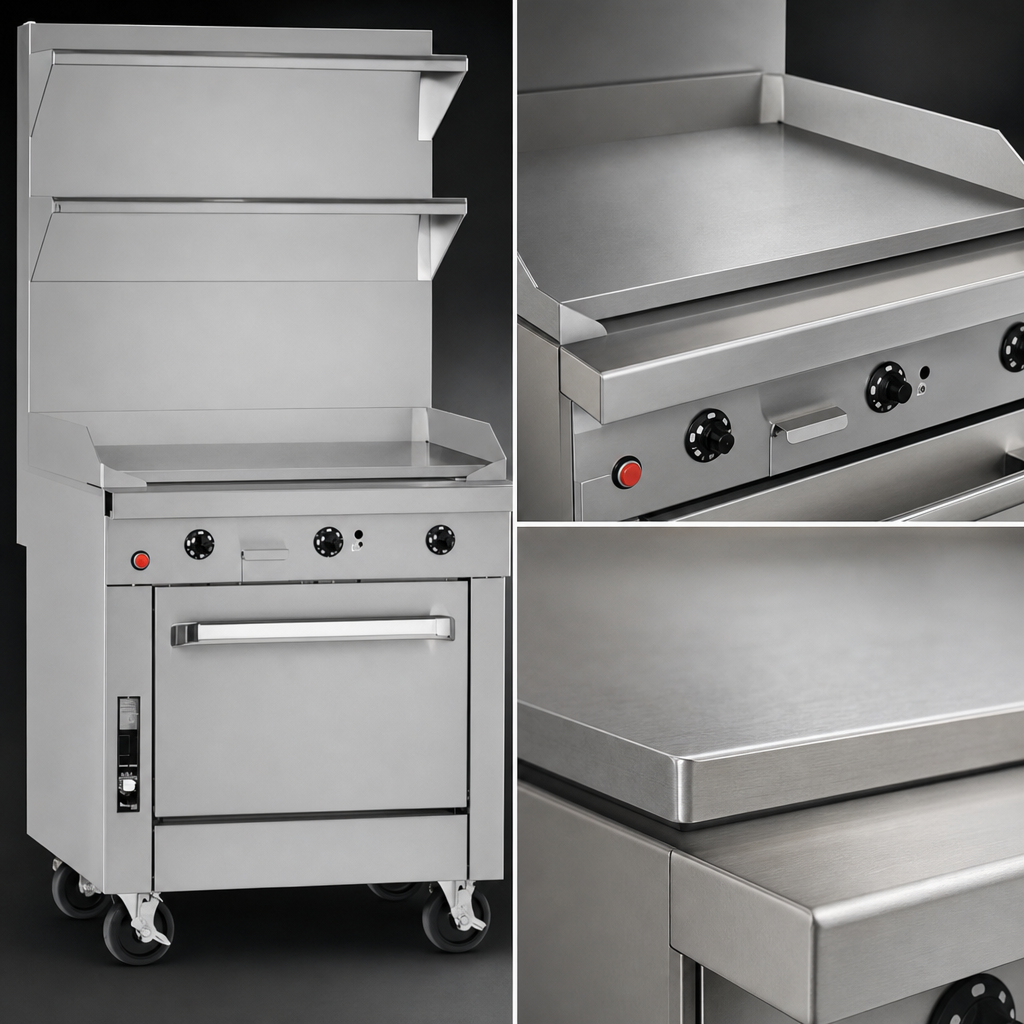

- 1" thick stainless plate handles heavy loads without temperature drop.
- Insta-On thermostats respond instantly for precise zone control.
- Cooking surface surrounded by welded side & rear splash guards.
- 9-1/4" deep front rail keeps utensils and plates close at hand.
High-Performance Standard Oven
- 45,000 BTU standing-pilot burner with 175–550 °F thermostat.
- Porcelain enamel interior for easy wipe-down cleaning.
- Includes two heavy-duty racks with five position side rails.
- Stainless door with extra-large, stay-cool handle.
Specifications
| Model | P36D-TTT (Platinum Series) |
|---|---|
| Total Input | 141,000 BTU/hr – Natural 129,000 BTU/hr – Propane |
| Griddle Input | 96,000 BTU/hr |
| Griddle Temp Range | 180 °F – 400 °F (thermostatic) |
| Oven Input | 45,000 BTU/hr |
| Oven Temp Range | 175 °F – 550 °F |
| Oven Interior (H × W × D) | 14" × 26" × 26.5" |
| Exterior Dimensions (W × D × H) | 36" × 37.5" × 43.5" (with 5" flue) |
| Gas Connections | 1-1/4" front manifold, 1" rear male NPT |
| Construction | Stainless front, sides, rear & bottom; 6" adjustable stainless legs; 5" flue riser |
| Shipping Weight | Approx. 601 lb |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (heavy-duty sectional) |
Popular Factory Options
- 24" or 36" flue riser with optional shelving
- Grooved or chrome-plated griddle surface
- Open-frame base or locking casters
- Salamander or cheesemelter mount
- External gas pressure regulator
Need help configuring a battery line? Southbend offers complimentary layout and gas-manifold assistance—contact us for details.
