Southbend (Middleby)

Southbend Platinum 36-Inch Heavy Duty Gas Plancha Griddle Range with Standard Oven

SKU: P36D-PPP
$14,415.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

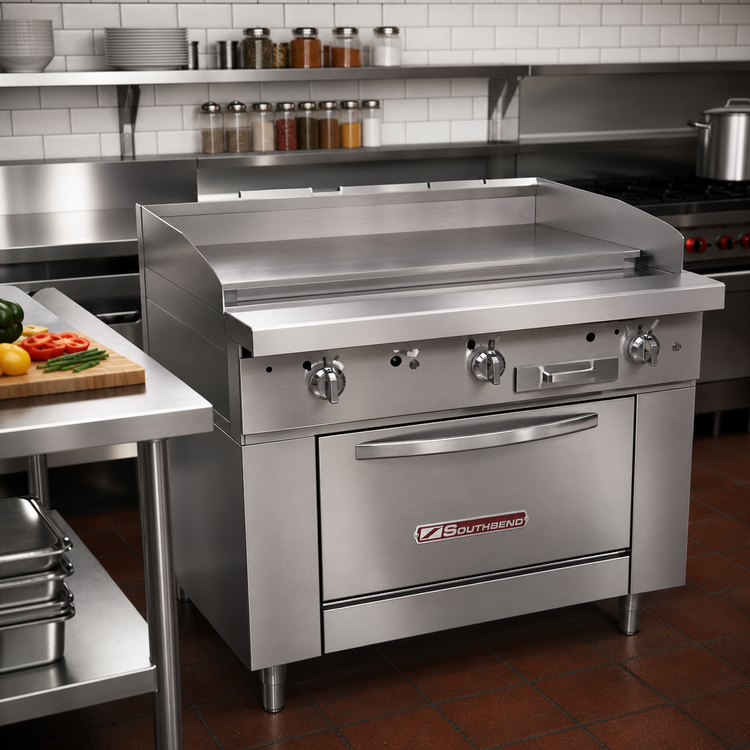

Southbend Platinum 36-Inch Heavy Duty Gas Plancha Griddle Range with Standard Oven

29-3/4-Inch Plancha, 1/2-Inch Plate, Manual Controls, Stainless Steel Construction

Built for high-volume kitchens, this 36-inch range pairs a fast-heating plancha griddle with a full standard oven for versatile all-in-one cooking.

  • 36-inch sectional gas range with a 29-3/4-inch plancha griddle and standard oven base
  • 1/2-inch reinforced steel plate delivers fast preheat and recovery for heavy-duty cooking
  • Three 16,000 BTU burners with manual controls and battery spark ignition
  • Standard oven includes a standing pilot, 175°F to 550°F thermostat, and 2 oven racks
  • Stainless steel front, sides, rear, and exterior bottom for durability and easy cleaning
  • Side and rear splashers, removable grease drawer, and 6-inch adjustable legs add convenience

Overall Dimensions:

36.0"W x 37.5"D x 41.0"H

Product Weight:

601.0 lb

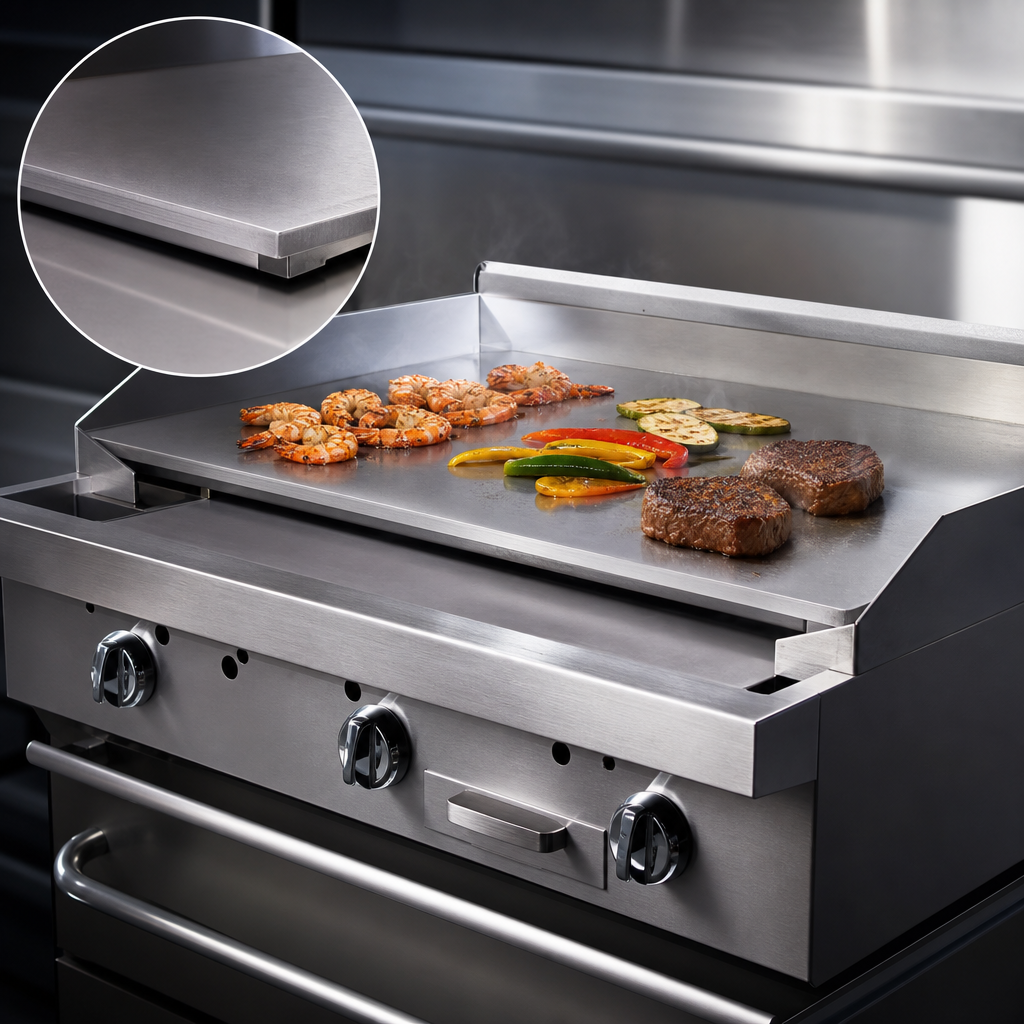

Plancha Griddle Surface

29-3/4-inch wide raised griddle surface with a 1/2-inch reinforced steel plate for easy cleaning between loads.

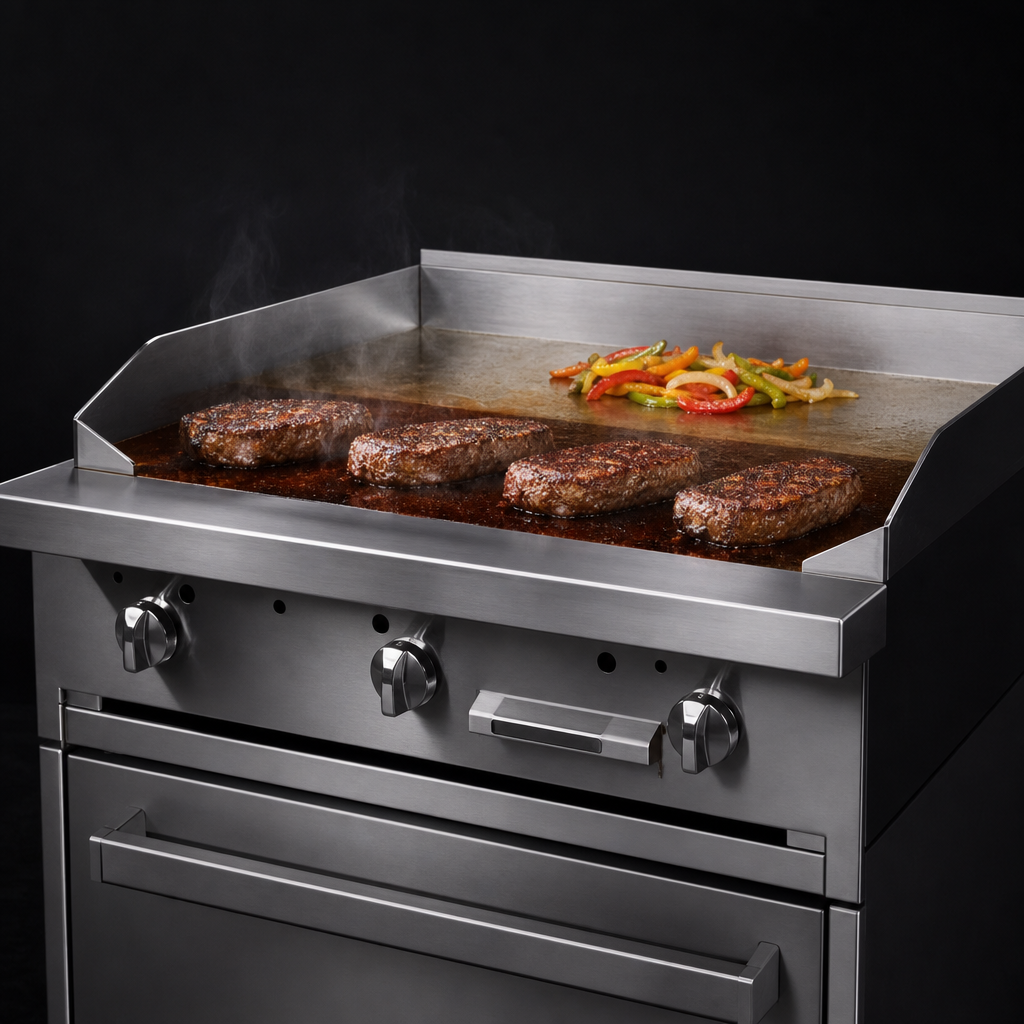

High-Heat Cooking Zones

Front 2/3 of the plate is designed for high heat searing, with a cooler rear zone for finishing.

Manual Burner Control

Three cast iron burners are controlled by three manual knobs for straightforward operation.

Battery Spark Ignition

Battery spark ignition provides reliable startup for the griddle section.

Standard Oven Base

Built-in standard oven base includes standing pilot ignition and a thermostat range of 175°F to 550°F.

Oven Interior and Racks

Standard oven includes two racks and a large interior sized to fit sheet pans either direction.

Stainless Steel Construction

Front, sides, rear, and exterior bottom are stainless steel for durability and easy maintenance.

Service-Friendly Design

Includes a 5-inch deep front rail, side and rear splashers, removable stainless steel grease drawer, and 6-inch adjustable legs.

Type Gas Range
Style Plancha Griddle
Installation Type Freestanding
Compartments 1
Controls Manual
BTU 93,000 BTU
Gas Connection Size 1-1/4 Inch Front Manifold; 1 Inch Rear Gas Connection
Gas Inlet Pressure 7 Inches W.C. Natural Gas; 11 Inches W.C. Propane
Material Stainless Steel
Interior Finish Porcelain Enamel
Finish Stainless Steel
Cooking Surface Width 29-3/4 Inches
Shipping Width 36 Inches
Shipping Depth 38 Inches
Shipping Height 41 Inches
Shipping Weight 601 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor limited warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

No. The plancha units do not allow specific temperature operation; they use a high-heat front zone and a cooler rear zone.
The standard oven base includes a standing pilot, a thermostat ranging from 175°F to 550°F, and two oven racks.
It uses a 1-1/4 inch front manifold and a 1 inch rear gas connection, and a regulated gas supply is required.
The plancha griddle uses a 1/2-inch thick reinforced steel plate.
Yes. The front, sides, rear, and exterior bottom are stainless steel.
The griddle section uses battery spark ignition.
