Southbend (Middleby) P36D-HHH Platinum Gas Ranges
Description
Southbend Platinum 36" Heavy-Duty Uniform Hot Top Range w/ Standard Oven – 141,000 BTU
Model P36D-HHH | Gas | CSA & NSF ListedEngineered for the busiest commercial kitchens, the Southbend Platinum P36D-HHH pairs a full-width uniform hot top with a high-performance standard oven, delivering 141,000 BTU of total cooking power in a rugged, 36-inch footprint.
Top-Line Features

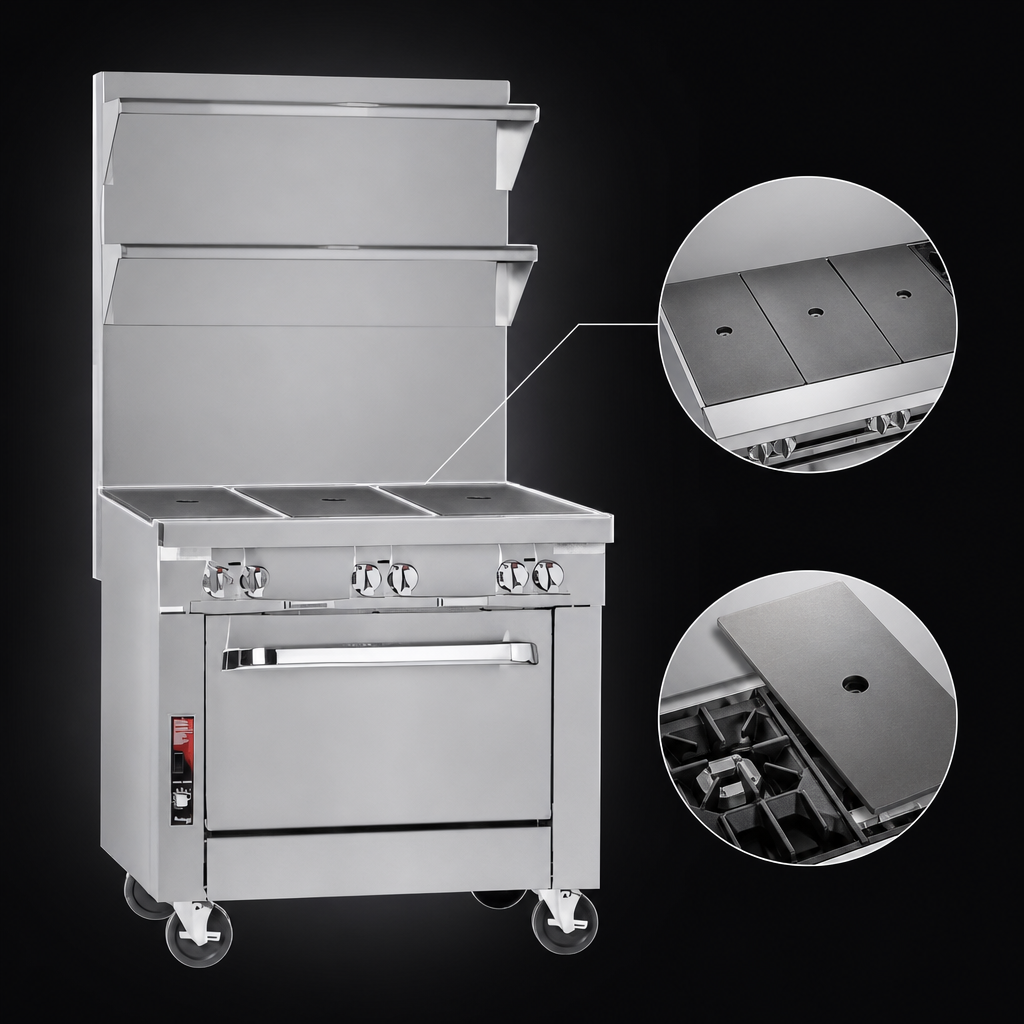

- Three 12" uniform hot-top sections (96,000 BTU total) with removable steel plates that reach up to 700 °F.
- Manual high/low controls and battery spark ignition—no electrical hookup required.
- 45,000 BTU standard oven with “Insta-On” thermostat (175 – 550 °F) and porcelain-enameled cavity.
- (2) heavy-duty oven racks with 5-position side rails fit full-size sheet pans either direction.
- Stainless steel front, sides, rear and exterior bottom stand up to daily abuse and wash-downs.
- 9-1/4" deep front rail adds plating and staging space.
- 5" stainless steel flue riser delivers proper exhaust into the ventilation hood.
- 6" adjustable stainless steel legs for easy leveling and cleaning underneath.
- Fully insulated lining and burner box maximize efficiency and keep cookline temperatures comfortable.
Built for Demanding Kitchens
- Uniform heat across the entire 36" surface—perfect for large stock pots, sauce pans and tilting cookware.
- Quick recovery and consistent searing thanks to six powerful 16,000 BTU burners beneath the hot top.
- Battery spark ignition reduces gas consumption and eliminates nuisance pilots.
- Oven cavity sized for banquet-style sheet-pan production—roast, bake or re-thermalize with confidence.
- Sectional design allows seamless line-ups with other Platinum series equipment.
Technical Specifications
| Exterior width | 36" (914 mm) |
|---|---|
| Exterior depth | 37-1/2" (953 mm) |
| Cooking surface height | 36" to 37-1/2" adjustable |
| Total BTU input | 141,000 BTU/hr (Natural or Propane) |
| Hot top BTU | 96,000 BTU/hr (three 12" sections) |
| Oven BTU | 45,000 BTU/hr (standard oven) |
| Oven interior (HxWxD) | 14" × 26" × 26-1/2" (356 × 660 × 673 mm) |
| Gas connections | 1-1/4" NPT front manifold · 1" NPT rear (female) |
| Minimum supply pressure | 7" W.C. Natural / 11" W.C. LP |
| Electrical | Not required (battery ignition & standing oven pilot) |
| Shipping weight | ≈ 629 lb (285 kg) |
What’s Included
- Southbend P36D-HHH range/oven assembly
- (2) chrome-plated oven racks
- (4) 6" stainless steel legs (front) & (2) rear legs
- Battery pack for hot-top ignition
- Owner’s manual & 1-year parts & labor warranty
For optimal performance and to comply with local codes, installation under a properly sized vent hood is recommended. Allow 10" side and 12" rear clearance from combustible surfaces.
