Southbend (Middleby) P36D-GRAD Platinum Gas Ranges
Description
Southbend Platinum 36" Graduated Hot Top Range with Standard Oven
Model P36D-GRAD | Natural Gas 107,000 BTU | CSA & NSF CertifiedBuilt for the toughest commercial kitchens, the Southbend Platinum P36D-GRAD combines a blistering-hot graduated hot top with a spacious standard oven—all in a 36" footprint. Heavy-gauge stainless construction, battery-spark ignition and industry-leading 900 °F surface capability let you sear, sauté and braise with absolute confidence shift after shift.
Why You’ll Love It

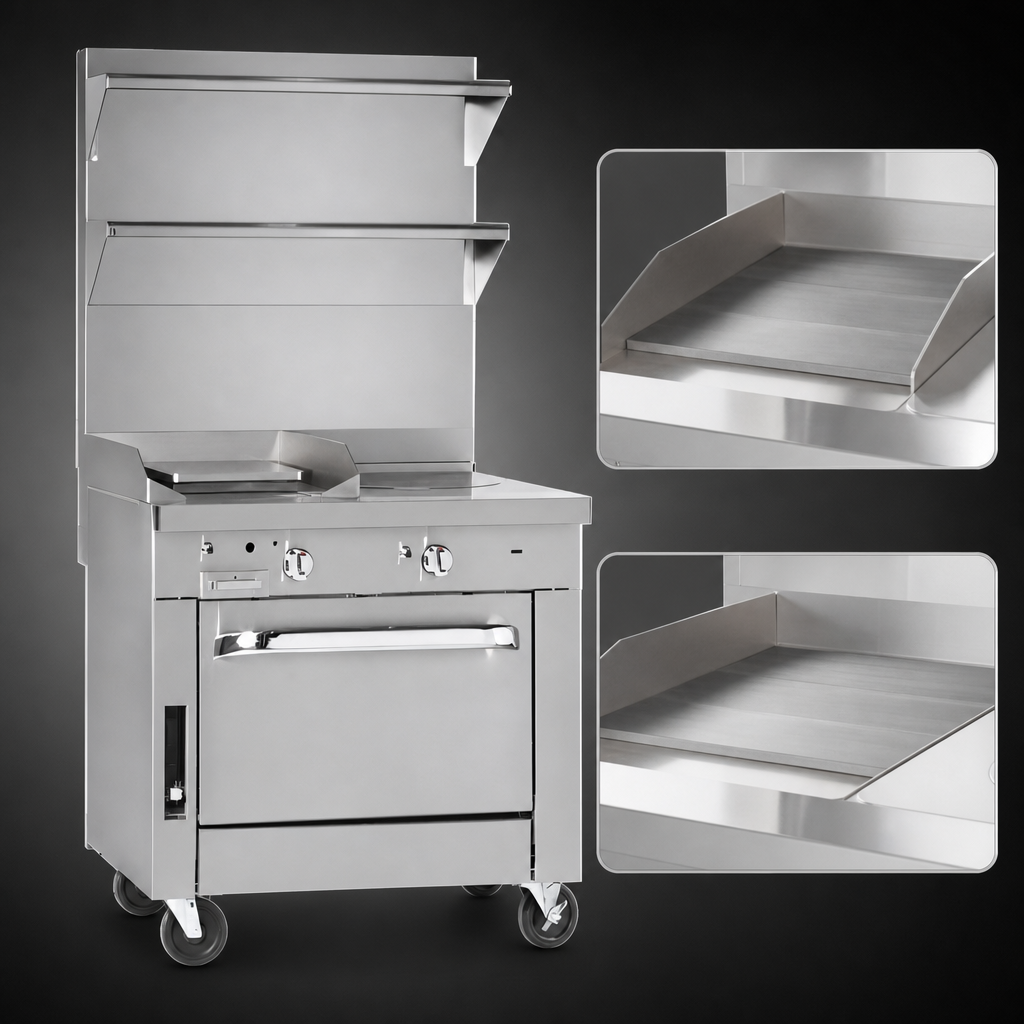

- Full-width graduated hot top delivers up to 900 °F at the center for rapid searing; outer zones run cooler for gentle holding.
- 62,000 BTU NAT cast-iron burner under removable steel plates provides even, responsive heat.

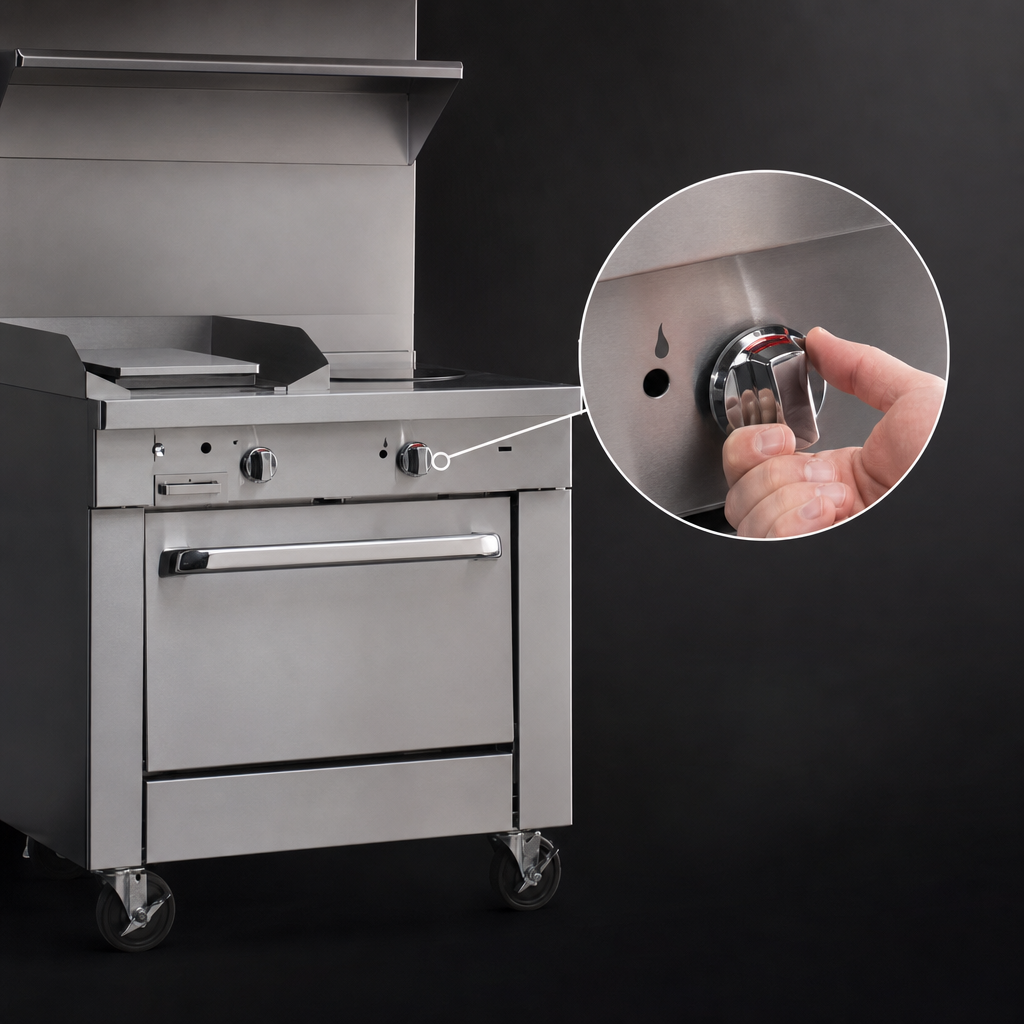

- Simple manual High/Low control plus battery-spark ignition—no electrical hookup required for the range section.
- Integrated 45,000 BTU standard oven (14"H × 26"W × 26.5"D) fits full-size sheet pans either way.
- Snap-action thermostat from 175 °F – 550 °F for consistent baking, roasting and finishing.
- Rugged all-stainless exterior (front, sides, rear & bottom) stands up to daily abuse and speeds cleanup.
- 9-1/4" deep front rail and 5" stainless flue riser included.
- (2) chrome-plated oven racks with 5-position side rails—expandable to 5 racks (sold separately).
- 6" adjustable stainless legs for easy leveling or curb mounting.
- Field-tested for zero-clearance to non-combustibles; 6" side/rear to combustibles.
At-a-Glance Specifications
| Model | P36D-GRAD |
|---|---|
| Fuel Type | Natural Gas (field convertible to LP with kit) |
| Total Input | 107,000 BTU/hr |
| Hot-Top Burner | 62,000 BTU/hr • Manual high/low • Battery spark ignition |
| Oven Burner | 45,000 BTU/hr • Standing pilot |
| Oven Capacity | (1) cavity • 14"H × 26"W × 26.5"D • Fits full-size sheet pans |
| Thermostat Range | 175 °F – 550 °F |
| Exterior Dimensions | 36"W × 37.5"D × 40"H (to top of 5" flue riser) |
| Gas Connections | 1-1/4" front manifold (battery capable) & 1" rear NPT |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (Heavy-Duty Sectional Range) |
Popular Factory Options (sold separately)
- 24" or 36" flue riser with shelf, salamander or cheesemelter mounts
- Casters or open-frame base for battery installations
- External gas pressure regulator & cable restraint kit
- Extra-deep rear flue riser or tray/tubular shelving
- Electronic oven pilot ignition (no extra charge)
Designed and approved for commercial use only. Installation under a vented hood and a regulated gas supply are required—check local codes.
