Southbend (Middleby) P36D-GGC Platinum Gas Ranges
Description

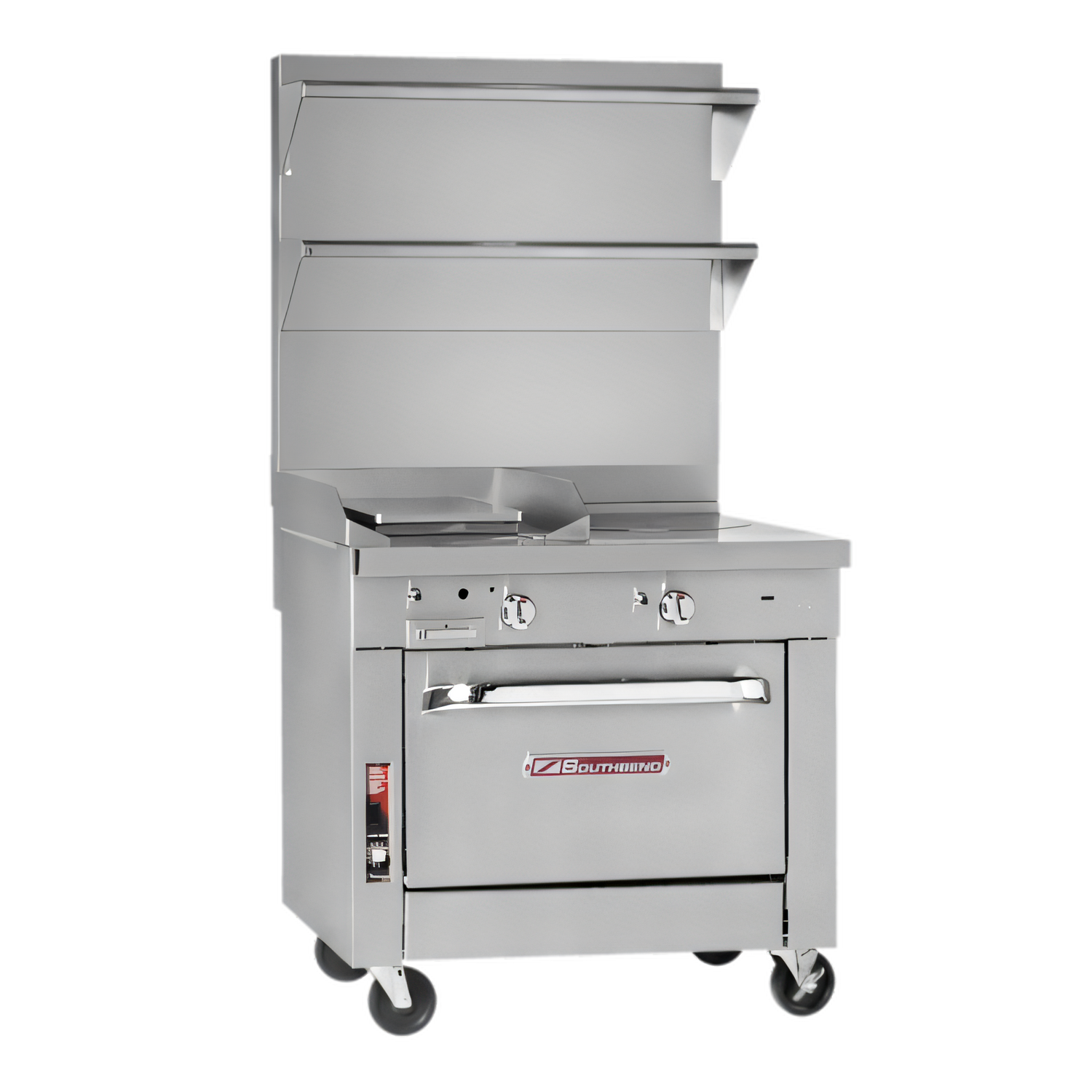

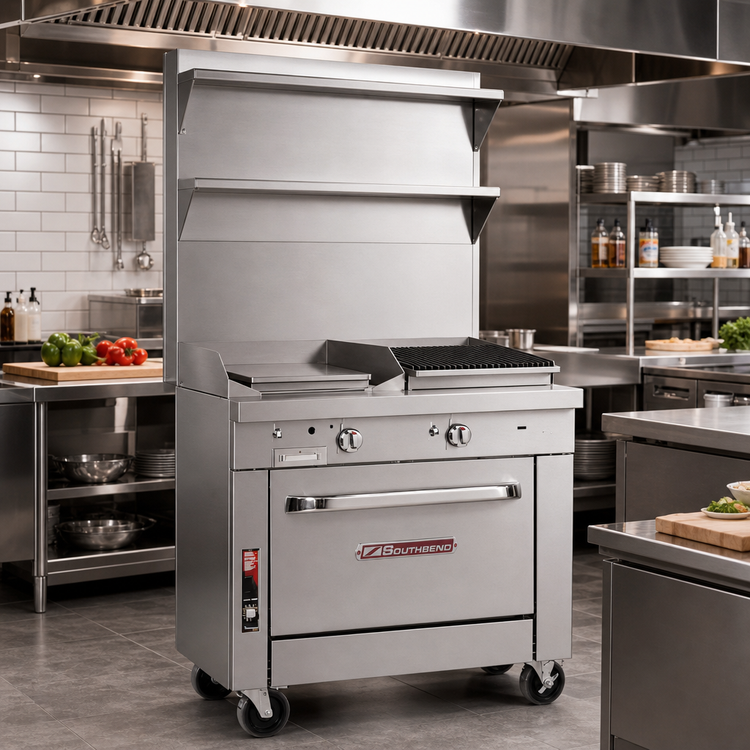

Southbend Platinum 36" Heavy-Duty Gas Range 24" Manual Griddle • 12" Charbroiler • Standard Oven Base
Built for the toughest commercial kitchens, the Southbend Platinum Series combination range delivers powerhouse performance, work-saving versatility, and the long-term durability that has made Southbend a chef-trusted name since 1898.
Why You’ll Love It
- 96,000 BTU total output—plenty of firepower for high-volume operations.

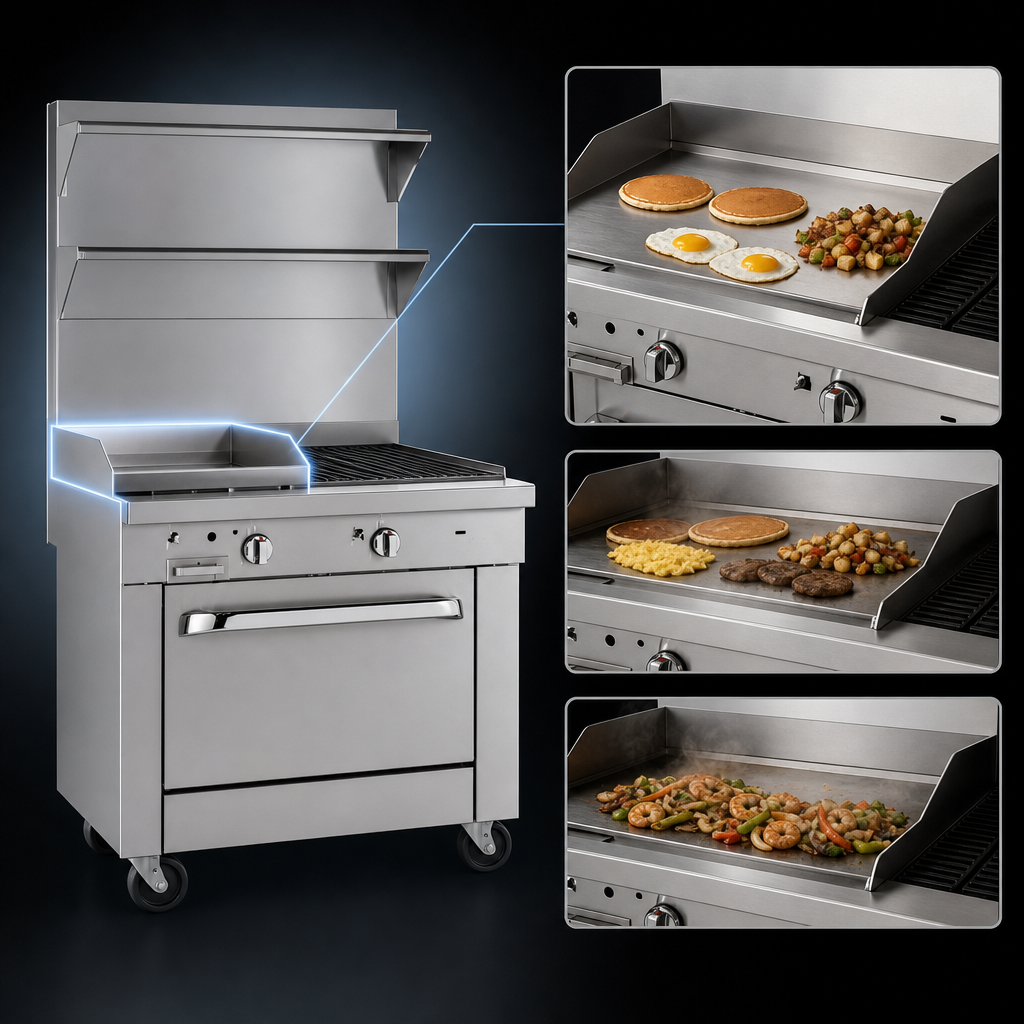

- 1" thick, 24" manual griddle with side & rear splash guards, 64,000 BTU and a removable stainless grease drawer.

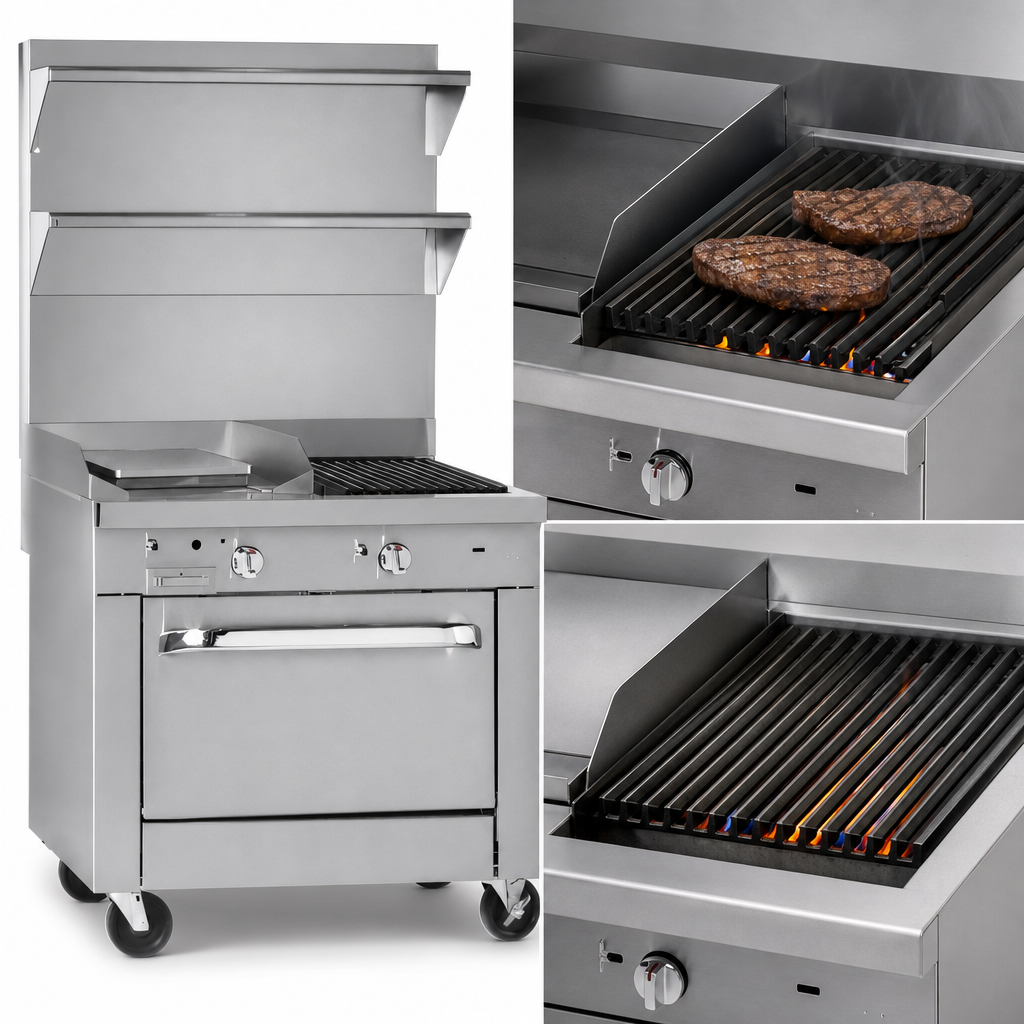

- 12" charbroiler featuring two 16,000 BTU burners, stainless radiants, and reversible cast-iron grates that flip for ⅛" or ¼" grid widths and adjust for sloped or level broiling.
- Battery spark ignition—no standing pilots wasting energy or requiring match-lighting.
- Standard oven (45,000 BTU) with 175–550 °F thermostat, porcelain interior, and two heavy-duty racks with five positions.
- All-stainless exterior—front, sides, rear & bottom—plus a 5" flue riser and 9 ¼" deep front rail for easy plate-up.
- 6" adjustable stainless legs provide a solid stance and easy floor clearance for cleaning.
- cCSAus, CSA Flame & Star, NSF listed for gas safety and sanitation compliance.
- Made with pride in the USA and backed by a 1-year parts & labor warranty.
At-a-Glance Specs
| Model | P36D-GGC |
|---|---|
| Cooking Surface | 24" griddle + 12" charbroiler |
| Total BTU | 96,000 BTU/hr |
| Oven BTU / Range | 45,000 BTU • 175–550 °F |
| Dimensions (W × D × H) | 36" × 40" × 37 ½" (to cook surface) 43 ½" overall height with 5" flue |
| Oven Interior | 14" H × 26" W × 26.5" D, porcelain enamel |
| Racks Included | 2 (five rack positions) |
| Gas Connection | 1 ¼" front manifold & 1" rear male NPT |
| Gas Type | Natural or Propane (field convertible) |
| Ignition | Battery spark (top & oven) |
| Certifications | cCSAus • CSA Flame • CSA Star • NSF |
| Origin | Made in USA |
Manual griddles do not allow precise temperature selection. For longest equipment life, keep oversized cookware to the rear burners and never block charbroiler grates with sheet pans during cleaning.
