Southbend (Middleby) P36D-CCC Platinum Gas Ranges
Description

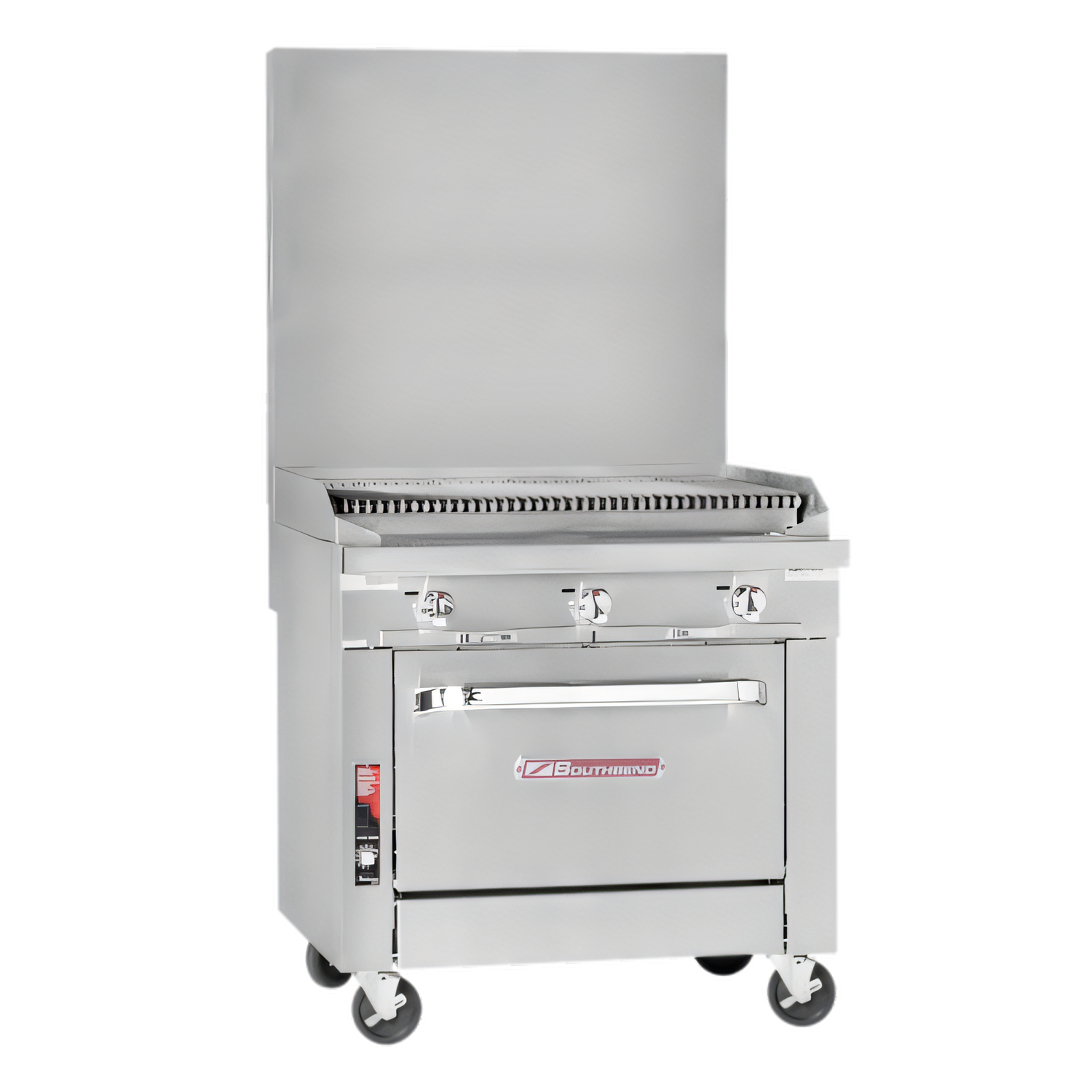

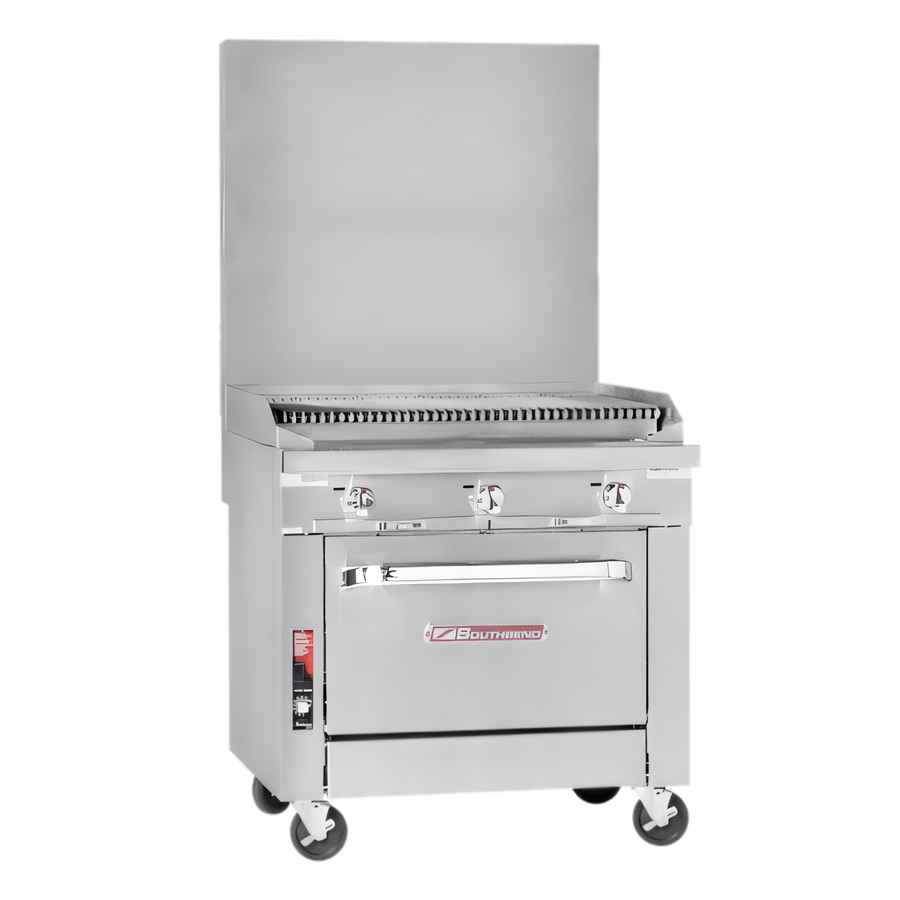

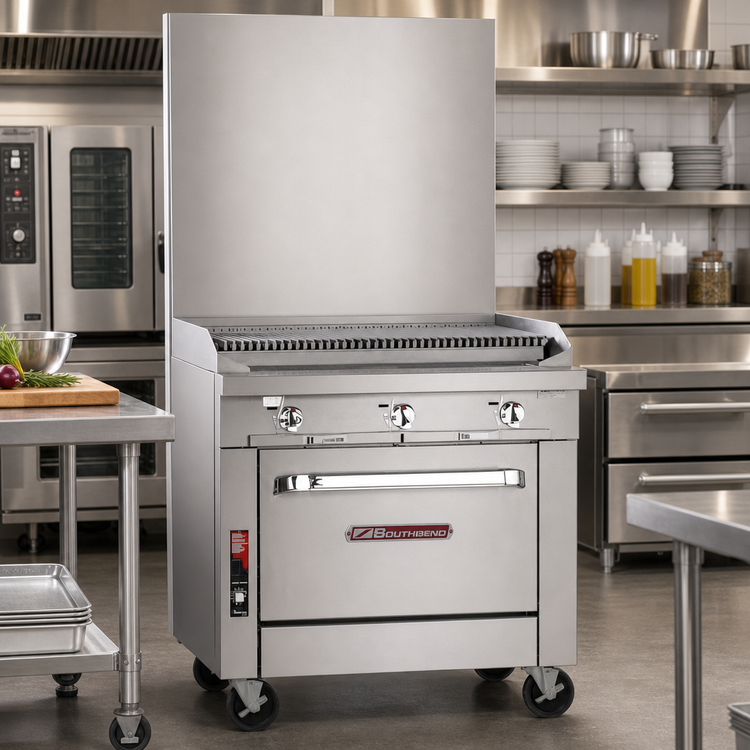

Platinum 36" Heavy-Duty Gas Charbroiler Range w/ Standard Oven
Southbend | Model P36D-CCCBuilt for the toughest kitchens, the Southbend Platinum P36D-CCC combines a full-width charbroiler with a high-performance standard oven, packing a total of 141,000 BTU of raw cooking power into a single 36-inch footprint. From perfectly-seared steaks up top to sheet-pan roasting below, this all-stainless workhorse delivers the durability, control, and throughput demanded by busy restaurants, hotels, and institutional operations.
Why You’ll Love It

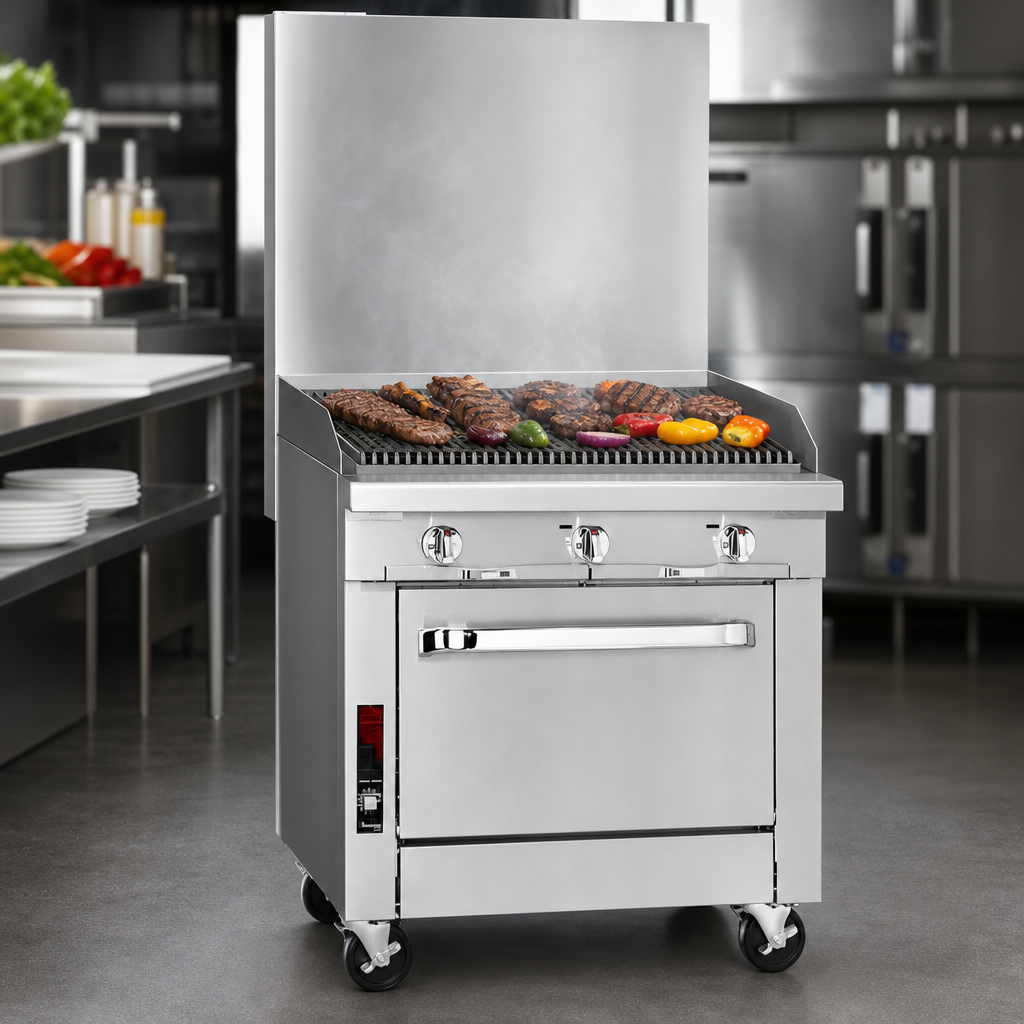

- Six 16,000 BTU burners under cast-iron grates reach an even 600 °F surface temp for rapid, uniform searing.
- Grates flip to 1⁄8″ or 1⁄4″ grid widths and adjust front-to-back for ideal fat run-off.
- Manual high/low controls (3 knobs) let you zone the broiler for multiple menu items at once.
- Stainless steel radiants boost heat transfer while standing up to corrosive drippings.

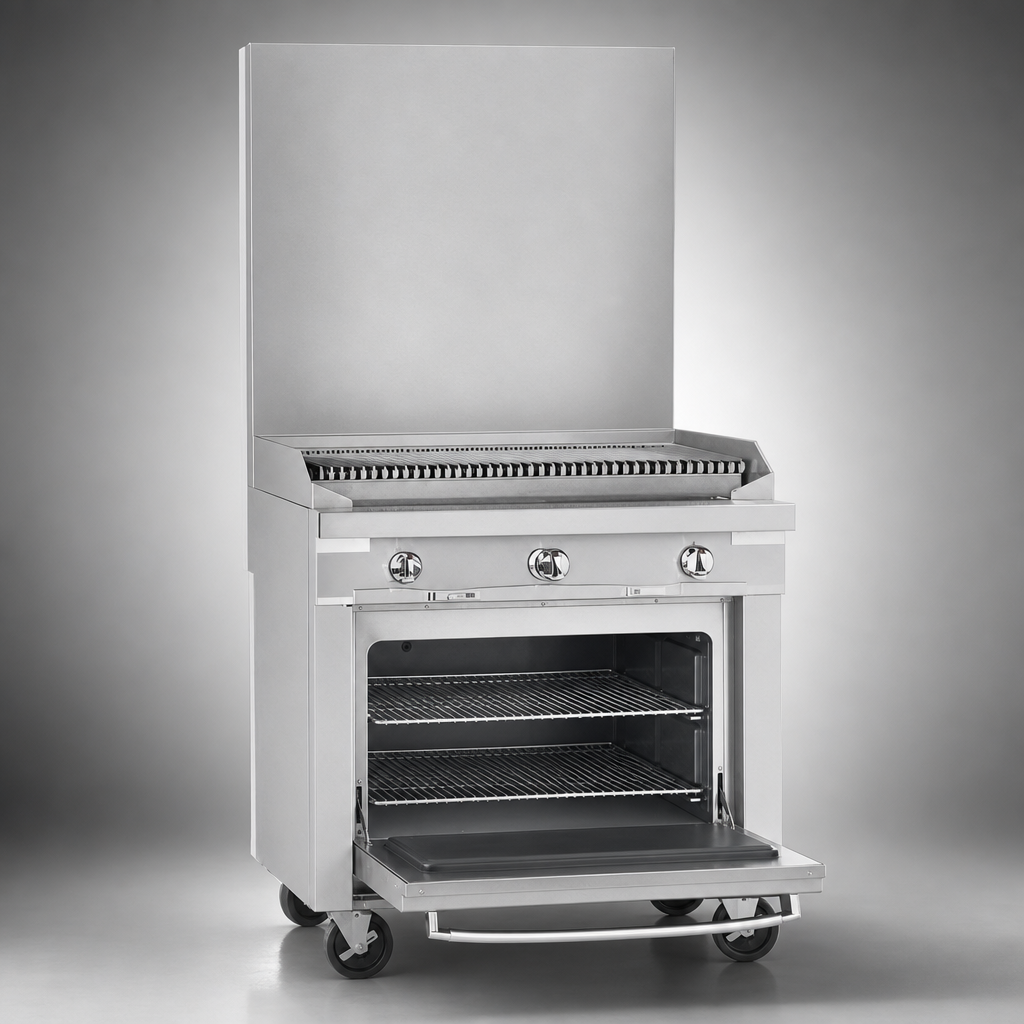

- 45,000 BTU standard oven with “Insta-On” thermostat (175-550 °F) fits 18″ × 26″ sheet pans either way; 2 racks included, 5 positions.
- All-stainless exterior, fully-insulated burner box, and 6″ adjustable legs survive years of heavy commercial use.
- 9-¼″ deep front rail and removable drip tray simplify plating and cleanup.
- CSA & NSF certified; ships ready for Natural or LP gas (field convertible with proper kit).
Technical Specifications
| Cooking Surface | 36″ W full-width charbroiler, cast-iron flip grates |
|---|---|
| Total BTU | 141,000 BTU (96,000 BTU charbroiler + 45,000 BTU oven) |
| Burner Controls | (3) manual high/low knobs (each controls two burners) |
| Oven Interior | 14″ H × 26″ W × 26½″ D, porcelain enamel |
| Temperature Range | 175 °F – 550 °F (broiler surface up to 600 °F) |
| Gas Connections | 1-¼″ front manifold, 1″ rear NPT; min. 7″ WC (Nat) / 11″ WC (LP) |
| Overall Dimensions* | 36″ W × 41″ D × 37-½″ H (to cook surface) + 5″ flue riser |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
*Approximate; see spec sheet for fully crated dimensions and utility locations.
Popular Accessories (Sold Separately)
- Swivel casters (front two locking)
- 24″ or 36″ flue riser
- External gas pressure regulator
- Fish-grill plating grids
- Electronic oven ignition (no-charge option)
- Limit cookware larger than 12″ Ø to the rear grates to avoid overheating the front rail.
- Do not place sheet pans directly on the charbroiler grates during cleaning; excessive reflected heat will damage components and void warranty.
