Southbend (Middleby) P36D-BTT Platinum Gas Ranges
$14,584.00
Unit price
/
Unavailable
Description
Southbend Platinum Series 36" Heavy-Duty Gas Range
2 Open Burners • 24" Thermostatic Griddle • Standard Oven BaseUnmatched power, precision, and durability—purpose-built for high-volume commercial kitchens and proudly made in the USA.
Key Advantages
- Total output: 179,000 BTU/hr

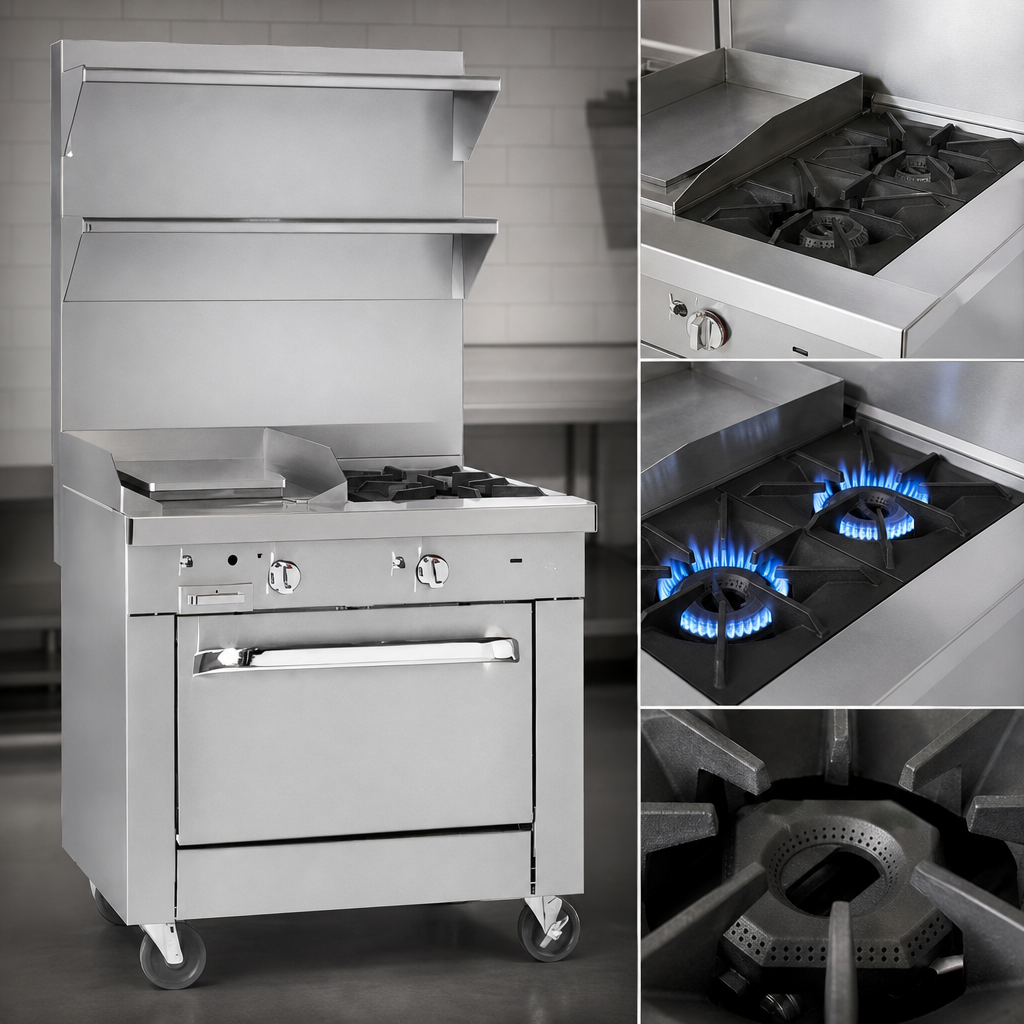

- (2) patented 35,000 BTU clog-free open burners

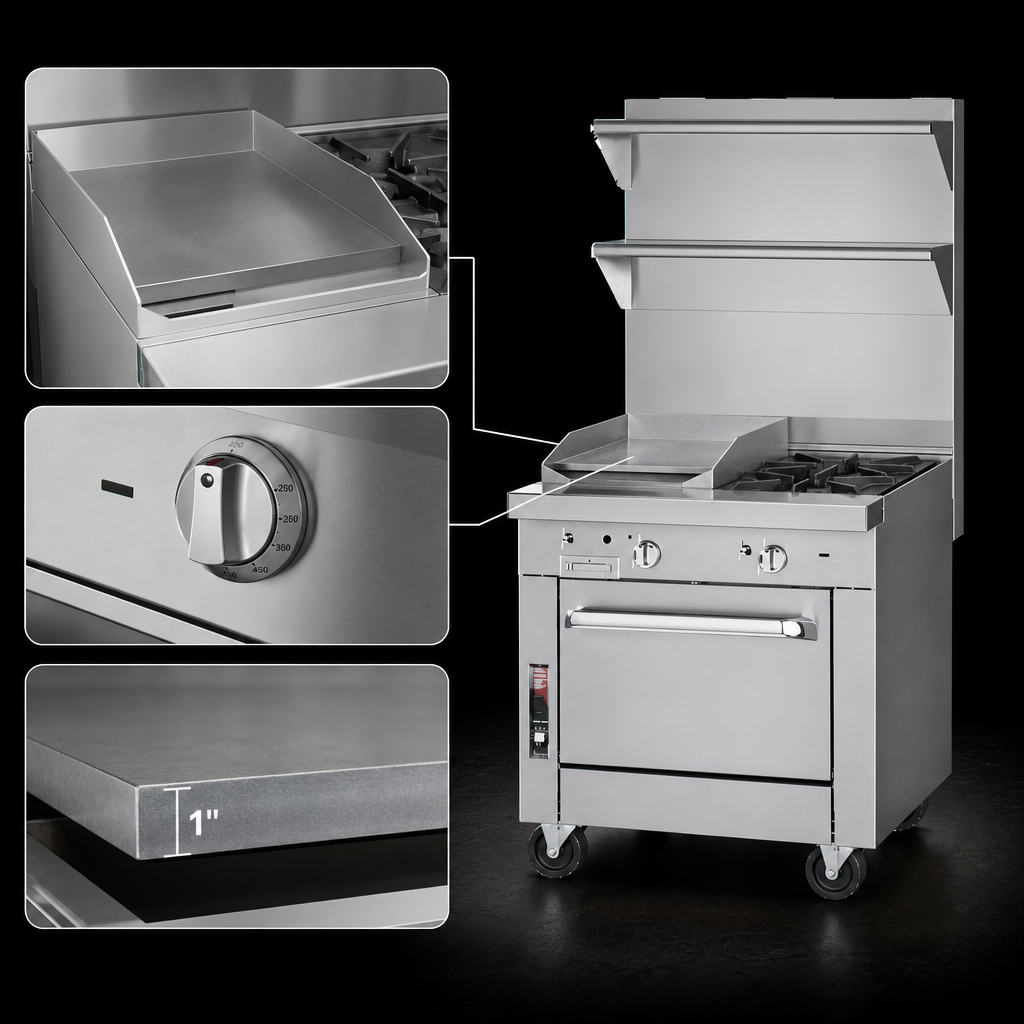

- 24" wide, 1" thick steel griddle with Insta-On thermostat (180 °F–400 °F)
- 45,000 BTU standard oven ships with (2) heavy-duty racks
- Battery spark ignition for fast, match-free lighting
- All-stainless exterior & 6" adjustable legs for easy leveling and cleaning
- cCSAus, CSA Flame, CSA Star & NSF certified
Performance You Can Count On
- Instant, responsive heat from the open burners—perfect for sautéing, boiling, and rapid stock production.
- 1" thick griddle plate delivers even heat for pancakes, burgers, or seared proteins without hot-spots.
- Thermostatic controls maintain set-point within ±10 °F for consistent results every time.
- Porcelain-enamel oven interior accepts full-size sheet pans front-to-back and offers five rack positions.
Engineered for Longevity
- Fully insulated burner box and oven cavity boost efficiency while keeping your kitchen cooler.
- 1-1/4" front gas manifold aligns with other Platinum sectional units for seamless battery installations.
- 5" stainless flue riser safely vents combustion gases away from the user.
- Heavy-gauge stainless steel resists corrosion, dents, and daily wear in the toughest environments.
Certifications & Warranty
- Safety: cCSAus, CSA Flame & CSA Star
- Sanitation: NSF listed
- Backed by Southbend’s 1-year parts & labor warranty
Technical Specifications
| Footprint (W × D × H) | 36" × 40" × 45" (to cook surface) + 5" flue riser |
|---|---|
| Cooktop Configuration | (2) 35,000 BTU open burners / 24" thermostatic griddle |
| Total BTU | 179,000 BTU/hr (Natural Gas) |
| Griddle Section | 1" thick plate, 64,000 BTU, 180 °F–400 °F temperature range |
| Oven | Standard, 45,000 BTU; 14"H × 26"W × 26.5"D cavity; 2 racks, 5 positions |
| Gas Connection | 1-1/4" front manifold (for battery) / 1" rear NPT; 7" W.C. NAT / 11" W.C. LP |
| Construction | Stainless steel front, sides, rear & exterior bottom; 6" stainless legs |
| Ignition | Battery spark (top) / standing pilot (oven) |
| Origin | Fuquay-Varina, North Carolina USA |
Looking for a different top, oven, or gas type? Ask our team about custom Platinum configurations and complimentary battery-design assistance.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Platinum
Certifications
NSF, cCSAus, CSA Star, CSA Flame, Made in USA
Height
41.0in
Width
36.0in
Depth
37.5in
Shipping Weight
660.0lbs
Exterior Finish
stainless steel front & sides
Plate Thickness
1.000" = 1"
Base
(1) standard oven
Top
(2) open burners, (1) 24" griddle with thermostats
Specifications
Platinum Heavy Duty Range, gas, 36", (2) 35,000 BTU open burners, (1) 24" griddle, thermostatic controls, battery spark ignition, (1) standard oven, includes (2) racks, stainless steel front, sides, rear, exterior bottom & 6" adjustable legs, 179,000 BTU, cCSAus, CSA Flame, CSA Star, NSF, Made in USA
