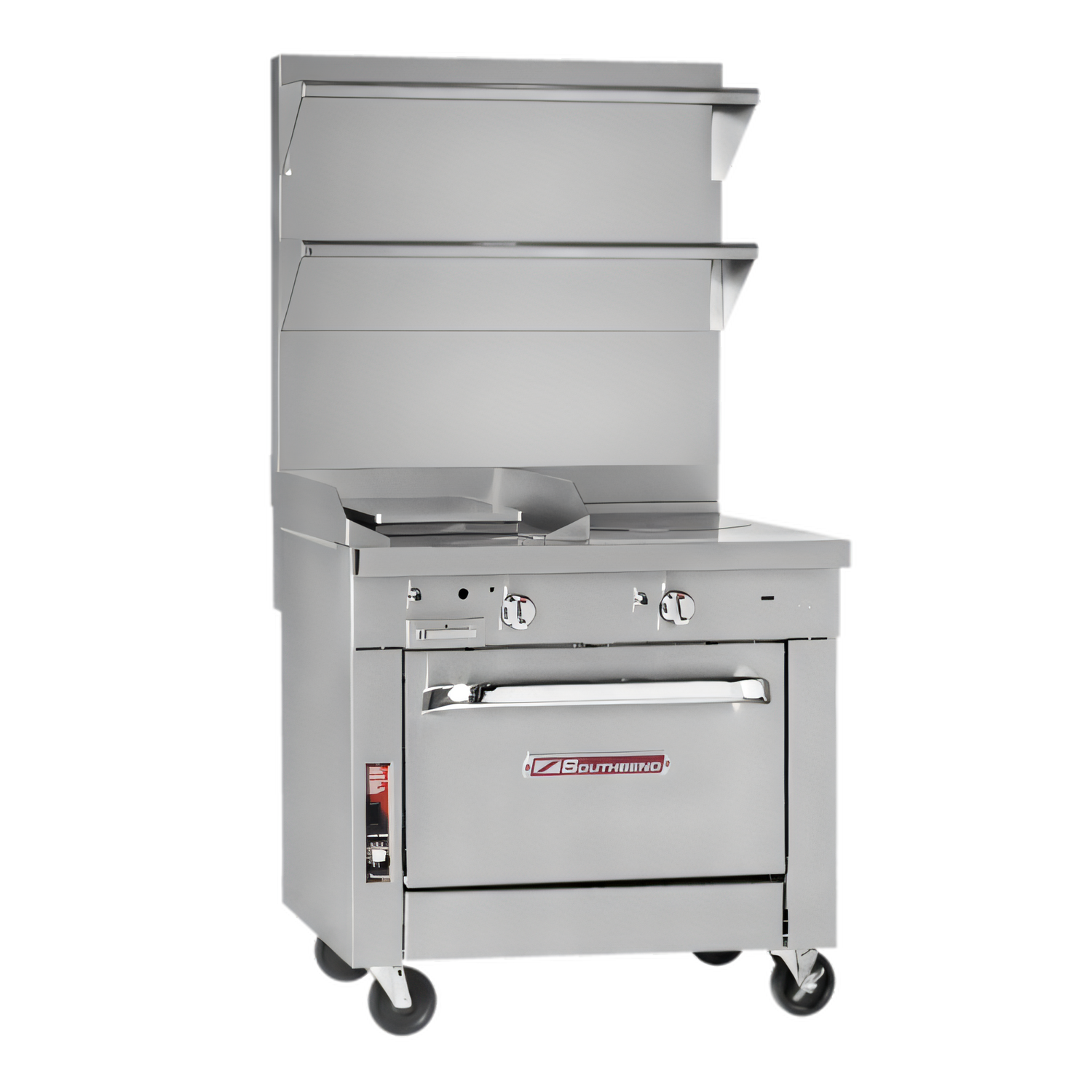

Southbend (Middleby) P36D-BHH Platinum Gas Ranges

Platinum 36" Heavy-Duty Gas Range – 2 Open Burners, 2 Hot Tops & Standard Oven

Built for high-volume, all-day production, the American-made Platinum Series delivers the raw power, rugged construction and configuration flexibility demanded by today’s busiest commercial kitchens.

Top Cooking Performance

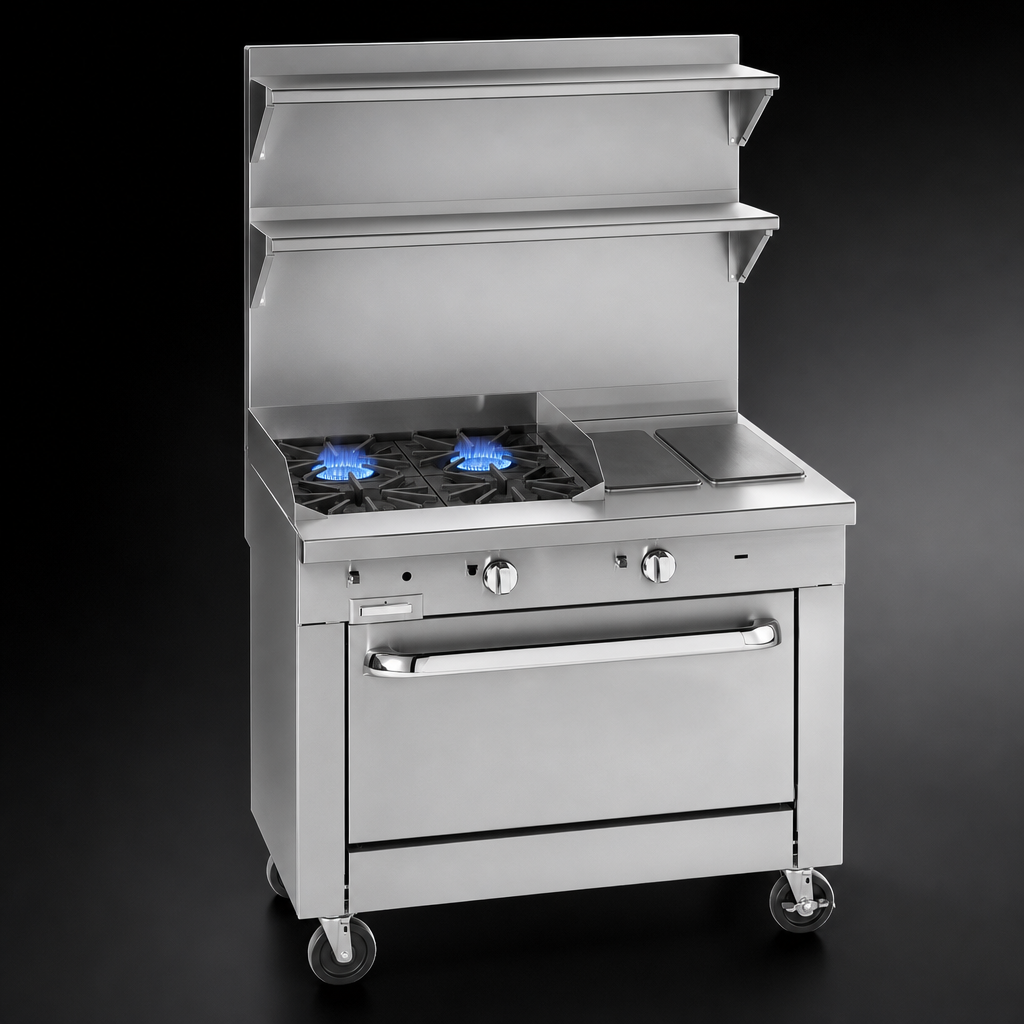

• (2) Patented clog-free 35,000 BTU open burners with removable steel grates.

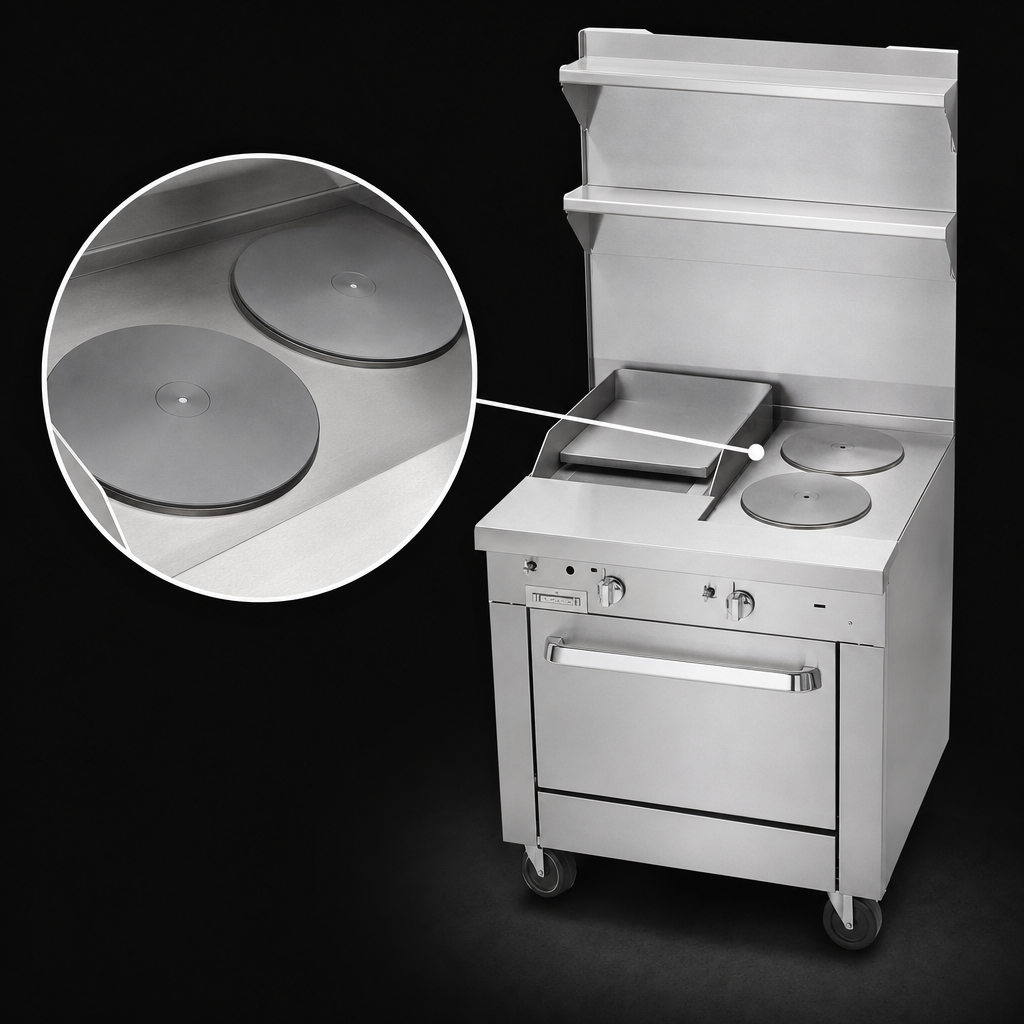

• (2) 12" modular hot tops powered by dual 16,000 BTU burners; reaches 700 °F surface temps for stockpots & holding pans.
• Manual controls with reliable battery spark ignition—no matches required.
• 9-1/4" deep front rail keeps plating space and utensils close at hand.

Full-Size Standard Oven

• 45,000 BTU cast-iron burner with 175 – 550 °F thermostat.
• Porcelain-enameled cavity: 14" H × 26" W × 26.5" D.
• Ships with (2) chrome racks on 5-position side rails.

Durability & Cleanability

• Stainless steel front, sides, rear & exterior bottom resist corrosion and wipe clean fast.
• Fully insulated burner box lowers surface temperatures on the cook line.
• 5" stainless flue riser safely directs exhaust into the ventilation hood.
• 6" adjustable stainless steel legs for easy leveling and floor sanitation.

Why Operators Choose Platinum

• Battery-ready 1-1/4" front gas manifold couples seamlessly to other Platinum sectional units.
• Total output of 179,000 BTU/hr keeps production moving during peak rush.
• cCSAus, CSA Flame, CSA Star & NSF listings for gas safety and sanitation compliance.
• Backed by a 1-year parts & labor warranty and nationwide service network.
• Proudly manufactured in Fuquay-Varina, North Carolina, USA.

Technical Specifications

Looking to build a matched battery or add refrigerated bases, casters or custom front rails? Our team can configure any Platinum-Series layout to fit your line—just ask!
