Southbend (Middleby) P36D-BGG Platinum Gas Ranges
Description
Platinum Heavy Duty 36" Gas Range w/ (2) Open Burners, 24" Griddle & Standard Oven
Southbend Model P36D-BGG • 179,000 BTUBuilt in North Carolina for the most demanding kitchens, the Platinum Series 36" sectional range fuses brute heating power with rock-solid construction. Two clog-free burners, a full-size 24 inch manual griddle, and a high-capacity oven give you the versatility to sear, sauté, grill, and bake from one compact footprint.
Key Features

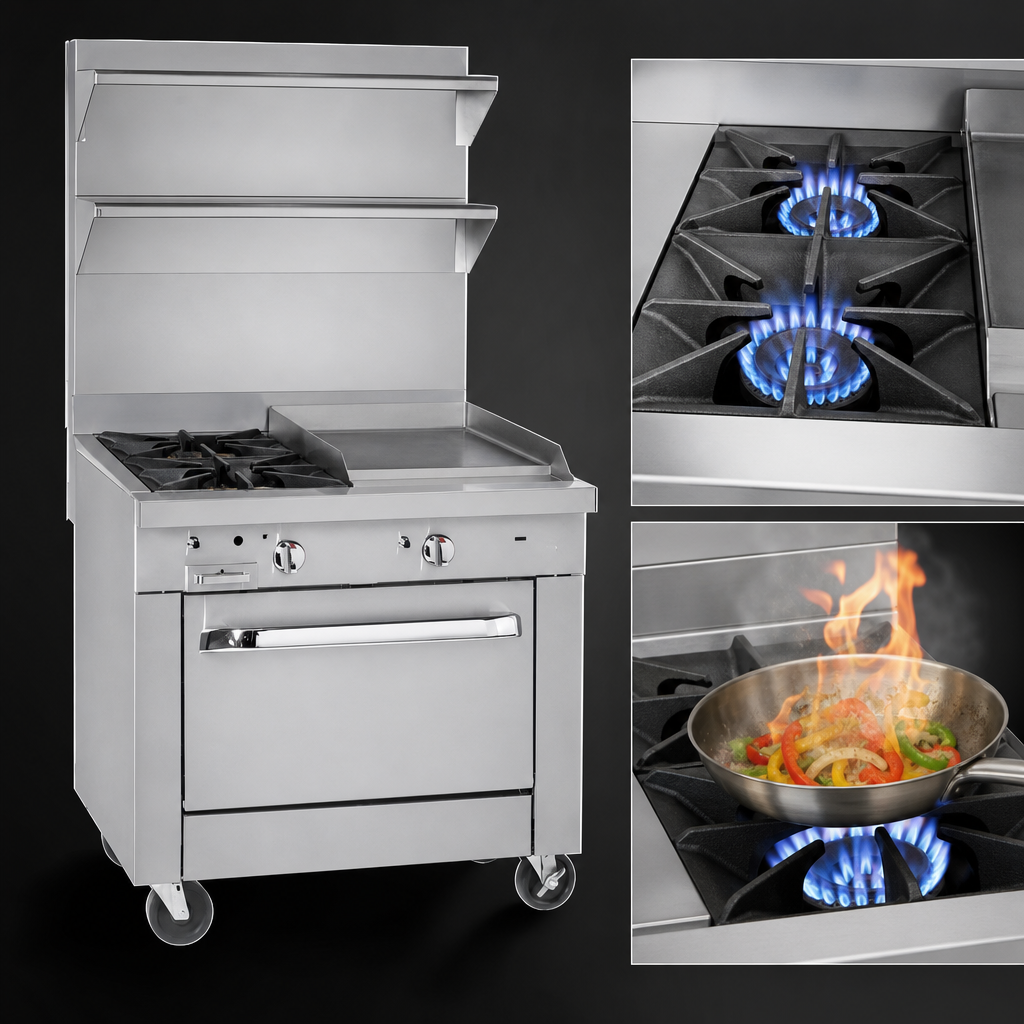

- (2) 35,000 BTU open burners with patented clog-free design and removable cast-iron grates

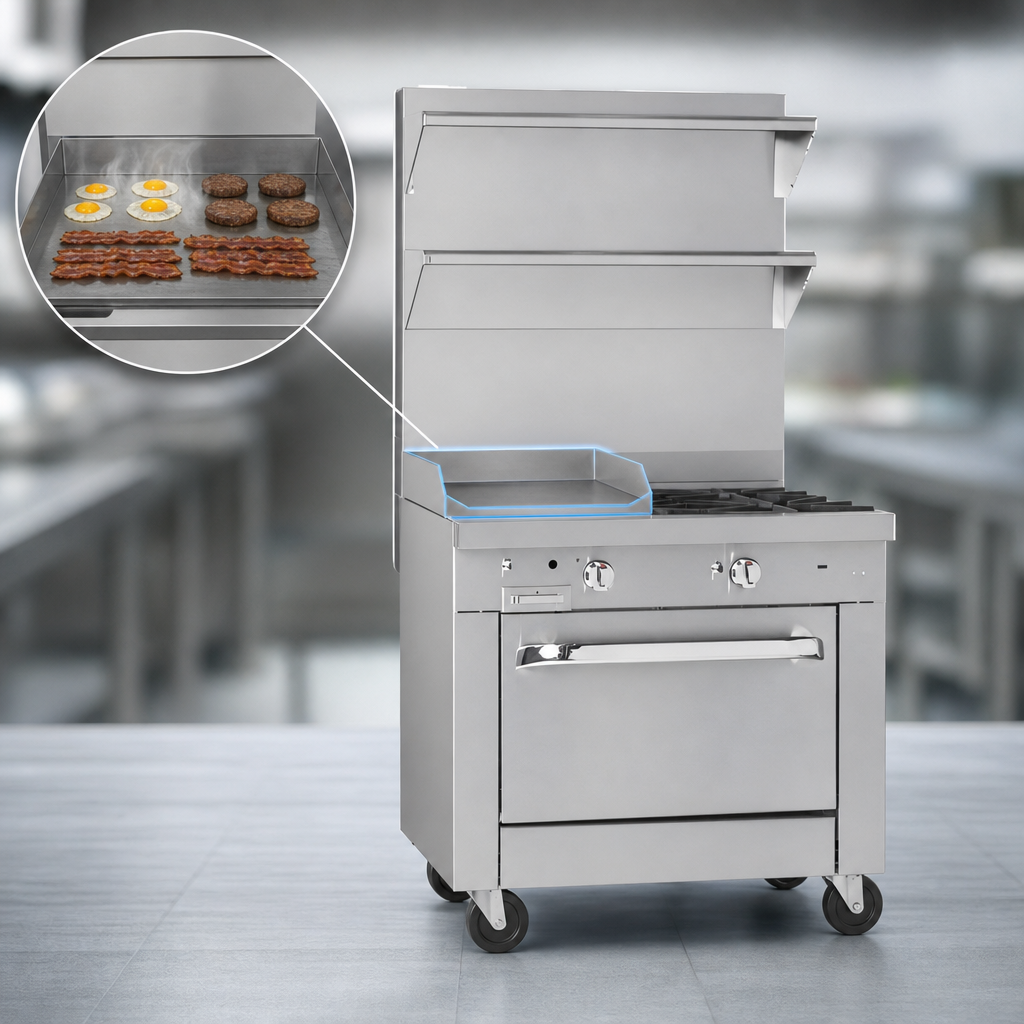

- 1" thick, 24" wide steel griddle plate heated by (2) 16,000 BTU burners (manual control)
- 45,000 BTU standard oven, 175–550 °F thermostat, porcelain enamel interior, (2) racks / 5 positions
- Battery spark ignition on cooktop for quick, pilot-free starts
- Stainless steel front, sides, rear & exterior bottom plus 6" adjustable legs
- 9 ¼" deep front rail and 5" stainless flue riser for operator comfort and proper venting
- 1 ¼" front gas manifold couples with adjacent Platinum units; 1" rear male NPT connection
- Certifications: cCSAus, CSA Flame, CSA Star, NSF
- Made in the USA — backed by a 1-year parts & labor warranty
At-a-Glance Specs
| Cooktop | (2) open burners + 24" manual griddle |
|---|---|
| Total Input | 179,000 BTU/hr (Natural or LP) |
| Open Burner Output | 35,000 BTU each |
| Griddle Output | (2) × 16,000 BTU |
| Oven Output | 45,000 BTU |
| Oven Interior (H × W × D) | 14" × 26" × 26.5" |
| Oven Temp Range | 175 – 550 °F |
| Overall Size (W × D × H*) | 36" × 40" × 43 ½" *to top of flue riser |
| Gas Connection | 1 ¼" front manifold, 1" rear male NPT; min. 7" W.C. NAT / 11" W.C. LP |
| Warranty | 1 year parts & labor, commercial use |
Included with Your Range
- (2) heavy-duty oven racks
- Battery spark ignitor (no external power required)
- 6" stainless steel adjustable legs
- Owner’s manual & warranty documentation
Designing a full battery line-up? Southbend’s complimentary layout assistance can configure matching refrigeration bases, salamanders, and more to pair with your Platinum range. Contact us for details.
