Southbend (Middleby) P36D-BCC Platinum Gas Ranges
Description
Southbend Platinum Heavy-Duty 36" Gas Range – 2 Open Burners, 24" Charbroiler & Standard Oven
Model P36D-BCC | 179,000 BTU | Made in USABuilt for the punishing pace of high-volume kitchens, the Platinum Series delivers uncompromising power, capacity, and longevity. Two patented 35,000 BTU open burners, a full 24" charbroiler, and a 45,000 BTU standard oven give your brigade every cooking method it needs in a single 36" footprint.
Key Performance Features
- 2 × 35,000 BTU clog-free open burners with removable welded steel grates for rapid sauté, sear, or stock work.

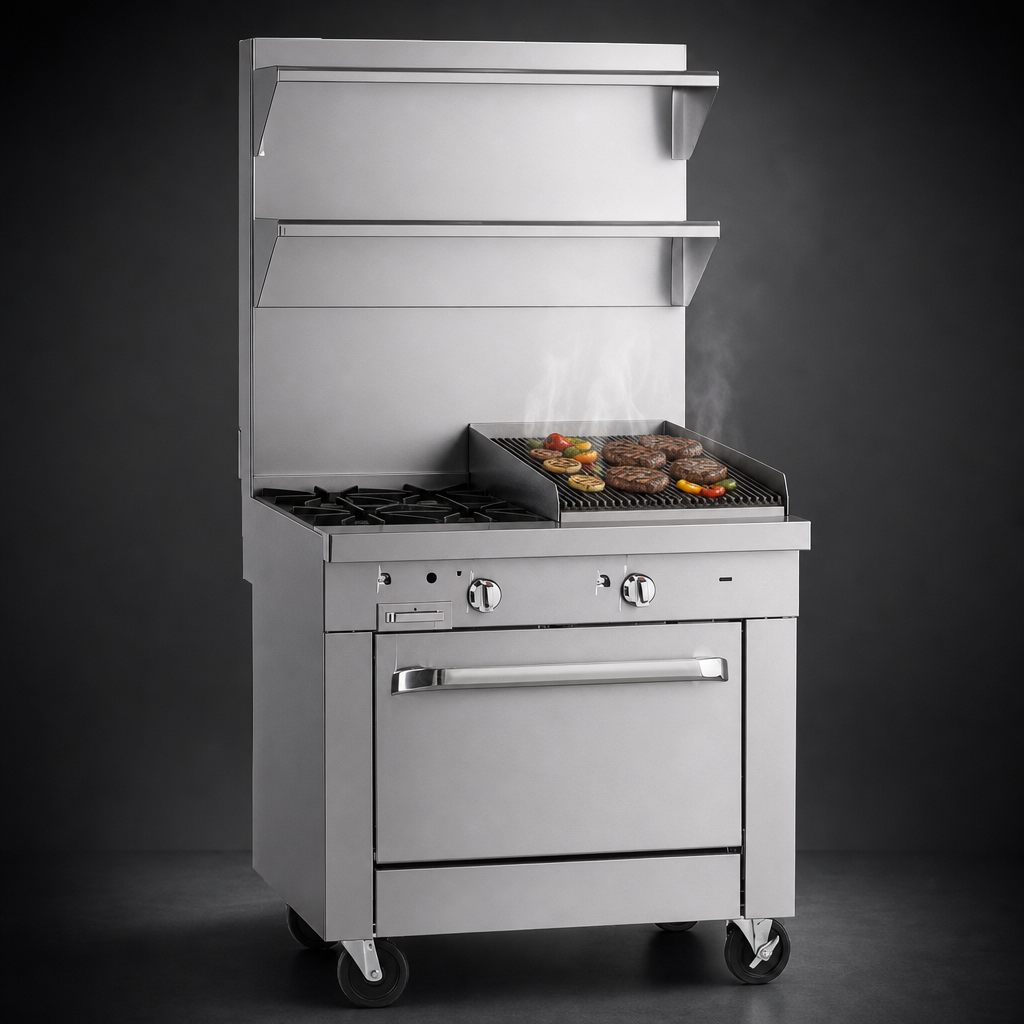

- 24" manual-control charbroiler (64,000 BTU) with stainless radiants and reversible cast-iron grates (1/8" or 1/4" grid) that slope front-to-back for perfect branding & fat runoff.
- 45,000 BTU standard oven (175 °F–550 °F) with porcelain-enameled interior, two racks & five rack positions.
- 9-1/4" deep front rail keeps plating space cool and comfortable.
- Fully insulated burner box and oven walls maximize efficiency and keep exterior surfaces safer to touch.
- Battery-ready 1-1/4" front gas manifold plus 1" rear connection for easy line-up installation.
Heavy-Duty Construction
- All stainless-steel front, sides, rear, and exterior bottom.
- 5" stainless flue riser channels exhaust into your hood system.
- 6" stainless adjustable legs level the unit on uneven floors.
- Removable drip trays under both the open burners and the charbroiler speed daily cleanup.
Certifications & Warranty
- cCSAus, CSA Flame & CSA Star certified
- NSF listed for food-service sanitation
- One-year parts & labor warranty backed by Southbend’s nationwide service network
Specifications
| Overall width | 36" (914 mm) |
|---|---|
| Overall depth | 38 5⁄8" (981 mm) |
| Cooktop height | 37 1⁄2" (953 mm) to burner grates |
| Oven interior (H × W × D) | 14" × 26" × 26.5" (356 × 660 × 673 mm) |
| Open burners | 2 × 35,000 BTU (70,000 BTU total) |
| Charbroiler | 4 × 16,000 BTU (64,000 BTU total) |
| Standard oven | 45,000 BTU |
| Total input | 179,000 BTU/hr (Natural or LP) |
| Gas connection | 1-1/4" front manifold & 1" rear NPT |
| Ship weight | Approx. 570 lb (259 kg) |
What’s in the Box
- Range with factory-installed 5" flue riser
- (2) removable oven racks
- Stainless steel 6" adjustable legs (set of 4)
- Factory-mounted pressure test nipples & burner orifices for ordered gas type
- Owner’s manual & warranty registration
• Oversized cookware (≥ 12") should rest toward the rear burners to avoid excess heat on the rail.
• Never place sheet pans over the charbroiler grates while burners are on; doing so can cause irreparable damage and void warranty.
Need a different top configuration, convection oven base, or caster kit? Contact our equipment specialists – the Platinum Series is factory-built to order.
