Southbend (Middleby) P36D-BBH Platinum Gas Ranges

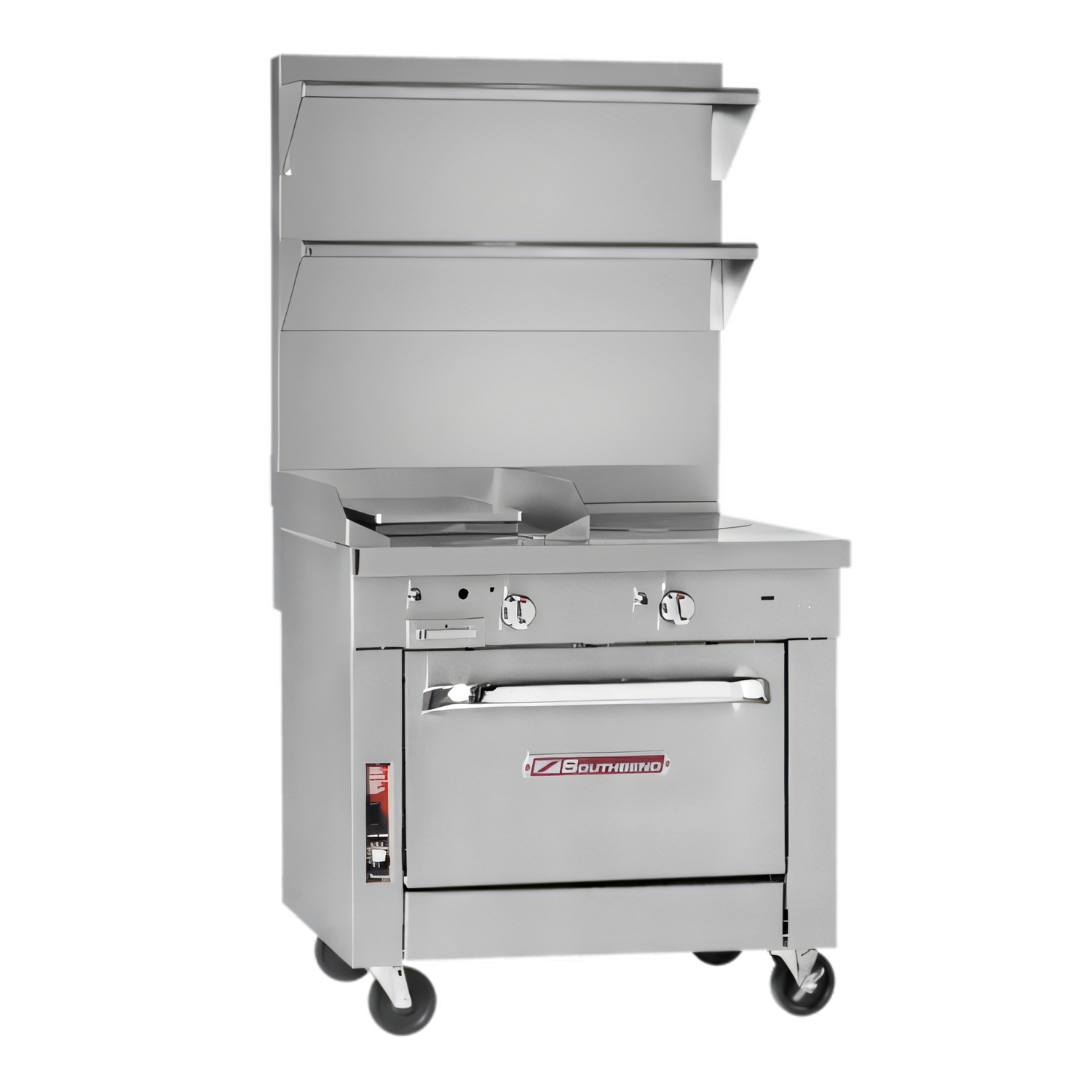

Southbend Platinum 36" Heavy Duty Gas Range – 4 Open Burners, 12" Hot Top & Standard Oven

Give your cooks the power and flexibility they need in a compact 36" footprint. Southbend’s Platinum Series combines four high-performance open burners, a 12" hot top and a full-size oven in one rugged, all-stainless cabinet that pumps out a massive 217,000 BTU/hr—no electrical hookup required.

Highlights

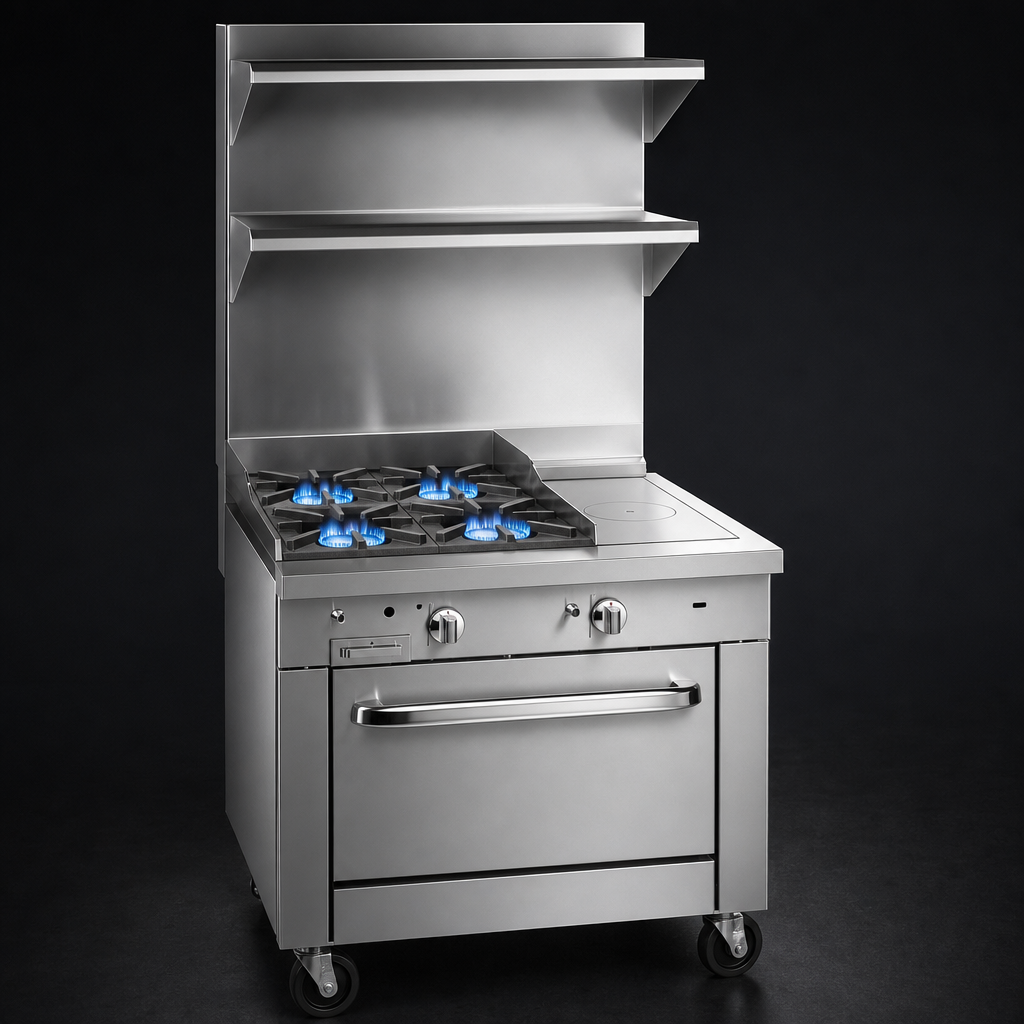

• 4 × 35,000 BTU clog-free cast-iron open burners with removable welded grates.

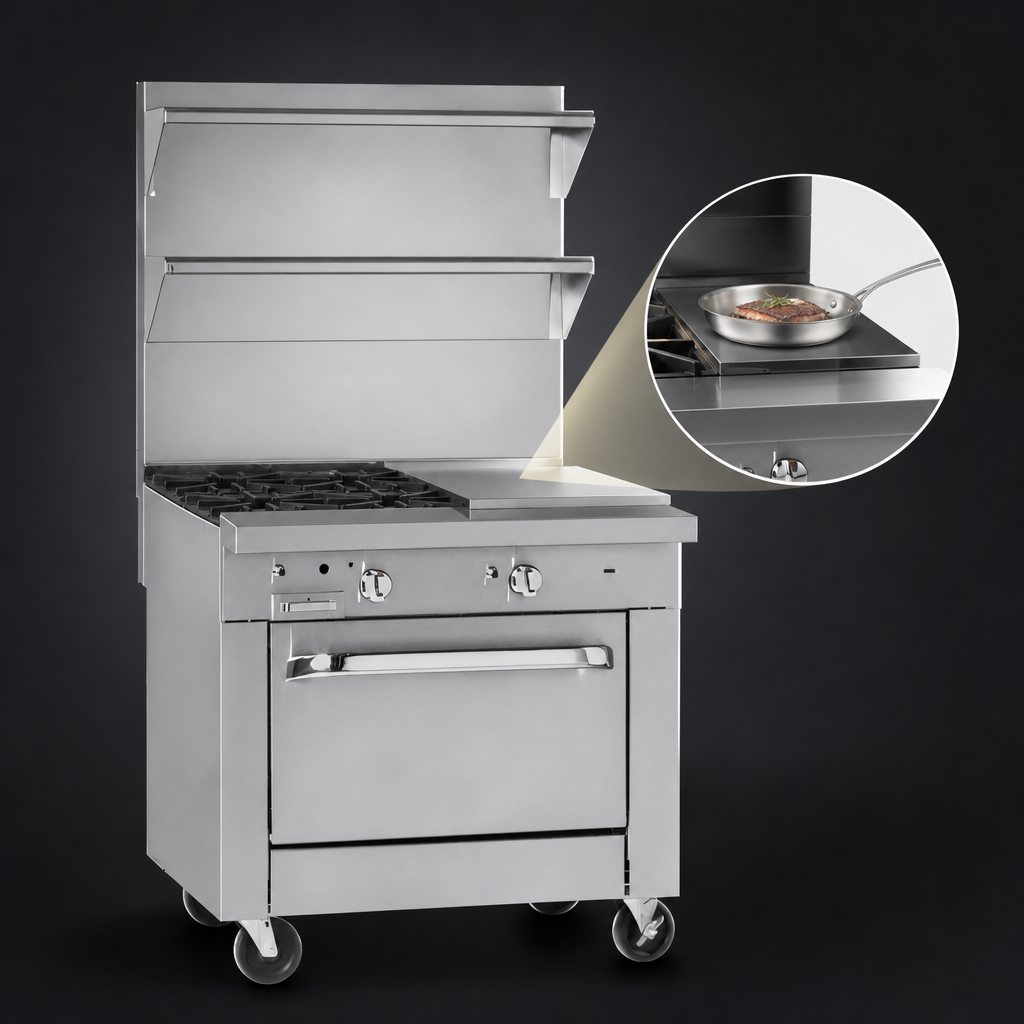

• 12" hot top powered by 2 × 16,000 BTU burners; single high/low manual control delivers up to 700 °F cooking surface.
• 45,000 BTU standard oven (14″H × 26″W × 26.5″D) with 175–550 °F thermostat, porcelain interior and two adjustable racks.
• Battery spark ignition – keep cooking during power outages, no wiring needed.
• 9-1/4″ deep front rail keeps cookware inside the cooktop area and stays cool to the touch.
• All-stainless front, sides, rear & bottom plus a 5″ flue riser for easy cleaning and long life.
• 6″ stainless steel legs with threaded feet for quick, secure leveling.
• cCSAus, CSA Flame & Star, NSF listed — meets today’s toughest code requirements.
• Made in the USA and backed by a 1-year parts & labor warranty.

Built-for-Business Performance

• Open burners feature patented clog-free ports that resist grease buildup and provide a steady, easily controlled flame.
• Hot top section offers even heat distribution across removable steel plates — perfect for stock pots, finishing sauces or holding sauté pans at the ready.
• Fully insulated burner box and oven cavity retain heat, cut energy loss and keep the kitchen cooler.

Technical Specifications

Popular Factory Options (sold separately)

• Gas pressure regulator
• 4-wheel all-caster base (front brakes)
• 24" or 36" flue risers with single or double shelving
• Extra oven racks or stainless steel oven interior upgrade
• Electronic oven ignition (no-charge option)

Warranty & Compliance

Includes Southbend’s 1-year parts and labor warranty. For full terms and a list of authorized service agencies, visit southbendnc.com/service.
