Southbend (Middleby) P36D-BBG Platinum Gas Ranges
Description

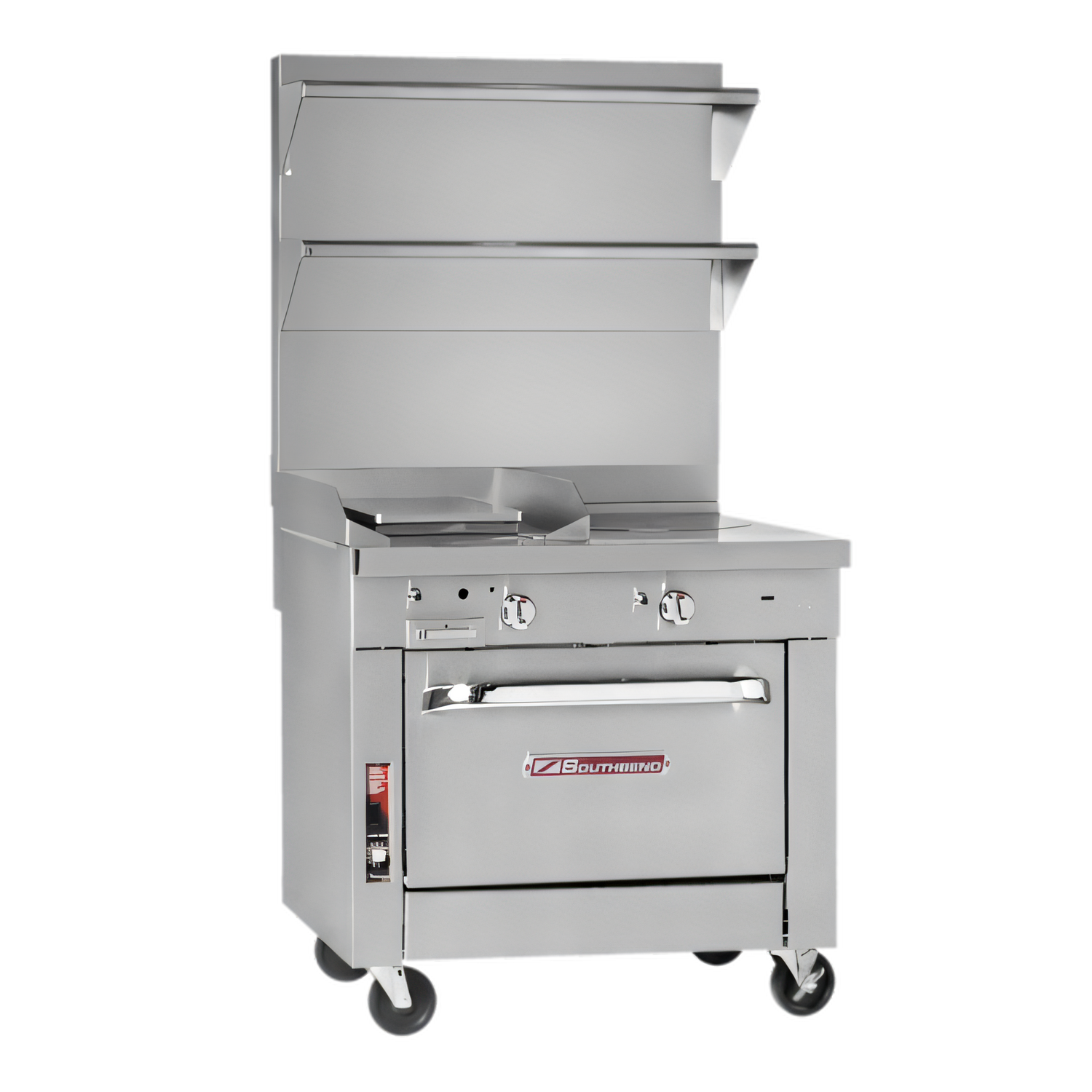

Southbend Platinum 36″ Heavy-Duty Gas Range
4 × 35,000 BTU Open Burners • 12″ Manual Griddle • Standard Oven BaseBuilt for the most demanding commercial kitchens, the Platinum Series P36-BBG brings 217,000 BTU of versatile cooking power to a compact 36-inch footprint. From rapid boils and high-heat searing to low-and-slow griddle work and consistent baking, this all-in-one workhorse maximizes productivity while minimizing valuable line space.
Why you’ll love it

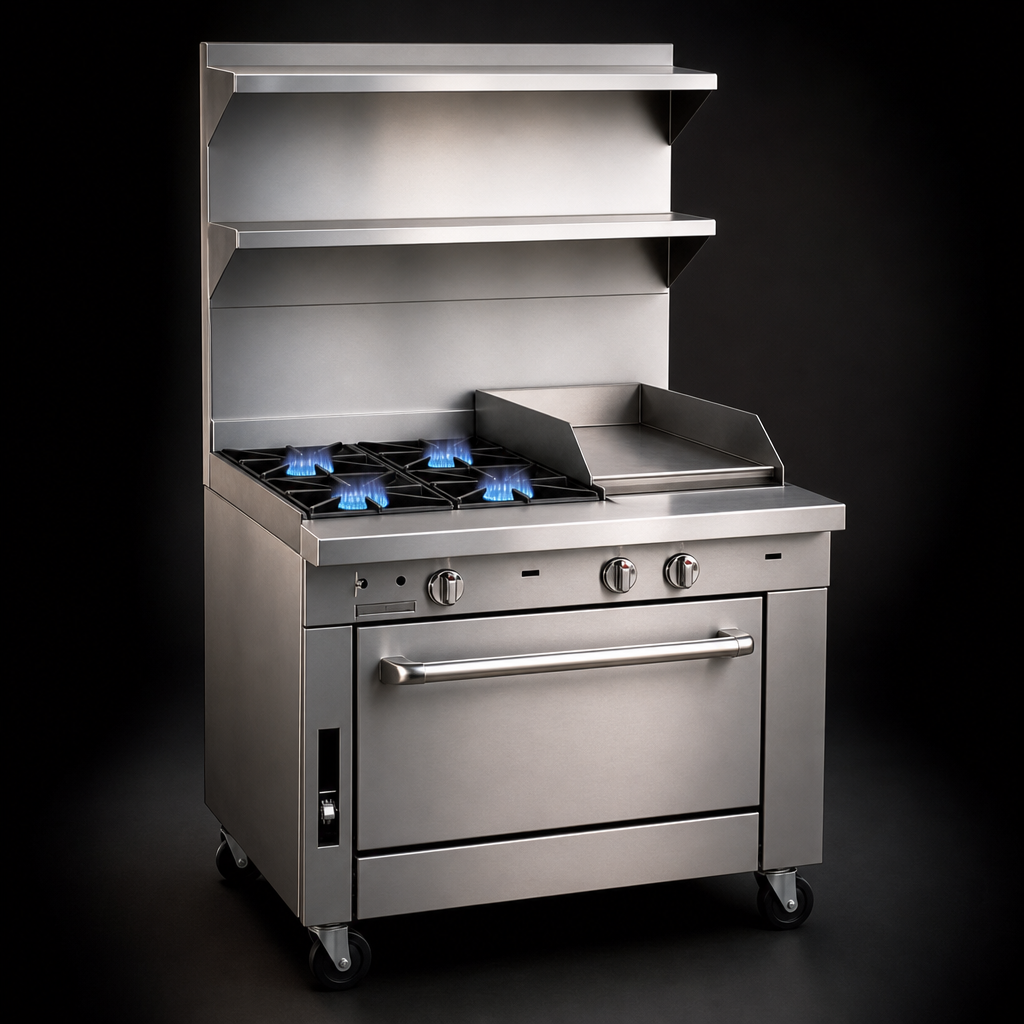

- Serious fire-power: Four patented clog-free open burners deliver 35,000 BTU each for lightning-fast response.

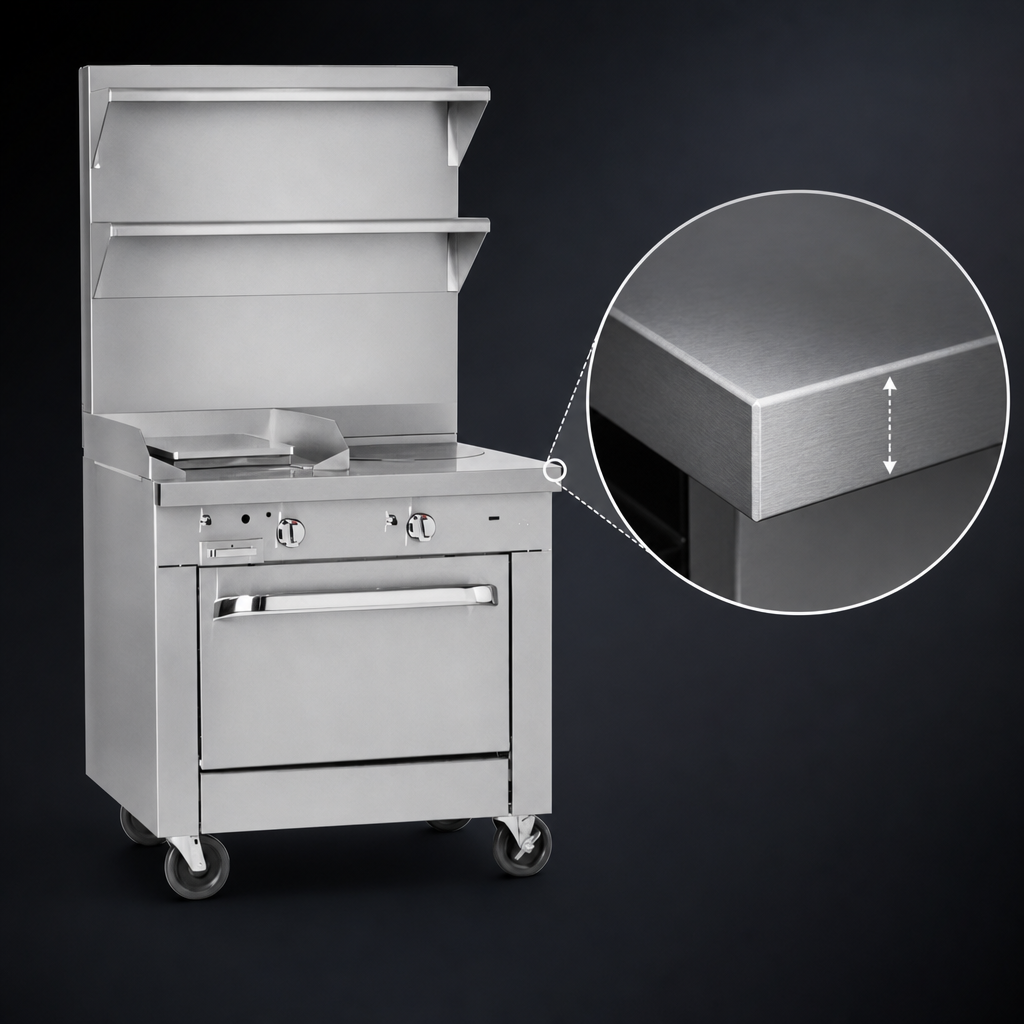

- Integrated 12″ griddle: 1″ thick steel plate with manual controls & battery spark ignition—perfect for breakfast items, tortillas, smash burgers and more.
- High-capacity standard oven: 45,000 BTU burner, 175 °F–550 °F thermostat, porcelain-enamel interior and two removable racks with five positions.
- Engineered to last: Stainless steel front, sides, rear and bottom, fully insulated burner box and 6″ adjustable stainless steel legs.
- Battery ready: 1¼″ front gas manifold and 1″ rear connection let you couple multiple Southbend sectional units for a seamless cookline.
- Certified & warrantied: cCSAus, CSA Flame, CSA Star, NSF listed; backed by a 1-year parts & labor warranty; proudly Made in the USA.
At-a-glance specs
| Model | P36-BBG (Standard-Oven Base) |
|---|---|
| Overall width | 36″ (914 mm) |
| Overall depth | 38 ⅝″ (981 mm) |
| Overall height | 45″ (1,143 mm) with 5″ flue riser |
| Open burners | 4 × 35,000 BTU (140,000 BTU total) |
| Griddle section | 12″ manual • 32,000 BTU • 1″ steel plate |
| Oven | Standard • 45,000 BTU • 14″H × 26″W × 26.5″D cavity • 2 racks / 5 positions |
| Total input | 217,000 BTU/hr |
| Gas connection | 1¼″ front manifold & 1″ rear NPT (regulator ordered separately) |
| Controls / ignition | Manual valves • Battery spark for top sections • Standing pilot for oven |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular add-ons (sold separately)
- Casters or open-frame base
- 24″ or 36″ flue riser with salamander/cheesemelter mounts
- Grooved or chrome-plated griddle surface
- Square belly bar or deeper 10″ front rail
- External pressure regulator & flexible gas hose kit
Oversized cookware (larger than 12″) should be kept to the rear burners to avoid excessive front-rail heat.
