Southbend (Middleby) P36D-BBC Platinum Gas Ranges
Description
Platinum Series 36" Heavy-Duty Gas Range
Model P36D-BBC | 4 Burners • 12" Charbroiler • Standard Oven • 217,000 BTUBring uncompromising power and versatility to your cook line with Southbend’s Platinum Heavy Duty Range. In just three feet of space you get four 35,000 BTU clog-free open burners, a 12" charbroiler for authentic flame-broiled flavor, and a full-size 45,000 BTU oven—all wrapped in rugged stainless steel and proudly made in the USA.
Top Reasons Chefs Choose Platinum
- 217,000 BTU total output keeps pace with high-volume service.

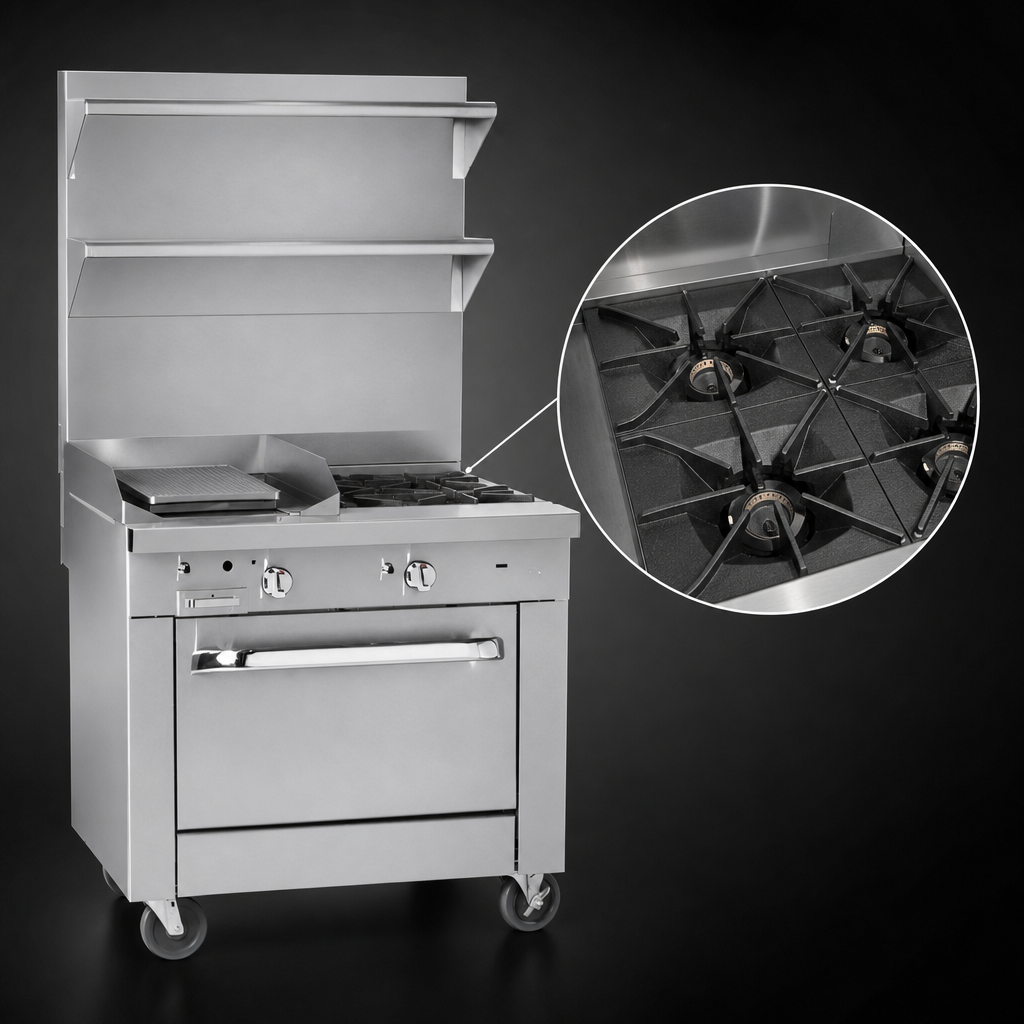

- Patented clog-free burners and welded steel grates handle the heaviest stock pots with ease.

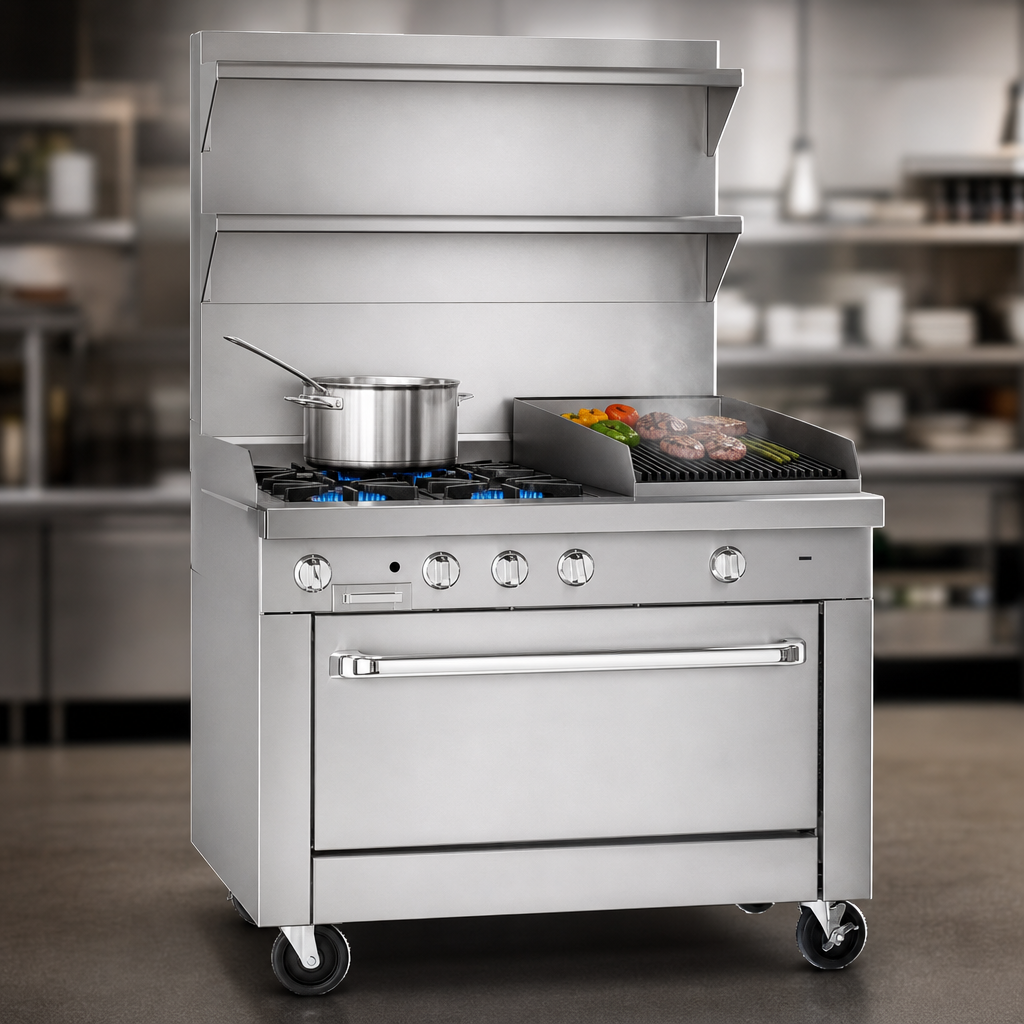

- 12" manual charbroiler uses stainless radiants & two 16 K BTU burners to hit 600 °F for perfect grill marks; reversible cast-iron grates offer ⅛" or ¼" grid.
- Full-size standard oven (14" H × 26" W × 26.5" D) fits sheet pans front-to-back; two chrome racks, five positions.
- All-stainless exterior—front, sides, rear & bottom—plus 6" adjustable legs for easy cleaning below.
- 1-¼" front gas manifold & 1" rear connection simplify battery lineups and flexible-hose installs.
- cCSAus, CSA Star & Flame, NSF listed for commercial kitchens.
Perfect For
- High-volume restaurants & hotel kitchens
- Institutional & corporate dining facilities
- Catering commissaries & ghost kitchens
- Any operation that needs broiling, sautéing, boiling & baking in one footprint
Key Specifications
| Cooktop | (4) 35 K BTU open burners + (1) 12" charbroiler (two 16 K BTU burners, manual control) |
|---|---|
| Total BTU | 217,000 BTU/hr (Natural or LP – field convertible) |
| Oven | Standard oven, 45 K BTU, 175 – 550 °F thermostat, (2) racks included |
| Oven Interior | 14" H × 26" W × 26.5" D, porcelain-enameled |
| Overall Dimensions | 36" W × 37-½" D × 45-½" H (to cook surface) + 5" flue riser |
| Gas Connection | 1-¼" front manifold coupling & 1" rear NPT |
| Construction | 304/430 stainless steel exterior, fully-insulated burner box |
| Adjustable Legs | 6" stainless steel |
| Shipping Weight | ≈ 570 lb |
| Warranty | 1-year parts & labor |
| Country of Origin | Made in USA |
Need a convection oven base, flue shelving, or casters? Contact us for factory-configured options and free battery-line design assistance.
• For commercial kitchens only—install under an appropriate vent hood and connect to a regulated gas supply.
• Avoid cookware larger than 12" over the front burners; oversize pots should be used on rear grates only.
• Do not place sheet pans on the charbroiler while burners are lit; excessive reflected heat can damage components.
Failure to follow these guidelines may void the warranty.
