Southbend (Middleby)  |  Platinum  |  SKU: P36D-BBB

Southbend (Middleby) P36D-BBB Platinum Gas Ranges

$11,362.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Product configurator Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

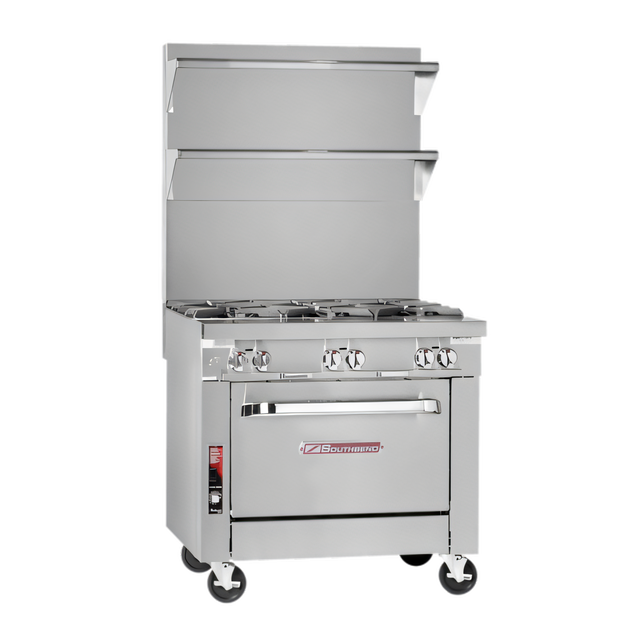

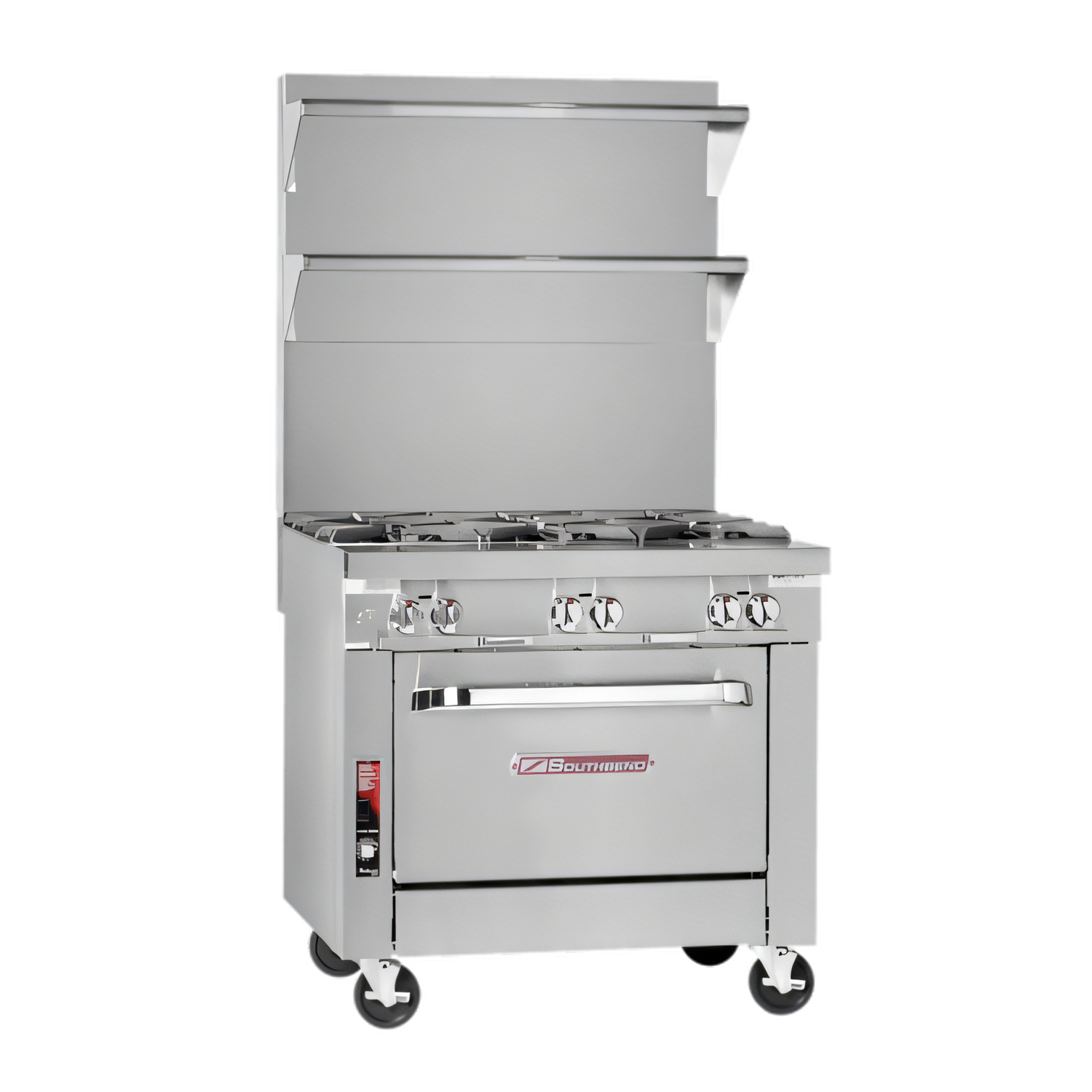

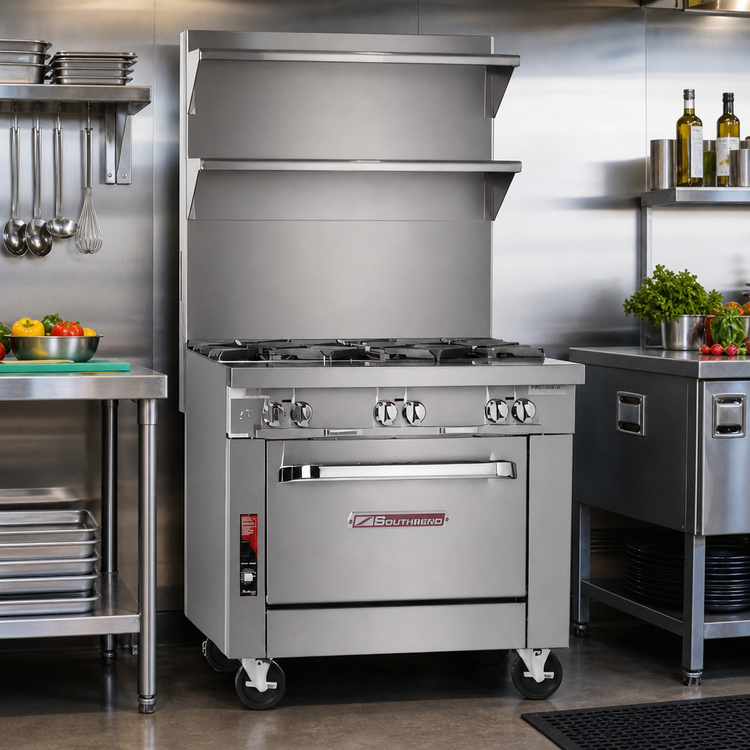

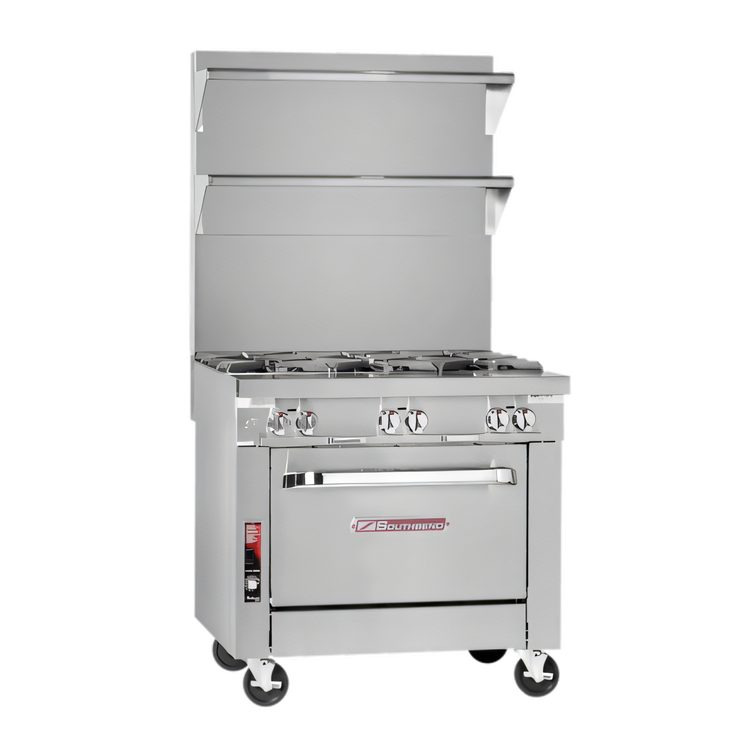

Southbend Platinum 36" Heavy-Duty Gas Range – 6 Burners / Standard Oven

Model P36D-BBB  |  255,000 BTU  |  CSA & NSF Certified

Engineered for the toughest commercial kitchens, the Southbend Platinum 36" sectional range delivers intense heat, rock-solid reliability, and the flexibility to anchor a full battery line. Six patented 35,000 BTU clog-free open burners sit above a high-performance 45,000 BTU standard oven—giving chefs the power to sauté, sear, boil and bake with unequalled consistency shift after shift.

Performance & Construction Highlights

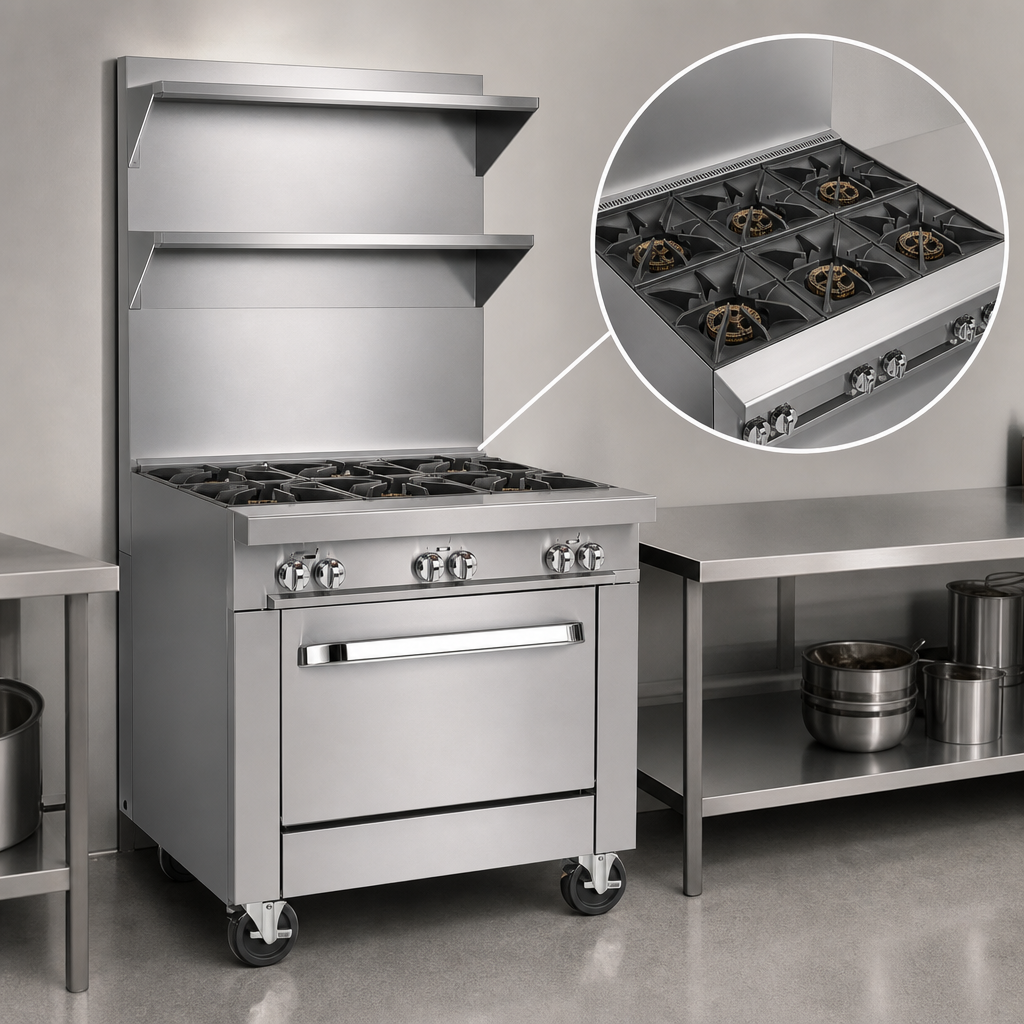

  • 6 × 35,000 BTU open burners with removable welded-steel grates for fast cleanup.

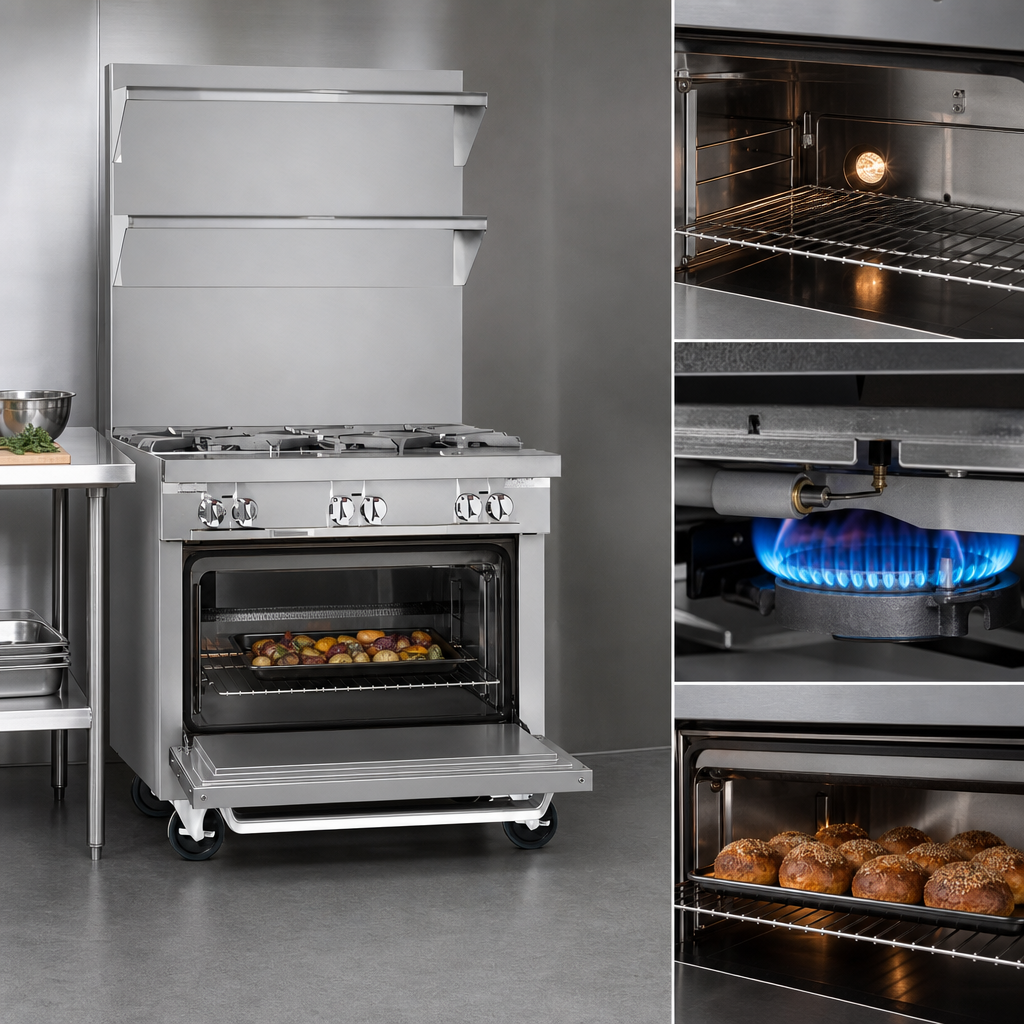

  • 45,000 BTU standard oven with porcelain enamel interior and “Insta-On” thermostat (175 °F – 550 °F).
  • Oven fits full-size sheet pans either direction; includes 2 racks with 5 rack positions.
  • 9 ¼" deep front rail plus full-width drip tray keep the work area tidy.
  • #3 polished stainless steel front, sides, rear and exterior bottom withstand daily abuse.
  • 5" stainless flue riser and fully insulated burner box improve kitchen comfort.
  • 1 ¼" front gas manifold couples to adjacent Southbend sectional units; 1" rear NPT connection.
  • 6" stainless steel adjustable legs for quick leveling on uneven floors.

Key Specifications

Overall width 36"  (914 mm)
Overall depth 40"  (1 016 mm) to front rail
Cooking surface height* 34"  (864 mm) + 5" flue riser
Open burners 6 × 35,000 BTU (natural or LP)
Oven power 45,000 BTU standard oven, standing pilot
Total input 255,000 BTU/hr
Oven interior (W × D × H) 26" × 26.5" × 14" (660 × 673 × 356 mm)
Racks supplied / positions 2 racks / 5 positions
Gas connection 1" rear NPT  |  Min. 7" W.C. NAT  /  11" W.C. LP
Shipping weight ≈ 706 lb (320 kg)
Certifications CSA  |  NSF
Warranty 1-year parts & labor

*Dimensions & weights have ±1" tolerance per manufacturer.

Popular Factory Options

  • 24" or 36" flue riser with single or double shelves
  • Locking front casters with restraining cable
  • Electronic spark ignition (open burners and/or oven)
  • Stainless steel oven interior
  • Salamander or cheesemelter mount on 36" flue riser
Important: This appliance is for commercial use only and must be installed under a properly sized, vented hood by a qualified technician. When using cookware 12" or larger, place it on the rear burners to prevent heat damage to the front rail and controls.

Maximum 2 units per online order. For larger projects or battery configurations, contact our food-service team for a custom quote.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Platinum

Certifications

NSF, CSA

Height

41.0in

Width

36.0in

Depth

37.5in

Shipping Weight

520.0lbs

Base

(1) standard oven

Exterior Finish

stainless steel front & sides

Top

(6) open burners

Specifications

Platinum Heavy Duty Range, gas, 36", (6) 35,000 BTU open burners, manual controls, (1) standard oven, includes (2) racks, stainless steel front, sides, exterior bottom & 6" adjustable legs, 255,000 BTU, CSA, NSF
