Southbend (Middleby) P36C-XX Platinum Gas Ranges
Description
Southbend Platinum 36" Heavy-Duty Gas Range – 4 Open Burners & Cabinet Base
Model P36C-XX | 180,000 BTUDesigned for high-volume kitchens that refuse to compromise on power or durability, the Southbend Platinum Series P36C-XX packs 180,000 BTU of Pyromax™ performance into a 36 inch frame. Four clog-free 45,000 BTU open burners sit above a full stainless cabinet base, giving chefs the ability to simmer, sauté, boil and store—all in one rugged, easy-to-clean range.
Key Advantages

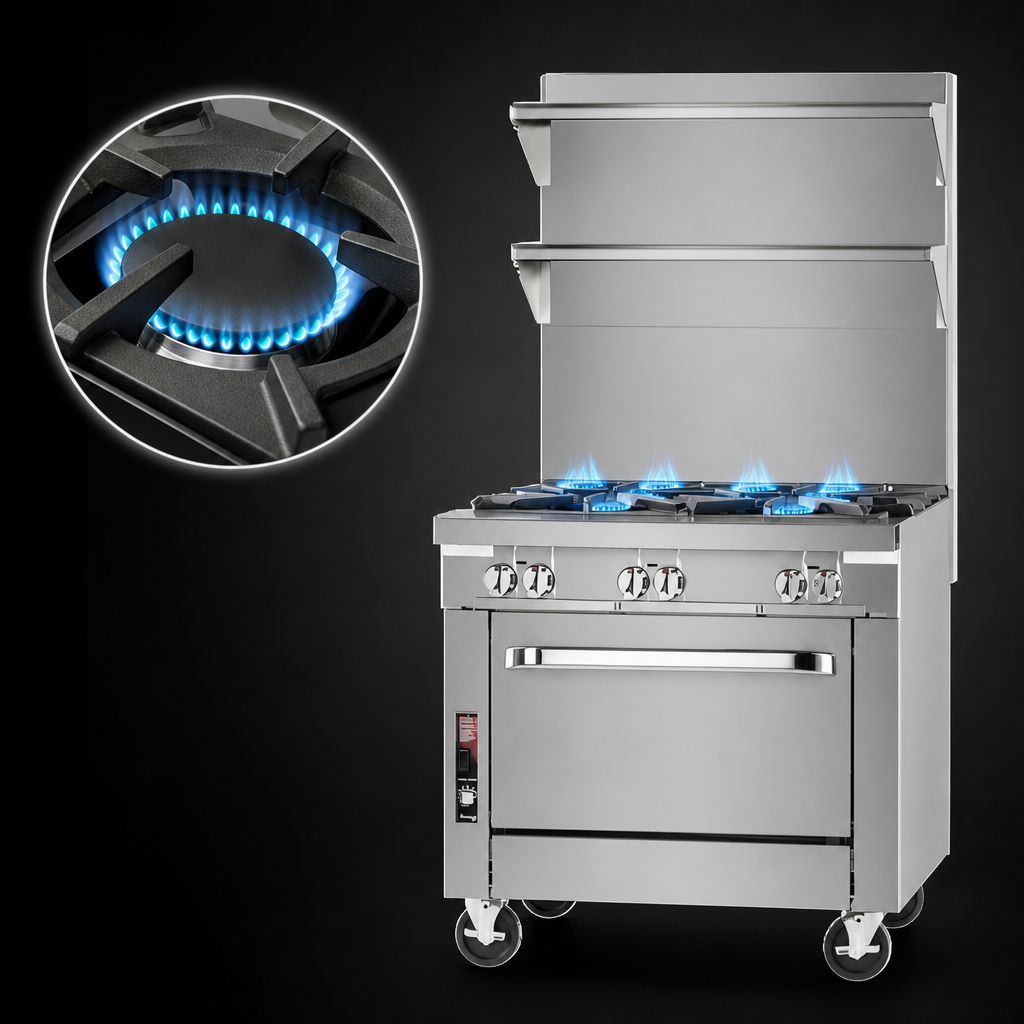

- Four patented Pyromax™ 45,000 BTU open burners stay clog-free for consistent flames.
- Manual infinite-control valves provide instant heat response.
- Removable welded-steel top grates and extra-deep drip tray simplify cleanup.
- 9-¼ inch deep stainless front rail protects operators and keeps pans stable.
- Full stainless steel exterior (front, sides, rear & bottom) withstands daily abuse.
- Insulated burner box retains heat while keeping the kitchen cooler.
- 5 inch stainless flue riser channels flue gases safely to the hood.
- Stainless cabinet base with center-opening doors stores stock pots, sheet pans and more.
- 6 inch adjustable stainless legs level the unit on uneven floors.
- Free battery-design assistance from Southbend engineers.
Performance You Can Count On

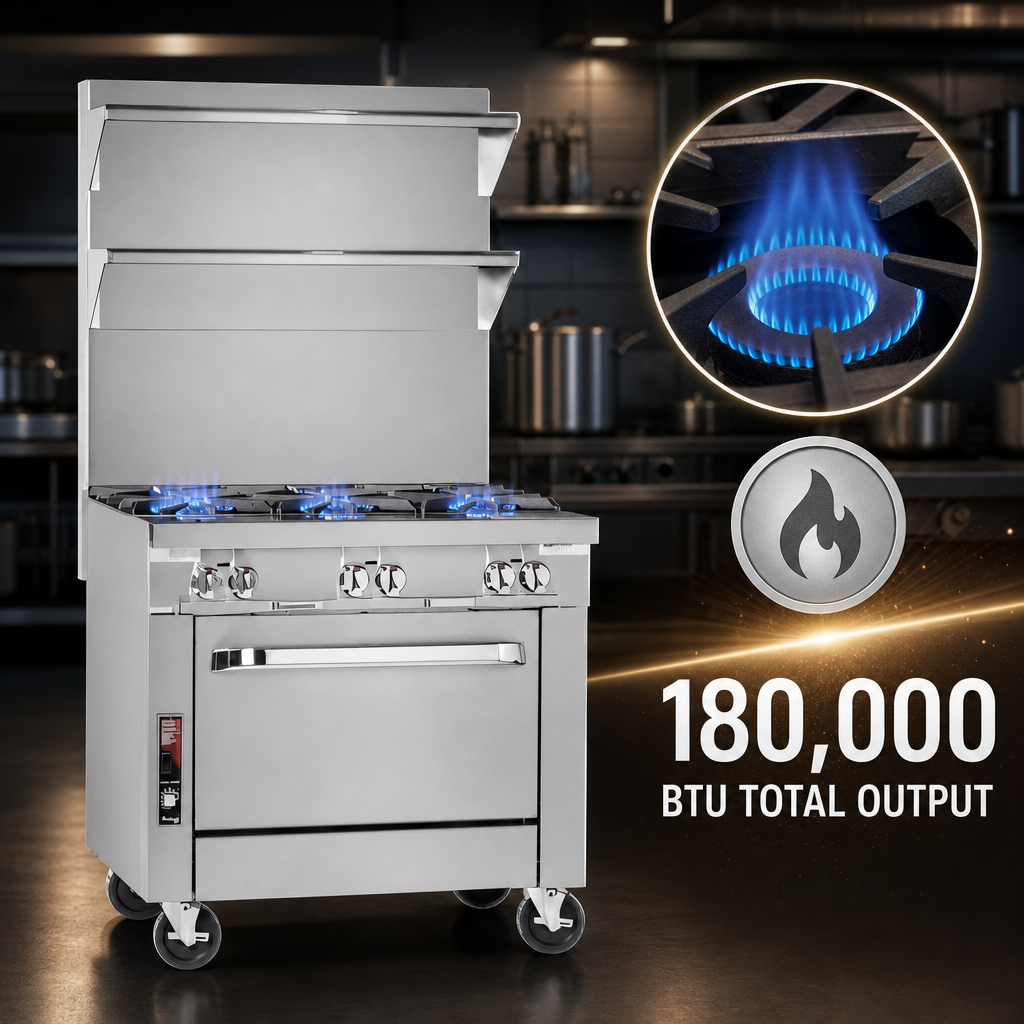

- Total Output: 180,000 BTU/hr (Natural or Propane)
- Front gas manifold 1-¼" plus rear 1" NPT connection for easy line-ups.
- Minimum supply pressure: 7" W.C. Natural, 11" W.C. Propane.
- Zero clearance to non-combustible surfaces; 13" side / 6" rear to combustible.
Specifications
| Gas Type | Natural or Propane (field convertible) |
|---|---|
| Total BTU | 180,000 BTU/hr |
| Open Burners | 4 × 45,000 BTU Pyromax clog-free burners |
| Controls | Manual |
| Base Configuration | Stainless steel cabinet with removable double doors |
| Exterior Finish | 430 & 304 stainless steel – front, sides, rear, bottom |
| Standard Flue Riser | 5 in (127 mm) stainless steel |
| Front Rail Depth | 9-¼ in (235 mm) |
| Overall Dimensions | 36"W × 37-½"D × 34"H* (914 × 953 × 864 mm) *Height to cook surface; add 5 in for flue riser. |
| Shipping Weight | Approx. 490 lb (222 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Popular Options & Accessories (sold separately)
- External gas pressure regulator
- Front rail cut-outs for sauté pan handles
- 7-¼" deep front rail with square belly bar
- 24" or 36" high flue riser with single or double shelves
- Open-frame base with casters for battery line-ups
- Removable cast-iron grate tops for cabinet interior
Need a custom battery configuration or help with utility rough-ins? Contact our foodservice design team and we’ll configure the perfect Southbend Platinum line-up for your operation.
